a0 auto mimaki contour WIFI cutting plotter machine with Camera Price hobby ploter de corte graphtec vinyl plotter cutter

1) Dual heads cutting for plotting&cutting with one step

2) Cutting force Max 2000 g, Support Cutting force test and adjsut

3) Camera/Scanner + ARM 7.0+8MB Cache+4.3" Full Touch Screen

4) USB, U disk connection. WIFI, Mobile APP optional

5) Dual spring wheel pinch, high precision steel roller

6)Multi language, SignMaster Cut Software, Stand available

7)Support Contour cutting, Repeat Cutting, Auto Calibrating offset value

Specification for 24 Single head cutting plotter
Model	MM-VAH24-W-SA
Acceptable media width	720 mm
Max cutting width	630 mm
		24 inch
Cutting head	Single
Camera/Scanner	Support
Auto Contour cutting	Fast ,automatic and high precision contour cut by using camera.
Operation	4.3" TFT LCD Large touch screen
Interface	HD large screen full-color APP information function display
Connector	USB, U disk, WIFI
Contour cutting & calibration	Easy use and high precision calibrate
Mainboard	32bit ARM cortex M4 MCU,8M memory. Support remote one key update.
Location mode	Bound system. set origin freely
Driver	Digital DC stepper motor,microstep driving
Command	HP-GL, DMPL
Max moving speed	960mm/s
Max cutting speed	750mm/s
Max cutting thickness	1mm
Force	Single head: 50g~2000g ( 160 setting adjustable )
Cutting precision	< 0.01mm
Repeat precision	0.082mm
Power supply	AC100~240V/50Hz~60Hz
Working environment	+5℃~ +45℃，relative humidity 30%~70%
Color	White/black/red（optional）
Bracket	Optional
Size	1000 x 375 x 370mm
Packing G/N weight	16.8 / 14kg
Software	SignMaster Cut / Flexi / Signcut / CorelDRAW driver
Operation system	Windows 2000 / XP / 2003 / win7 / 2003 / win7 /win10
		MAC OSX10.2.8 or above

Product Application

Plotter Advantages

Detailed Images

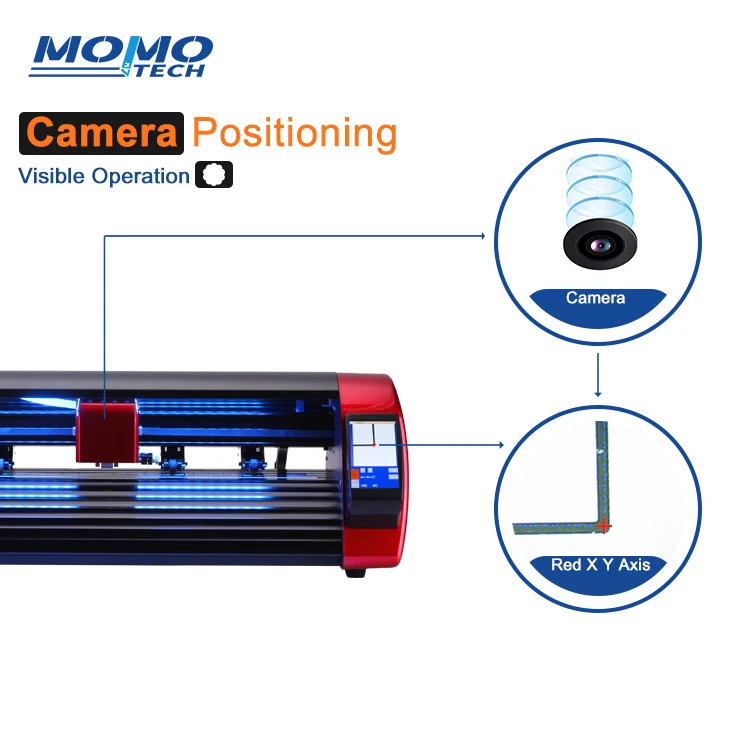

Camera/Scanner + ARM 7.0

It can Automatic Registration Mark Detection to swift Automatic Contour cutting, and Automatic Calibrating offset value, Automatic Repeat Cutting. Support remote one-key upgrading.

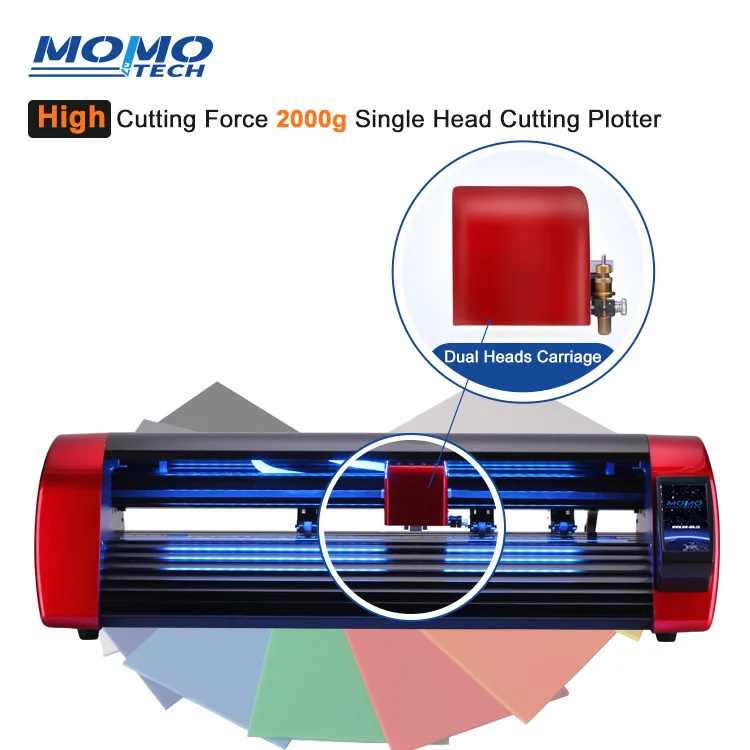

Dual heads/Tools Cutting Optional

To enhance efficiency and make work easily, we design dual heads/tools support automatic switch between plotting&cutting, or half cutting&die cutting at the same time.

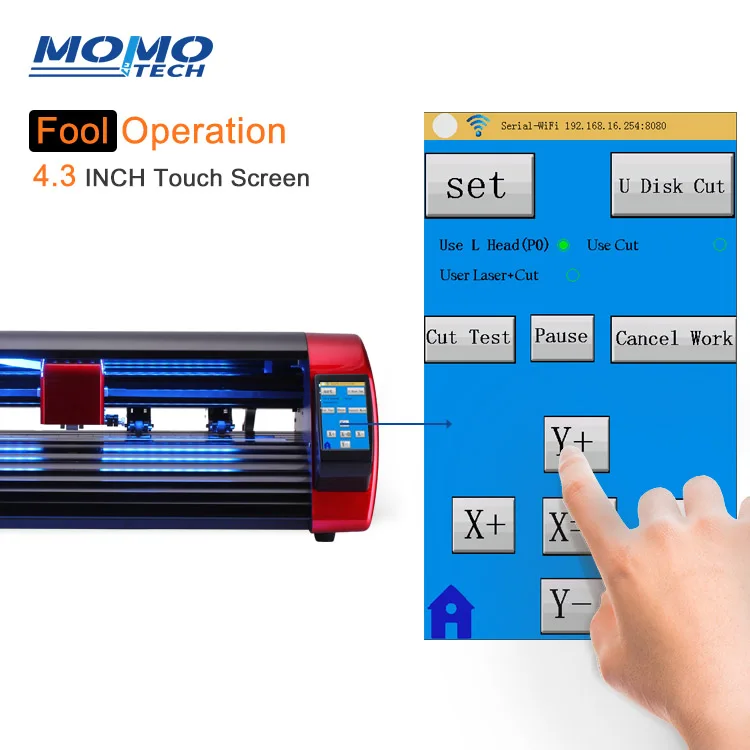

4.3 inch Large Touch Screen

Settings can be easily set up using the large 4.3-inch LCD

Usb, U disk, WIFI, Mobile App

Multi-way to meet more demand.

USB plug&play, no need USB driver

U disk support offline cutting

WIFI stable than bluetooth

Mobile App remote data transmit for cutting

Our Advantages

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
