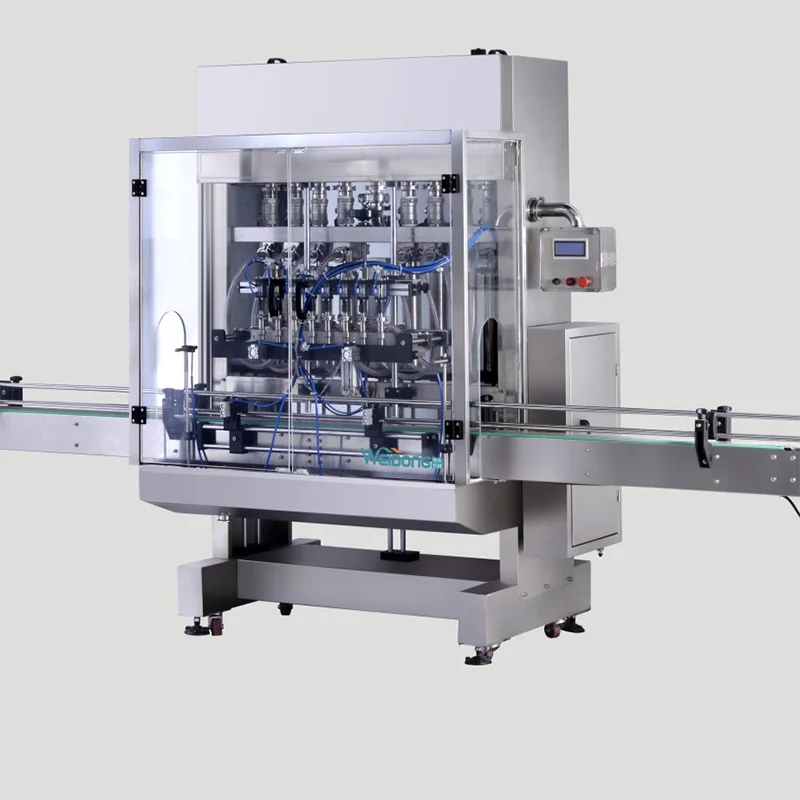

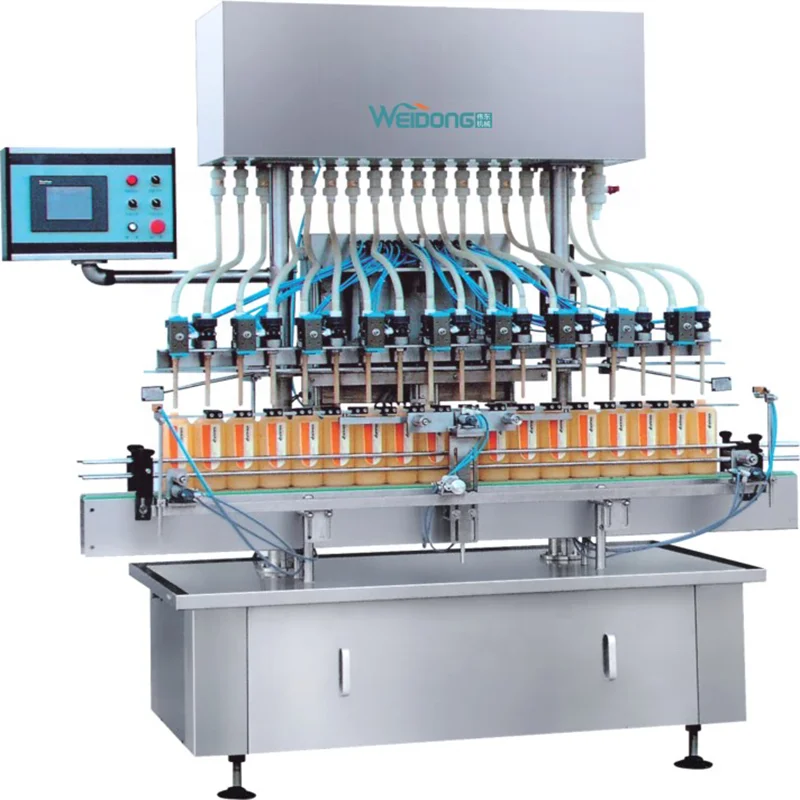

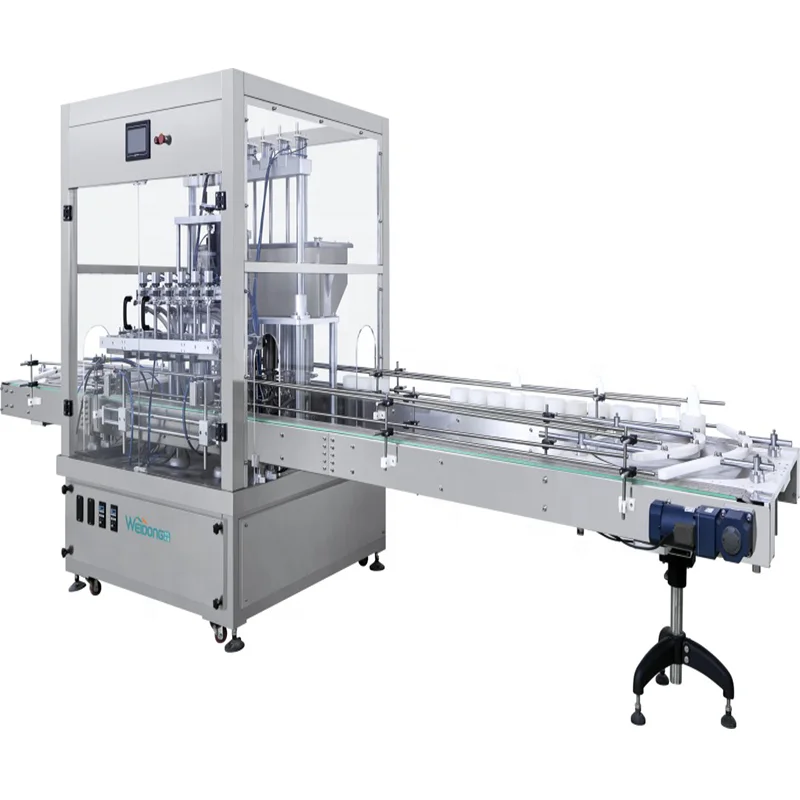

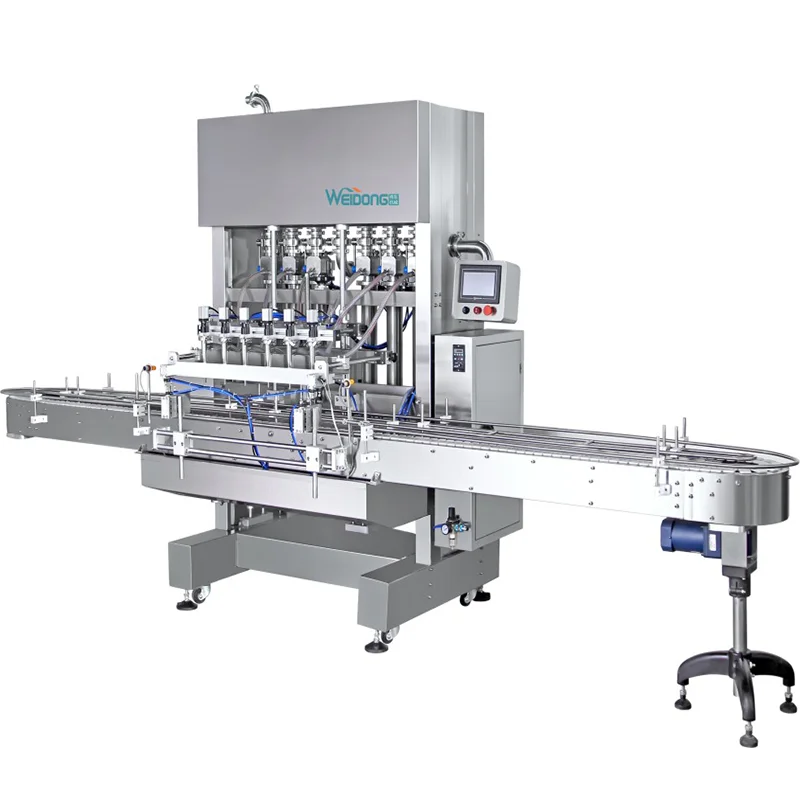

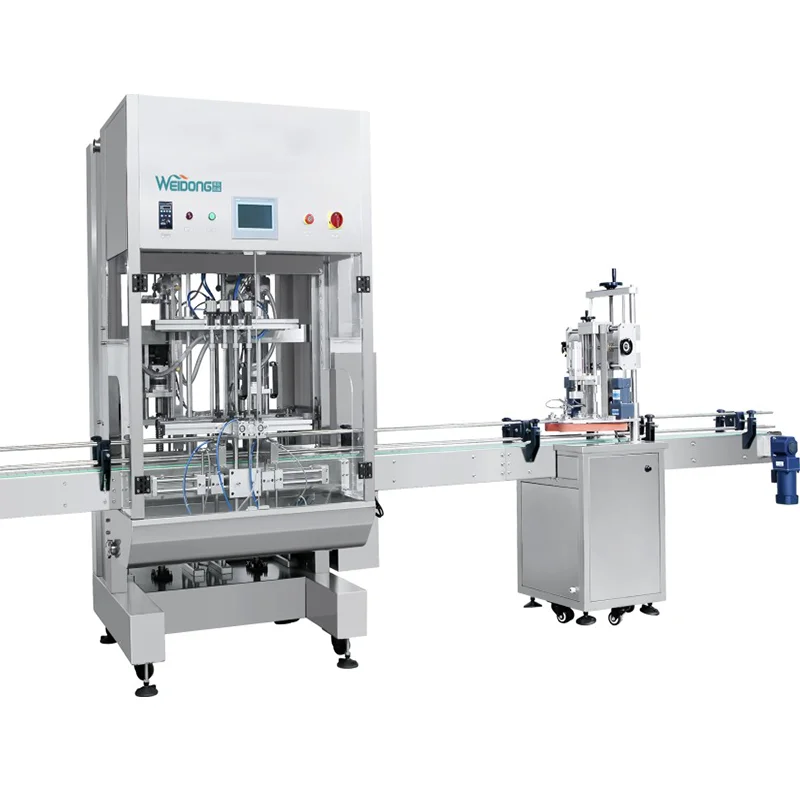

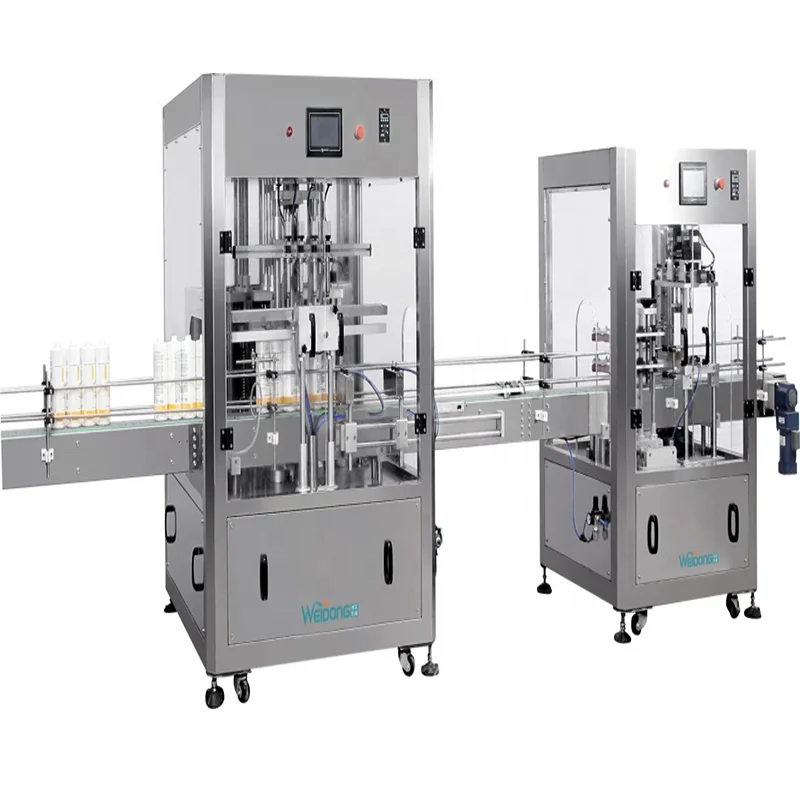

Automatic Multiple 4 6 8 10 Filling Heads Nozzles Linear Straight Line Piston Shampoo Liquid soap Cosmetic Filling Machine

Product Overview

Description

products description :



 Use

this series filling machine are suitable for filling cream,ointment,lotion,shower gel,and liquid products etc.

The machine can be used for traditional cylinder filling power,also can adopt servo motor as power filling.

Compared with the traditional cylinder,servo motor filling accuracy is higher,the accuracy can reach<±0.5%,it has the characteristics of high efficiency,high precision,high hygiene standards.

Technical parameter :



Filling volume	Filling speed	Filling precision	Productivity	Air source pressure
10-50ml	adjustable	≤±0.3%	2000-3000b/h	0.4-0.8MPa
30-150ml	adjustable	≤±0.3%	1800-3000b/h	0.4-0.8MPa
50-300ml	adjustable	≤±0.3%	1800-2500b/h	0.4-0.8MPa
100-500ml	adjustable	≤±0.3%	1200-2000b/h	0.4-0.8MPa
200-1000ml	adjustable	≤±0.3%	1000-2000b/h	0.4-0.8MPa
