Multifunctional water filling machine taiwan with high quality
- Category: >>>
- Supplier: Zhangjiagang Jiayuan Machinery Co. Ltd.
Share on (60683320187):
Product Overview
Description
Parameter
| Machine Name | Hot Sale Non Carbonated Water Filling Machine |
| Machine model | CGF18-18-6 |
| Capaity | 4000-6000bph for 500ml |
| Rinsing Pump power | 0.37KW |
| Filling Pump power | 0.75KW |
| Cap unscrambler motor | 0.37KW |
| Capacity | 4000-6000bph for 500ml |
| Suitable bottle size | 250ml-1500ml |
| Suitable bottle diameter | 50-90mm |
| Suitable bottle height | 150-310mm |
| Total Power | 4.49KW |
| Main electrical components | Siemens Brand |
| Product Keywords | water filling machine turkey |
Product Description
CGF Series 3in1 unit water filling machine is mainly used for filling none-carbonated beverage such as mineral water, pure water,wine,alcohol,fruit juice, The machine is most applied for plastic PET bottle, it can be easily adjusted to fill various shape and volume of bottles,
The machine combines washing unit, filling unit, capping unit in one machine, it can fulfill the washing, filling capping automatically, Bottles are fed into the washing machine in order by conveyor, then the bottles are turned over and washed inside by the nozzles. After dripping in line, bottles will be fed to the filling machine automatically to fill liquid with high speed and fixed quantity. After that, the filled bottles will be capped by the automatic capping machine and then be transported to the labeling and packing process,
The machine adopt normal pressure filling, the filling operation is faster and liquid level is precise and accurate,
Machine Details

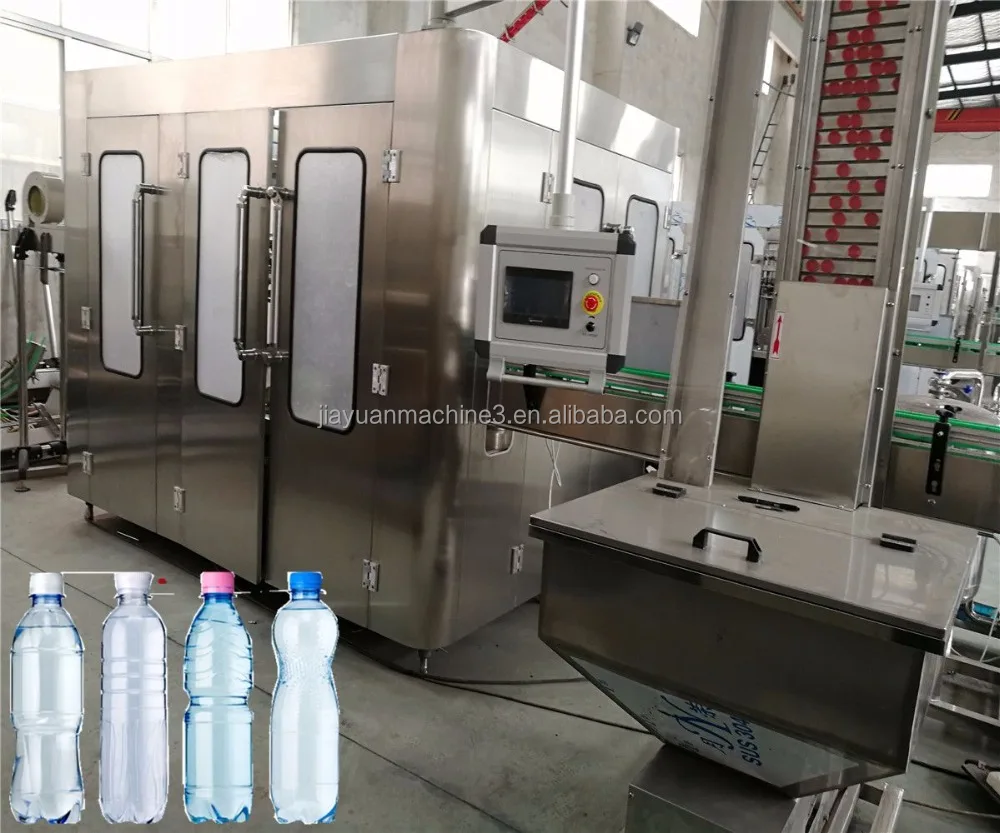

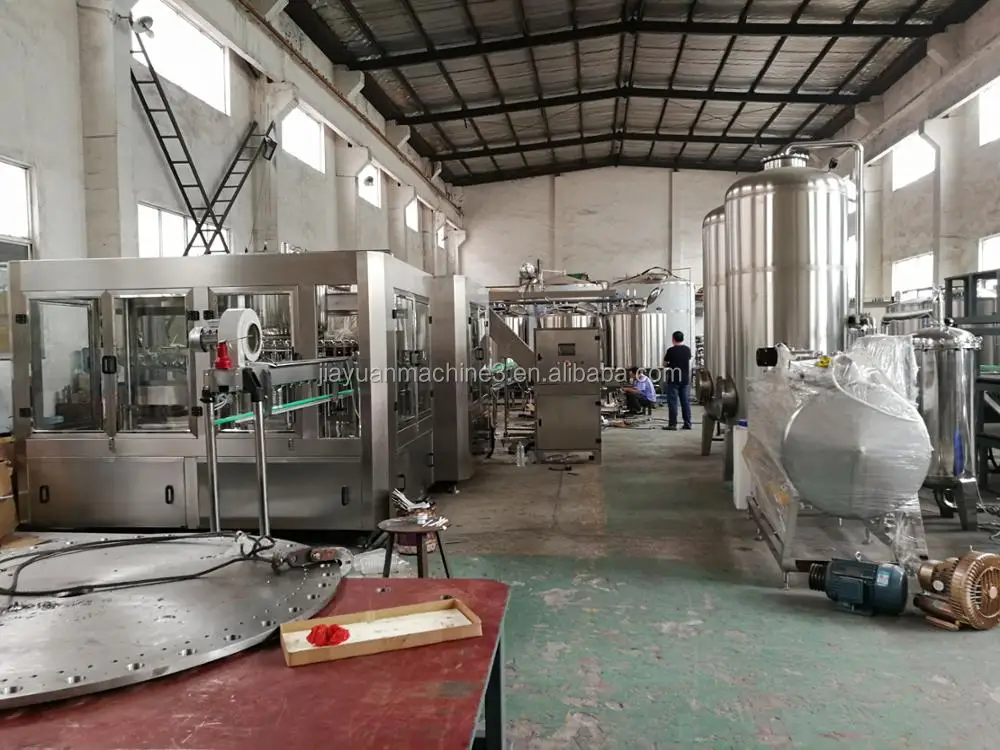

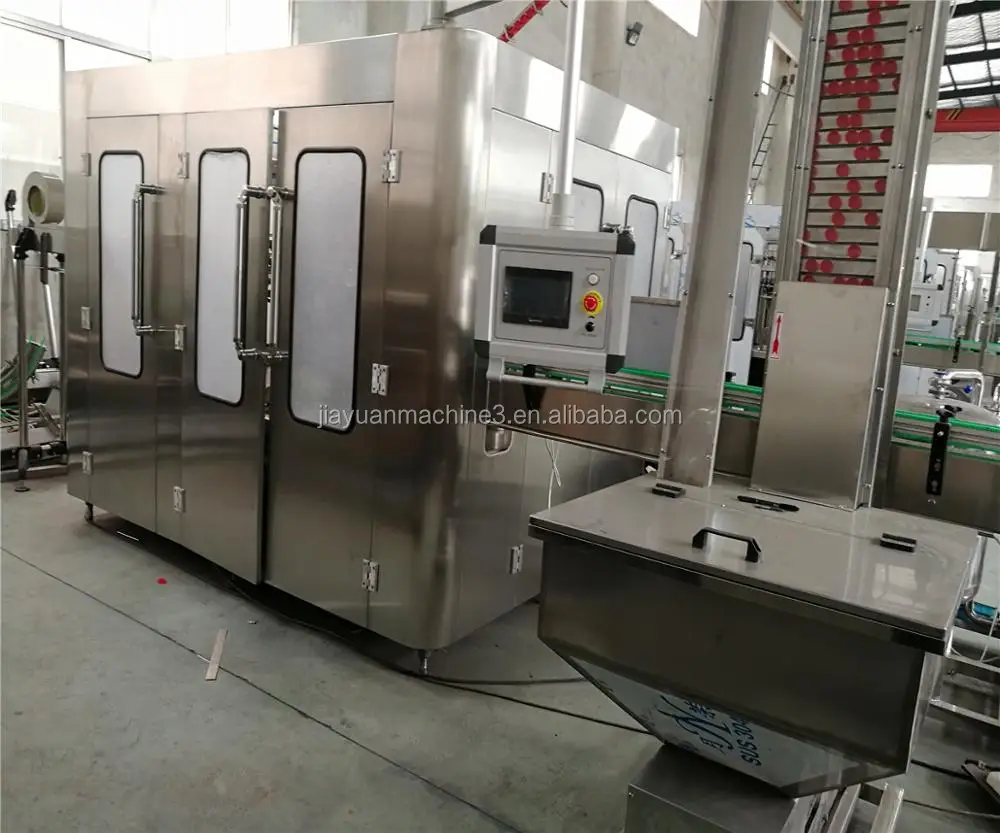

overall look

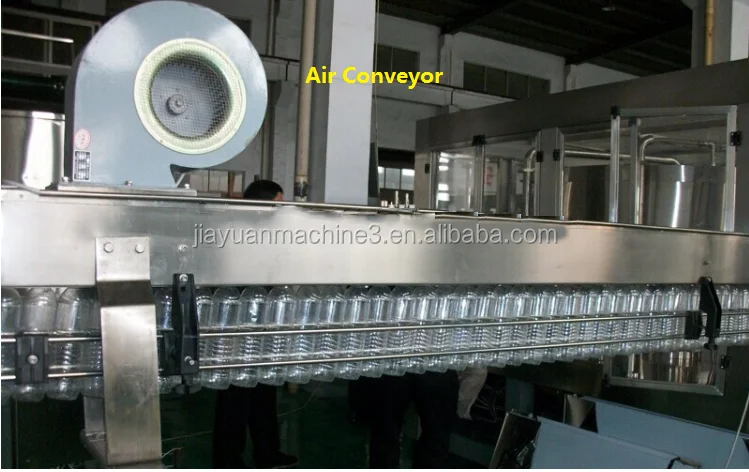

air conveyor

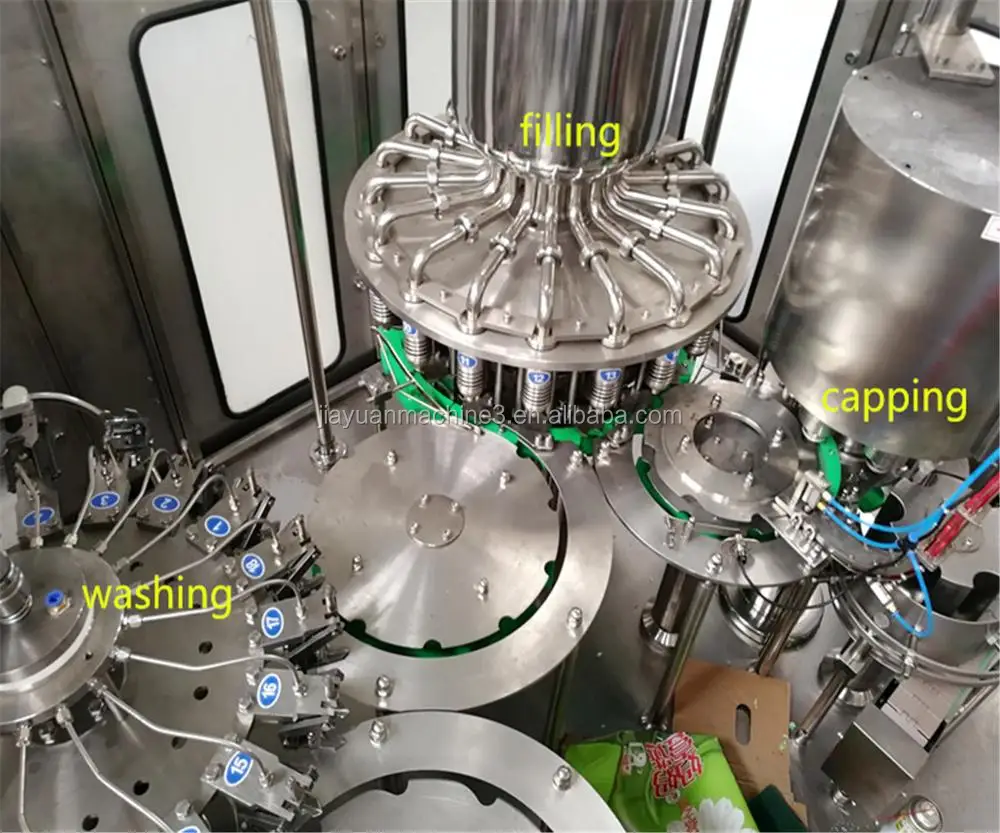

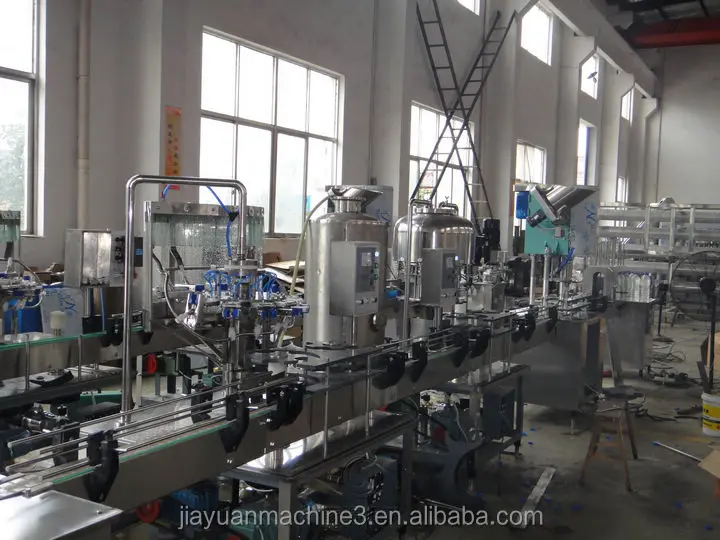

inner look

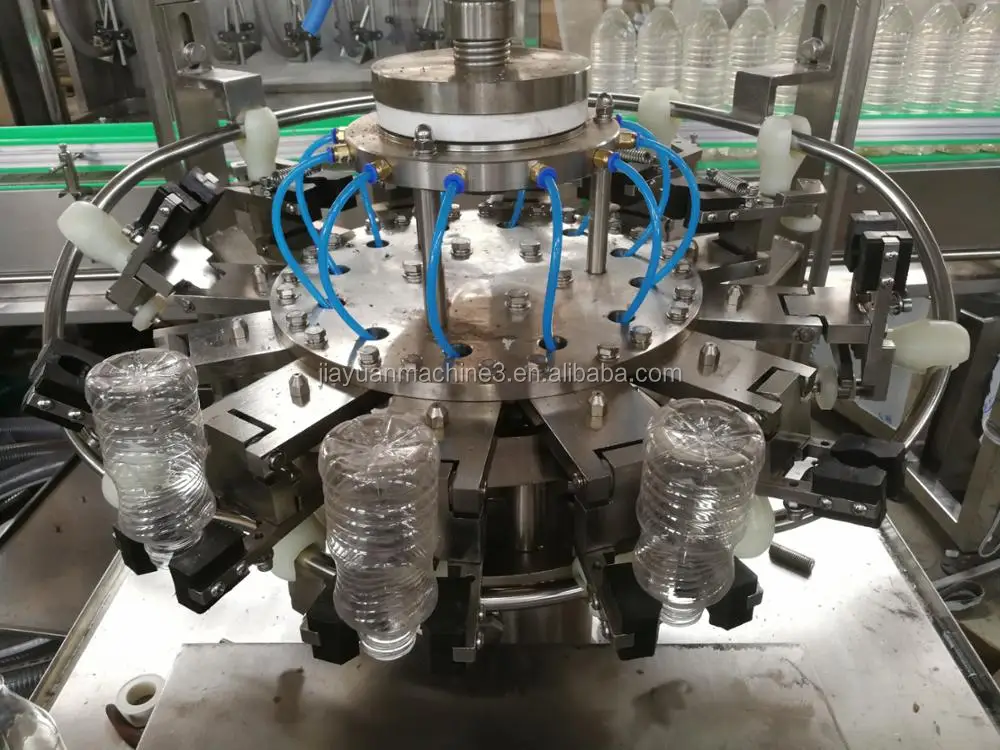

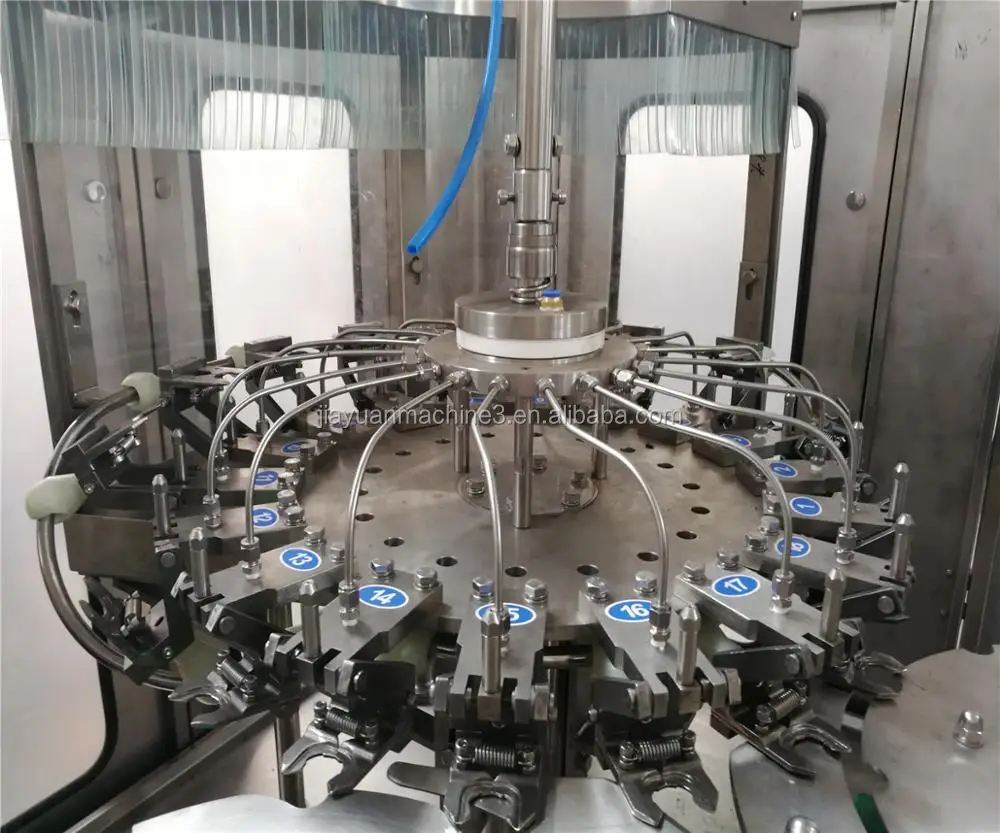

Bottle Rinser

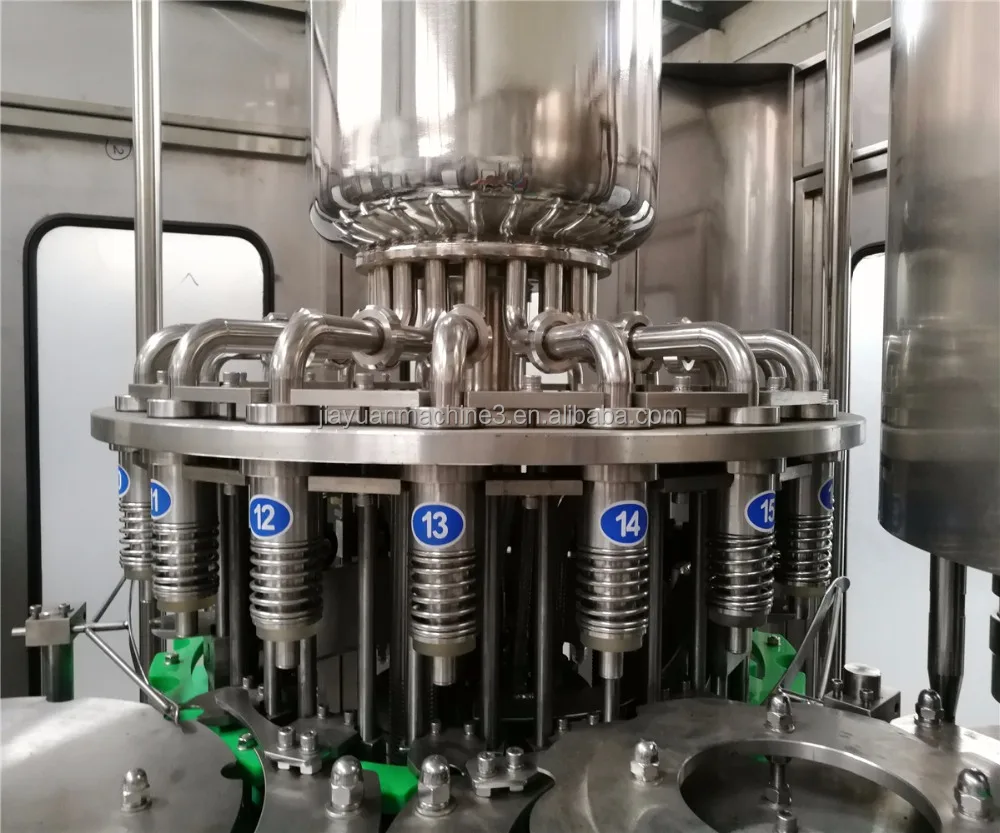

Bottle Filler

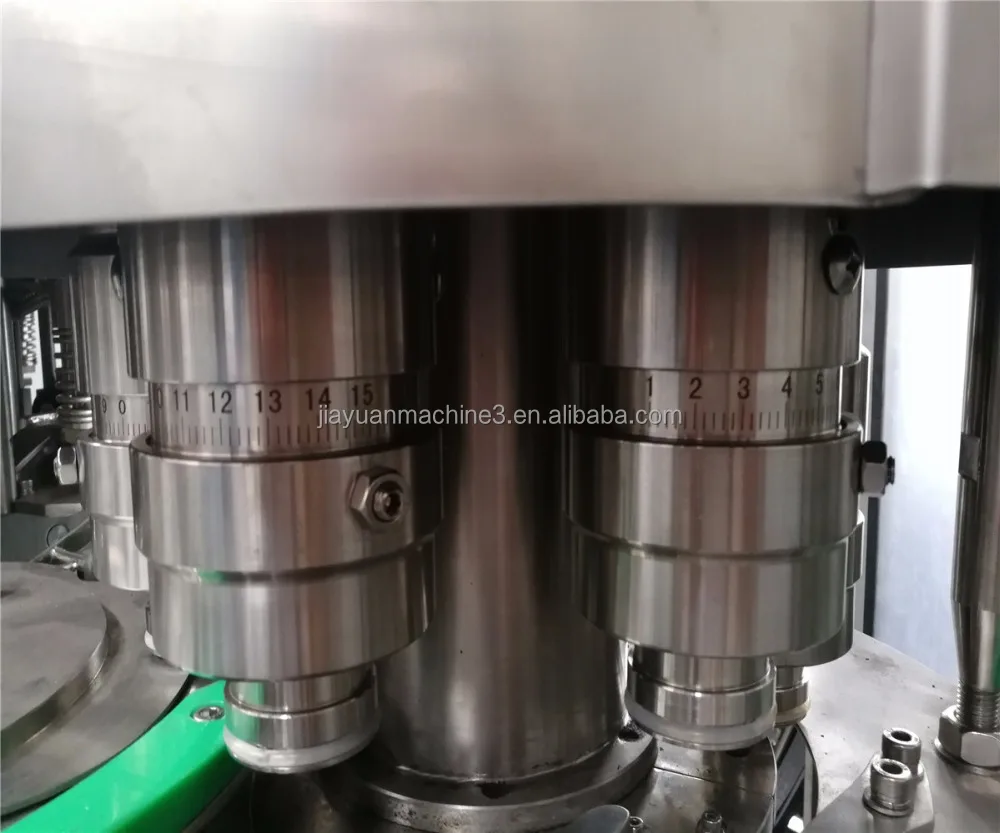

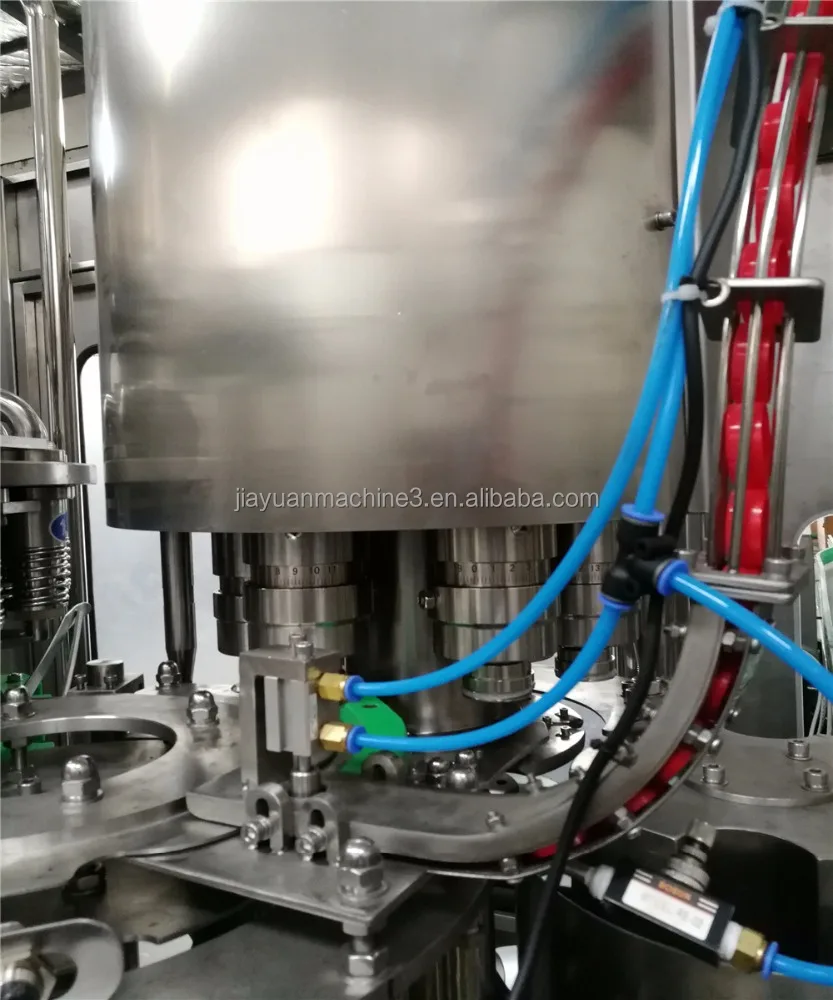

Bottle Capper:

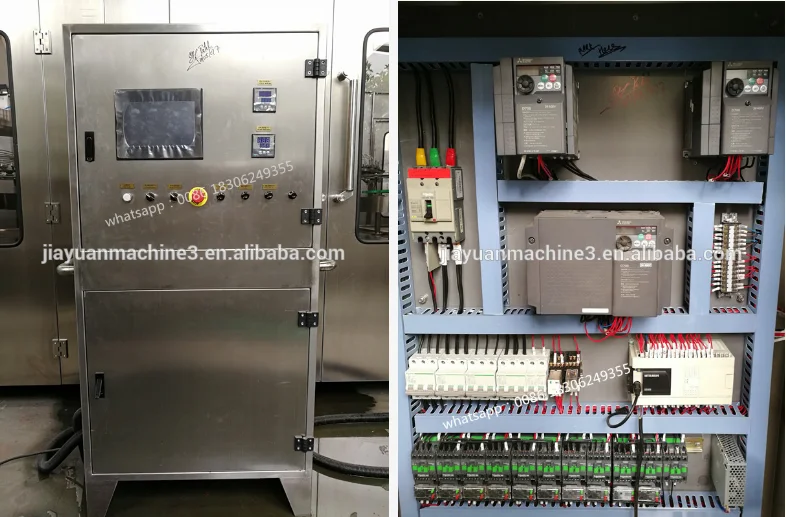

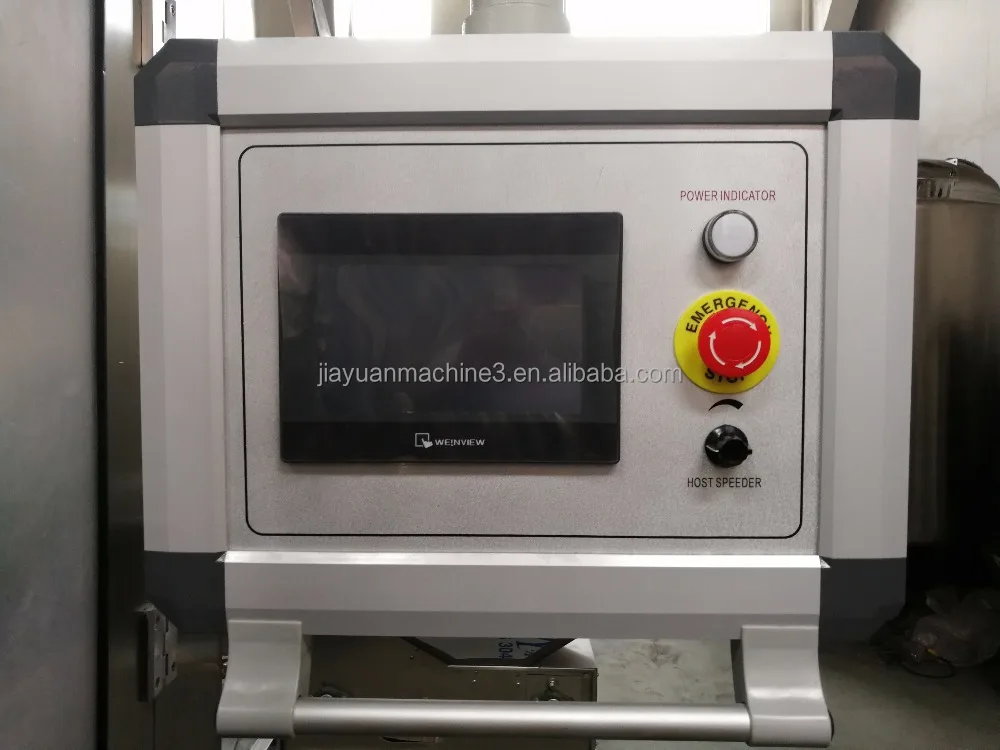

electrical parts
Flow chart:
Raw water tank—raw water pump—multi-medium filter--active carbon filter –water softner (Sodium Ion Exchanger)—precision filter—RO mainframe(including chemical cleaning device)—ozone generator—finished product water tank
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\\'s Mitsubishi, France Schneider, OMRON.
Company Information
We are the real factory in China which produces filling machine and package machine and other auxiliary equipment professionally.
We can provide beverage production line as below:
1. bottling minereal/pure water production line;
2. barrel mineral/ pure water production line
3. bottling carbonated beverage production line (like coca cola);
4. bottling juice production line;
5. canning beverage production line;
6. glass bottle beer production line;
7. milk/tea filling&package line;
8. oil filling&package line;
certificate
FAQ
1.Q : If you buy our machines , can you offer us wear-out spare parts?
A : No problem ! We will offer you 1 year free wear - out spare parts . As well as 1 year warranty . Once your machines broken or doesn't work within 1 year our engineers will go to your factory (company limited) to solve it . Meanwhile they will teach you the related experiences for fixing .
Q1: How is the machine quality, why I want to choose your machine.
A1: We have machine process in our factory, operation video, and if you want to, we can send oversea technician to fix your problem, just inform us (14 working day in adavance).
Q2: How we can get the spare parts?
A2: Depends on the valve, we will provice free spare parts one set, and we have list for Electrical elements,
you can get from us, or the match model in your country.
Related Products
if your capacity is less than 2000bph, you can select the below (pls click it):
2000bph small capacity water bottling machine

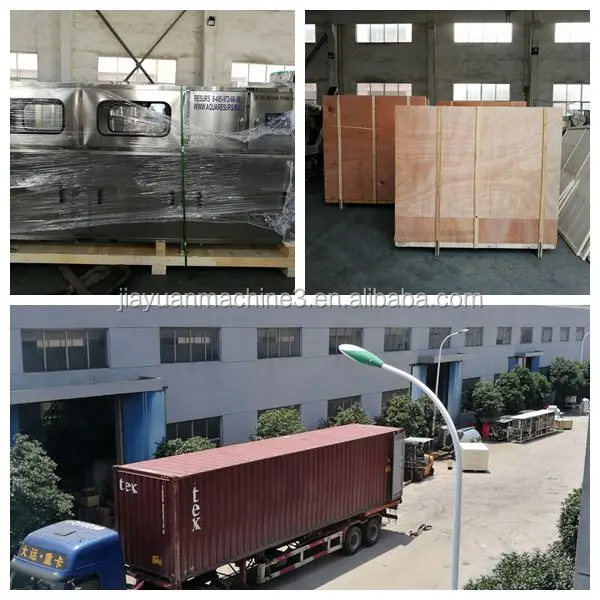

Packaging & Shipping
