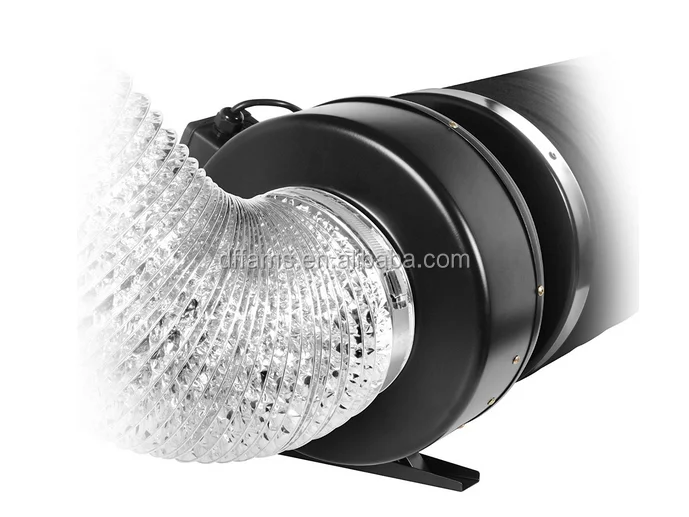

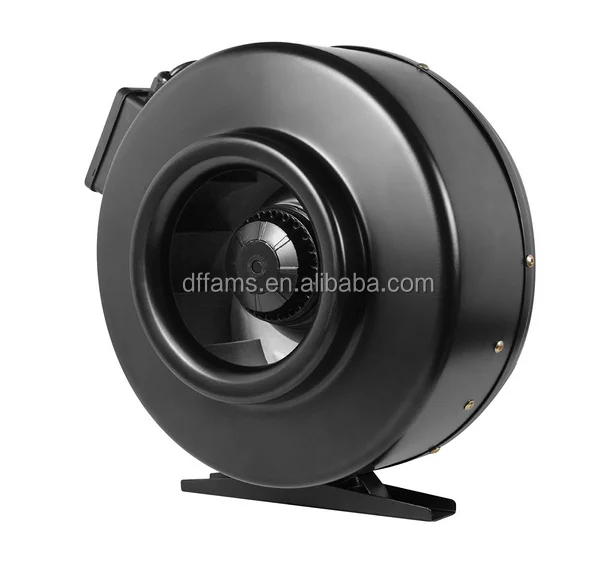

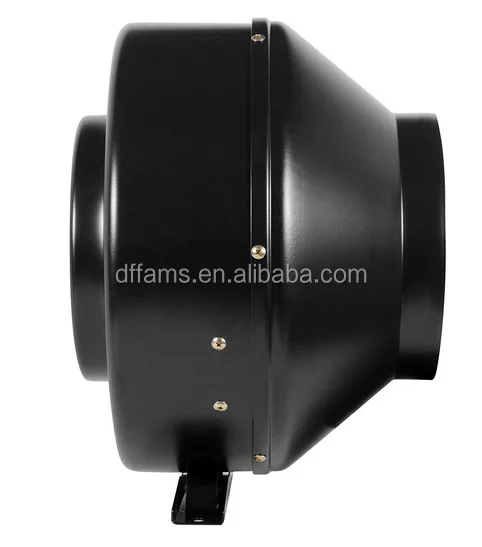

8 Inch Duct Inline Fan, 677 CFM, Strong Centrifugal Metal Duct Fan with Built In Motor Speed Controller
- Category: >>>
- Supplier: Taizhou Defeng Mechanical And Electrical Co. Ltd.
Share on (60683367644):
Product Overview
Description

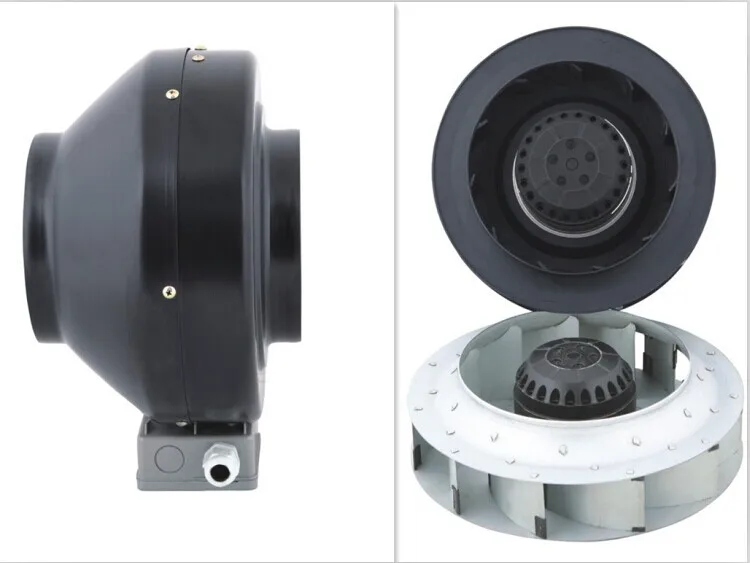

8 Inch Duct Inline Fan, MDF Series, 677 CFM, Strong Centrifugal Metal Duct Fan with Built-In Motor Speed Controller
Product Description
Model
| Voltage (v) | Frequency (Hz) | Power (W) | Current (A) | Speed (RPM) | Air Flow m³/h | Noise dB | Pressure Pa | IP Degree
| Weight Kg |
GDF100 | 110/120 | 60 | 70 | 0.61 | 2700 | 345 | 49 | 350 | 44 | 3 |
GDF125 | 110/120 | 60 | 75 | 0.65 | 2700 | 430 | 49 | 380 | 44 | 3 |
| GDF150 | 110/120 | 60 | 130 | 1.0 | 2650 | 700 | 50 | 430 | 44 | 4 |
| GDF160 | 110/120 | 60 | 135 | 1.1 | 2650 | 730 | 50 | 450 | 44 | 4 |
| GDF200 | 110/120 | 60 | 200 | 1.7 | 2650 | 1150 | 53 | 550 | 44 | 4.5 |
| GDF250 | 110/120 | 60 | 210 | 1.8 | 2550 | 1200 | 53 | 600 | 44 | 5 |
| GDF315 | 110/120 | 60 | 250 | 2.0 | 2550 | 1800 | 53 | 790 | 44 | 5.5 |
Model
| Voltage (V) | Frequecy (Hz) | Power (W) | Current (A) | Speed (RPM) | Air Flow m³/h | Noise dB | Pressure Pa | IP Degree
| Weight Kg |
| GDF100 | 220/240 | 50 | 60 | 0.26 | 2550 | 300 | 48 | 300 | 44 | 3 |
| GDF125 | 220/240 | 50 | 62 | 0.27 | 2550 | 370 | 48 | 330 | 44 | 3 |
| GDF150 | 220/240 | 50 | 100 | 0.47 | 2550 | 620 | 49 | 355 | 44 | 4 |
| GDF160 | 220/240 | 50 | 105 | 0.48 | 2550 | 660 | 49 | 380 | 44 | 4 |
| GDF200 | 220/240 | 50 | 150 | 0.7 | 2500 | 1000 | 52 | 430 | 44 | 4.5 |
| GDF250 | 220/240 | 50 | 160 | 0.71 | 2500 | 1100 | 52 | 490 | 44 | 5 |
| GDF315 | 220/240 | 50 | 220 | 1.0 | 2450 | 1600 | 53 | 710 | 44 | 5.5 |
1.The Voltage of the fan is 110-120V,60Hz or 220-240V,50/60Hz.
2.Leather Jacket: It is Desinged by our factory to lower noise,and it also could be air proof and rust proof.
3.Fan Mounted Feet: There are various kinds according to customer's request.
4.Colour:Orange Black Ash,Black,Sliver,White,Red,Blue,Etc

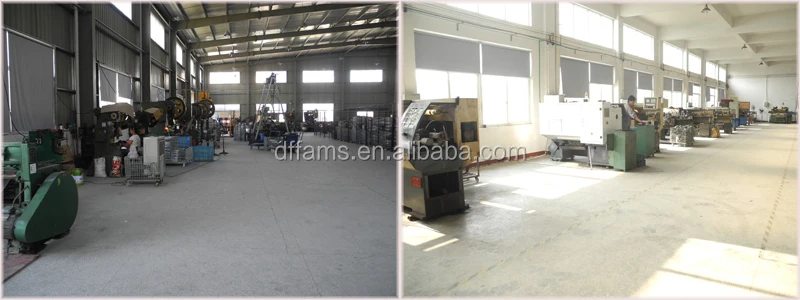

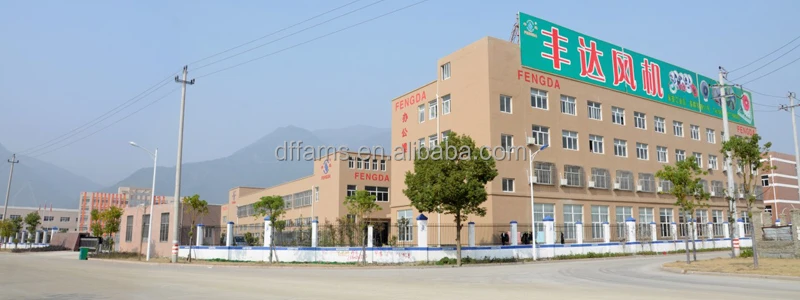

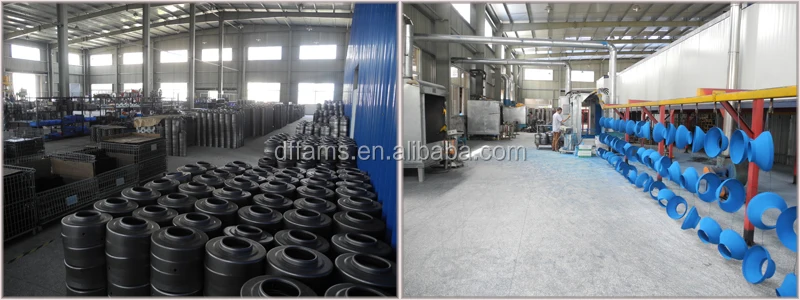

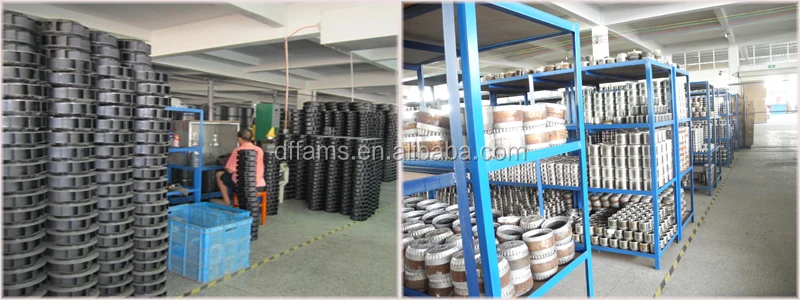

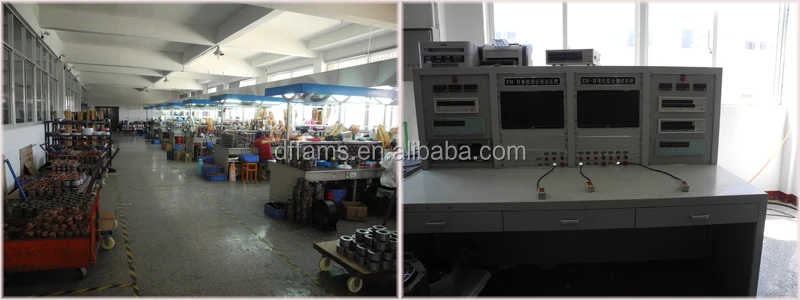

Company Information
FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs.We professionally
manufacture various fans and motors,which widely used in ventilation,air condition,cooling and heating industry.
We have strong technology ,specialized production facilities and advanced inspection instruments,relying on professionally
R&D team,high efficiency production lines and scientific management."Low noise,high airflow volume,stable running and
long lifetime" to be our strongpoint.By national detection ,the technical values of noise,volume, temperature rising balance,
lifetime are better than other factories.

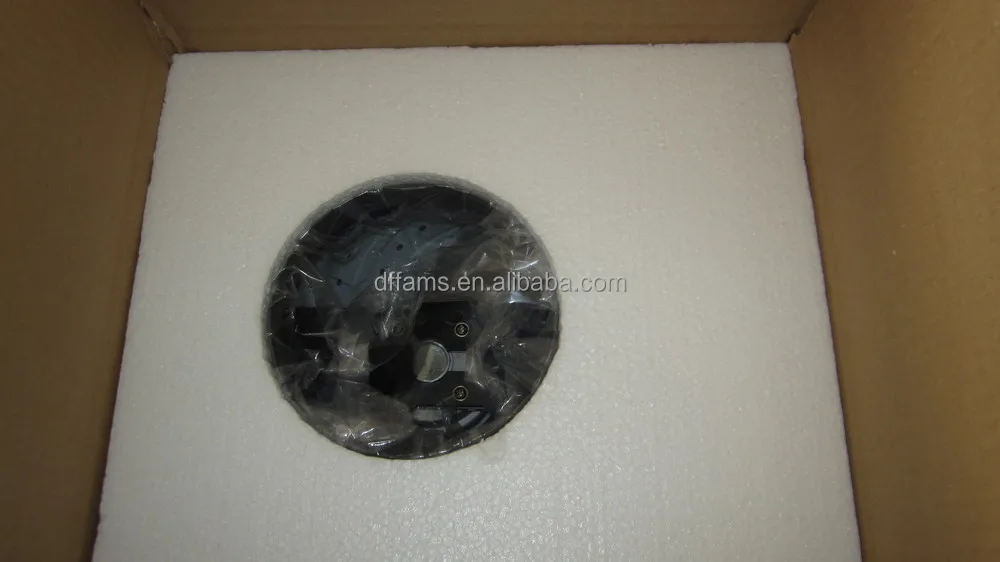

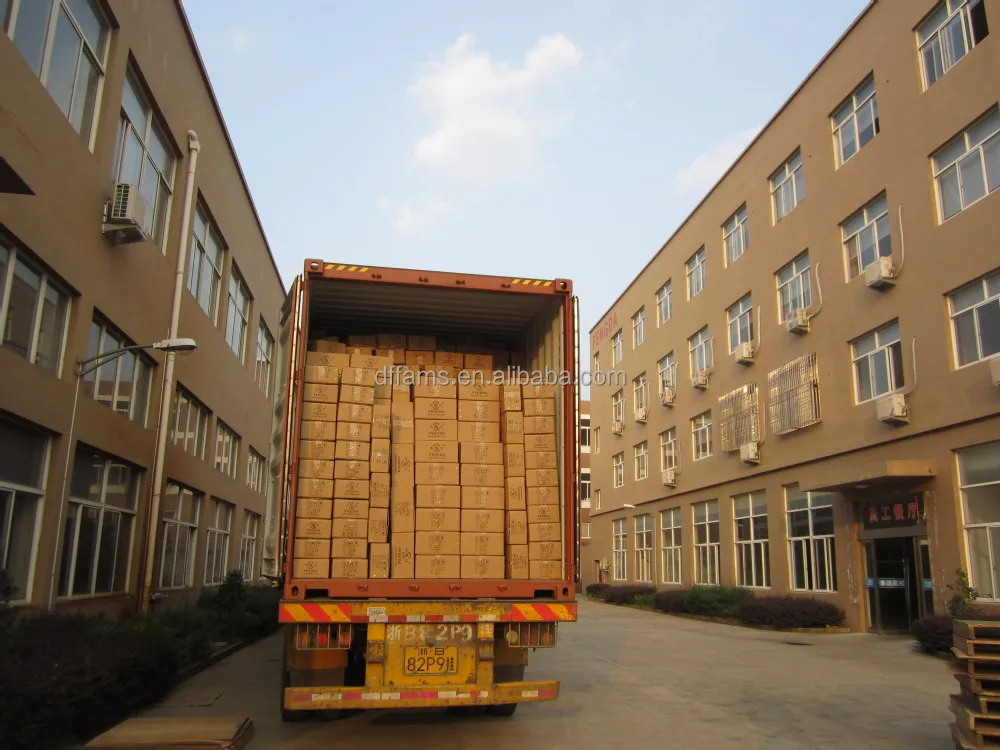

Packaging & Shipping
FAQ
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could FENGDA provide technology support?
A: We're in this field many years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q: Does FENGDA keep goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
4. Q: Could you fill the invoice for customs as our requirement?
A: Yes, if there's any requirement for it, please tell us. We'll do it.
Product Uses
1.Freenhouse
2.Hydroponics
3.Kitchen
4.Worshop
5.House
6.Vessel
