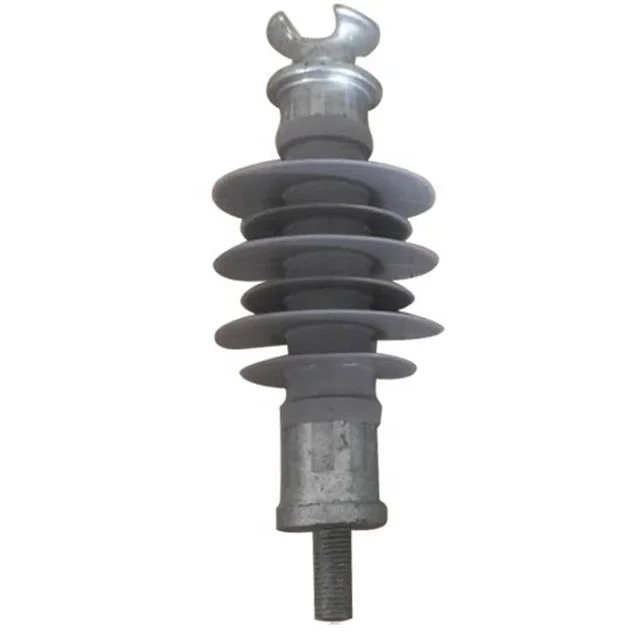

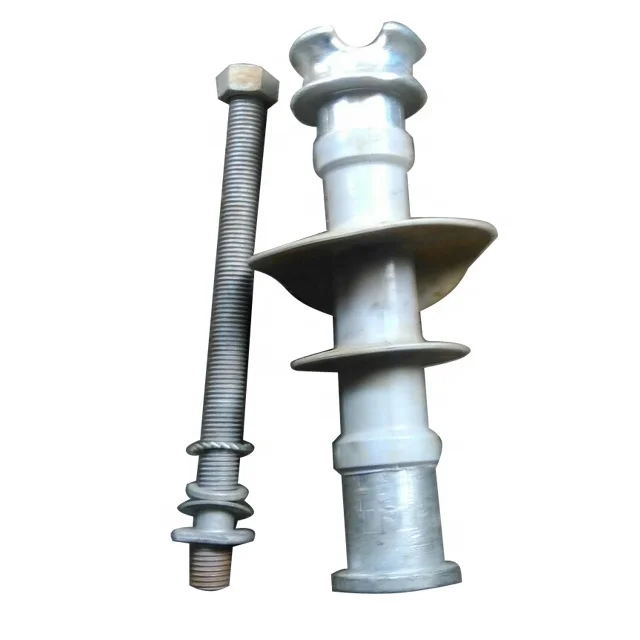

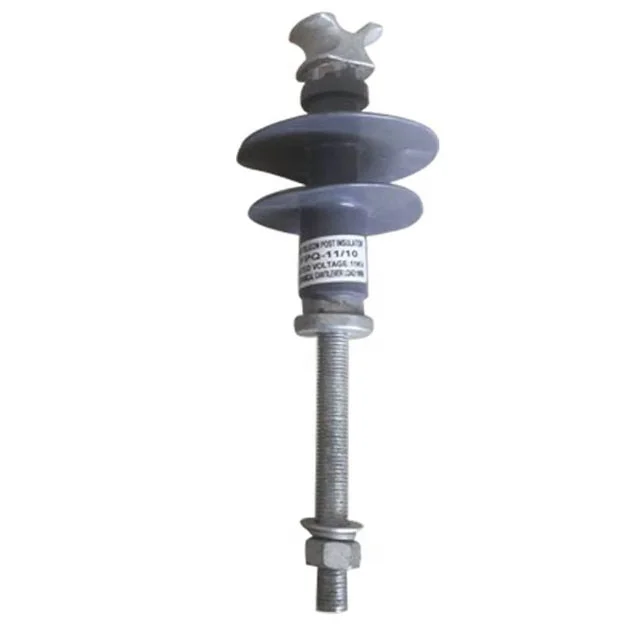

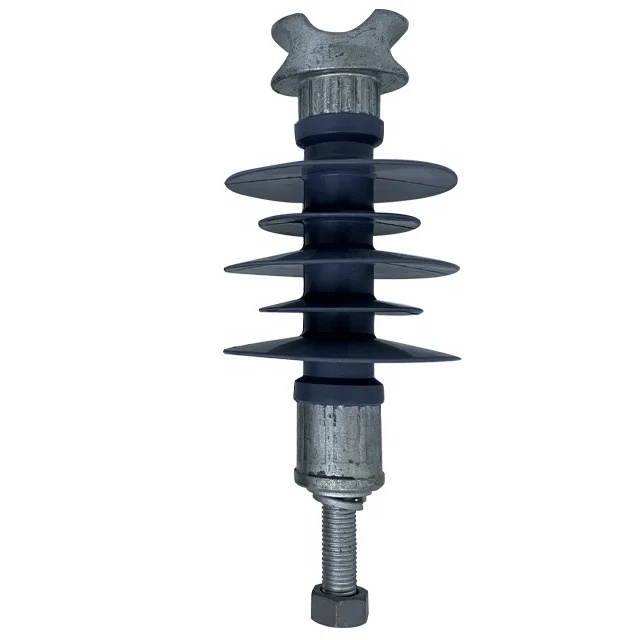

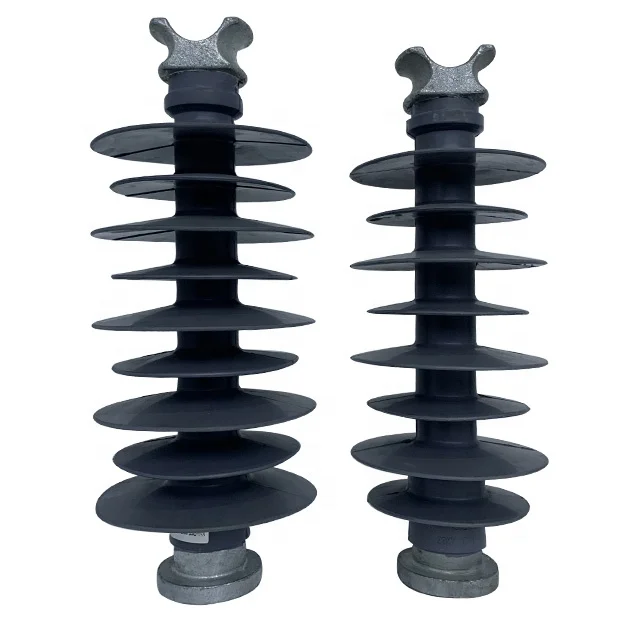

Composite Insulator 24kv Silicone Composite Insulator

Name: Composite Insulator 24kv Silicone Composite Insulator
SKU: 60683397278
Availability: InStock

Price:

Quantity:

Composite Insulator 24kv Silicone Composite Insulator

Product Model	Rated volt.,kV	Rated mechanical load,kN	Structure height H,mm	Insulation distance mm	Min Creepage distance, mm	Lightning impulse withstand vol.(peak),mm	Power Frequency withstand volt. (Vertual value) kV
FPQ-10/4T20	10	4	215	125	280	75	42
FPQ-10/5T20	10	5	250	165	420	105	42
FPQ-11/10	11	10	215	142	320	95	46
FPQ-15/8	15	8	247	160	465	95	42
FPQ-15/11	15	11	226	150	320	95	42
FPQ-24/4	24	4	305	255	715	150	75
FPQ-24/8	24	8	312	215	770	170	75
FPQ-36/8	36	8	440	320	1000	185	95
FPQ-35/10	35	10	405	305	900	250	105
FPQ-36/12.5	36	12.5	550	428	1089	250	105
FPQ-52/12	52	12	480	415	1255	220	110
