9.89 ID8 auto fuel line elbow quick connector fast connection

9.89 ID8 auto fuel line elbow quick connector fast connection

Category: Pipe Fittings >>>
Supplier: QINGHE COUNTY ZHIRUI PLASTIC AND RUBBER TECHNOLOGY CO. LTD

Price:$0.45 - $0.60

Quantity:

Product Overview

Description

Related Products

Product Description

Product Name	SAE9.89-ID8 auto fuel line elbow quick connectors fast connection-peg
Material	Nylon
Grade	ZR117
Size	SAE9.89-ID8
Producing process	Design, make mould, injection molding, polishing, assembly, quality inspection
Color	Black
Certification	ISO9001:2008
Standard	OE Standard
Technical parameters	APPLICATION ·Fuel liquid lines and/or fuel vapor lines(tank side,chassis,engine room) ADVANTAGES ·Patented engineering of the retainer enabled a smooth-running and sensible lock of the connections ·Patented latching system ·Visual connection proof ·Improved side-load resistance and pull-apart effort ·Compatible with automotive standard according to SAE ·Compact design enables small fitting conditions TECHNICAL DETAILS ·Depending on applications there is a possibility to change the material TEMPERATURE ·With optimal material combination -30℃up to +120℃in continuous WORKING PRESSURE ·5 to 7 bar
Application	Connect the male connector with a diameter of 9.89mm;Nylon tube with a inside diameter of 8mm.Rubber tube with a inside diameter of 10mm

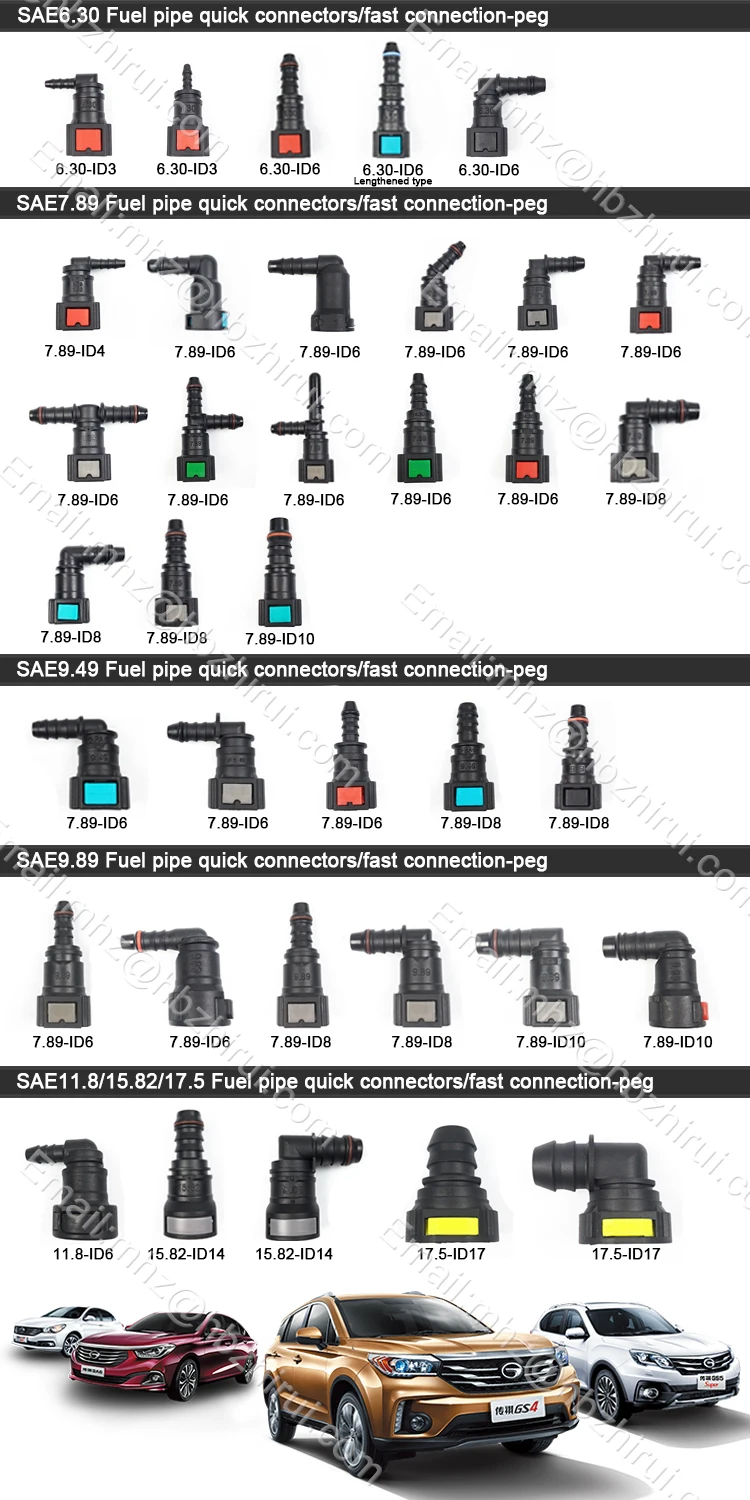

Products Show

Our Company

Qinghe ZHIRUI P&R Technology Co. Ltd

Our company is founded in 1992, which is a manufacturer specialized in producing auto plastic and rubber parts in Northern China.
Our leading products cover: Auto pipe assembly(fuel pipe, turbo pipe, return pipe,exhaustpipe,ect), Fuellineconnector,Air filter assembly,Resonantor, Electric car dashboard, Radiator fan guard, Shock absorber boot, CVjoint boot Trim panel series,and splash guard, and other auto plastic and rubber parts.In addition, our factory can develop products according to samples and drawings.
