BDF GSC Underground Tank 10000 20000 50000 Liter Litre Gallon Modular Assembled Pressed Steel Water Storage Tank
- Category: >>>
- Supplier: Dezhou Huili Environmental Technology Co. Ltd.
Share on (60683595597):
Product Overview
Description
Products Description
What is GSC Water Tank?
GSC modular water tank is Galvanized and Stainless Steel Compound water tank.Made from 3 types of raw materials.Inner is stainless steel plate and outer is hot dip galvanized plate with one layer of high modular materials sandwiched.High pressure and high temperature to form this new type of compound plate.Because of inner stainless steel plate and outer steel structure,it has the advantages of storing drinking water. GSC modular water tank could be applied either ground or underground used for rainwater colletion, which effectively solved tight earth issues by underground water tank application.
Our Advantages
ANTI-CORROSION
GSC water tank inner stainless steel materials,outer hot dip galvanized materials,which decides the good anti-corruption from outside and drinking water storage from inside.
RELIABLE QUALITY
This panel is new type of materials,meet drinking water use and mainly used underground,overground for its better structure.
DIMENSION FLEXIBILITY
The size of panel can be 1.22*1.22 m, 1*1 m, 1*0.5 m and 0.5*0.5 m, which can assemble kinds of volume from 0.125 m³ to 5000 m³. That’s extremely convenient to select for you.
CONVENIENT INSTALLATION
Factory precast panel is easy to assemble and disassemble, the construction drawing, installation video, and a series of complete installation plan will be provided.
DURABLE

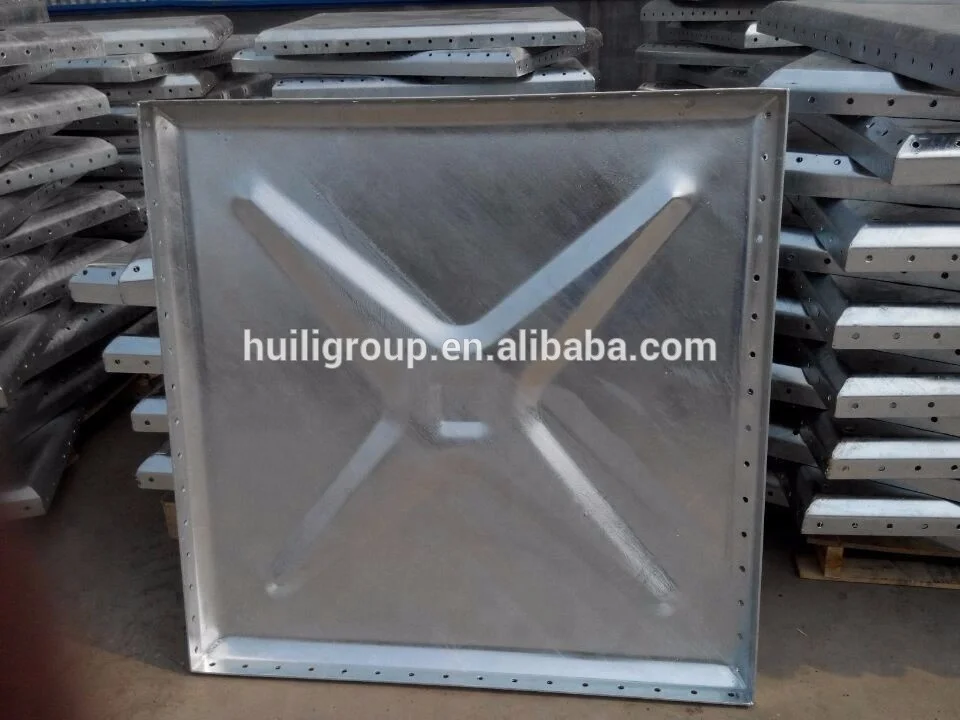

Using the 1000 T hydraulic press integrated molding, no welding seam at panel corners.

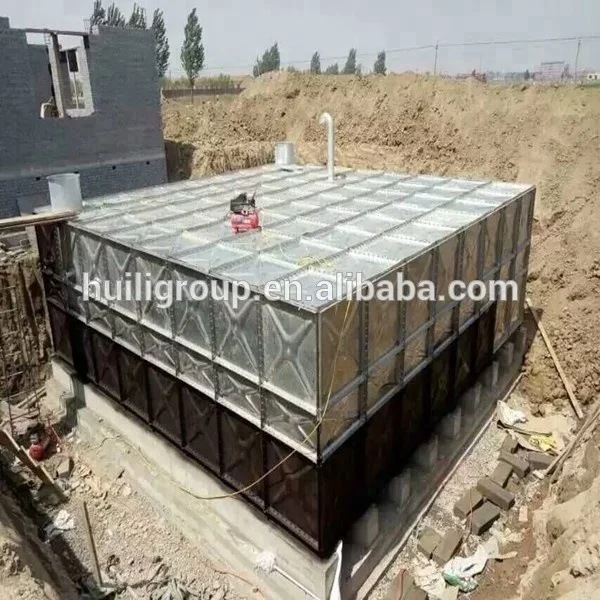

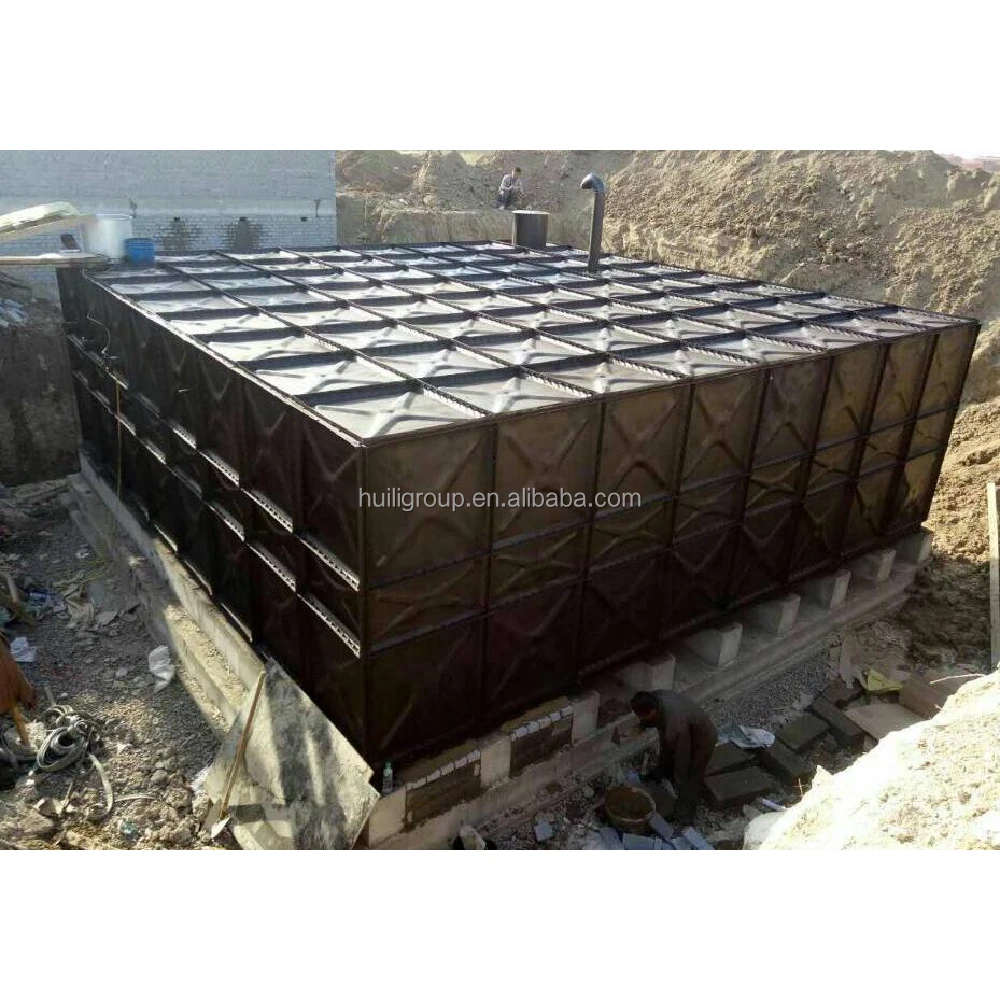

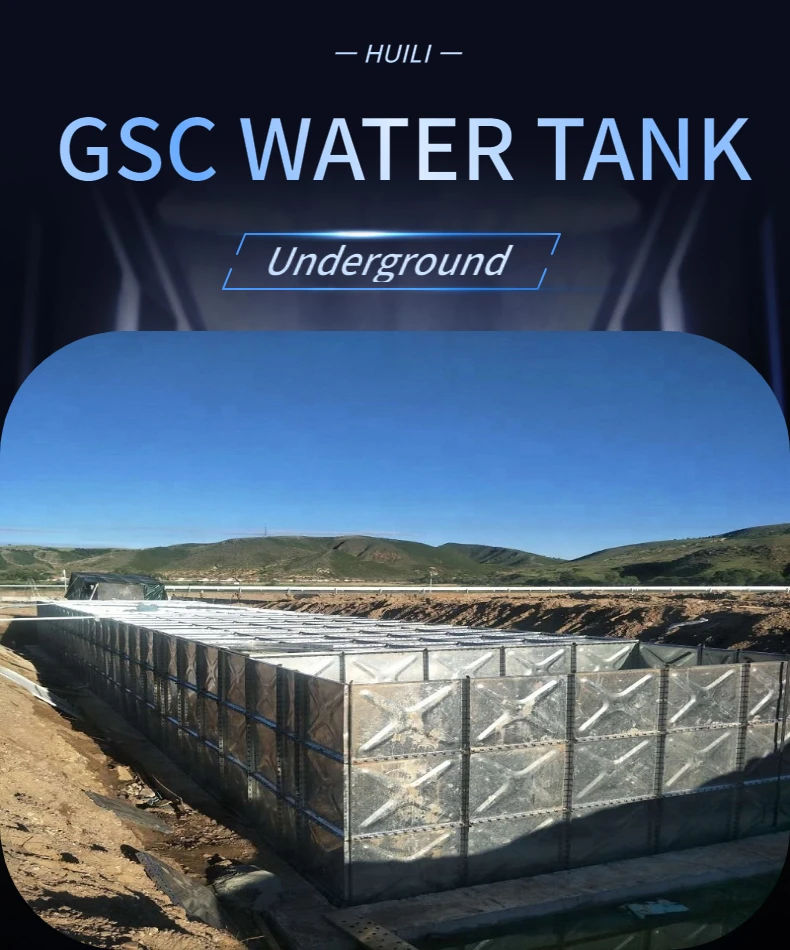

BURY UNDERGROUND
All the HUILI steel material water tank can be bury underground, the thickness of inner structure and panels are thicker than normal tank.

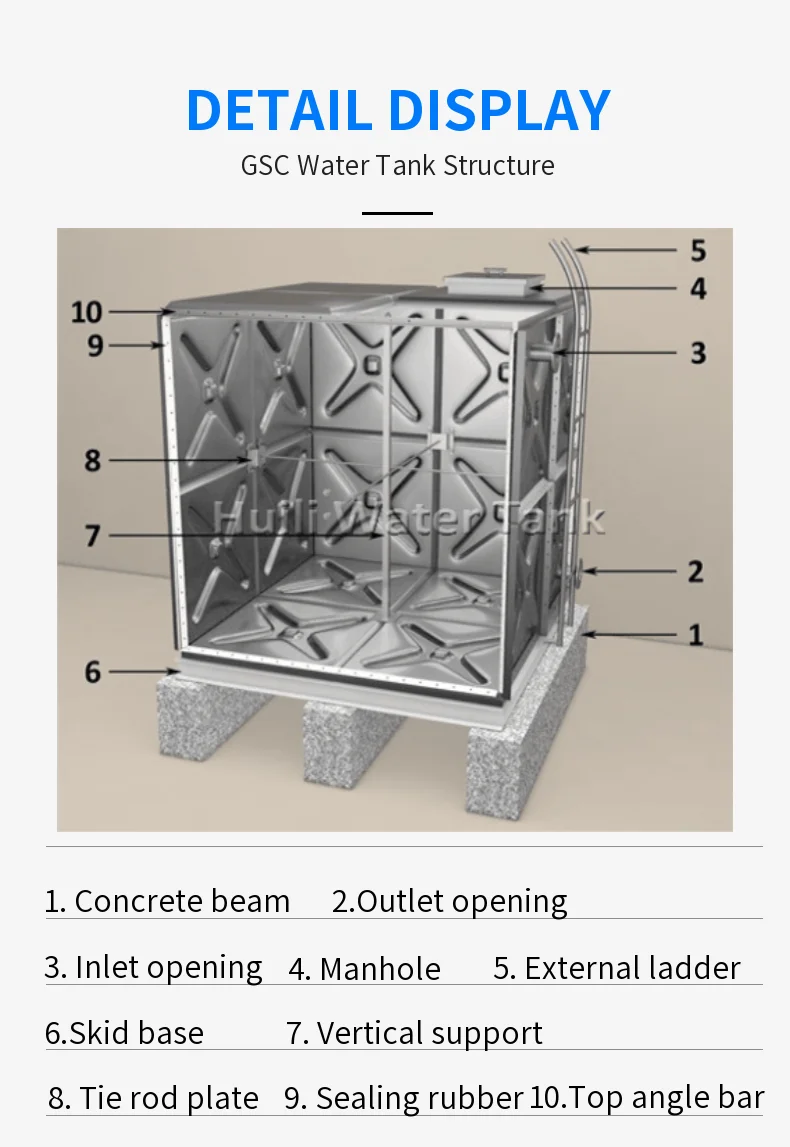

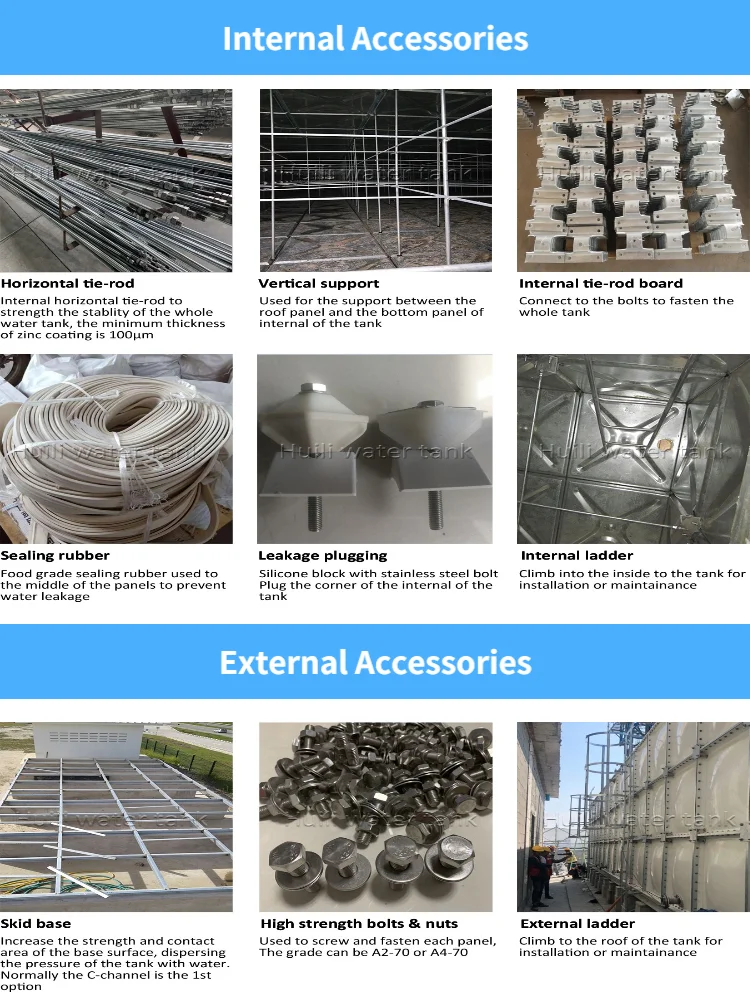

Details Images
TANK HEIGHT | THICKNESS OF EACH PANEL | ||||||||||||
Height | Bottom Board | Side 1 | Side 2 | Side 3 | Side 4 | Side 5 | Top board | ||||||
1000 mm | 3 mm | 3 mm | / | / | / | / | 2 mm | ||||||
1500 mm | 3 mm | 3 mm | 3 mm | / | / | / | |||||||
2000 mm | 3 mm | 3 mm | 3 mm | / | / | / | |||||||
2500 mm | 4 mm | 4 mm | 3 mm | 3 mm | / | / | |||||||
3000 mm | 4 mm | 4 mm | 3 mm | 3 mm | / | / | |||||||
3500 mm | 4 mm | 4 mm | 3 mm | 3 mm | 2.5 mm | / | |||||||
4000 mm | 5 mm | 5 mm | 4 mm | 3 mm | 2.5 mm | / | |||||||
4500 mm | 5 mm | 5 mm | 5 mm | 4 mm | 3 mm | 2.5 mm | |||||||
5000 mm | 5 mm | 5 mm | 5 mm | 4 mm | 3 mm | 2.5 mm | |||||||
PANEL DIMENSION | WEIGHT OF EACH PANEL | ||||||||||
2 mm | 2.5 mm | 3 mm | 3.5 mm | 4 mm | 5 mm | ||||||
0.5*0.5m | 6 kg | 7.5 kg | 9 kg | 10.5 kg | 12 kg | 13.5 kg | |||||
1*0.5m | 11 kg | 13.5 kg | 16.5 kg | 19 kg | 22 kg | 24 kg | |||||
1*1m | 19 kg | 24 kg | 29 kg | 34 kg | 39 kg | 43 kg | |||||
Physical Properties | Standard Requirement | Result |
Tensile Strength | ≥350 MPa | 405 MPa |
Yield Strength | ≥220 MPa | 296 MPa |
Elongation | ≥23% | 24% |
Company Profile
Why Choose Us
Product packaging
FAQ
Q: Are you trading company or manufacture?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 10-15 days if the goods are not in stock, it is according to the quantity.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment <= 1000usd="">= 1000USD, 30% T/T in advance, balance before shippment. If you have other questions, pls feel free to contact us as below:
