Tiger Rig oilfield equipment SL450 swivel for drilling rig

Product Overview

Description

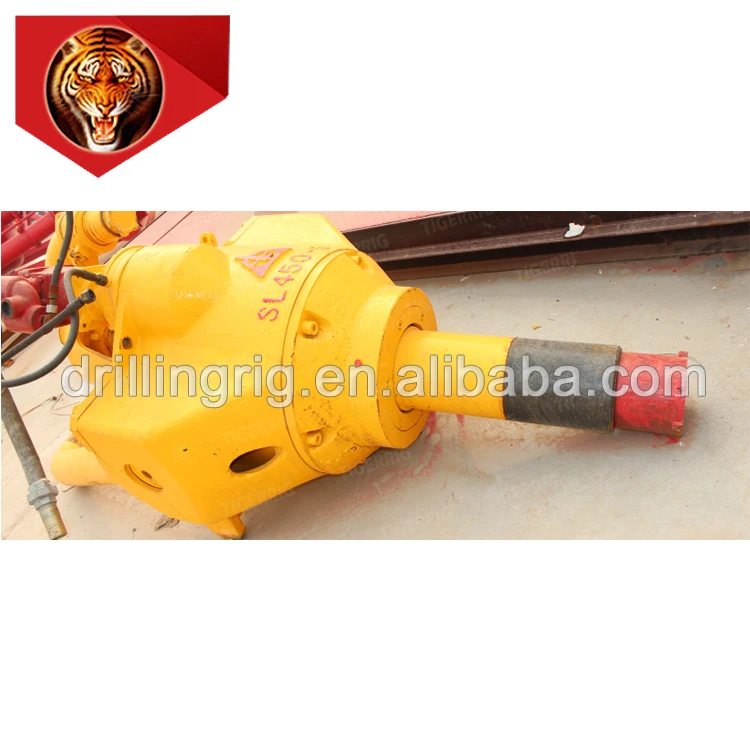

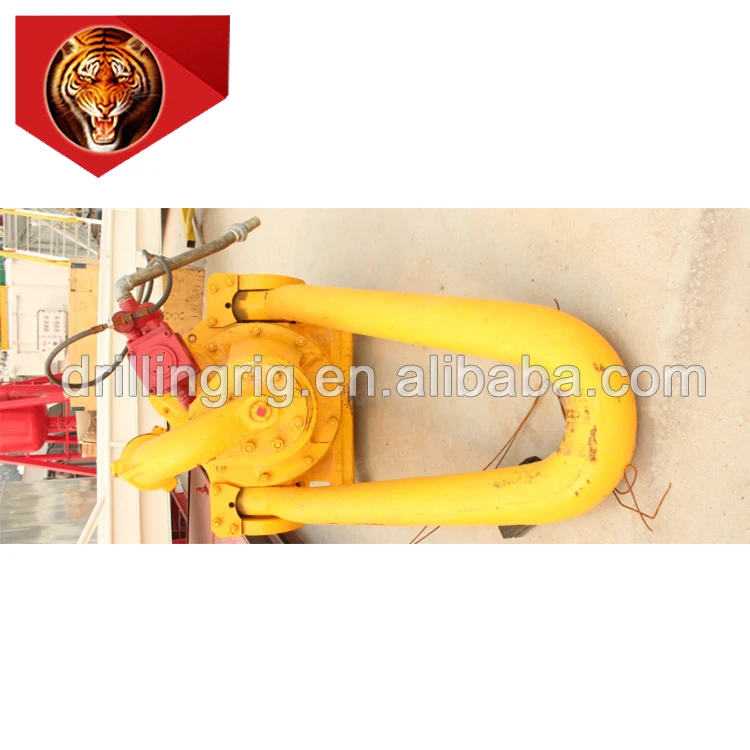

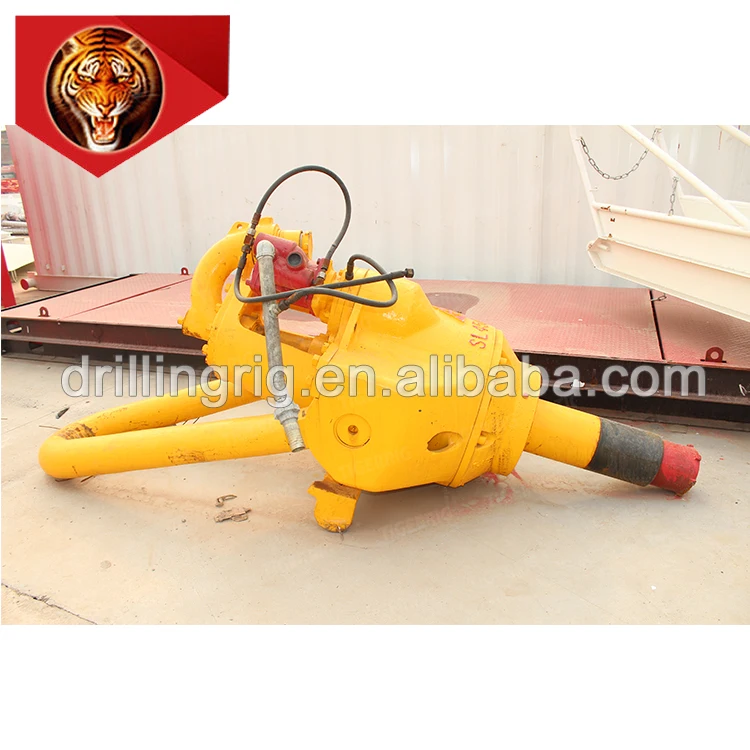

Tiger Rig oilfield equipment SL450 swivel for drilling rig





Born in 20^th century, Zhonghang Machinery Ltd has over 25 years’ develop history. It manufactures all types of oil drilling equipment like ZJ30, ZJ40, ZJ50, ZJ70, ZJ90 and rig parts: Mud pump, Hook, Rotary Table, Swivel, Crown block, Travelling Block, iron roughneck, etc. Our products have certificated by international institutions, API and ISO, GOST. We import technology from US, so that our quality is guaranteed. We always stick to the principle of ensuring quality and servicing customers. Visiting our company and factory will be warmly welcomed.



Major features for SL450 swivel for drilling rig



1.Standard bail and double pin (male) alloy sub

2.The wash pipe and packing are box structure, convenient to replacing on drill floor, no need to disassemble rotary hose and gooseneck,

3.Hole in gooseneck top provides passageway for well logging wire line.

4.Standard gooseneck connection, screw thread conforms to API STD 5B.

5.Conform to API Spec 8A and marked with API monogram.



Model		SL90	SL135	SL225	SL450	SL675
Max. static load  KN		900	1350	2250	4500	6750
Max. rotary speed  r/min		300	300	300	300	300
Max. working pressure MPA (psi)		25 (3570)	35 (5000)	35 (5000)	35 (5000)	53 (7000)
Clearance between bail and gooseneck mm (in)		435 (17 1/8)	495 (19 1/2)	540 (21 1/4)	549 (21 5/8)	640 (25)
Center pipe diameter mm(in)		64 (2 1/2)	64 (2 1/2)	75 (3)	75 (3)	102 (4)
Center pipe upper screw thread	Connect to center pipe API In	4 1/2 REG LH	4 1/2 REG LH	6 5/8 REG LH	7 5/8 REG LH	8 5/8 REG LH
Center pipe lower Screw thread	Connect to  Kelly API in	6 5/8 REG LH	6 5/8 REG LH	6 5/8 REG LH	6 5/8 REG LH	6 5/8 REG LH
Gooseneck connection screw thread		3″-8 teeth/inch	3″-8 teeth/inch	4″-8 teeth/inch	4″-8 teeth/inch	4″-8 teeth/inch
Dimension (L x W x H) mm		2505×758×840	2505×758×840	2880×1026×1065	3015×1096×1065	3649×1450×1162
Weight kg		940	1345	2402	3310	6230
Note: For above models, spinner (makeup and breakout) is optional.







100% real in our workshop shooting,  not online shop or magazine reprinted.











Tiger Rig was created in 2005, which has got great reputation in the world. Our customers come from every corner of the global placing repeat orders to our products. The recognition of customers also promotes us to use more advanced technologies to improve the quality of the product to satisfy them. Our Products have got approval of authority institution of the USA. The quality and price of our products and service to our customers have made our equipment preferred in the oilfield.

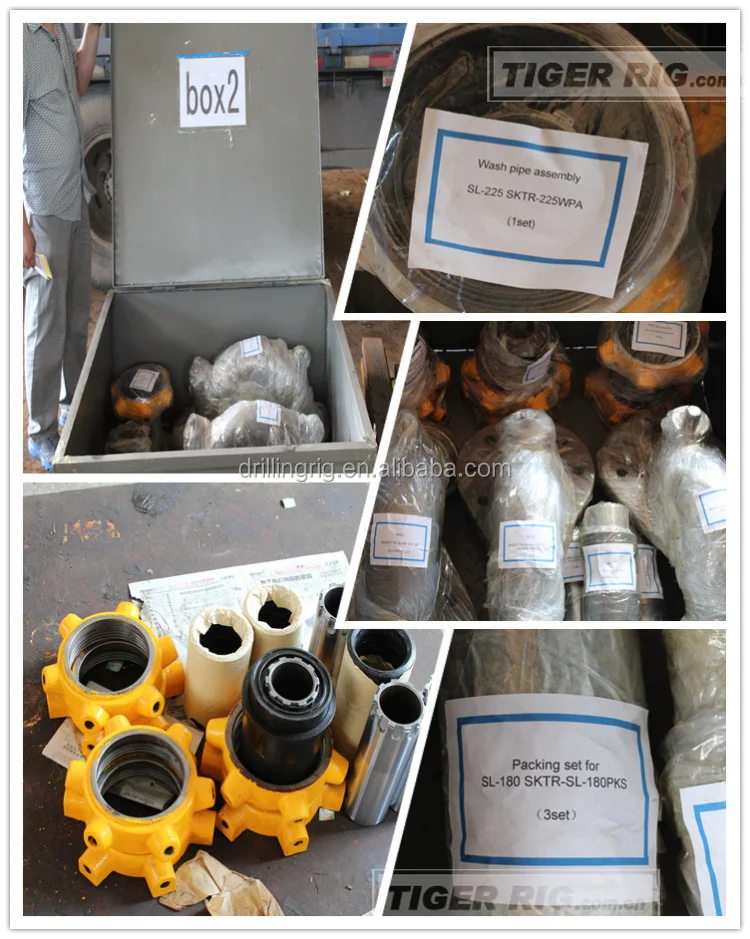

    Parts for the SL450 swivel for drilling rig













1.The goods will be covered with plastic or other rainproof coat.

2.The packing of goods, which should be delivered to destination in accordance with the agreement we signed, will be offered by our company. And we will be held responsible for the consequences if damage of the product or loss of accessories occurs by the time the goods have shipped to port of destination.



Delivery time

1. Warehouse machine: 1 days after 100% payment.

2. booked machine: 30-45days after 30% payment.
