Share on (60683714112):


Price:RUB 1,657,494.33 - RUB 1,672,359.75

Quantity:


Product Overview

Description

ASFROM Advanced Powder Pulverizer Grinding Machine For Rubber Scrap Recycling

Product attributes

Name Advanced Plastic Pulverizer Grinding Machine For EVA Foam Scrap Recycle
Mode AF-12
Voltage 380V 50HZ
Power 45KW
Cooling Mode Water Cooling
Machine Size 350cm*300cm*420cm
Machine Weight 2600kg
Rotating Speed 8000-9500rpm
Warranty 1 Year
Capacity 120-180kg
Mesh Size 80-120
Applications PE .RB.SBR.MD.EVA.Sponge ETC
Payment terms T/T or LC
Delivery Date 25Days




ADVANTAGES



One person operation

Power saving 30%

Environmental noise reduction

No Granulator

No mixing machine

No Crusher





TECHNICAL PARAMETERS



Machine size : 350*300*420 cm

Cooling way : Water cooling

Capacity : 120-180 kg/hour

N.W : 2600 kg

Power : 45 kw







FEATURES

1.Simple operation, no-crushed,un-extruding and mill the scrap directly.

2.Adjustable feed inlet, suitable for each size to feed , fit silencer to cut down noise.

3.Extending feed inlet,have feed drive wheel,operation more safe.

4.High-speed and water cooling roller make high production.

5.Powder grinded under mormal temperature keeps its property have better reuse effect.

6.New design,easy to install,simple operation.

7.Automatic return coarse material.

8.New systems,open mode,better cooling effect,higher into powder rate.





APPLICATION SCOPE

Machine suitable for recycle rubber and plastic foam scrap as MD EVA SRB RB PE Sponge etc.









RECYCLING STYLE COMPARISION BETWEEN TRADITIONAL STYLE AND POWDER MACHINE





Traditional Style

Powder Machine

Efficiency

Electricity

Crusher Power 22KW Open milling power 55kw total 77kw

55kw

save 22kw

operator

3 persons

1 person

Save 2 persons

Capacity

100kg/hour

120-180kg/hour

Increase 20-80 KG

Kneading Time

12-15minutes

10 minutes

Shorten time

Electricity

110kw

40-50kw

Save 60-70 kw

Temperature

160C

60C

Low temperature protect material's property

Addition Proportion

10%

30%

Reduce cost





MACHINE OVERVIEW

EVA powder grinding machine is a new style of energy conservation,enviroment protection recycling equipment. It’s suitable for recycle rubber and plastic foam scrap as MD.EVA.SBR.RB.PE .Sponge etc. Traditional scrap recycling usually use crasher(22kw) to crash scrap fisrtly and then extruding to sheet by rubber &plastic open mill(55kw),the output is about 100kg(require 3-4 workers),the physical property, chemical property of scrap easy to be destroyed afterhigh-temperature extrusion,so that the rate of recycling is low,EVA powder grinding machine adopts the roller which is high-speed and water cooling, the motor is 45kw,machine can keep running in 24 hours and operated by one worker. Output is about 120150kg(depends on scrap material) The product-powder kees its physical property,chemical property due to no-crushed,un-extruding and mill the scrap directly , the particle size of powder is near 80-120 mesh, the temperature is close to normal temperature(60°C)in addition to all these advantage powder addition can add 10-20kg more per kneading, the foam sheet has 3-5 mm thicker,higher density, no chromatism,shorter kneading time, mixer shaft more safe to use,not easy to break and production increase greatly.Each machine can make 1500 yuan profit for enterprise per day.

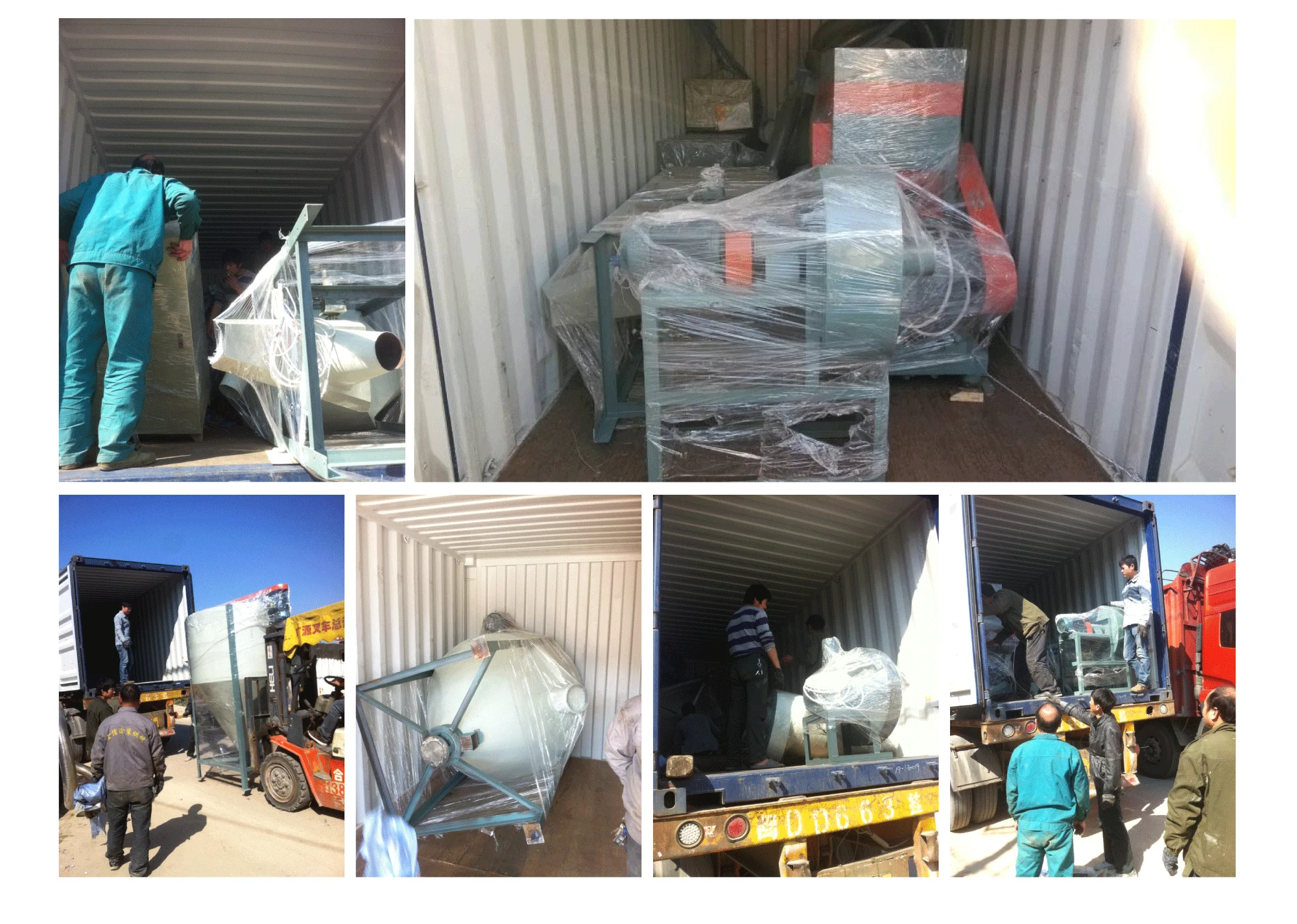

LOAD THE CONTAINER




       Asfrom Certificate



       Asfrom Packing & Shipping



       Asfrom Clients

.jpg



       Asfrom Exhibitions

.jpg



ASFROM GROUP



ASFROM GROUP   has been specializes in machinery and mold business in China for many years. Under our group, we have our own factories as follows:

1. Mould factory for Eva foaming and Rubber sheet.

2. Rubber sheet factory for High quality rubber product and Crepe Rubber Sheet.

3. R & D center of automatic customized equipment for Big Brand.



Our comprehensive experience and professional team can provide you with complete solution support for the following production lines:

1. EVA foaming sheet production line.

2. Sport shoes production line

3. Flip-flop whole production line.

4. Silkscreen automation equipment and technical support

5. 5G Technology

6. Solar power technology



We have already acted as a professional agency here for all kinds of shoes material collection for some oversea big factories, help to collect all of the shoe materials and control the quality, arranging the shipment by FCL or LCL as the order quantity, The most important thing is that we can make a very careful inspection before shipment. We are willing to offer you our excellent service for the shoes material business.



We hope that we can do better in the future with sticking to the principle of "Honesty as basis". Welcome customers from all over the world to cooperate with us and look forward to your visit. Really hope that we can build up mutual beneficial relatio ships together, we believe, Right beginning from ASFROM right solution!
