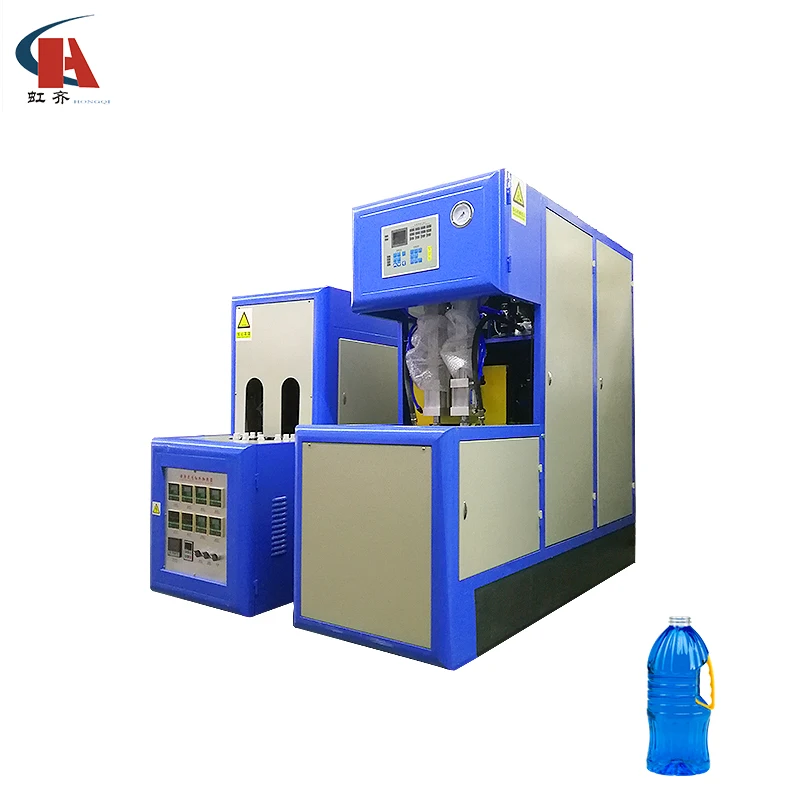

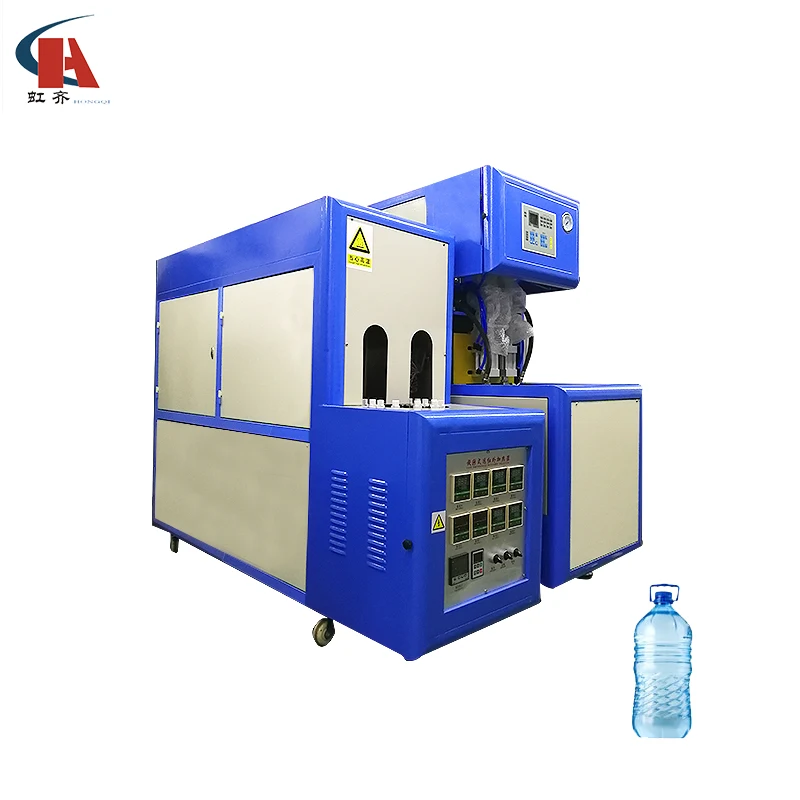

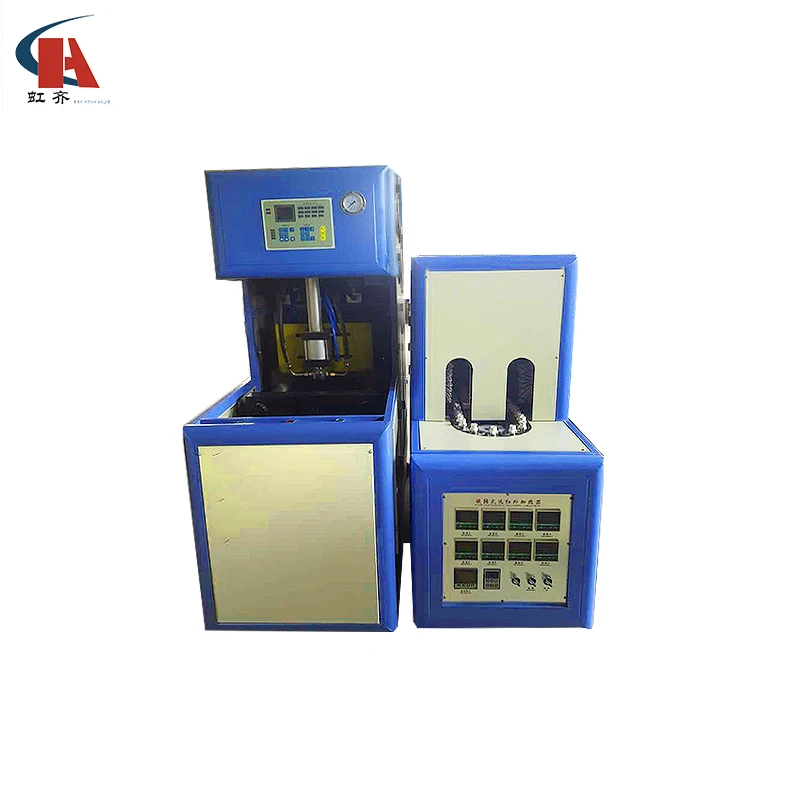

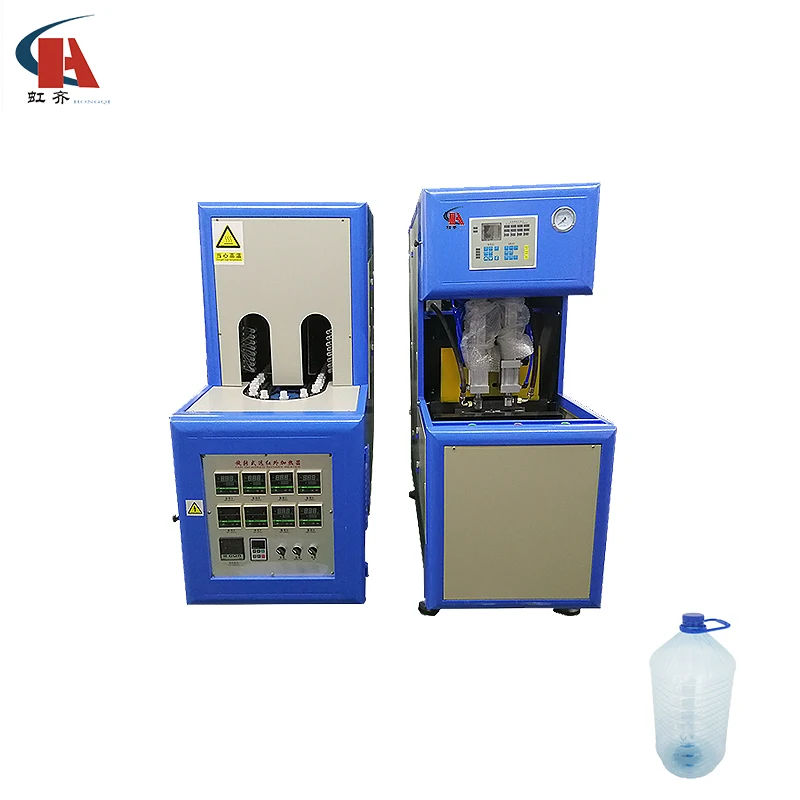

1.Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally. 2.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles. 3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine. 4.The machine can be operated in the step-by-step mode and the semi-auto mode. 5.The machine is small with low investment, easy and safe to operate .
_ Main Technical Parameter _
ITEM
HQ-BZ-10L
Main Machine
Max volume of Product
10 L
Output
200~300 pcs/hr
Neck Size Of Product
15-120 mm
Useful Area Of Mould Thickness
350*450 mm
Mould Thickness
120-200 mm
Clamping Force
50 Kn
Power Of Main Blower
0.2 kw
Weight Of Main Blower
2500 kg
Measurement Of Main Blower
1700*580*1820 mm
Preheater
Power Of Prdheater
12 kw
Weight Of Prdheater
450 kg
Measurement Of Prdheater
1450*700*1150 mm
_ Auxiliary Machine _
To operate the PET bottle blowing machine, you may also need some auxiliary machine. such as air compressor, air filter, air dryer, air tank and so on. this machine is needed to protect the machine from running smoothly and safe.
Mold
_ Bottle Mold _

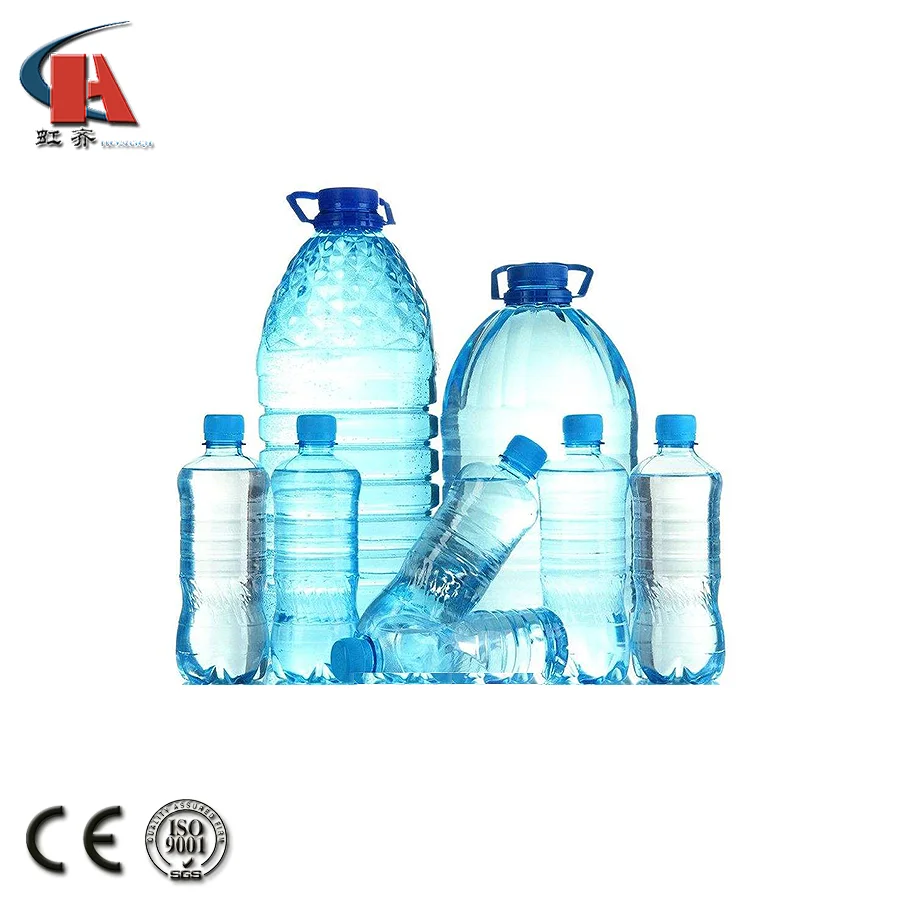

Our PET blowing machine can produce various shape bottles. when you make order, we will according to your bottle size (bottle volume, bottle neck size , bottle body size and so on) to design your onw bottle and make mold for you. welcome to contact us for your bottle.
