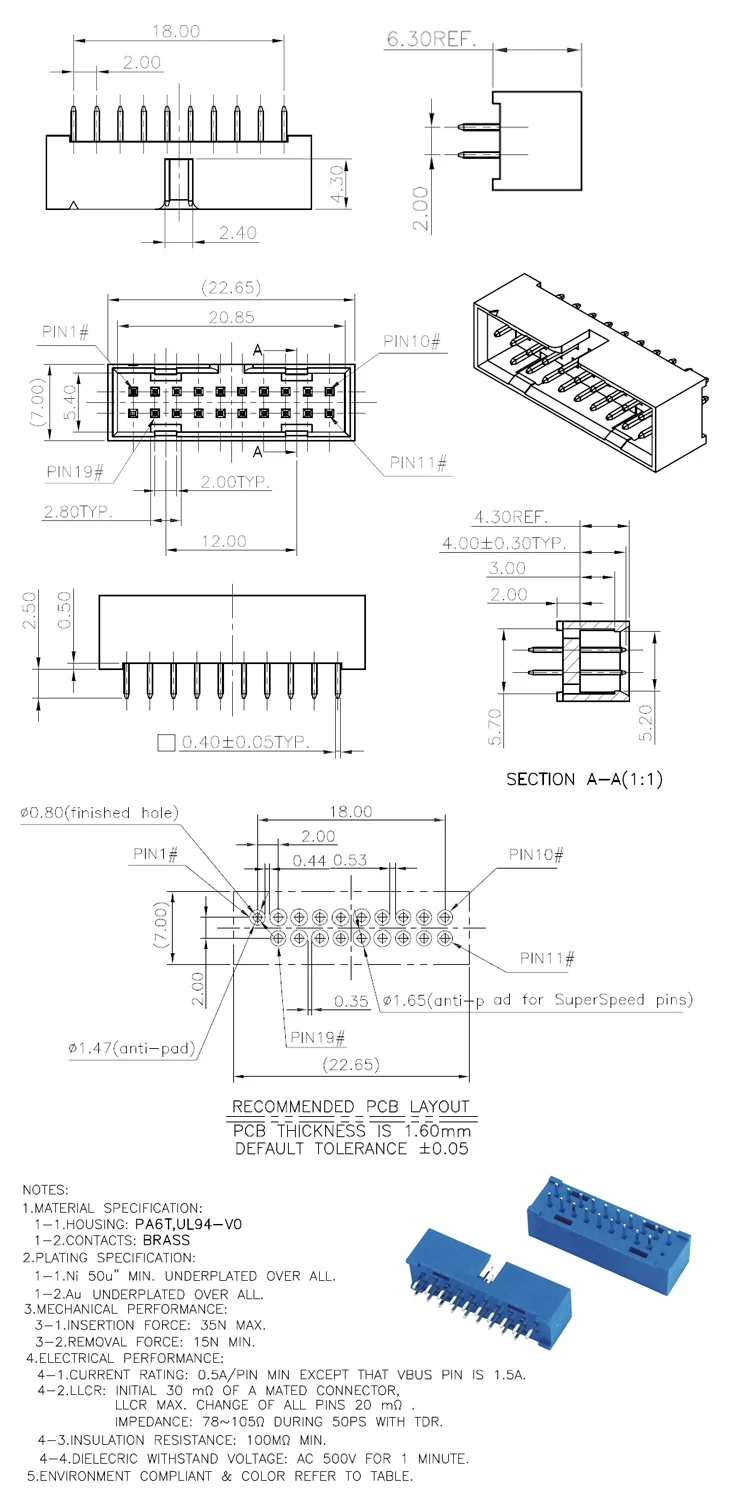

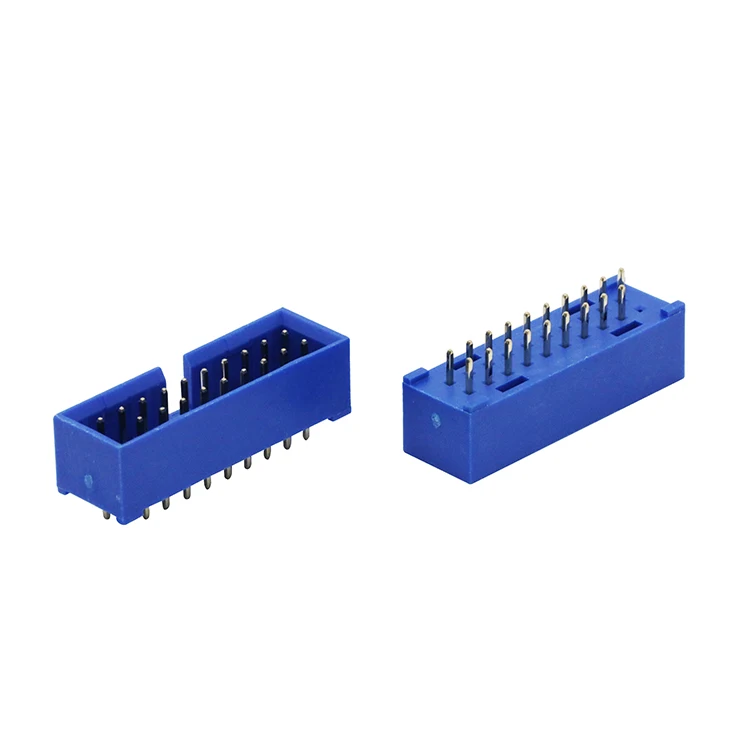

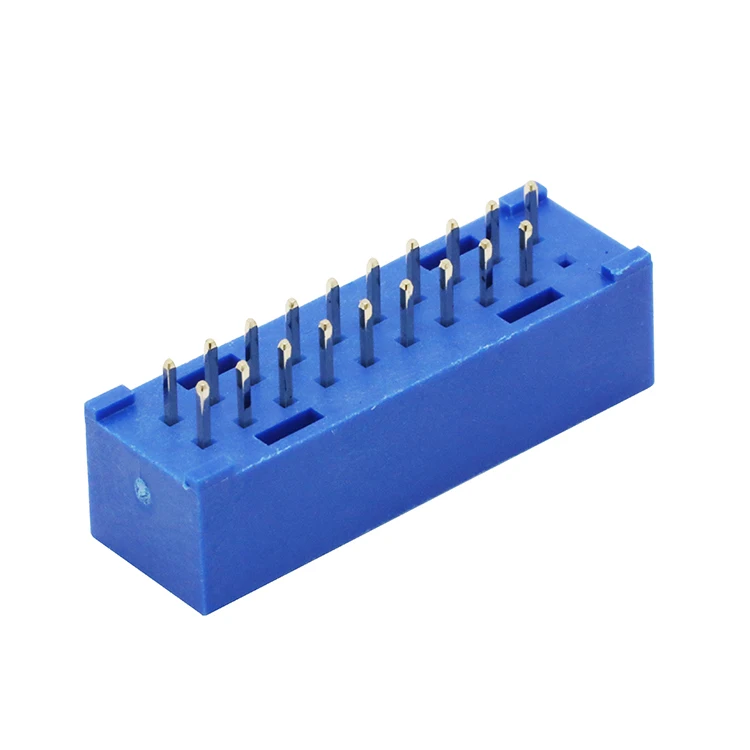

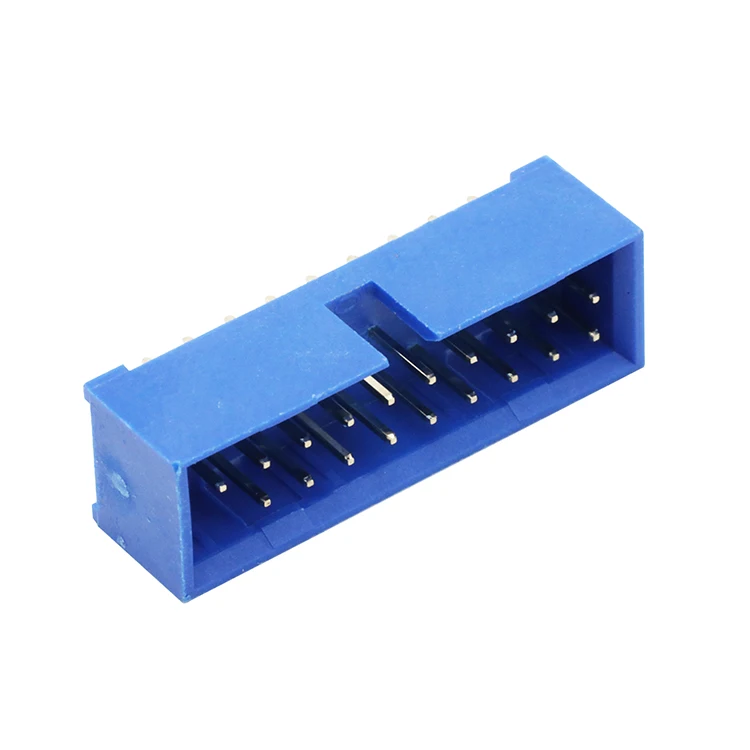

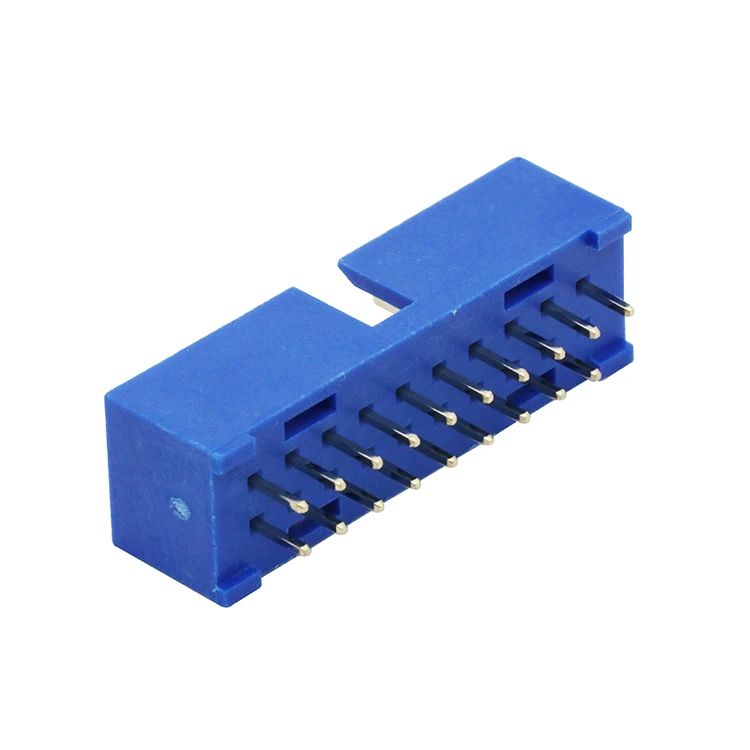

USB 3.0 19P 20P 19 pin male connector 180 degree motherboard connector
- Category: Connectors & Terminals >>>
- Supplier: Dongguan Bsc Electronics Technology Co. Ltd.
Share on (60683792896):
Product Overview
Description
Quick Details
| Place of Origin: | Guangdong China |
| Current rating: | 0.5A/Pin MIN except that VBUS Pin is 1.5A |
| Removal force: | 15N MIN |
| Insertion force: | 35N MAX |
| Insulation resistance: | 100MΩ MIN. |
| Gender: | Male |
| Model Number: | A71-1X02-111 |
| Housing: | PA6T,UL94-V0 |
| Dielecric withstand voltage: | AC 500V For 1 Minute |
| Brand Name: | Bestcreate |
| Type: | IDC |
| Pin: | 20 Pin |
| Insulation color: | Black/Blue |
| Contacts: | Brass |
| Pins: | 19P |
| Application: | Power |
| Packaging Detail: | Tray package.180PCS/Tray,1800PCS/Carton. |
| Selling Units: | Multiple of 1,800 |
| Package size per batch: | 30X25X16 cm |
| Gross weight per batch: | 2.5 KG |
| Package Preview: | https://sc03.alicdn.com/kf/H9d61a24183434cf781cdfa02d693ba478.jpg_640x640.jpg |
