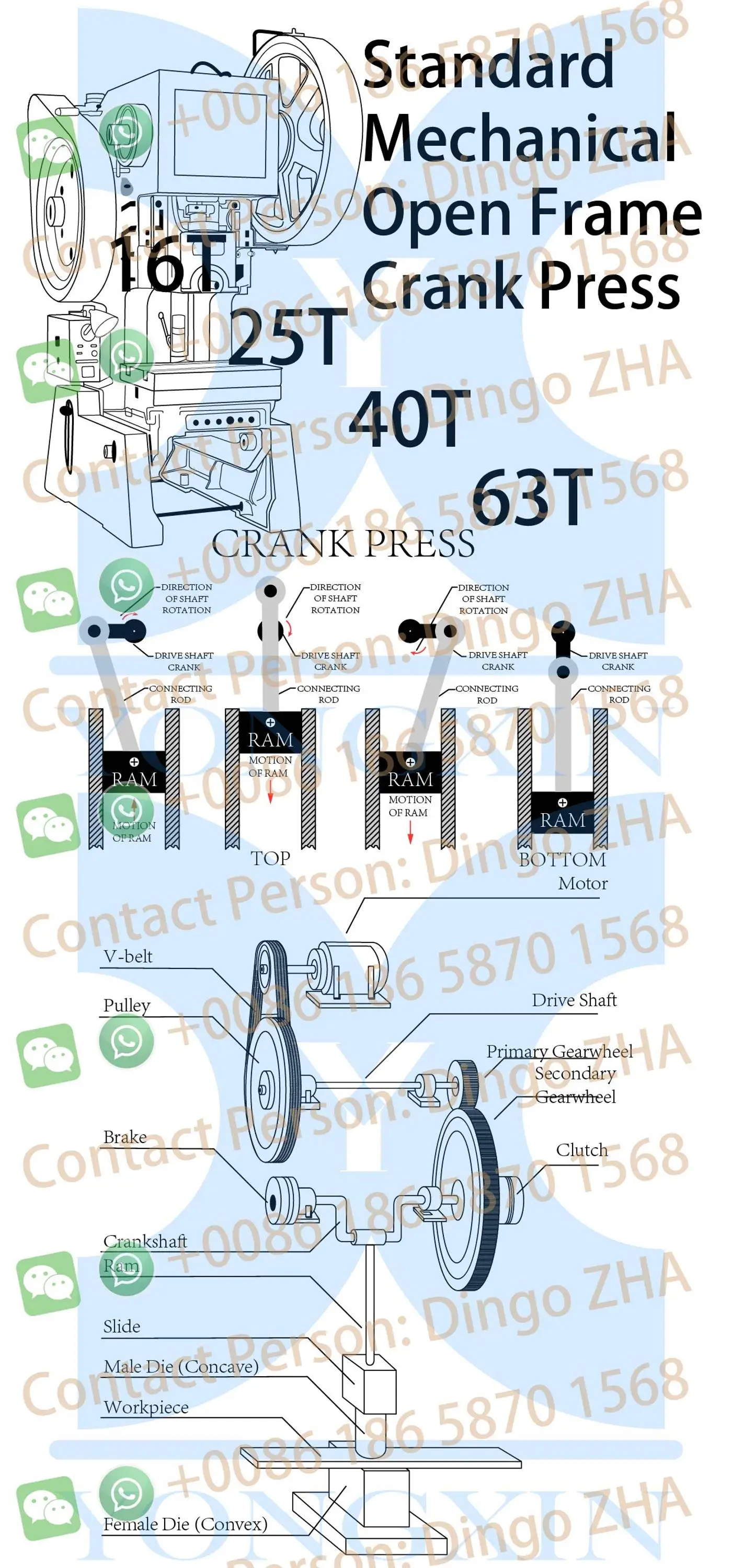

Standard Mechanical Open Type C Frame Crank Punch Press

Product Overview

Description

MACHINES SALES GUIDE:

BEFORE YOU READ FOLLOWING INFO., PLEASE PERPARE YOUR QUESTIONS TO GET MY SPECIFIC TURN-KEY SOLUTION OFFER FOR YOU. CHEERS!

1. What's your tin can look like and special requirement?

2. What's your tin can Dimensions?

3. What's your demand for production capacity (CPM)?

4. More information please go to www.jeitco.com

Related Equipment

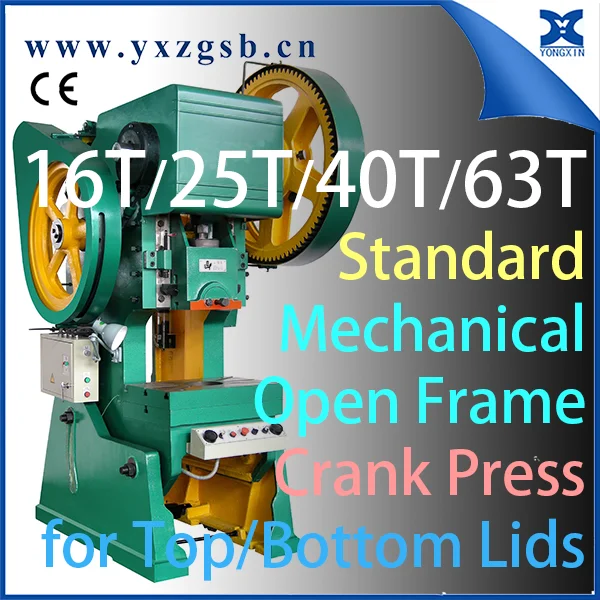

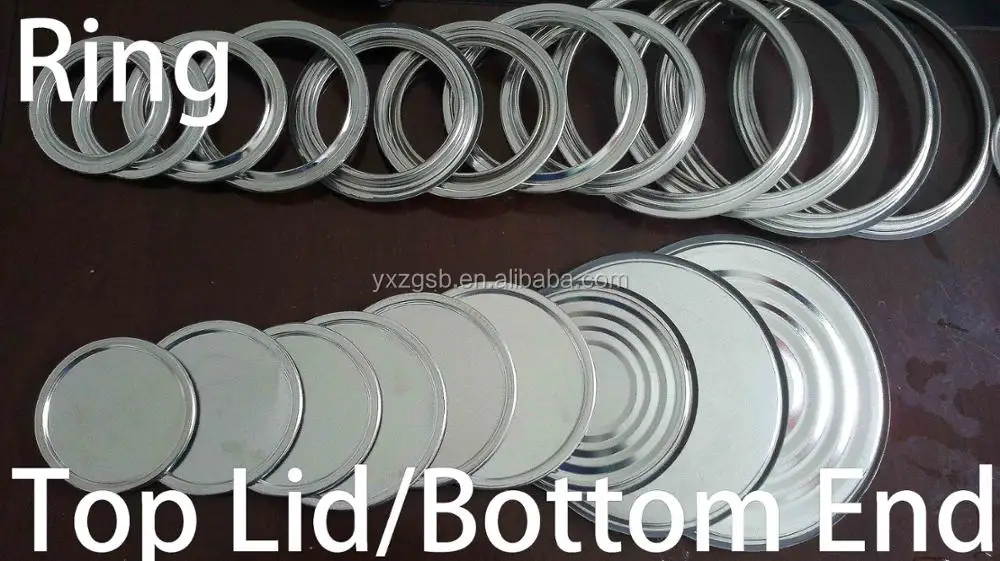

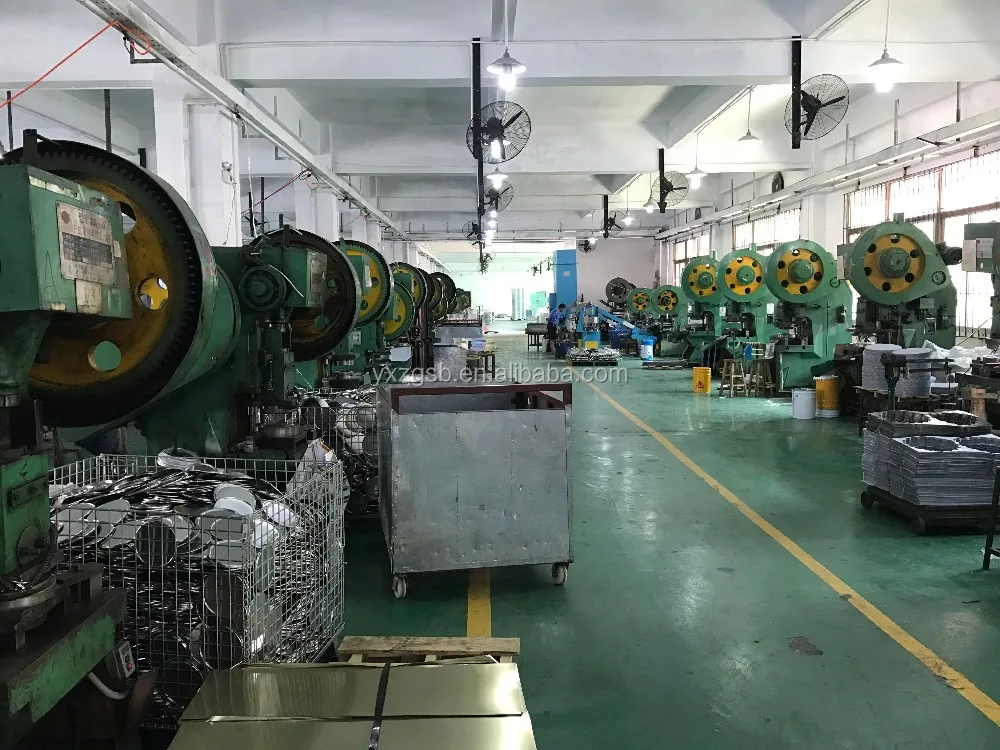

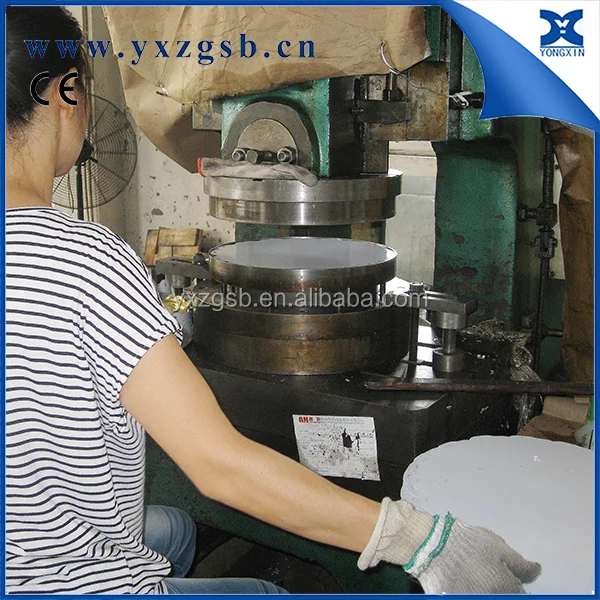

Tailor Made 16T/25T/40T/63T Standard Mechanical Open C Frame Crank Punch Press TIN canTop Lids & Bottom Ends Making Machine































































Specification

Model	UOM	J23-16B	J23-25A	JG23-35A	JG23-40A	JC23-63A
Nominal Force	KN	160	250	350	400	630
Norminal Stroke	MM	5	5	5	6	8
Slide Stroke	MM	70	80	100	120	120
SPM	MIN-1	125	60	53	55	50
Max Die Height	MM	170	180	180	220	270
Die Height Adjustment	MM	45	70	75	80	80
Between Slide Center and Frame	MM	170	210	200	260	260
Bolster (F.B X L-R x H)	MM	320 X 480	400 X 600	380 X 610	480 X 710	480 X 710
Bolster opening (Upper Die X Depth X Lower Die)	MM	φ100	φ120	φ130	φ220 X 25 X φ180	φ200 X 45 X φ180
Bolster Thickness	MM	60	70	70	80	90
Bed Opening (Dia/F.B x L.R )	MM	φ210 X 160 X 240	φ180 X 130 X 260	φ180 X 130 X 290	φ200 X 150 X 300	φ250 X 200 X 340
Slide Area (F.B x L.R )	MM	180 X 200	210 X 250	210 X 250	270 X 320	280 X 320
Shank Hole (Dia x Depth)	MM	φ40 X 60	φ40 X 70	φ40 X 60	φ50 X 70	φ50 X 80
Max. Inclined Angle	°	25°	25°	25°	25°	25°
Between Columns	MM	220	260	300	300	350
Main Motor Power	KW	1.5	2.21	3	4	5.5
Outline Dimension (F.B x L.R x H)	MM	1150 X 900 X 1910	1325 X 990 X 2140	1490 X 1080 X 2200	1600 X 1180 X 2310	1810 X1350 X 2640
Net Weight	KG	1080	1900	2440	3180	4000
