Dynamic balancing balancing machine accessories for various motor Armature Rotor

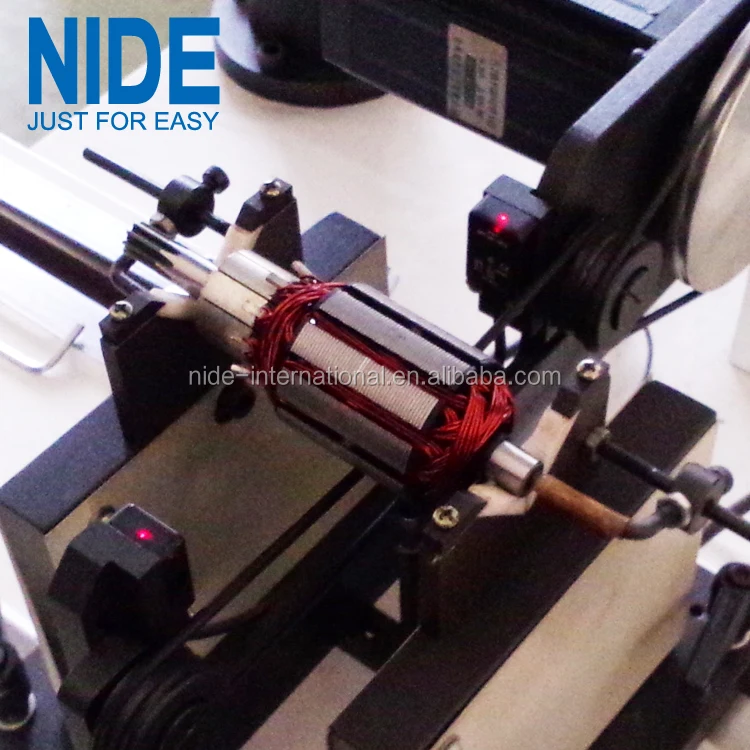

Dynamic Armature Balancing Machine

(1) Main technical data:

Armature lamination length:10~200mm

Armature diameter range;Max 200mm

Armature weight:0.1~1.6Kg

Unbalancing value;0~600g.mm/kg

Driving method:Belt

Power:220V

Balancing speed;900~500rpm

(2) Applications:
The machine is widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.

(3) Machine function and characteristic

This machine automatically measures the unbalancing amount of the armature, automatically stops the armature at the unbalancing position

No need to mark on the armature (such as reflective sheet, black mark an so on)

Imbalance point positioning automatically

Low operation skill requirement to staff

Reduce the complexity of the machine operation

PLC control.

Operator needs to stick the balancing mud onto the unbalancing position manually.

We provide balancing machine accessories,dynamic balancing machine chennai,dynamic balancing rotating equipment etc.

Motor armature rotor manufacturing assembly line including: shaft pressing machine, end cover pressing machine, commutator pressing machine, armature insulation paper inserting machine, armature winding machine, commutator hot stacking machine, armature wedge inserting machine and armature testing machine, ball bearing inserting machine, and worm shaft inserting, NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.

Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
