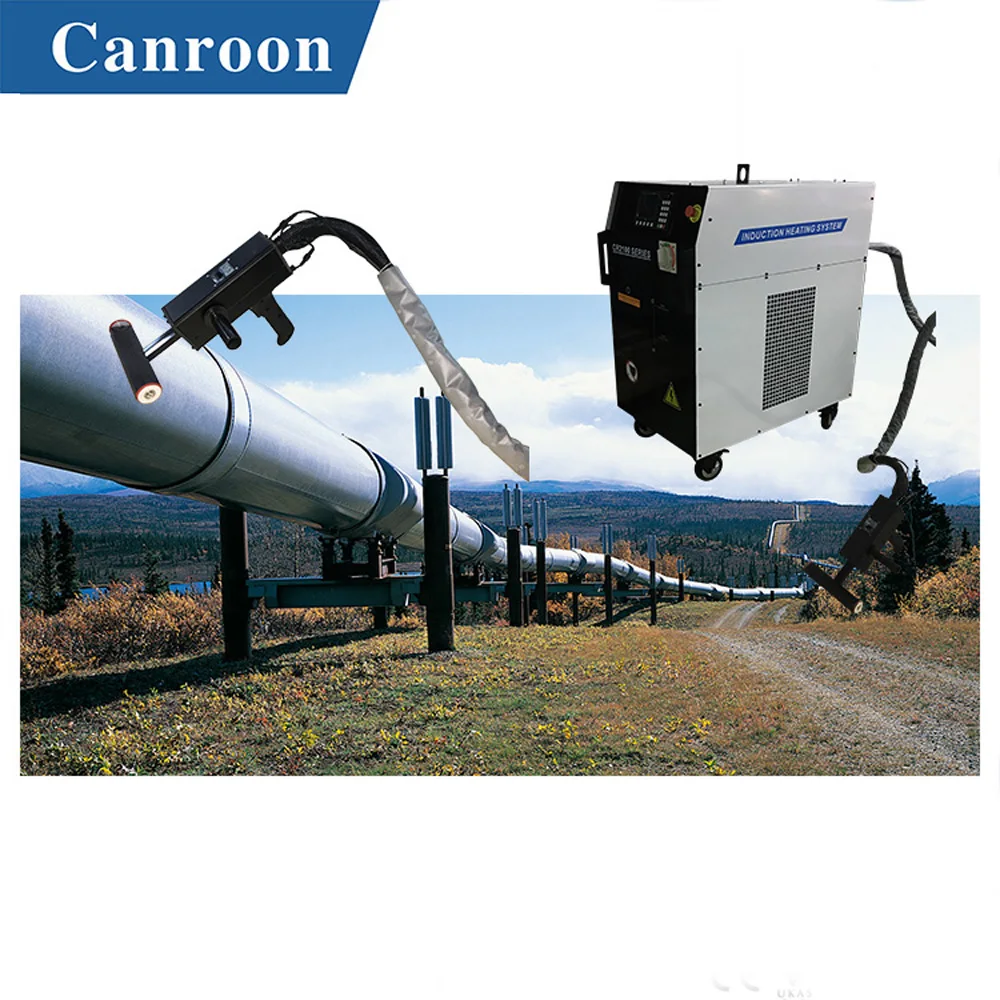

10kw to 50kw induction heater induction heating equipment for metal brazing annealing hardening

Contact: Sandy Liu

Mobile/Whatsapp/Wechat:0086-13715137235

Power: 10-50kw

Applications:metal brazing, annealing, hardening, straightening, curing, paint removal, etc

Frequency:10-40kHZ

Voltage: 3phase, 380-460V, 50/60HZ,

Application industries: aviation, metallurgy, tools and equipment, automotive, etc

Suitable metals: nearly all conductive metals like copper, steel, iron, brass, aluminum, etc

Features: built-in chiller, HHT, universal wheels, digital control, self-fault diagnosis, modular design, etc

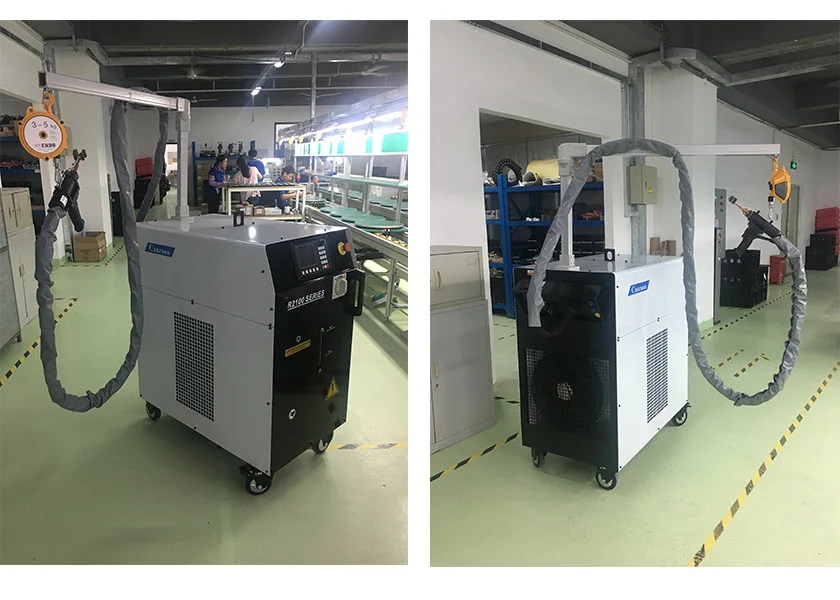

Induction heater/Induction heating equipment shows as follows:

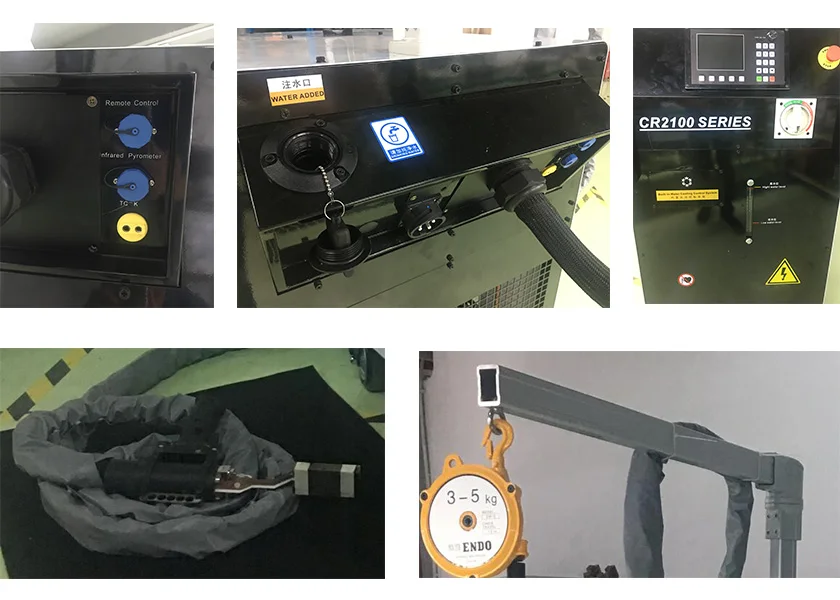

Pictures to show the details: remote control, infrared pyrometer, TC, water inlet, display panel, water level indicator, HHT, support frame, etc

Applications of induction heater/induction heating equipment:

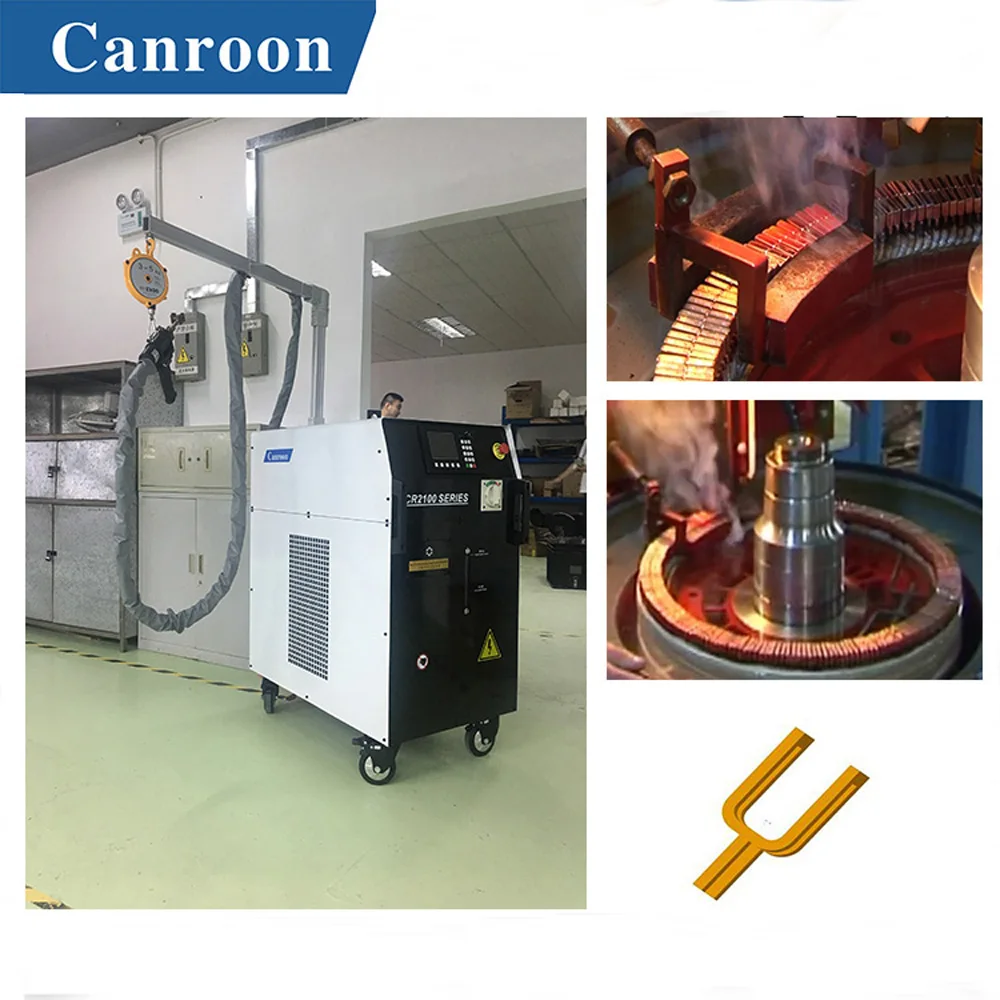

Induction brazing of short circuit ring,

Induction brazing of copper wires on motor stator,

Induction brazing of rotor bar,

Induction brazing of rotor coil,

Induction brazing of heat exchanger,

etc

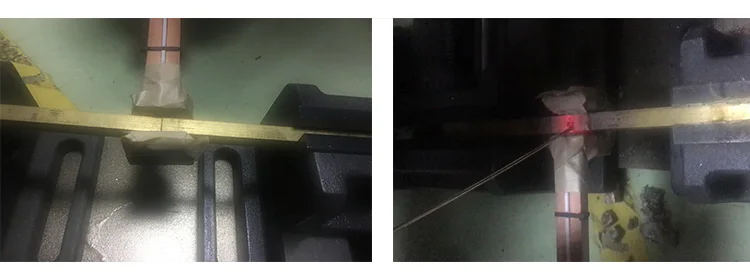

Induction Brazing of brass with Ag-Cu alloy as welding solder to make slip ring in motor for wide applications.

Induction annealing of steel plates, with good performance.

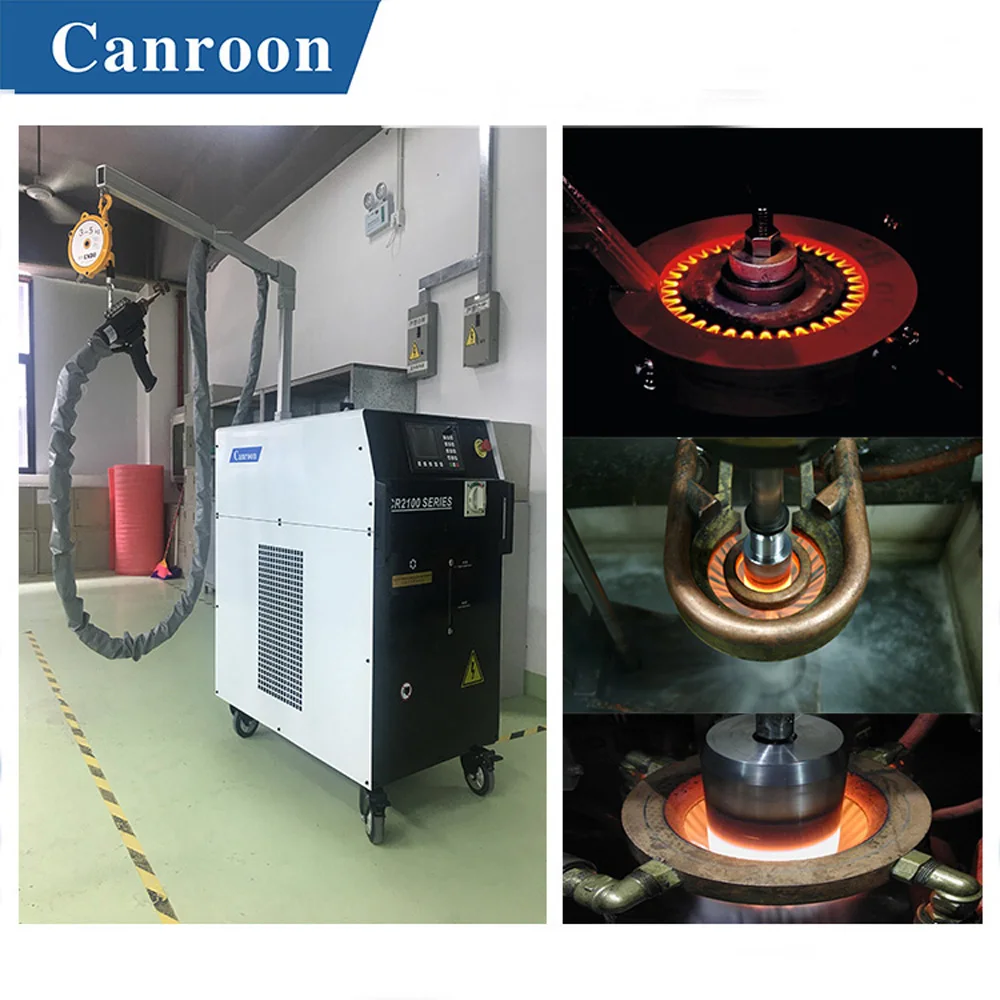

Induction Hardening of metals:

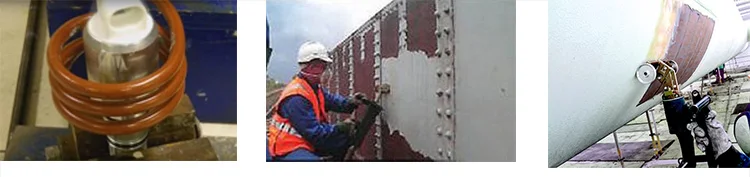

Induction Curing & paint removal:

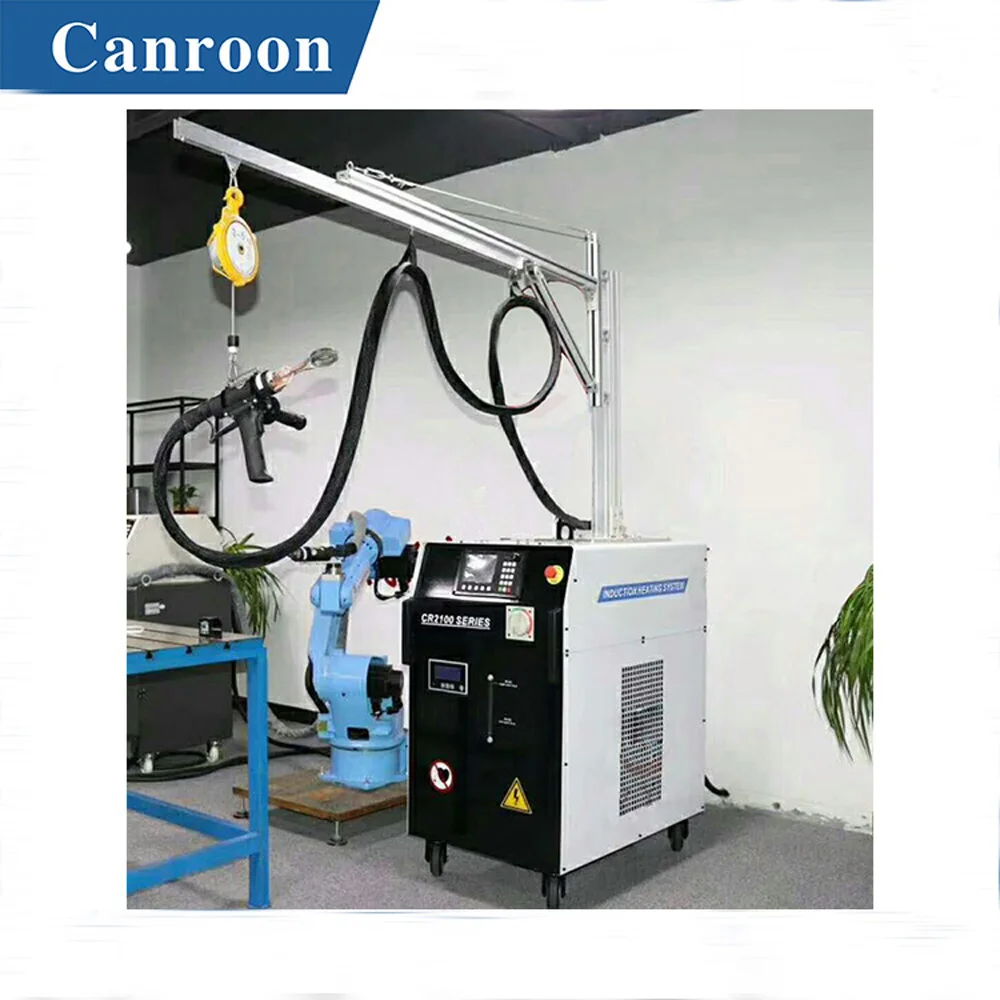

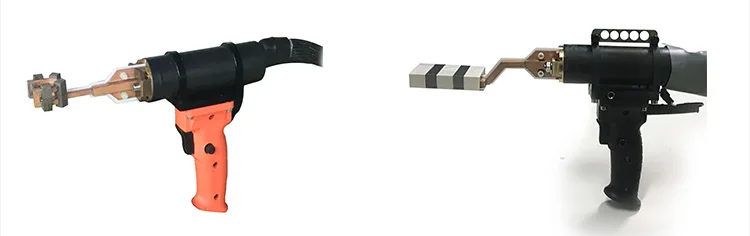

HHT(hand held transformer) is easy to operate, and can be integrated with Robot Arm for automotion production, two buttons to control the machine working:

Inductors are important part of induction heater, it is precisely designed, manufactured

 by good quality material, and tested many times before outgoing, it is detachable, and can be customized accoridng to your workpiece:

Advantages:

·  High Temp. & Fast Heating

Able to reach >1000℃ within seconds.

·  Easy Operation

CR2100 can be easily start&stop manually, and scan on workpieces surface to do local heating. It can also be integrated into robot arm to serve automatic line.

· Accurate Control

The interface offers two basic control modes to choose including temperature control and power control. The former one has 4 modes of Constant Temp., bake-out, HT (heat treatment), custom. The last one has 2 modes of constant power and power VS time. Each mode offers different parameters to set. Thus brings the benefit of wide applicability and precise control of heating process.

· Fault Record

Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.

· Easy Maintenance

Due to modular design, the maintenance will be easy and low-cost.

· Self-Diagnosis

Once fault occurs, CR2100 will act with display of fault code, which was detailed explained in the manual book.

· Customized Inductor

Canroon provided high-standard customized inductor to CR2100 induction generator, to help you deal with workpieces of different shap&size.

All of our induction heaters are packed in wooden case for safe delivery, by sea, or by air as you require.

1. keep the quality first and make more products benefit to our customers' need

2.about our Online/Sale service

1)super and solid quality

2)Fast and punctual delivery

3)Standard export package or as customers’ need.

3.After-sale service

1)Assistance to your project

2)Repairing and maintenance if any problem occur in the warranty.

3)Installation and clerks training

4)Spare and wearing parts for free or with big discount

5)Any feedback of machines can be told to us, and we will try our best to support you.

4.Other cooperation service

1)Technology knowledge share

2)Factory building advising

3)Business expansion advising

1. Are you a trading company or manufacturer?

    We are manufacturer located in Shenzhen, China, specialized in induction heating power for many years.

2. What's the delivery time for sample and bulk order?

    Normally we have stock of the mini and medium items, 1-3 days for sample order, 15-40days for 20 GP and 40HQ quantity.

3.  What's your quality guarantee period?

     12 months warranty

4. Can I get a lower price if I order large quantities?

   Of course. Cheaper price with larger quantity

5. Can you customize the machine for us?

  Yes, of course, we can customize the machine, inductor, coil, etc according to your need, just tell me your detailed requirement, so I can suggest you most suitable project.
