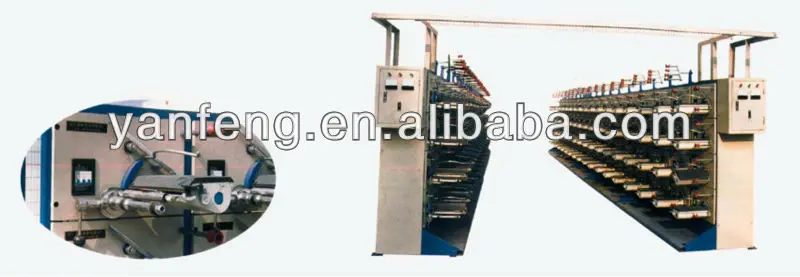

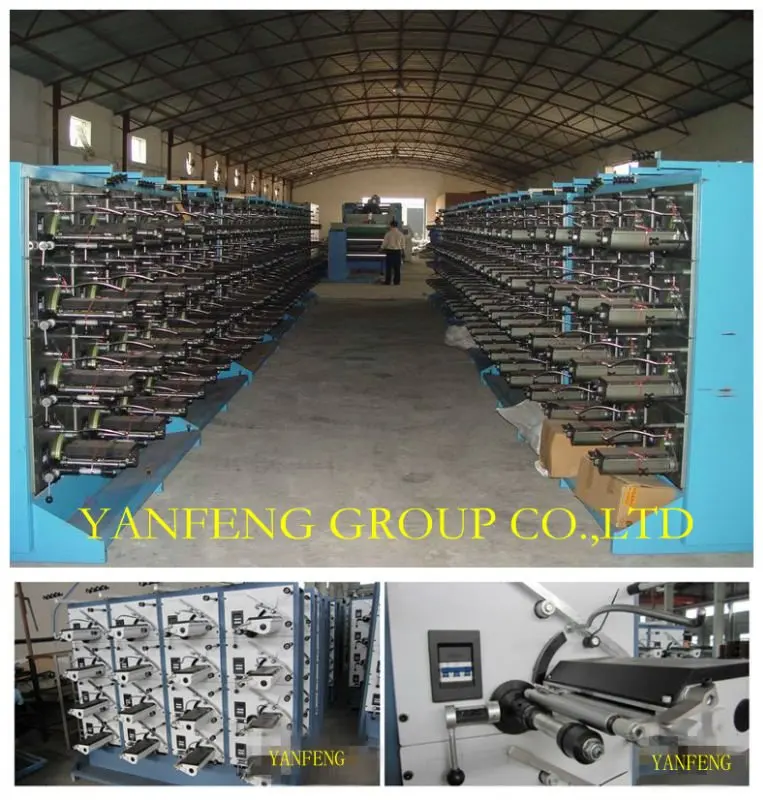

High speed single spindle magnetic bobbin winding machine for pp woven bag

Product Overview

Description

This machine matches the tape drawing machine to wind the tape into tape spindle for the weaving of circular loom.
It adopts magnetic-driving and can keep the winding tension steady and winding spindle flat to improve the quality of weaving flatness.
Futhermore, the production capacity can be greatly increased and the cost can be highly reduced if it works with high-speed flat yarn extrusion line.



Model No.	Layer No. of Spindle	No. of Spindle	Dimension of Bobbin(D×L)(mm)	Linear Speed of Tape Winding (m/min)	Gross Power of Motor (kw)	Installing Dimensions (L × W × H)(mm)	Weight (kg)
S-SDC-144A	4	144	38 × 230	80-280	26	9000 × 3200 × 200	5100
S-SDC-168A	4	168	38 × 230	80-280	30	10500 × 3200 × 200	6300
S-SDC-192A	4	192	38 × 230	80-280	35	12000 × 3200 × 200	6800
S-SDC-240A	4	240	38 × 230	80-280	43	15000 × 3200 × 200	8500
S-SDC-288A	4	288	38 × 230	80-280	52	16000 × 3200 × 200	10000
S-SDC-360A	4	360	38 × 230	80-280	65	22500 × 3200 × 200	12800
