Model: R260T, rooftop mounted & engine driven van refrigeration unit for refrigerated vans
- Category: >>>
- Supplier: Xinxiang Rifusen Industrial & Trade Co. Ltd.
Share on (60683980727):
Product Overview
Description
Specifications of rooftop van refrigeration units for refrigerted vans
- Rooftop Mounted unit and slim evaporator design.
- Strong refrigerating, cooling fast.
- High-strength enclosure, elegant appearance.
- Compact structure, small size, light weight and fuel savings.
- Quick installation, simple maintenance and low maintenance cost.
- Apply to all kinds of small refrigerated vans.
- Full digital control, easy to operate.
Technical datas of rooftop van refrigeration units for refrigeration vans
Main Technical Parameters | ||
Model | R260T | |
Temperature range in container | -18℃~+25℃ | |
As ambient temperature 30℃,cooling capacity | -18℃ | 1033W |
-5℃ | 1630W | |
Structure | Split and dependent unit | |
Voltage | DC12/24V | |
| Model | 5H11 |
Gas Displacement | 108 cc/r | |
Oil | POE | |
refrigerant | R134A/R404A | |
Gas Charge | 0.7~0.9KG | |
suitable refrigerated cargo box | 2~4 m³ | |
Safety protection device | HP/LP safety protection switch | |
Defrost Type | Hot gas defrost(R404A only) | |
Dimension | Evaporator | 600*530*150mm |
Condenser | 700*700*185mm | |
Weight | Evaporator | 9.8kg(22lbs) |
Condenser | 28.75kg(43lbs) | |

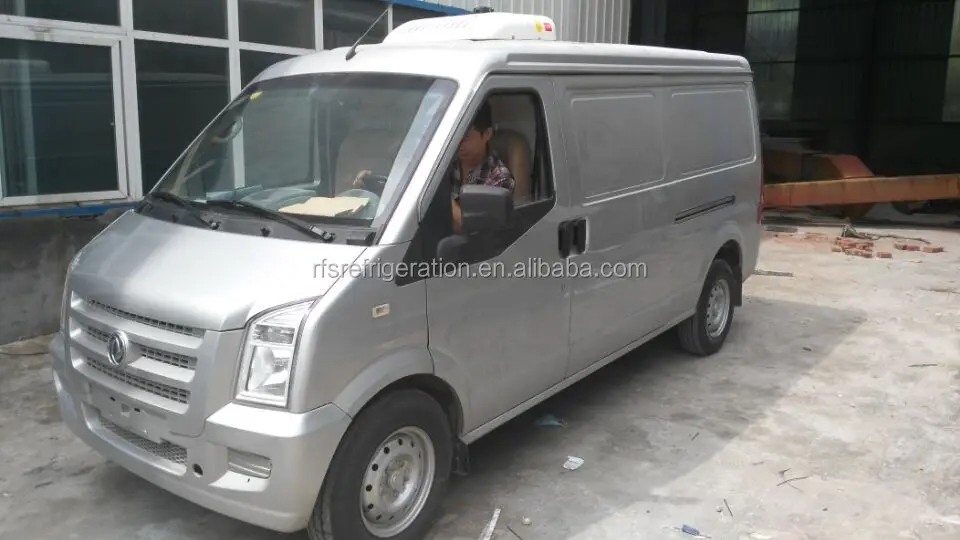

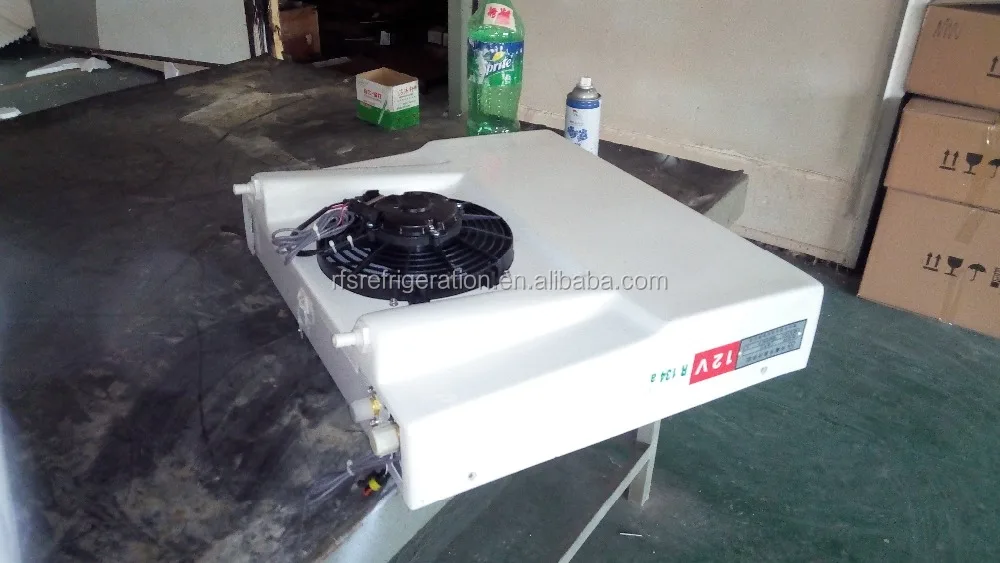

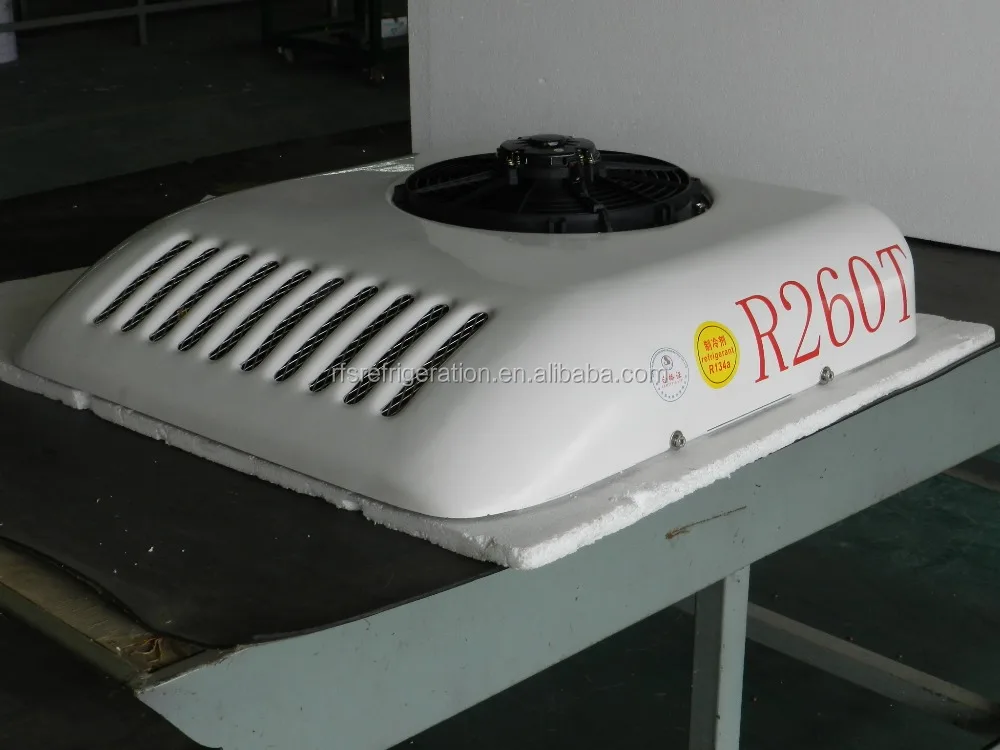

Detailed images of rooftop van refrigeration units for fruit

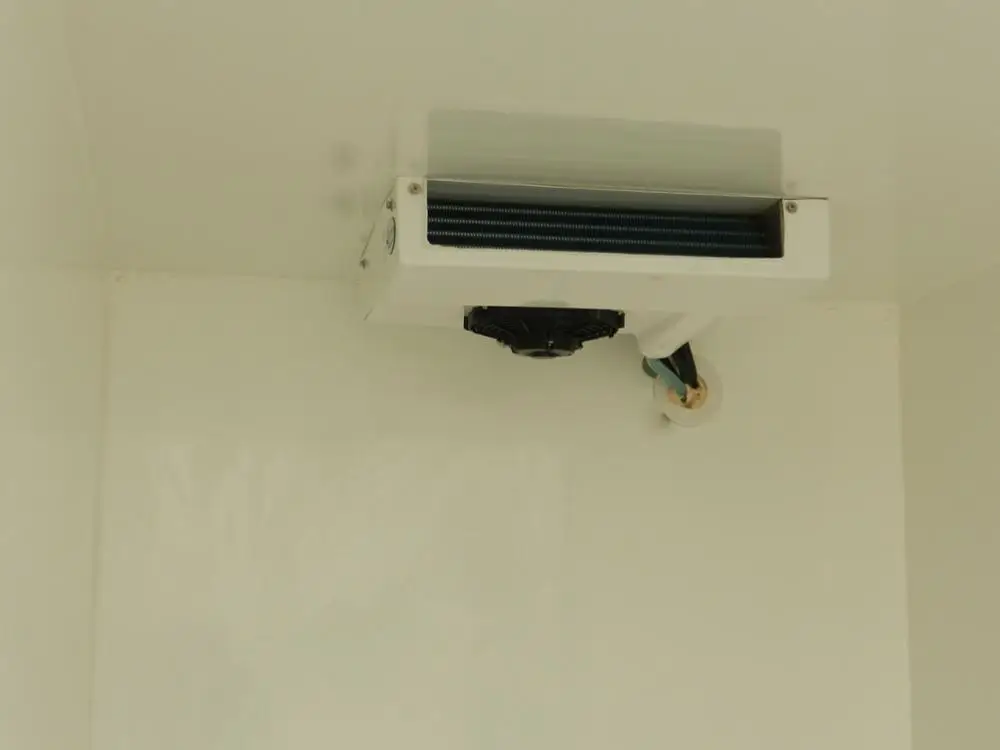

Product installation images
Packaging & Shipping
Packaging:Standard export packaging,carton and hob packing with strong wooden pallet.
Shipping:The shipping port are Qingdao Port, Shanghai Port, Tianjin Port, Guangzhou Port, etc. Shipment will be effected within 25 days after you confirm the order.
Our Services
Pre-sale:
Provide professional suggestions for model selection, technical solution, etc.
Recommend the best product according to your needs,such as the conainer volume, temperature range,etc.
Introduce our company infromation to you.
Factory and product line visiting is always welcomed.
Sale:
Monitor the qualtity of the product carefully.
Strict product acceptance.
Shipping on time and short delivery time.
After-sale:
Installation guide for free.
Our products have 1 year warranty,spare parts recement service is provided.
Company Information
Xinxiang Rifusen Industrial & Trade Co., Ltd. (formerly known as Xinxiang Guobing Refrigeration Co.,Ltd.) is specialized in manufacture the truck refrigeration units and vehicle air conditioning system. Since the company was founded, we are committed to R&D and manufacture large cooling capacity, quick cooling, reliable quality ,safety and environmental friendly truck refrigeration units and vehicle air conditioning system, and developed the DC powered A/C of commercial vehicle and RV according to the customers′ requirements. We have several series products include the freezer and cooling series of truck refrigeration units, preparation of power unit, air conditioning system for construction machinery, bus, truck and DC powered A/C. More than forty model of the above products will be meeting the different needs of customers.
Now, We are the OEM supplier of China′s top brand refrigeration vehicle manufactures, such as Liuzhou Wuling, Beiling, Tianyun, Foton, HenanXinfei, etc. At the same time, we have been exported our products to Middle East, Africa, Southeast Asia, South America market.
Our truck refrigeration units are suitable for 2-40 m³ truck container and can be installed on different vehicle chassis.
Our company also manufactures the segment type evaporator, condenser and coil of heat exchanger which can suitable for all kinds of vehicle A/C and truck refrigeration units.
Our company has passed ISO9001-2008 quality control system certifying.
