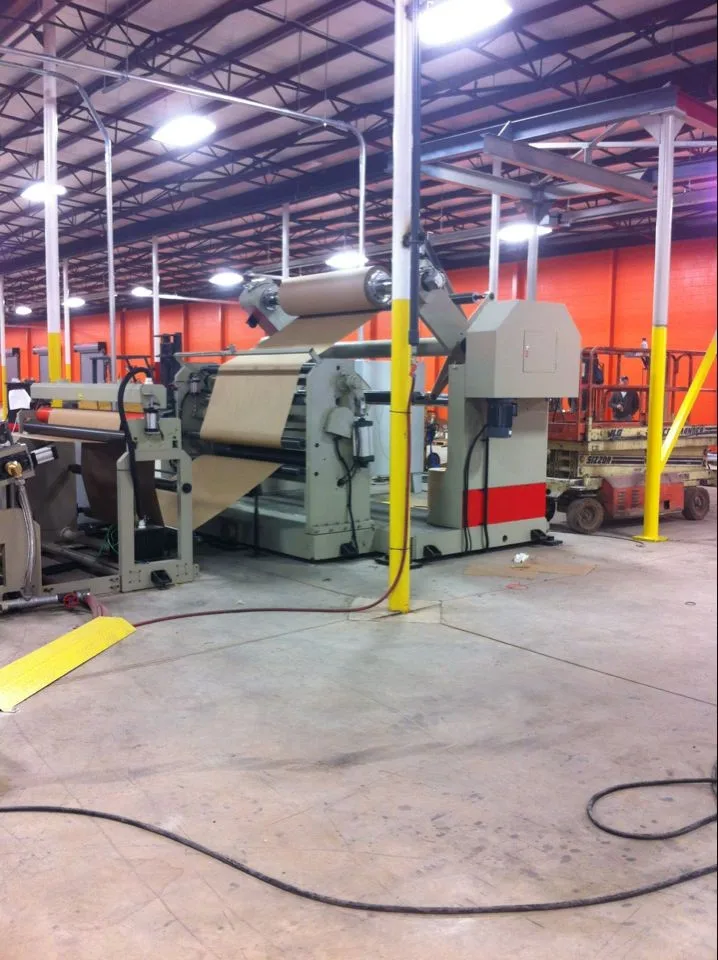

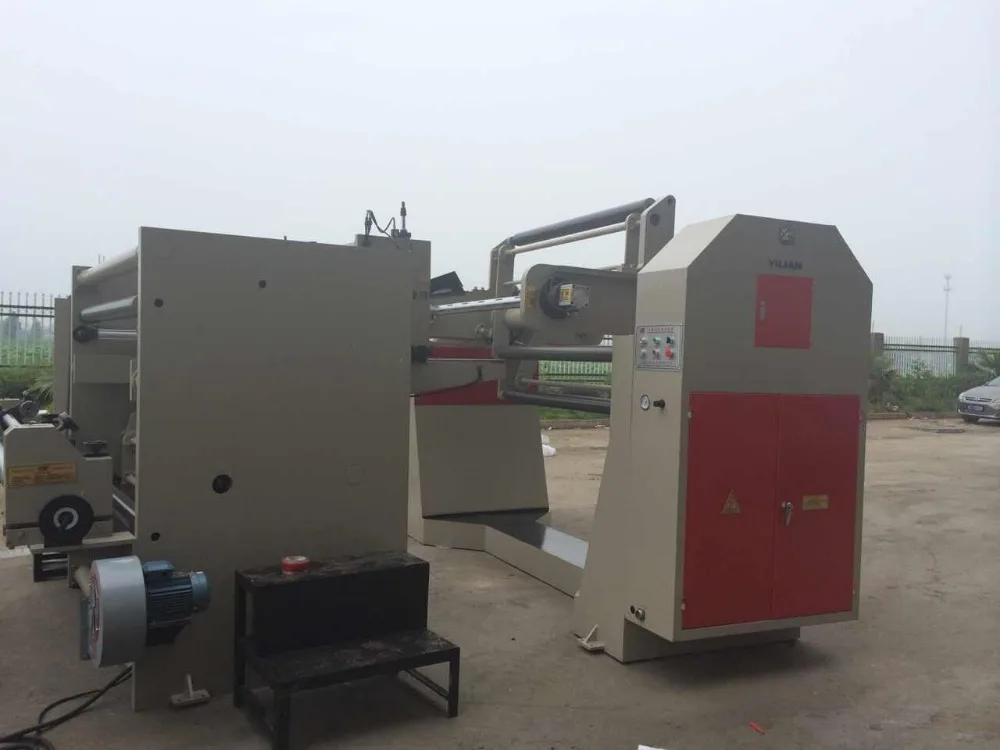

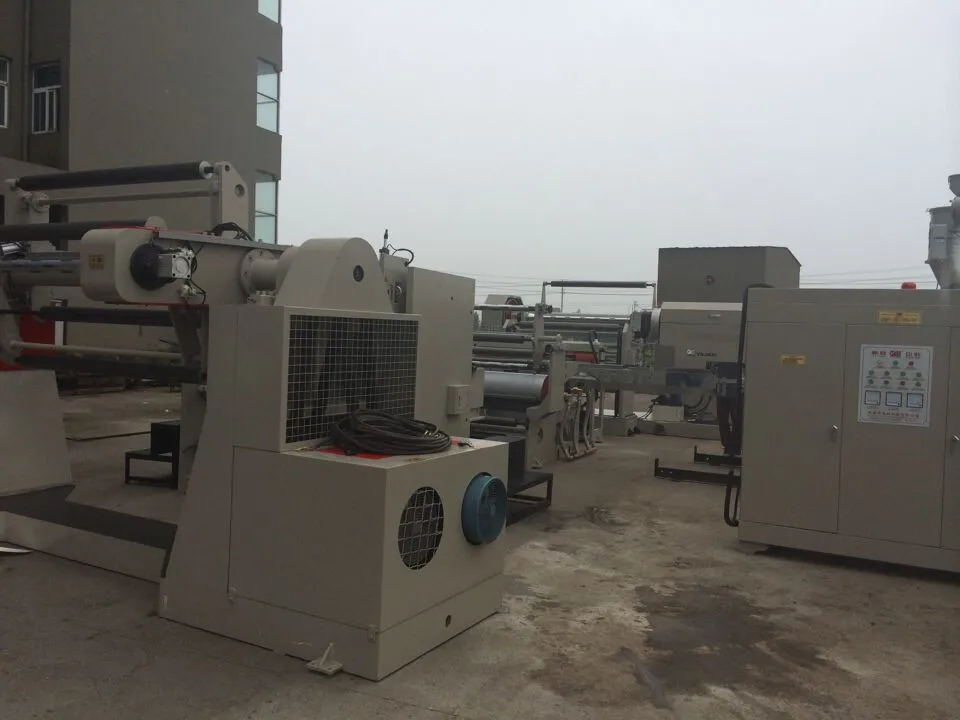

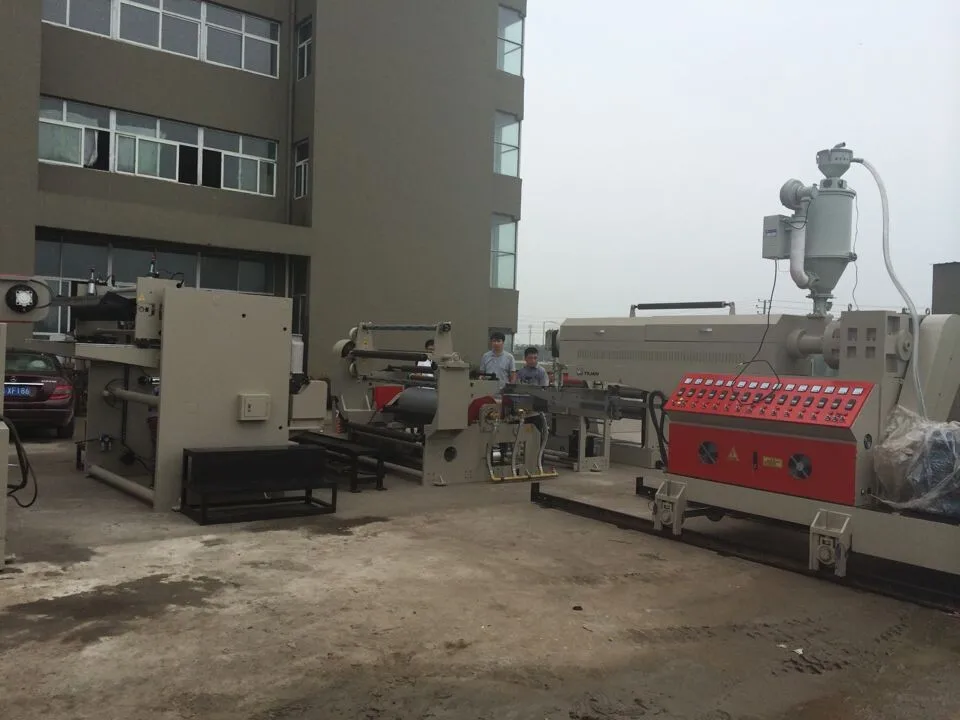

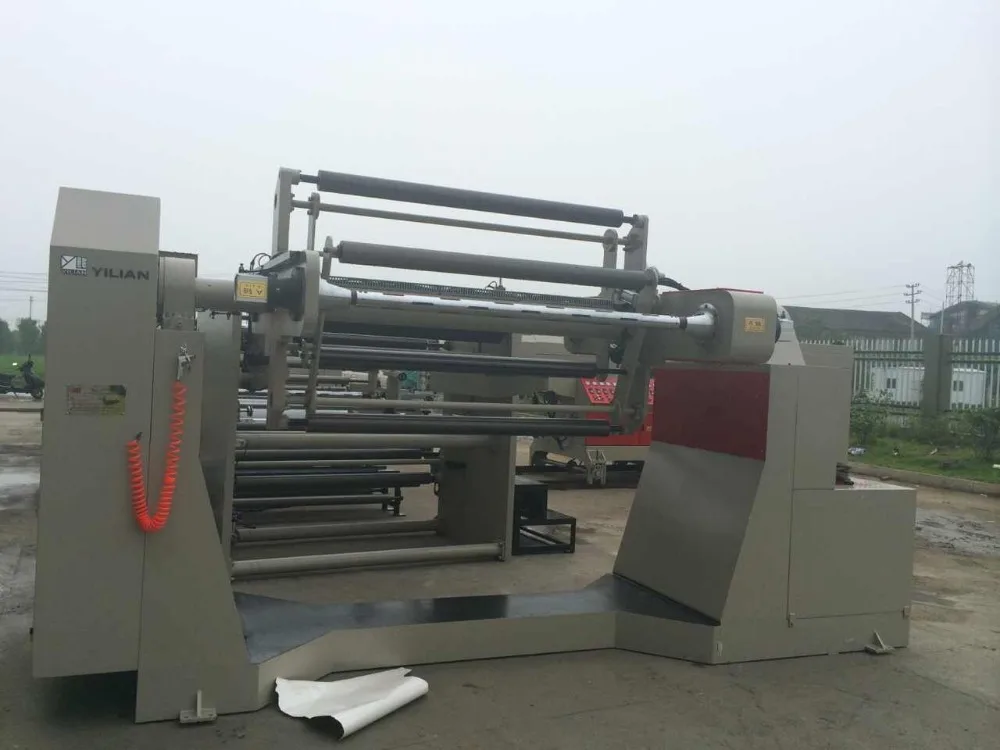

YILIAN Full automatic high speed laminating machine for alu foil

Main features:

PLC man-machine interface centralized control, machine, electricity, gas integrated design. High precision, non edge imported original die head
High speed and efficient mixing equipment (US technology)
New technology static mixing device (Italy Technology)
Quick exchange network.
Equipped with dry type composite system, with the function of dry composite machine

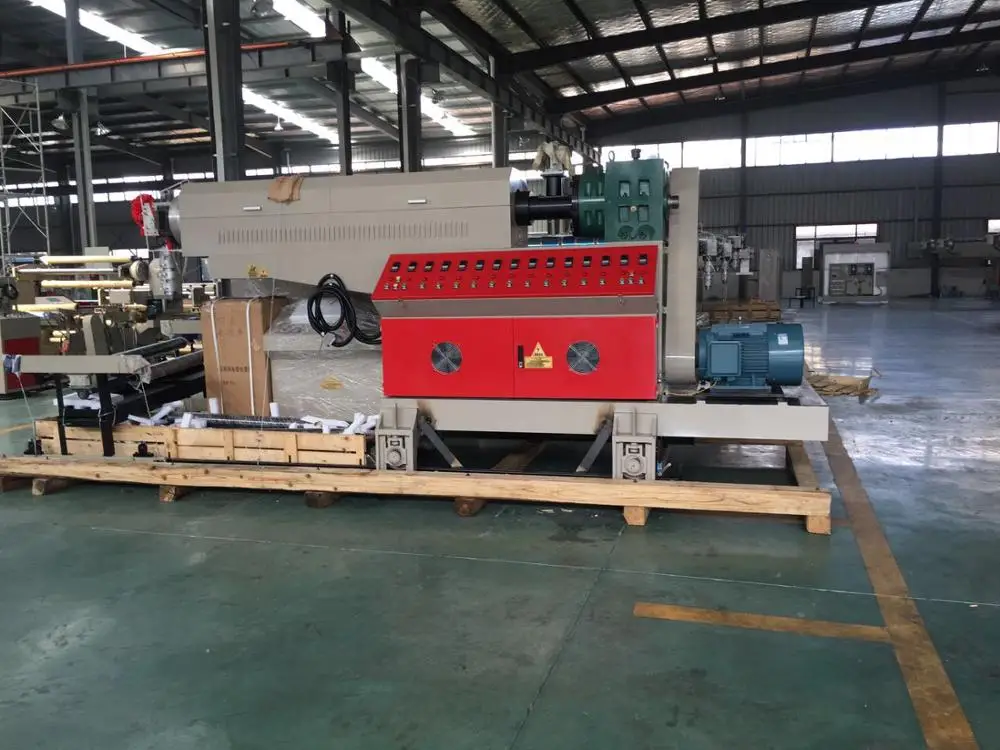

And can be matched with a single extruder, Twin Extruder, extruder, multilayer coextrusion

This type of machine suitable for thin material ,such as paper 20-30g , PET film ,BOPP film and alu foil

Technical parameter:

machinery specification	1100/90mm,1300/100mm ,1500/105mm, 1800/110mm
speed of coating film	150m/min,180m/min,200m/min
suitable coating resin film	LDPE,PP, EVA ,EAA
suitable base material	BOPP,BOPET,BOPA,CPP,CPE,PAPER,AL,NONWOVEN
width of coating film	1100mm,1300mm,1500mm,1800mm
thickness of coating film	0.008~0.05mm
inaccuracy thickness of coating film	≤±5%
complex cooling roller	Φ500mm,Φ600mm,Φ700mm
screw specification	(L/D)Φ90:33,Φ100:33,Φ105:33;Φ110:33
main unwinding diameter	Φ800-130mm
diameter of auxiliary unwinding	Φ600mm
diameter of rewinding	Φ800-1300mm



Related Products

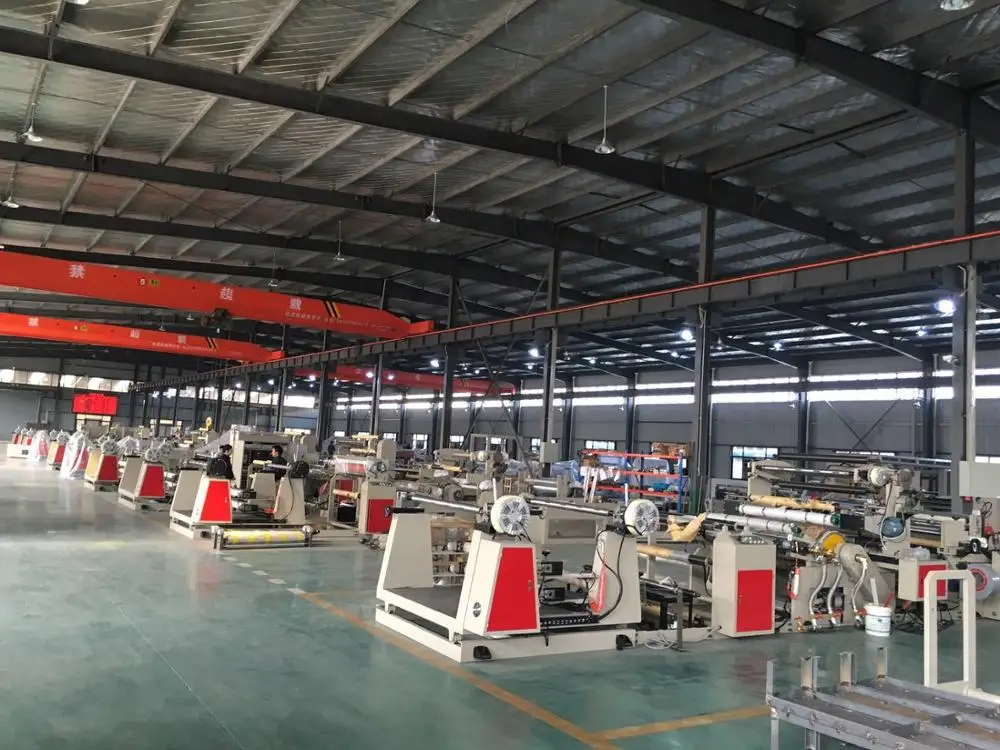

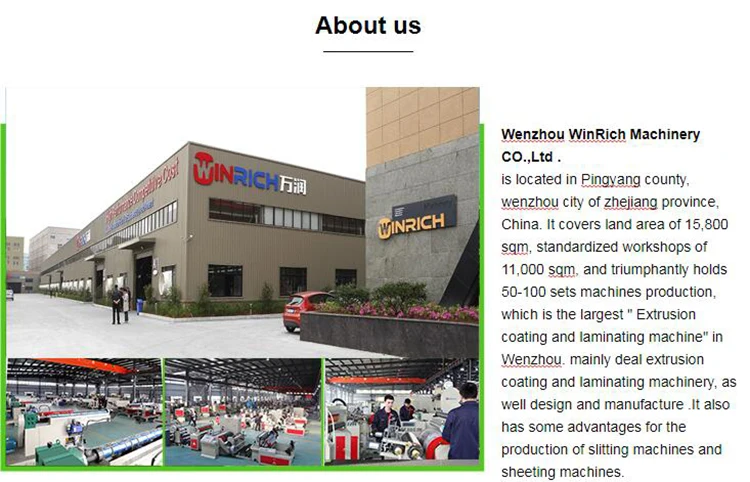

Company Information



Our Advantages

FAQ

FAQ

1. what's your product range?

Pe coating machine ,slitting machine and sheeting machine   etc.

2. Are you a manufacturer?

Yes,We have been in making PE coating machine over 20 years.

3. What about the payment term ?

Mostly 30%T/T  in advanced,the rest need paid before shipping.

4. What information should i let you know if i want to get a quotation?

 --Material width ,diameter and thickness



 --Coating thickness



 --Market demand per month
