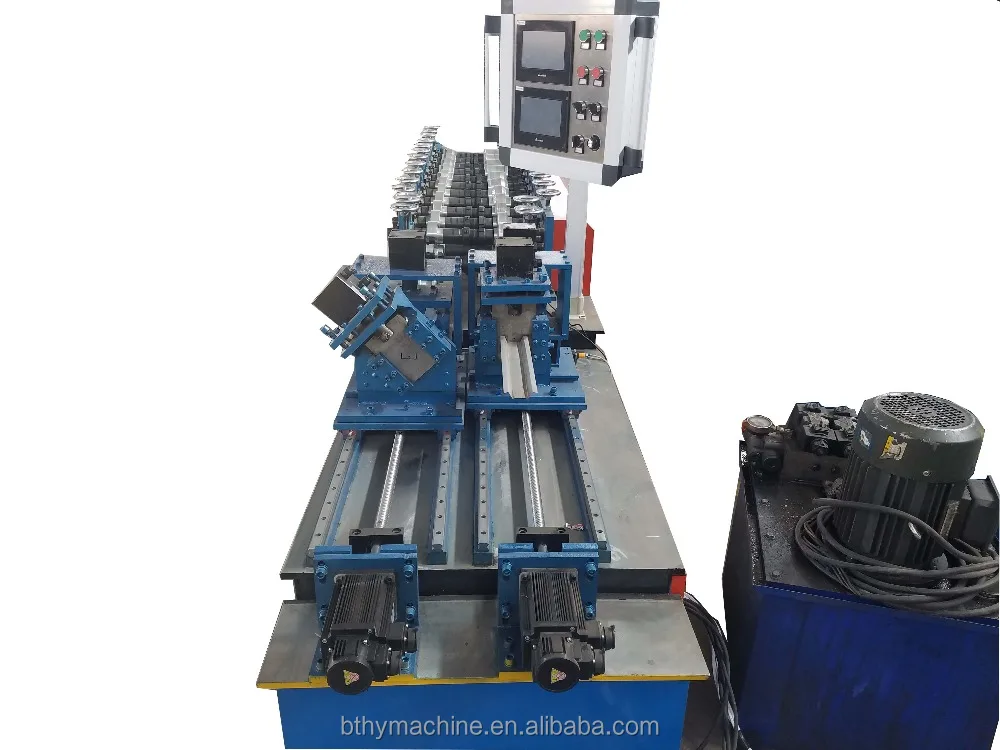

Metal Aluminium Window Frame Making Machinery
- Category: >>>
- Supplier: Botou Hongyuan Forming Machine Co. Ltd.
Share on (60684129410):
Product Overview
Description
Product Description
Specification of Metal Aluminium Window Frame C Profile Stud Making Machinery
| Suitable Material: | PPGI,PPGL,PI |
| Coil Width: | as your need |
| Coil Thickness: | 0.5-0.6mm |
| Profile Size: | customized |
| Color: | blue,grey,or your need |
Machine Component
Feeding Device
5T Manual Decoiler
Dimensions: 1500*1000*800
Inner Diameter: 450-508mm
Capacity: 5T
We also have Hydraulic Decoiler for 5T to 10 T .
Feeding Device
Width: 500 mm Adjustable
It helps to keep products neat, parallel and everything is uniformity. Please refer to the equipment instruction to know the function of locate angle iron.

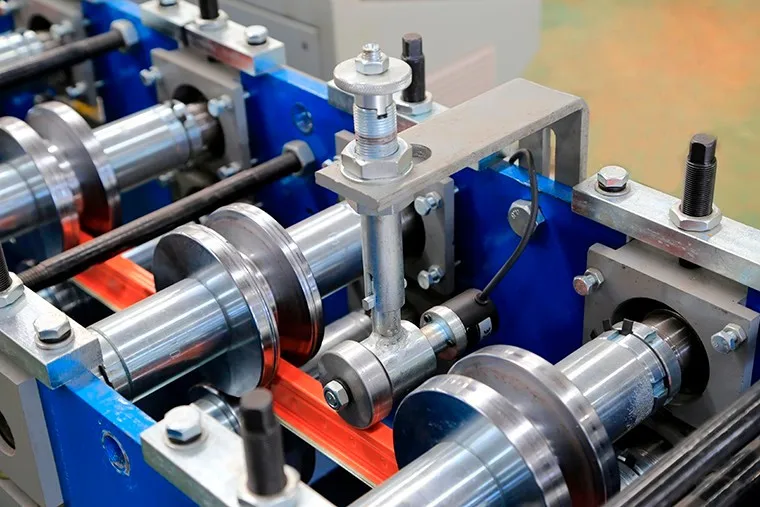

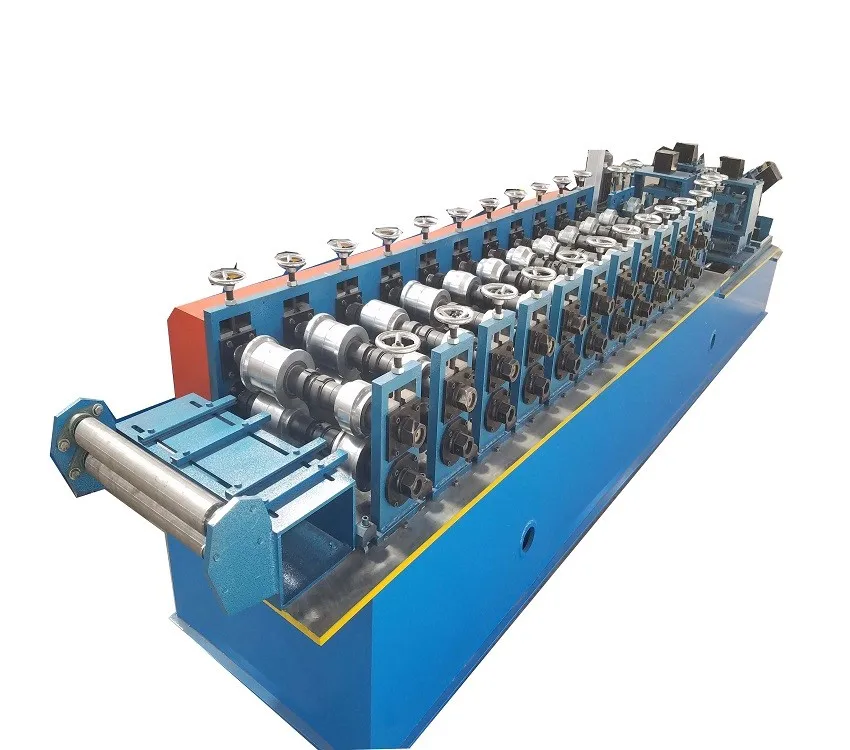

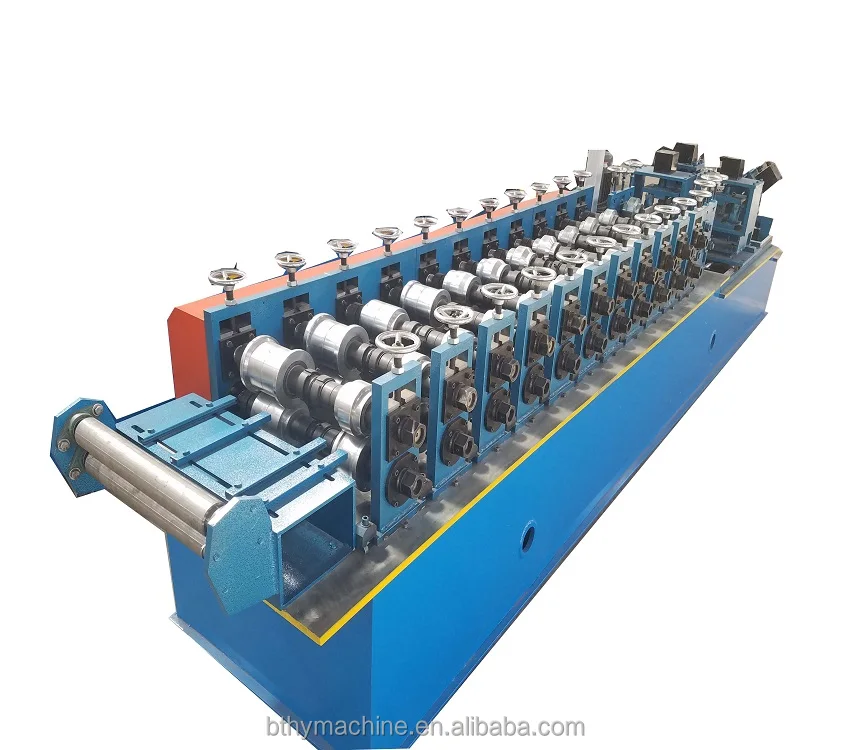

Roll Former
Roller Station: 12 rows
Roller/Shaft Material: No.45 steel, roller surface polishing , with heat treatment
Shaft diameter :50mm

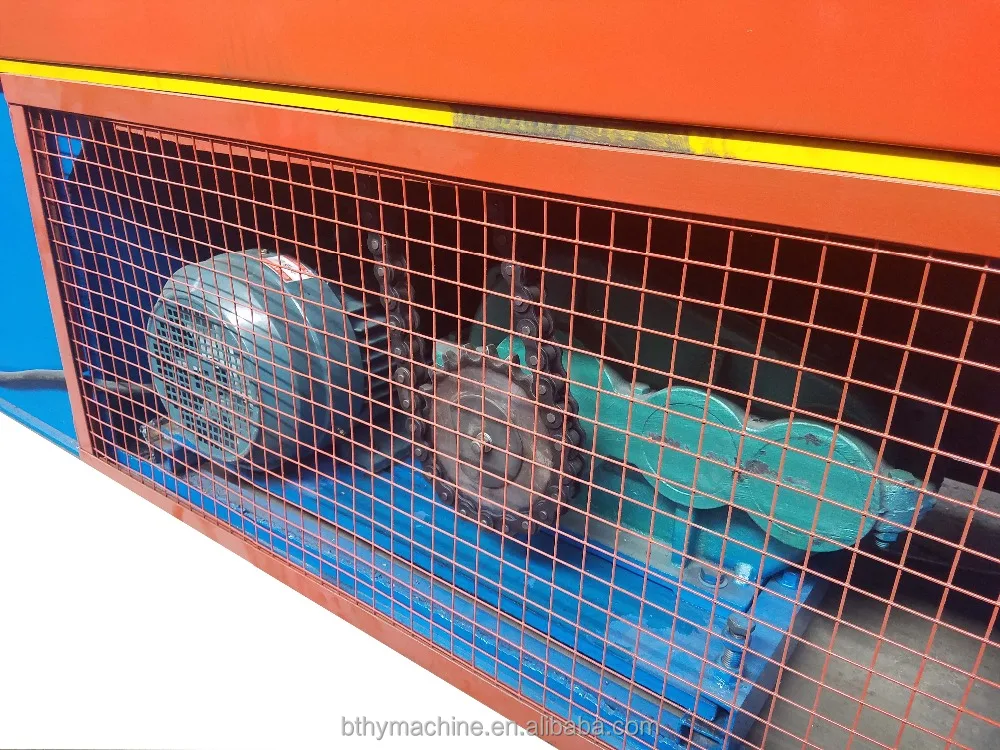

Motor Power: 5.5KW
Capacity: 15-20m/min
Volume:0.8*0.8*1.3m
Voltage: 380V 50Hz 3Phase , or customized
Hydraulic Station
Power: 4kw
Hydraulic oil: 46#
Hydraulic oil: 46#
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

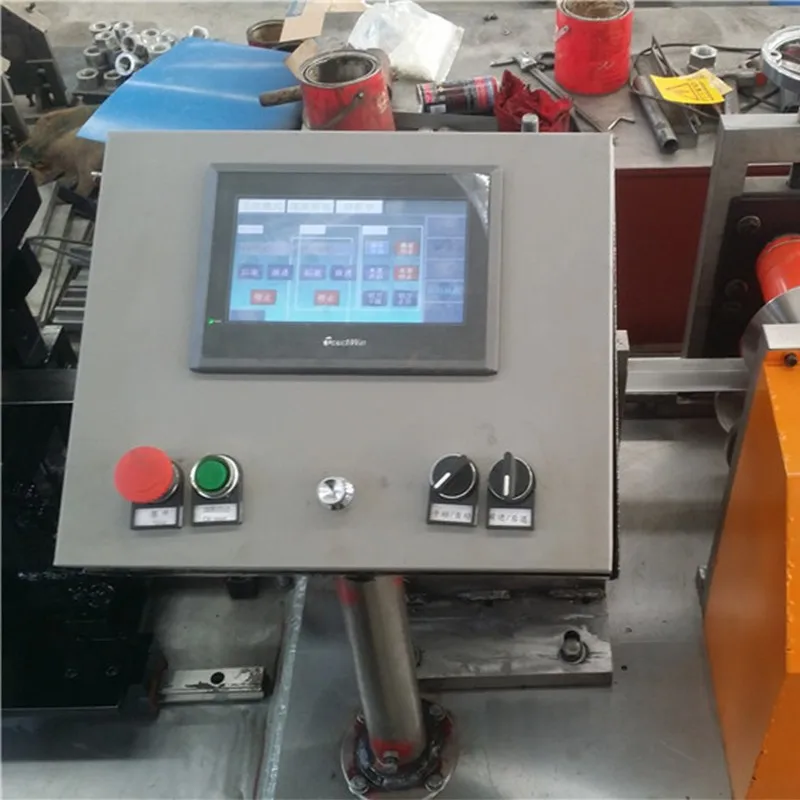

PLC control System
PLC Brand : Delta or Customized
Language: English,Spanish,Russian, Chinese
Control panel: Button or Touch Sreen
HMI : Easy to operate

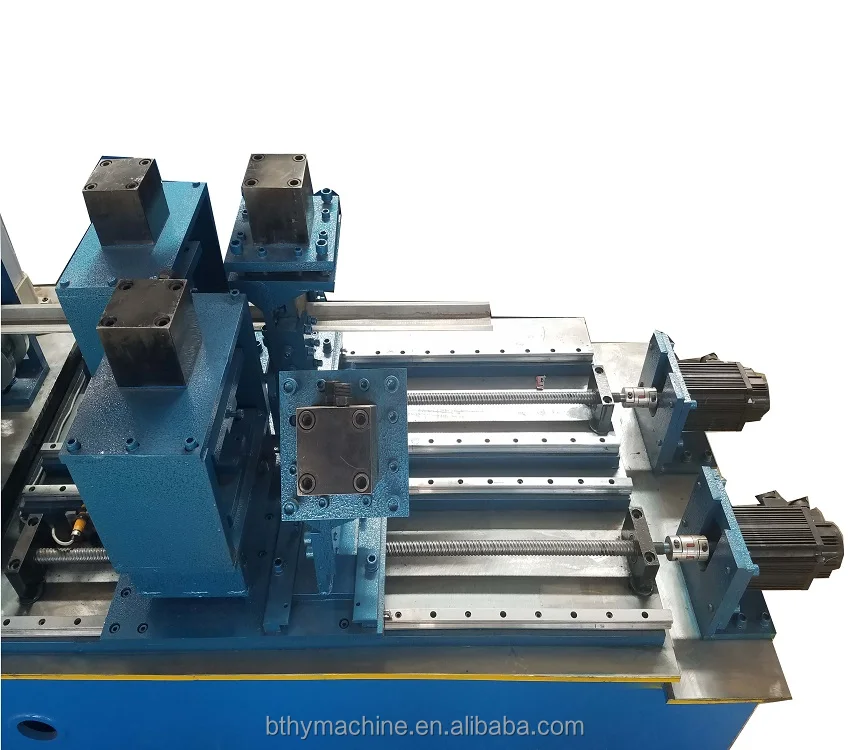

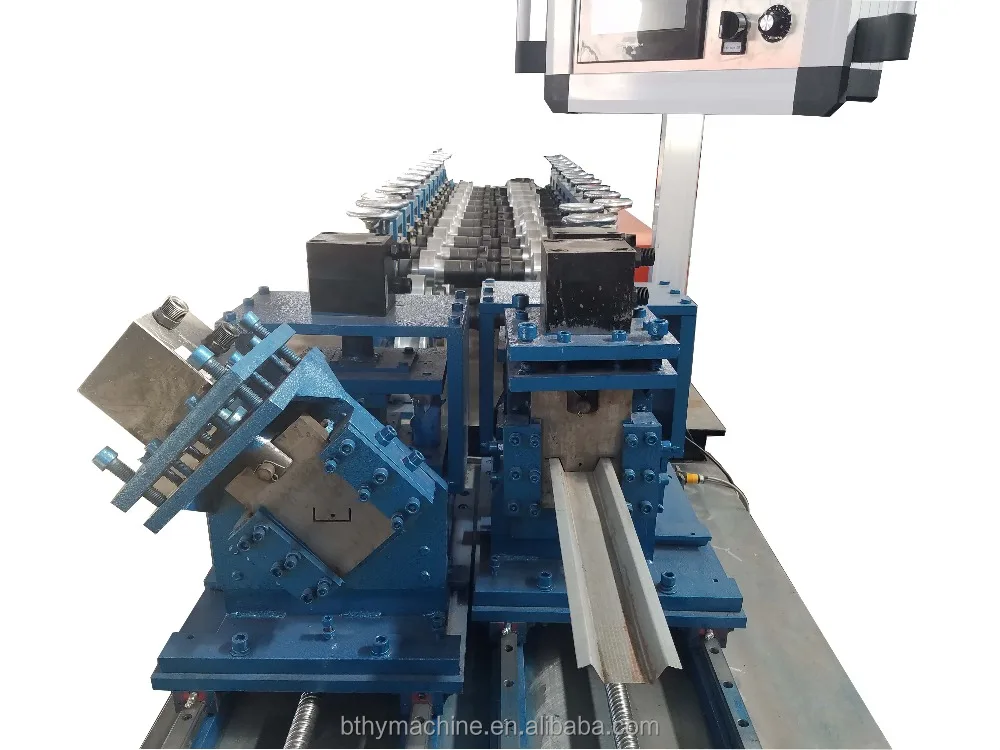

Hydraulic Cutting
Forming and Cutting: Cut the sheet after roll forming to required length
Material of blade: Cr12, 58-62 HRC hardness
Hydraulic power : 11KW
Length measuring : Automatic encoder length measuring
Tolerance of length : +/- 1.5mm for each piece
Output Table
Size: 3*1*0.8m
Quantity: 2 sets
We also have Auto stacker for automatic production line .

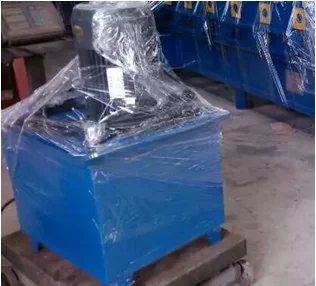

Packing & Delivery
| Packing List | |
| Size | 0.8*0.7*1.3m |
| Width | about 3.5 tons |
| Packing details | 1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 20' container to shipping. |
Company Profile
Botou Hongyuan Forming Machine Co.,Ltd has been established in 2005 as a professional manufacturers of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more then 10 years of experiences and strict quality control, our products meet International Standard. We are the leading manufacturer and reported of roll forming machine in China. We manufacture various kinds of roll forming machine for producing the following products.
Certifications
Our Service
Our Service:
1) Color ,Size,Profile can be customized
2) We accept various of payment terms,like:T/T,L/C,Trade Assurance etc
3) If you visit our factory,we can pick you up at station/airport
4) Short delivery time,aroung 20 days after received your deposit.
Installation and training:
1)If buyers visit our factory and check the machine,we will teach how to install and use the machine and also train your workers/technican face to face.Without visiting,we will send you manual and video to teach you install and operate.
2)If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
FAQ:
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, etc. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your country to fix the machine. The buyer should bear all the cost including: visa, Round trip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $50 per day to maintain the machine. And the components are not free, if you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
