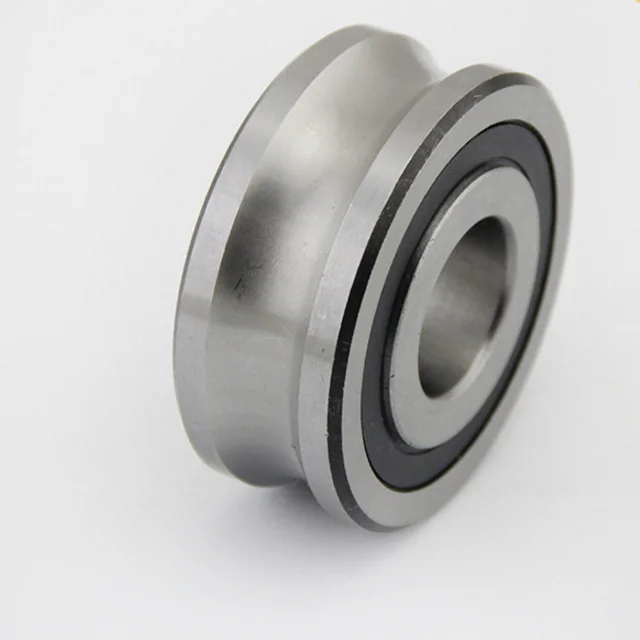

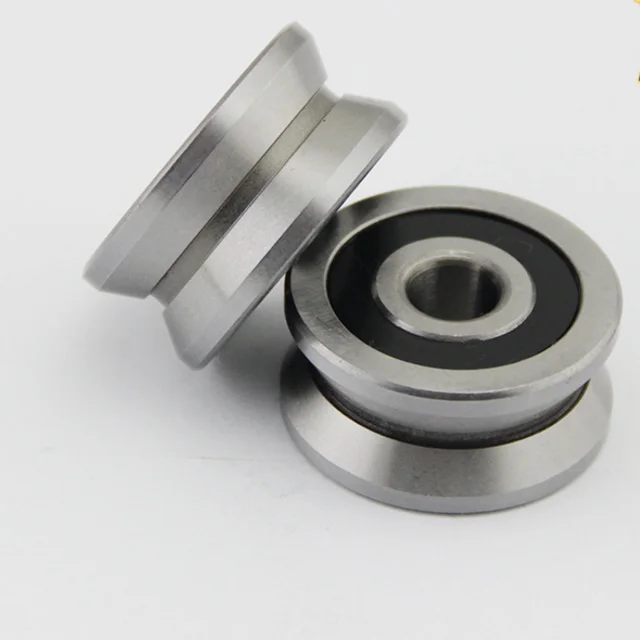

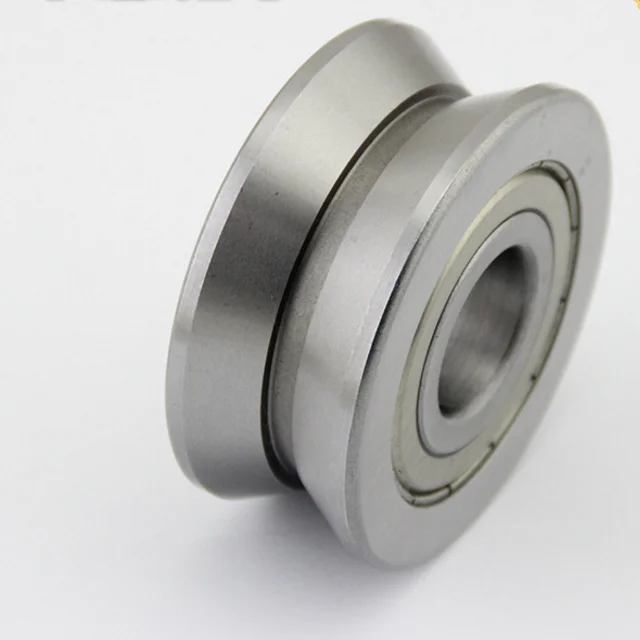

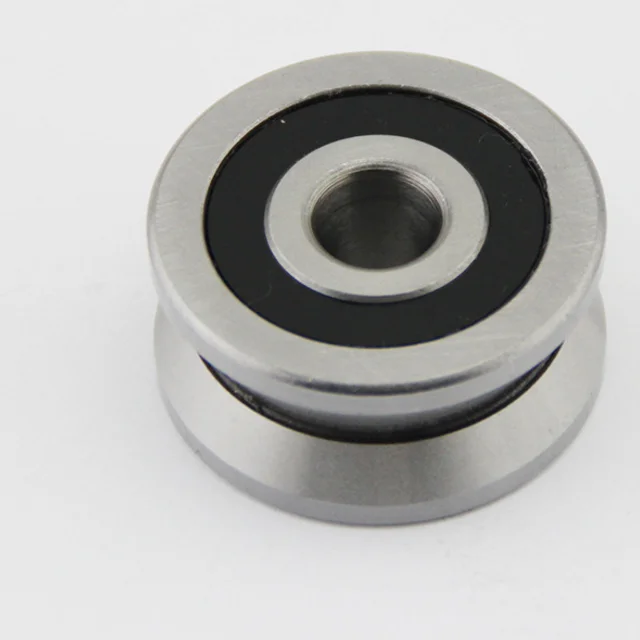

LFR 5201 NPP Bearings 10 mm U Groove Track Roller Bearing
Product Description
1. Series LFR rollers are the most widely-use and economy product among the linear motion track rollers, and they can suit to the cylindrical track.
2. There are two contact points between the roller and track, so the contact function is favorable.
3. Rollers feature double row angular contact ball bearing in its internal structure design and a thick-walled outer ring, so rollers can accommodate higher loads.

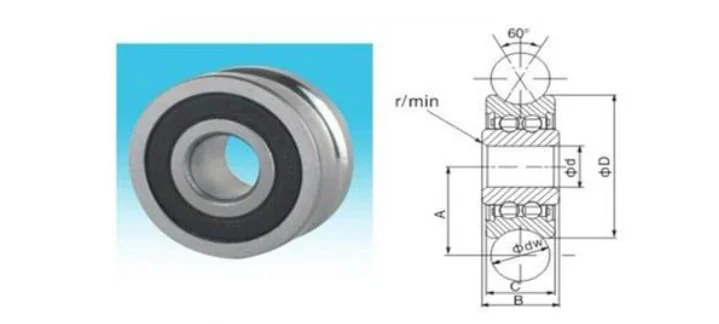

| Model Number | Weight | Diameter (mm) | |||||||||||
| JOBST | Equivalents | ≈(g) | dw | d | D | C | B | A | rs | Cw(KN) | Cow(KN) | Fr perm(KN) | |
| LFR 50/4 NPP | - | - | 3.5 | 5 | 4 | 13 | 6 | 7 | 8.04 | 0.2 | 1.05 | 0.85 | 1.15 |
| LFR 50/5-4 KDD | LFR50/5KDD-4 | R 50/5-4 ZZ | 7.5 | 4 | 5 | 16 | 7 | 8 | 9 | 0.2 | 1.2 | 0.86 | 1.3 |
| LFR 50/5-4 NPP | LFR50/5NPP-4 | R 50/5-4 2RS | 7.5 | 4 | 5 | 16 | 7 | 8 | 9 | 0.2 | 1.2 | 0.86 | 1.3 |
| LFR 50/5 KDD | LFR50/5KDD | R 50/5-6 ZZ | 8 | 6 | 5 | 17 | 7 | 8 | 10.5 | 0.2 | 1.27 | 0.82 | 1.3 |
| LFR 50/5 NPP | LFR50/5NPP | R 50/5-6 2RS | 8 | 6 | 5 | 17 | 7 | 8 | 10.5 | 0.2 | 1.27 | 0.82 | 1.3 |
| LFR 50/8 KDD | LFR50/8KDD | R 50/8-6 ZZ | 24 | 6 | 8 | 24 | 11 | 11 | 14 | 0.3 | 3.67 | 2.28 | 1.3 |
| LFR 50/8 NPP | LFR50/8NPP | R 50/8-6 2RS | 24 | 6 | 8 | 24 | 11 | 11 | 14 | 0.3 | 3.67 | 2.28 | 1.3 |
| LFR 50/8-8 KDD | 24 | 8 | 8 | 24 | 11 | 11 | 14.75 | 0.3 | 3.67 | 2.28 | 1.3 | ||
| LFR 50/8-8 NPP | 24 | 8 | 8 | 24 | 11 | 11 | 14.75 | 0.3 | 3.67 | 2.28 | 1.3 | ||
| LFR 30/8 KDD | 31 | 10 | 8 | 26.8 | 11 | 13 | 16.7 | 0.3 | 3.67 | 2.28 | 1.3 | ||
| LFR 30/8 NPP | 31 | 10 | 8 | 26.8 | 11 | 13 | 16.7 | 0.3 | 3.67 | 2.28 | 1.3 | ||
| LFR 5201 KDD | LFR5201KDD | R 5201-10 ZZ | 68 | 10 | 12 | 35 | 15.9 | 15.9 | 20.65 | 0.3 | 8.5 | 5.1 | 5.1 |
| LFR 5201 NPP | LFR5201NPP | R 5201-10 2RS | 68 | 10 | 12 | 35 | 15.9 | 15.9 | 20.65 | 0.3 | 8.5 | 5.1 | 5.1 |
| LFR 5301 KDD | LFR5301KDD | R 5301-10 ZZ | 130 | 10 | 12 | 42 | 19 | 19 | 24 | 0.6 | 13 | 7.7 | 7.5 |
| LFR 5301 NPP | LFR5301NPP | R 5301-10 2RS | 130 | 10 | 12 | 42 | 19 | 19 | 24 | 0.6 | 13 | 7.7 | 7.5 |
| LFR 5301-20 KDD | 125 | 20 | 12 | 42 | 19 | 19 | 28 | 0.6 | 13 | 7.7 | 7.5 | ||
| LFR 5301-20 NPP | 125 | 20 | 12 | 42 | 19 | 19 | 28 | 0.6 | 13 | 7.7 | 7.5 | ||
| LFR 5302 KDD | LFR5302KDD | R 5302-10 ZZ | 163 | 10 | 15 | 47 | 19 | 19 | 26.65 | 1 | 16.2 | 9.2 | 6.2 |
| LFR 5302 NPP | LFR5302NPP | R 5302-10 2RS | 163 | 10 | 15 | 47 | 19 | 19 | 26.65 | 1 | 16.2 | 9.2 | 6.2 |
| LFR 5201-12 KDD | LFR5201-12KDD | R 5201-12 ZZ | 68 | 12 | 12 | 35 | 15.9 | 15.9 | 21.75 | 0.3 | 8.4 | 5 | 5.1 |
| LFR 5201-12 NPP | LFR5201-12NPP | R 5201-12 2RS | 68 | 12 | 12 | 35 | 15.9 | 15.9 | 21.75 | 0.3 | 8.4 | 5 | 5.1 |
| LFR 5201-14 KDD | LFR5201-14KDD | R 5201-14 ZZ | 107 | 14 | 12 | 39.9 | 18 | 20 | 24 | 0.3 | 8.9 | 5 | 6.7 |
| LFR 5201-14 NPP | LFR5201-14NPP | R 5201-14 2RS | 107 | 14 | 12 | 39.9 | 18 | 20 | 24 | 0.3 | 8.9 | 5 | 6.7 |
| LFR 5201-10.40 KDD | 115 | 10 | 12 | 39.9 | 18 | 20 | 22 | 0.3 | 8.9 | 5 | 6.7 | ||
| LFR 5201-10.40 NPP | 115 | 10 | 12 | 39.9 | 18 | 20 | 22 | 0.3 | 8.9 | 5 | 6.7 | ||
| LFR 5204-16 KDD* | LFR5204-16KDD | R 5204-16 ZZ | 195 | 16 | 20 | 52 | 20.6 | 22.6 | 31.5 | 0.6 | 16.8 | 9.5 | 12.1 |
| LFR 5204-16 NPP* | LFR5204-16NPP | R 5204-16 2RS | 195 | 16 | 20 | 52 | 20.6 | 22.6 | 31.5 | 0.6 | 16.8 | 9.5 | 12.1 |
| LFR 5206-20 KDD* | LFR5206-20KDD | R 5206-20 ZZ | 435 | 20 | 25 | 72 | 23.8 | 25.8 | 41 | 0.6 | 29.5 | 16.6 | 20.7 |
| LFR 5206-20 NPP* | LFR5206-20NPP | R 5206-20 2RS | 435 | 20 | 25 | 72 | 23.8 | 25.8 | 41 | 0.6 | 29.5 | 16.6 | 20.7 |
| LFR 5206-25 KDD* | LFR5206-25KDD | R 5206-25 ZZ | 425 | 25 | 25 | 72 | 23.8 | 25.8 | 43.5 | 0.6 | 29.2 | 16.4 | 23.1 |
| LFR 5206-25 NPP* | LFR5206-25NPP | R 5206-25 2RS | 425 | 25 | 25 | 72 | 23.8 | 25.8 | 43.5 | 0.6 | 29.2 | 16.4 | 23.1 |
| LFR 5207-30 KDD* | LFR5207-30KDD | R 5207-30 ZZ | 660 | 30 | 30 | 80 | 27 | 29 | 51 | 1 | 38 | 20.8 | 21.4 |
| LFR 5207-30 NPP* | LFR5207-30NPP | R 5207-30 2RS | 660 | 30 | 30 | 80 | 27 | 29 | 51 | 1 | 38 | 20.8 | 21.4 |
| LFR 5208-40 KDD* | LFR5208-40KDD | R 5208-40 ZZ | 1360 | 40 | 40 | 98 | 36 | 38 | 62.5 | 1 | 54.8 | 29 | 55 |
| LFR 5208-40 NPP* | LFR5208-40NPP | R 5208-40 2RS | 1360 | 40 | 40 | 98 | 36 | 38 | 62.5 | 1 | 54.8 | 29 | 55 |
| LFR 5308-50 KDD* | LFR5308-50KDD | R 5308-50 ZZ | 1400 | 50 | 40 | 110 | 44 | 46 | |||||
