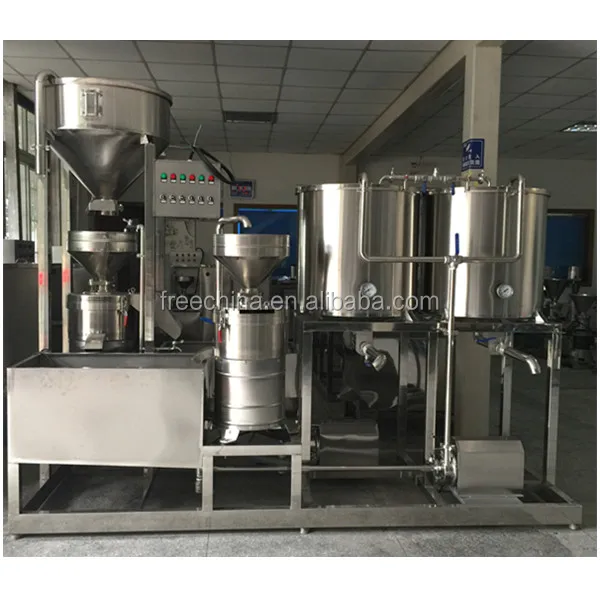

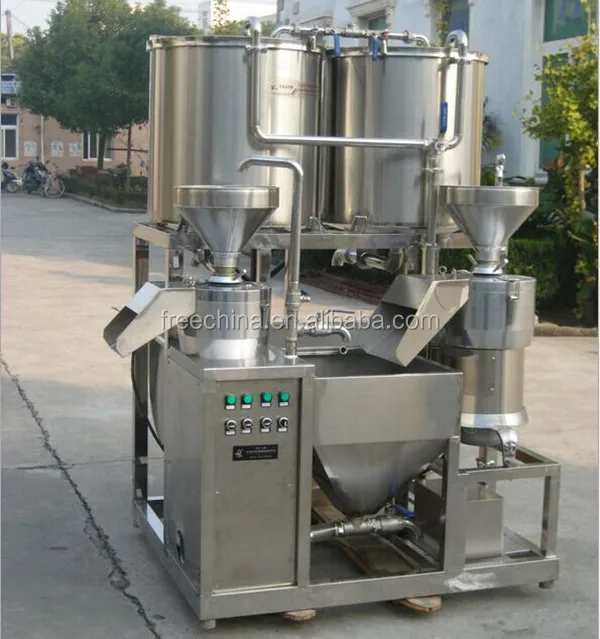

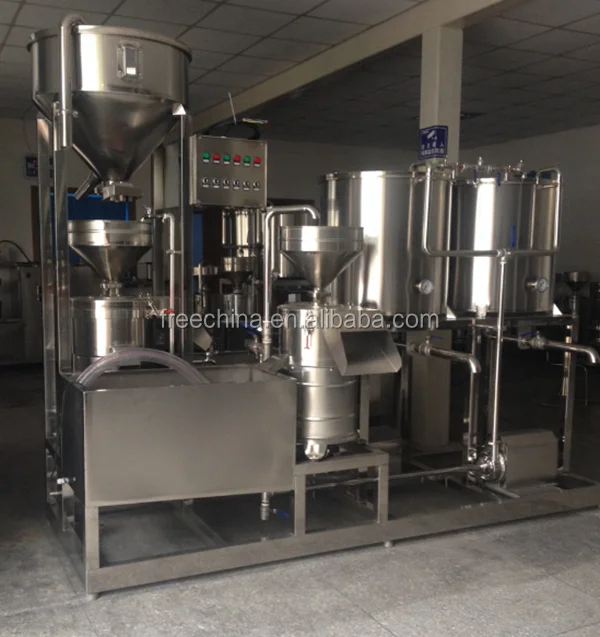

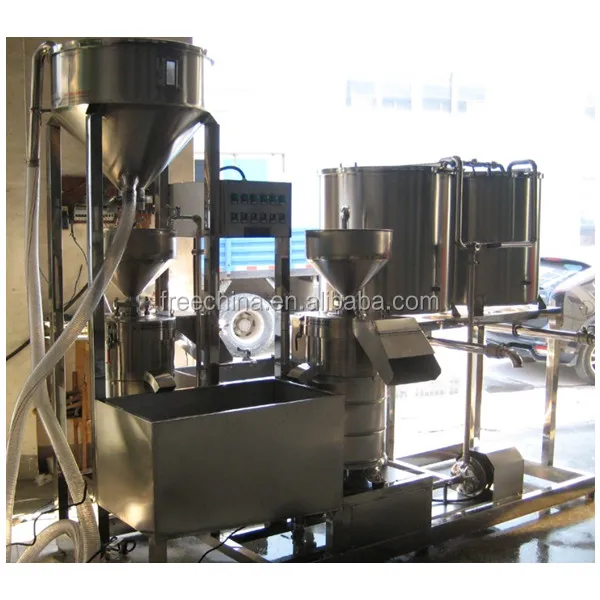

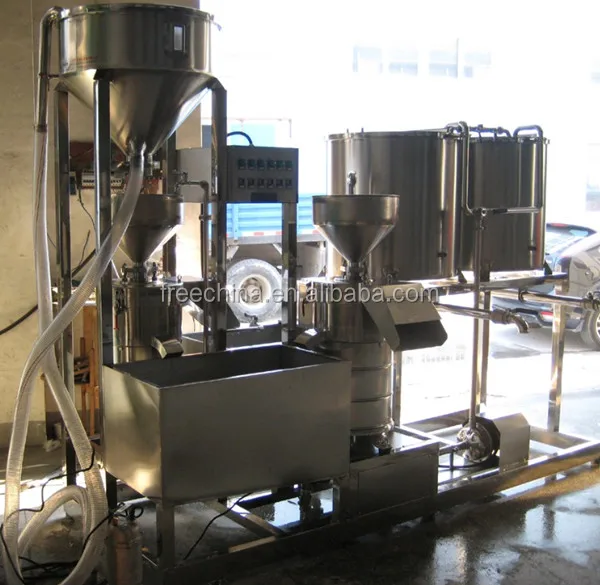

Automatic soybean milk machine/soybean milk maker/industrial soy milk machine
Introduction of industrial soy milk machine:
The complete set of equipment stainless steel structure ,By the grinding separating machine soybean milk and okara barrel .Soy milk cooking the bucket the automatic steam boiler ,the air operated bean curd shaper etc composed .
This machine entirely stainless steel manufacture ,two grinding paste systems ,two barrel soybean milk cooking ,by two grinding the separating machine ,pumps and other circuit control system boiler, external connection steam .
For making soybean milk , Another configuration is steam boiler ,it has 18kw,36kw and 40kw. You can buy the steam boiler from us or you can buy it in local place .
For making Tofu , you need to buy Tofu shaping /pressing machine Y-6 .
This machine' output of soybean milk is about 600L per hour .Other types of soybean milk making
Product Application of industrial soy milk machine:
The Cook Soybean Technology is now the most an advanced soybean milk processing way in the world.
Soak Soybean → Grind Soybean → Boil Soybean and Soybean Residues → Separate to Soybean milk and Residues.
The first, put the wet soybean (have soaked) into the Refiniing Mill, after grind put the soybean milk and bean residue into the boil cooking tank together, and then separate the soybean milk and bean residue. Because the soybean milk and bean residue cook together, so the nutrition of the soybean has been the largest retention, the smell of beans is also the best preserved. But cooking together will make soybean milk and bean sticky together, it is difficult to separate.
Our machine is equipped with the new type screw extruder, can be separated from the cleanest soybean milk, and soybean Protein extraction rate reaches 70%.
Technical parameter of industrial soy milk machine:
| Model Number | FR-150 |
| Voltage | 220V/380V/50Hz |
| power | 2.2KW+1.5KW |
| Input (soybean) | 60kgs/Hr |
| Boiling pan capacity | 170L*2 |
| outputt(soy milk) | 680L |
| Suction pump capacity | 750W+370W |
| Size | 1250*1050*1880mm |
| N.W. | 200kg |
Main Features of industrial soy milk machine:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Sealed micro-pressure boiling without defoaming, saving energy.
4) Running in a high automatization and intellectualization, no pollution.
5) CIP Clean System.
6) Mill and Boiling --- 2 in 1.
If you are interested in this machine,pls contact me!
