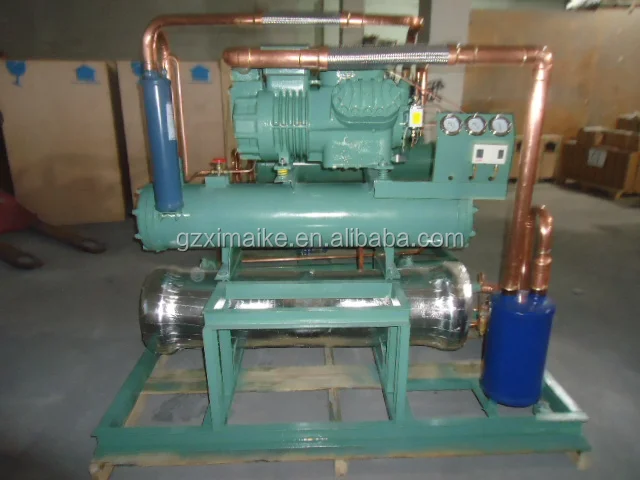

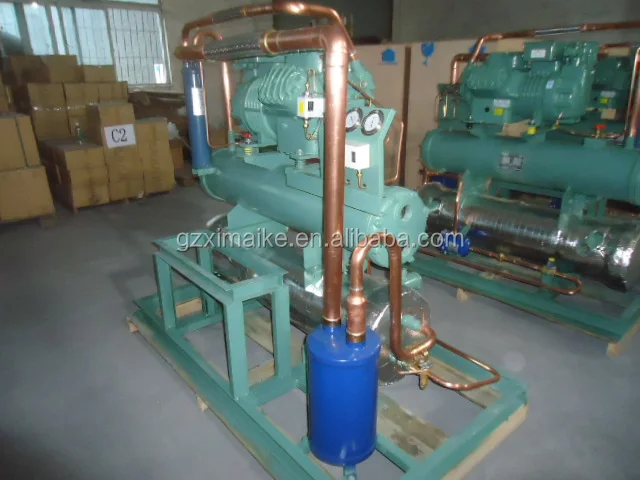

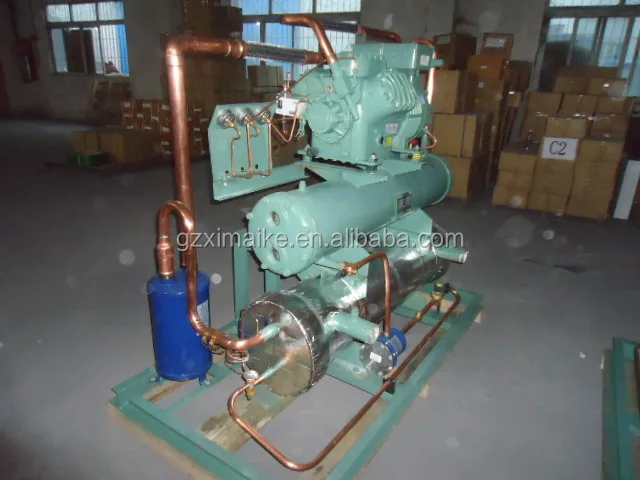

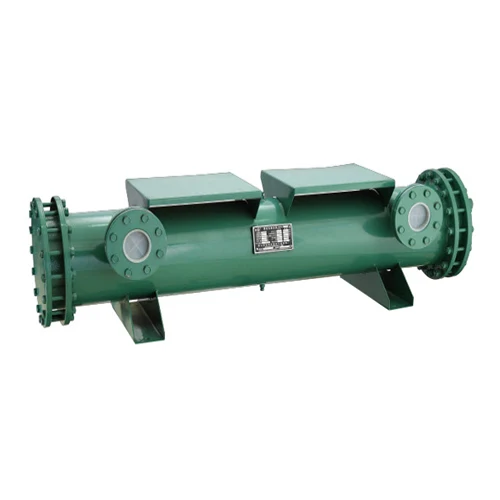

Oil Press Water cooled Oil Cooler Heat Exchanger Unit Stainless Steel Condenser Evaporator

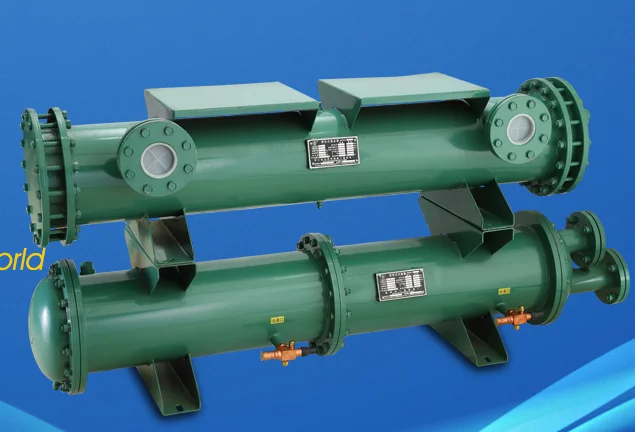

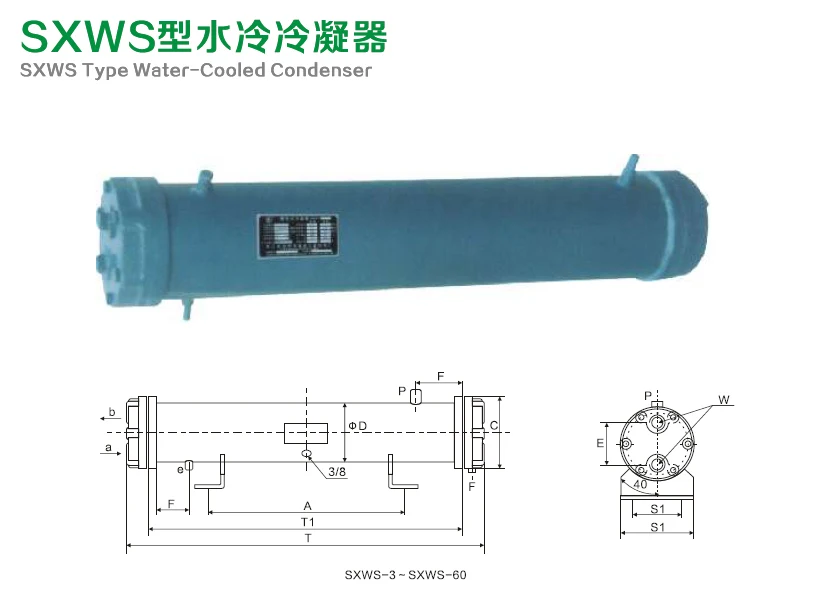

Industrial Condenser Straight Tube Double Circuit Water cooled Chiller is applicable to water units, water source heat pump units, etc. Suitable refrigerants of R22, everything,, R407C, R410A, etc. Apply load cold agent for tap water, underground water, river water and sea water or brine, water and glycol solution, sulfate solution, etc. For heat exchange tube, copper pipe, copper nickel alloy tube, aluminum brass tube, stainless steel tube, etc. Shell using seamless steel pipe, stainless steel tube, etc.

1, Heat exchange tube: there are two main specifications.

(1) ∅ within 5/8 "efficient copper pipe outside screw wing, ∅ 5/8" stainless steel pipe.

(2) the ∅ 3/4 "inside outside screw wing efficient copper tube, ∅ 3/4" stainless steel pipe

Main length series are:

381 mm, 500 mm and 588 mm, 635 mm and 740 mm, 819 mm and 950 mm, 1270 mm and 1600 mm, 1800 mm and 2032 mm, 2500 mm and 2690 mm, 2860 mm and 3000 mm, 3200 mm and 3500 mm.
If the customer request length is not the above series, our company can according to meet customer requirements of copper pipe, including stainless steel pipe.

2, Main material, the shell of 20 # seamless steel pipe, stainless steel pipe.

3, Interface:

(1) main type load cooling interface flange, thread and clamp type. According to the demand of users.

(2) the refrigerant interface are mainly brass brazing type, loose flange connection type and tenon surface flange connection type, etc. Can meet the requirements of users and habits to the greatest extent.

(3) after the tube box set the upper lip, bottom outlet. The gate can set temperature measurement on the mouth. Also can according to user requirements added a water flow switch interface. Temperature measurement are mainly female mouth mouth and all kinds of blind copper pipe such as ∅ 5/16, 3/8 ∅, 1/2 and 5/8 ∅ ∅ brass or stainless steel tube.

(4) can be both head set out according to customer requirements, convenient interface, especially suitable for &water-cooled packaged. The midea company, Texas Pacific company are a large number of purchasing such products. Two-way can pick up nozzle structure below.
