ROTARY UNION transfers media (water, steam, air, oil, hydraulic fluid, etc) from a stationary source to rotating machinery, such as a drum or an indexing table. They are used in process industries such as; paper, printing, rubber and plastics, textile and chemical. Rotary Unions are also used on cranes, machine tools and many other applications.
Operating Parameters
Max. Pressure:
250 bar
Max.Tempreture:
120 ℃
Max.speed:
250 rpm
Medium:
Hydraulic oil air Etc.
Material:
stainless steel, carbon steel or other matertial
Size
(6)*3/8", (6)*1/2", (6)*1"
Passages No.
1-16 Passages
Thread Type
BSP, NPT, G thread
Package:
Standard export packaging
Payment times:
T/T,L/C, western union
Delivery time
3 to 5 days(according to total quantity)
Features:
1. for low speed and high pressure hydraulic oil and air
2. The maximum working temperature is at 120 °C
3.Long service life with easy field repair and maintenance
4.Available in both thread and flange connection
5. one year-guarantee and you can free to get the accessories if it is damaged within one year.

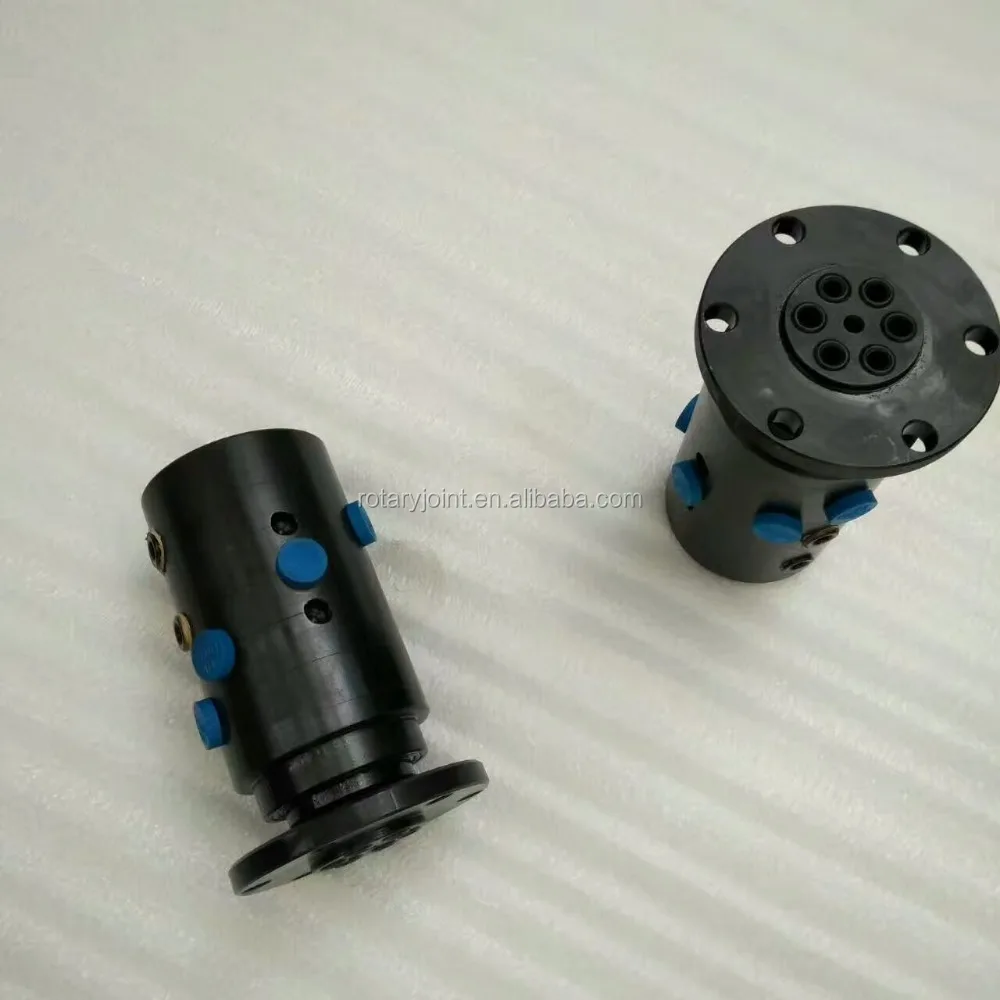

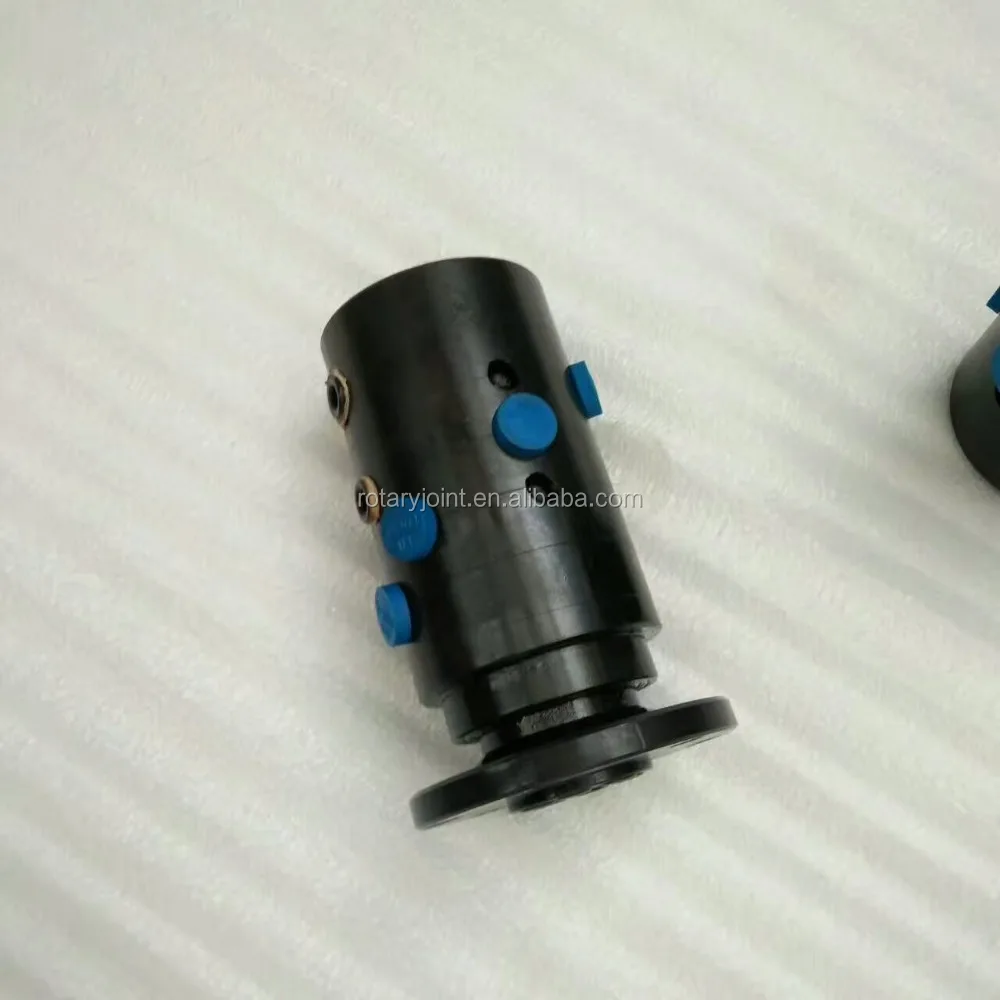

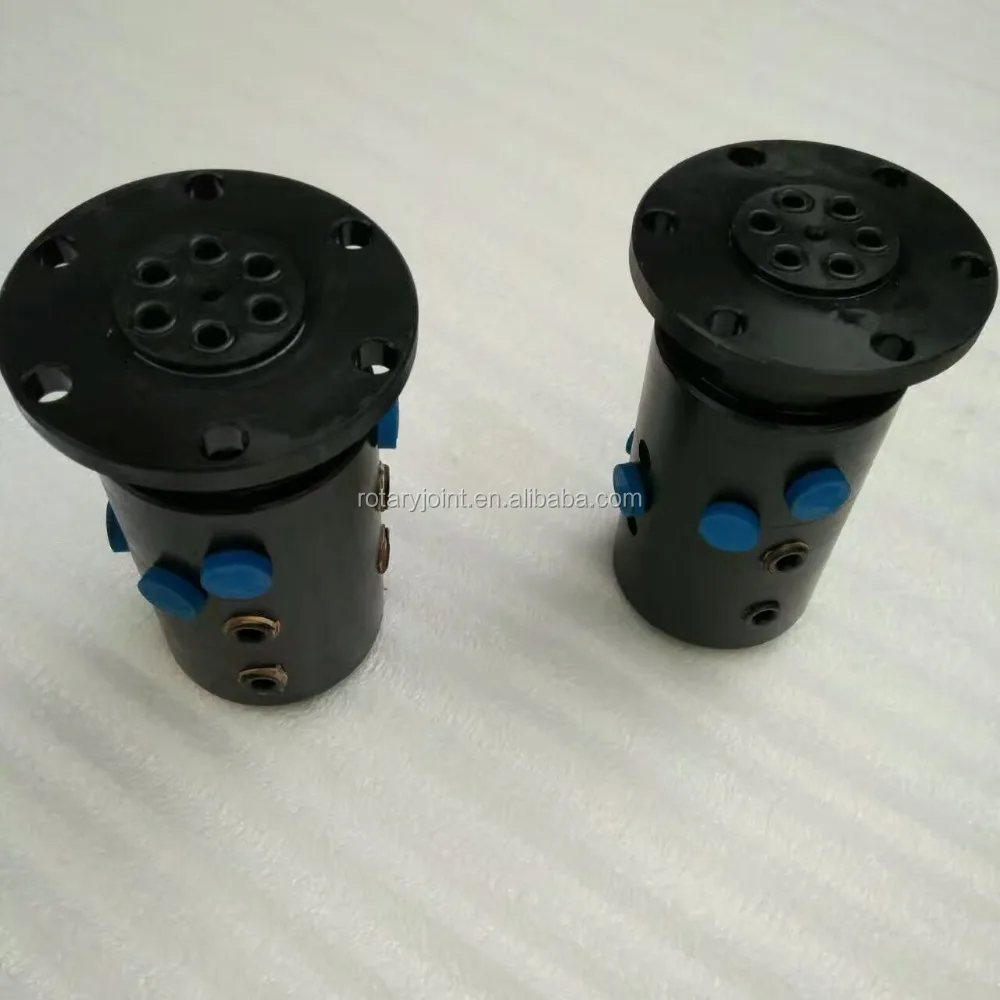

Product Show
What’s the Feature and Advantages of our Product?
for high pressure and low speed application
BSP, NPT Or G thread is Available.
SS or carbon steel material
Low price and high reliability
High efficiency
Suitable for different medium for water, gas, air, oil
The main products are: rotary joint, power signal source rotary joint, swivel joint, high voltage rotary joint,hydraulic rotary joint, swing joint, pipeline compensator, quick-change connector, seal folding ring, R-type packing ring, siphon, inverter, delivery valve and other sealing products.
It is widely used in steel, dedicated converter joint, SRHP, mud gun-blast furnace hydraulic rotary joint, continuous casting rotary adapter,heating furnace rotary connector, war industry, aerospace products, papermaking, packaging, chemical industry, rubber, plastics, TCXRP, glass, starch, oil, medicine, washing, tobacco, drying, electricity and foodstuff industries.
