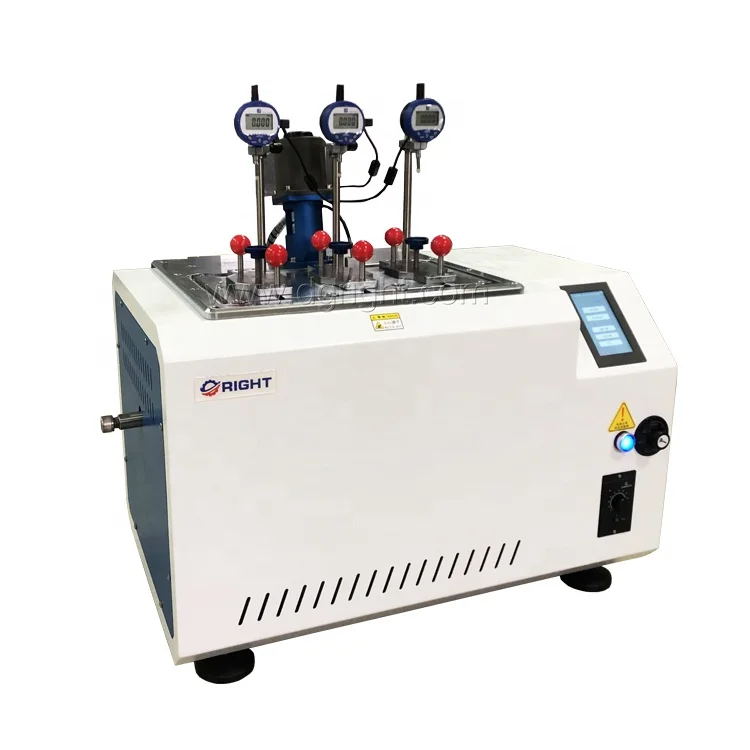

ASTM D1525 ASTM D648 Temperature Deflection Vicat Softening Test Apparatus
- Category: >>>
- Supplier: Dongguan Right Instrument Co. Ltd.
Share on (60684291077):
Product Overview
Description

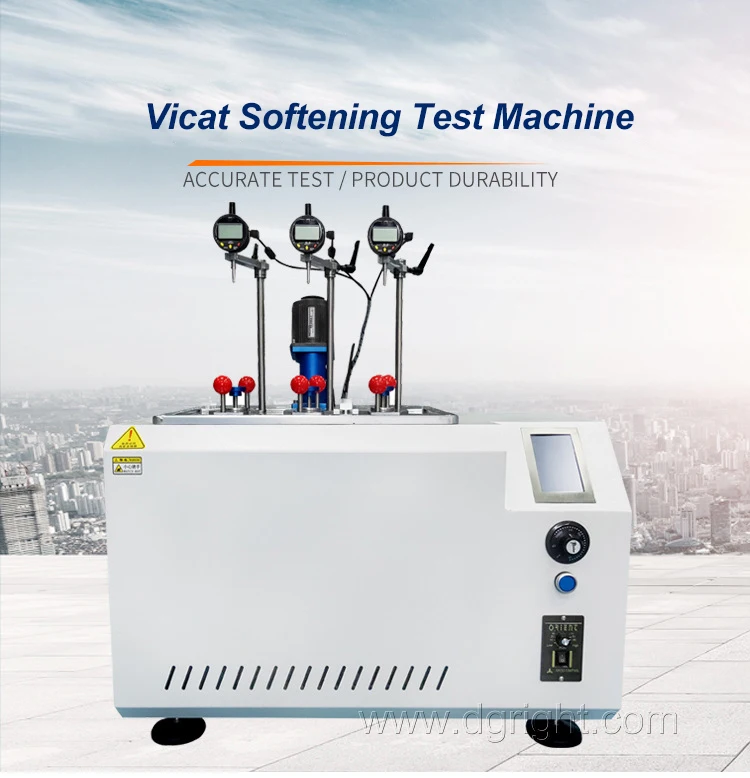

ASTM D1525 ASTM D648 Temperature Deflection Vicat Softening Test Apparatus
Product Description
What is the Specification of Vicat Softening Test Apparatus?
Name | ASTM D1525 ASTM D648 Temperature Deflection Vicat Softening Test Apparatus |
Temperature range | Room temperature-300 Degree centigrade |
Heat rate | 120±10 Degree centigrade/h(12 Degree centigrade±1Degree centigrade/6min ) |
50± 5 Degree centigrade/h(5 Degree centigrade±0.5 Degree centigrade/6min) | |
Temperature error | ±0.5 Degree centigrade |
Deformation error | ±0.01mm |
Minimum temperature resolution | 0.1 Degree centigrade |
Minimun resolution deformation | 0.01mm |
Load range | 0.75N —50N |
Load error | ±2.5% |
Span test frame | 60—120mm Continuously adjustable |
Heating power | 3KW |
Supply voltage | AC220V/50Hz 20A |
Heating medium | Methyl silicone oil or transformer oil |
Cooling | 1Air above 150 Degree centigrade, 150 Degree centigrade the following water or natural cooling |
Place for the side | |
Dimension: 6.1* 14 (W*H) | |
Span:100 | |
Deformation:0.23 | |

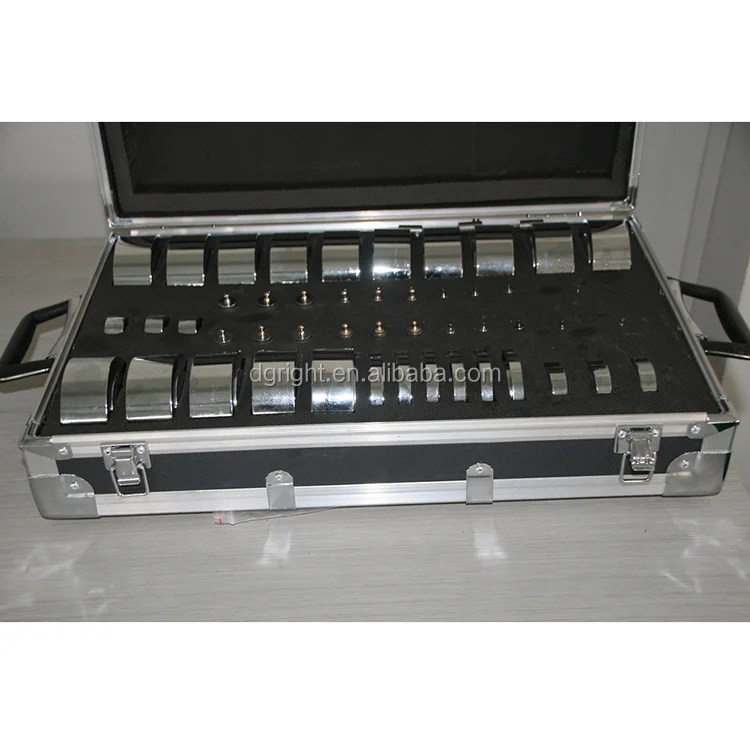

By B weight | |
Quality of 1464 grams weight | |
Heating rate of 120 degrees / hour | |

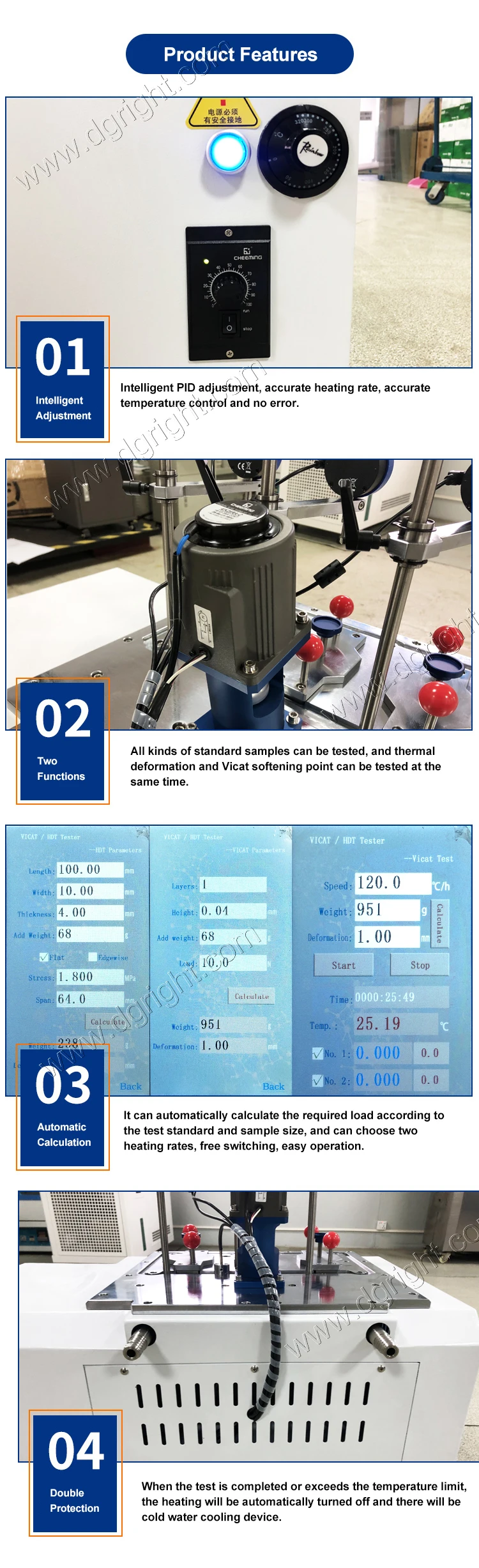

Equipment description:
ASTM D1525 ASTM D648 Temperature Deflection Vicat Softening Test Apparatus is to adapt to the rapid development of plastics industry and improve the level of research and testing of
materials, using the latest international and national standards;

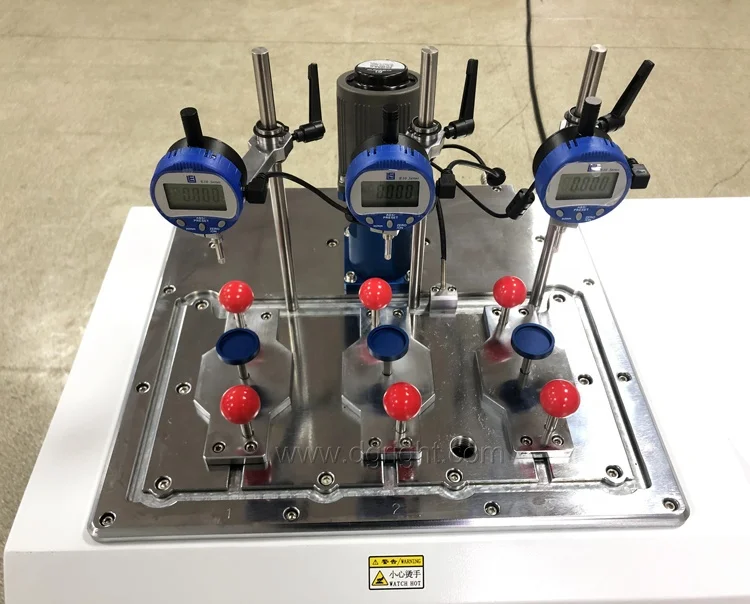

The system controlled by microcomputer, four figures, three-way figures show the displacement and
deformation temperature. Tank temperature show host way. Equipped with a printer, can print test results,
simple operation, high automation, non-metallic materials used for the deformation and softening temperature
detection.
To meet the standard:
1. ISO75 "Plastics - Determination of temperature load deformation"
2. ISO306 "Plastics - Thermoplastic Determination of Vicat softening point temperature"
3. GB/T1633 "thermoplastic Determination of Vicat softening point temperature"
4. GB/T1634 "Plastics - Determination of temperature load deformation"
5. ISO2507, GB/T8802 "thermoplastic pipes, fittings Vicat softening temperature" design made
Applicable Industry:
Widely used in plastics chemical companies and research institutions

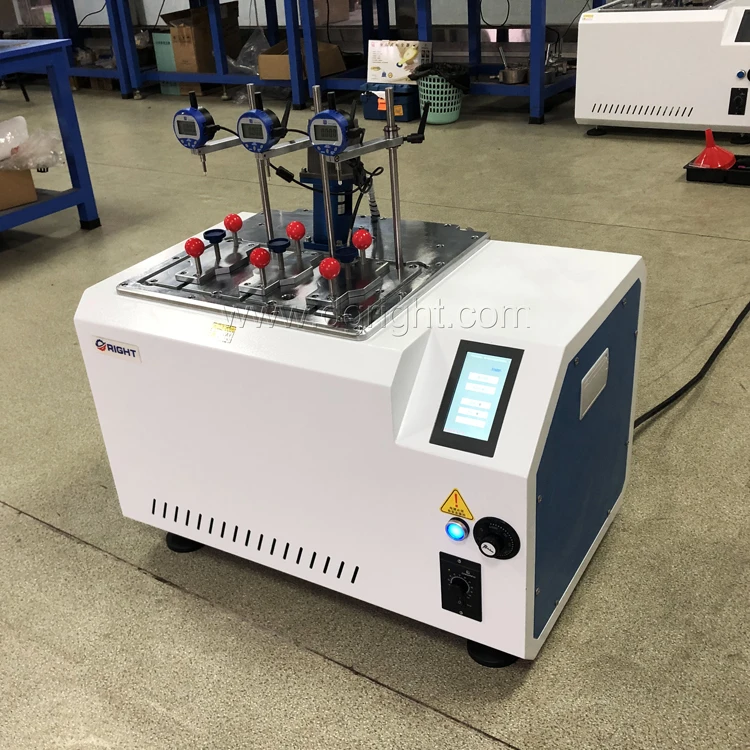

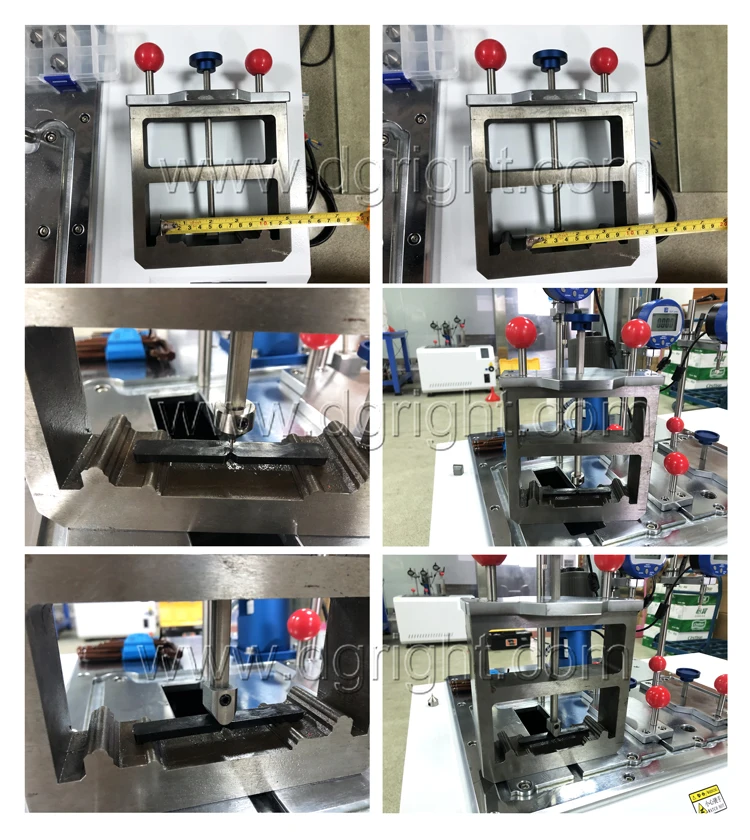

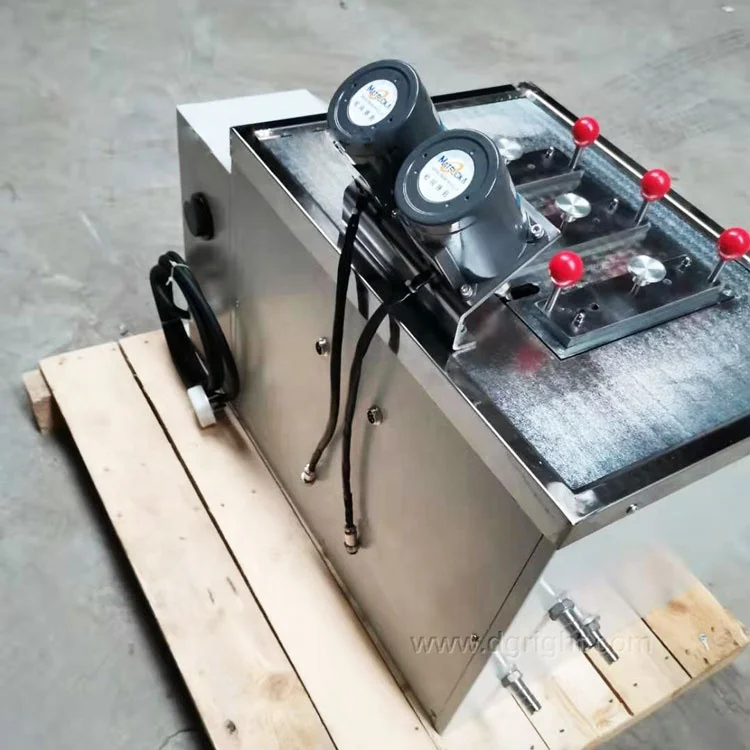

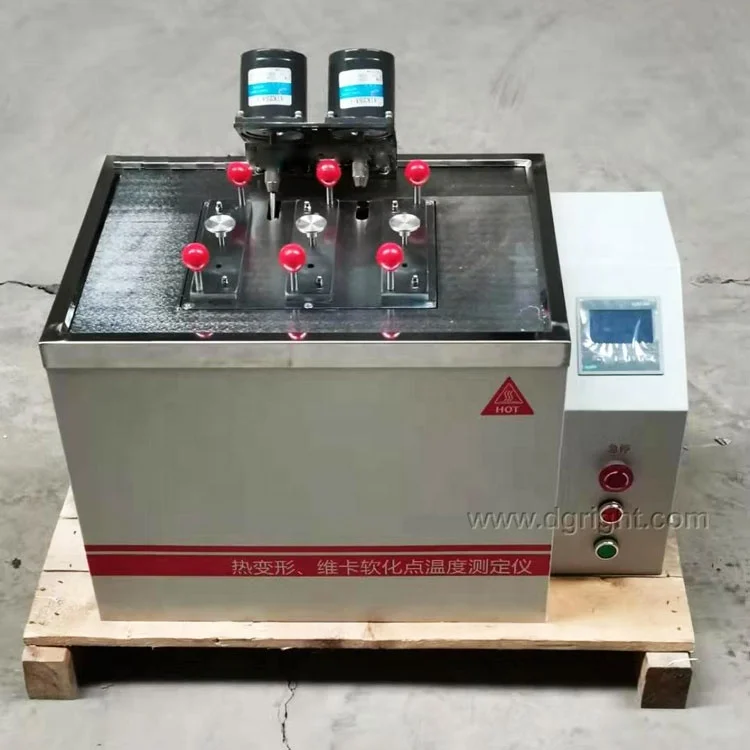

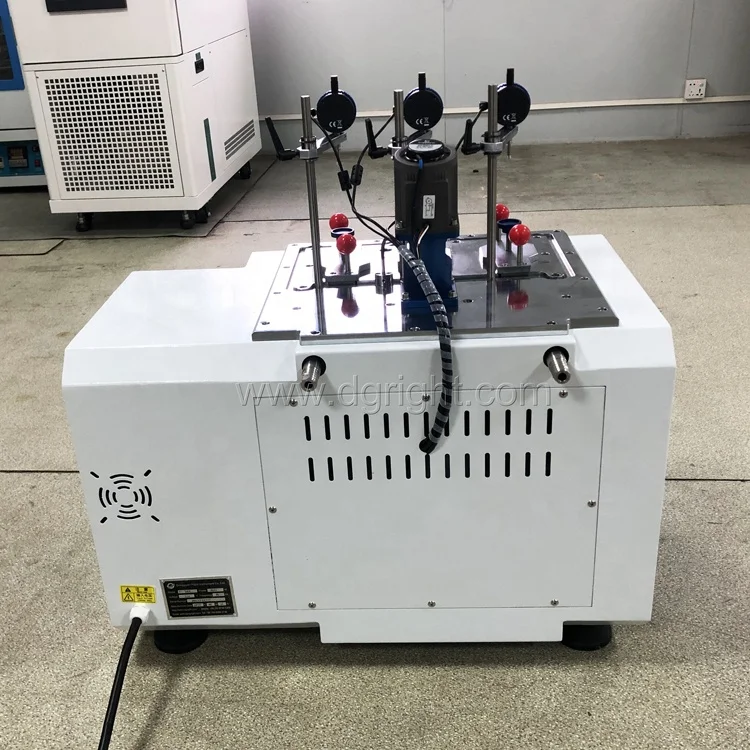

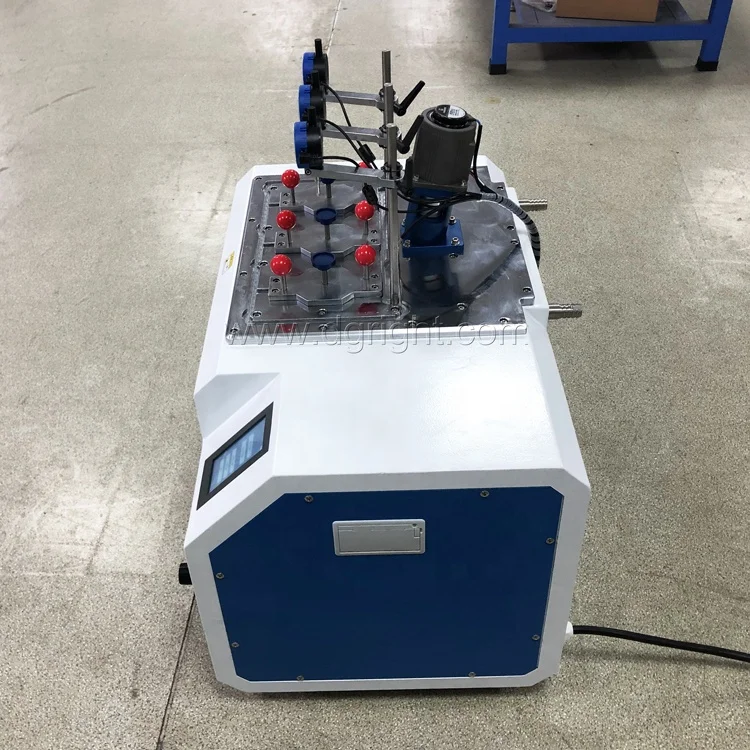

Product Show
