Product Overview

Description

mini smelting furnace:mini induction smelter 1-2kg Low price! High Quality!

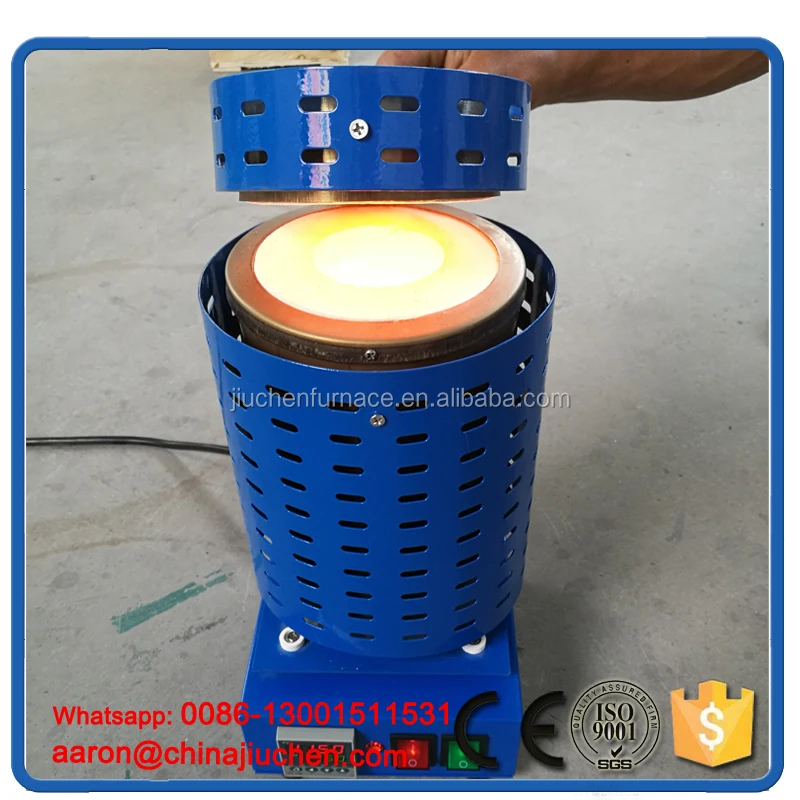

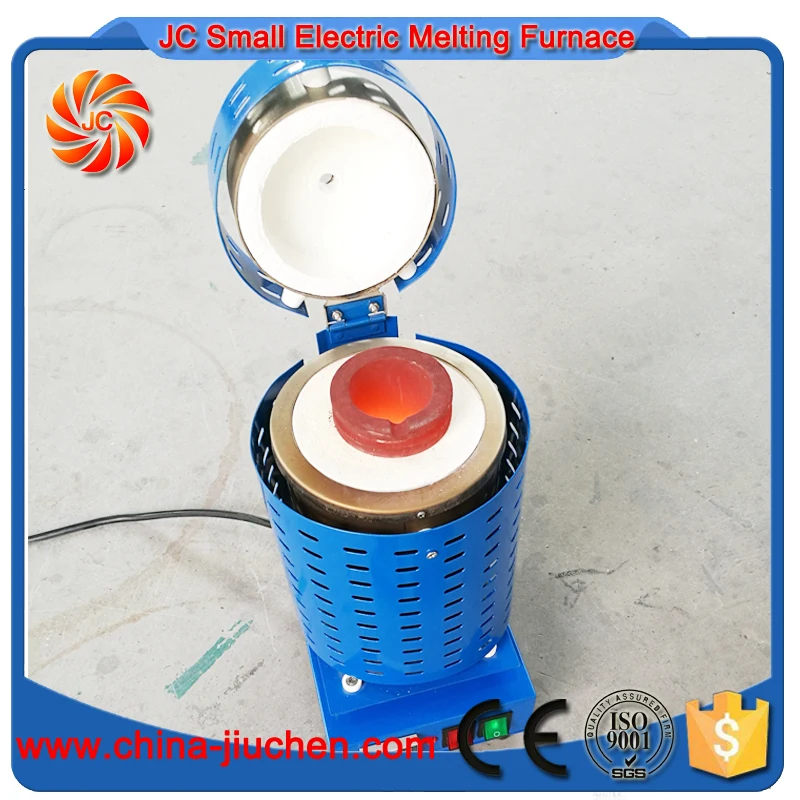

This easy-to-operate small melting furnace can be used indoors, and is designed with a high temperature ceramic chamber for long-lasting casting abilities!

These units are available in 1 Kg, 2 Kg and 3 Kg sizes, as well as 110 Volt US Standard or 220 Volt European/Asia Style power for all of your melting needs!

This unit is recommended for melting down precious metals such as gold and silver. Melting glass. Heat Treatment. Laboratory.

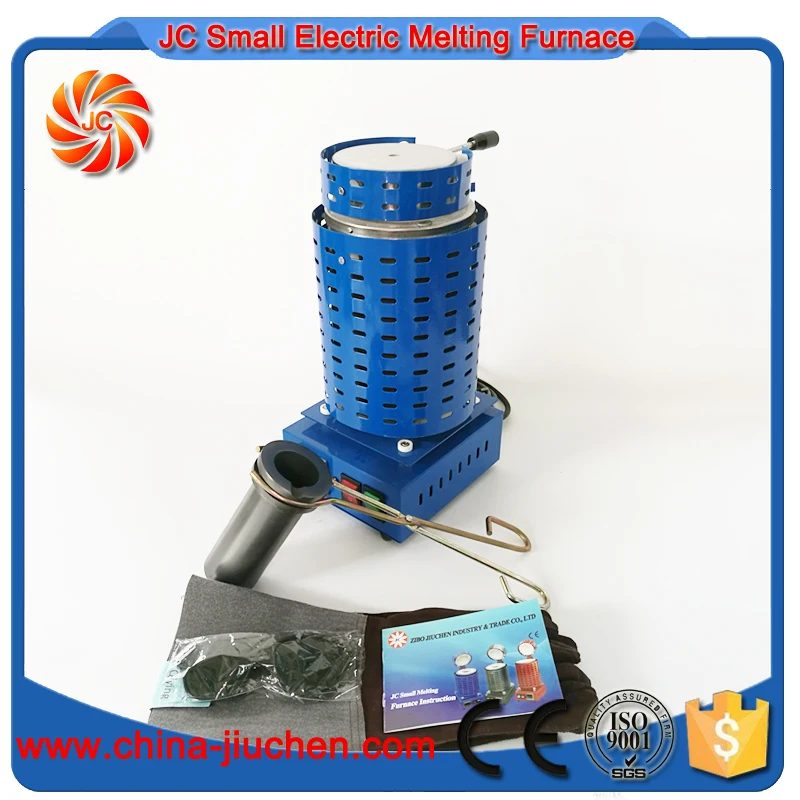

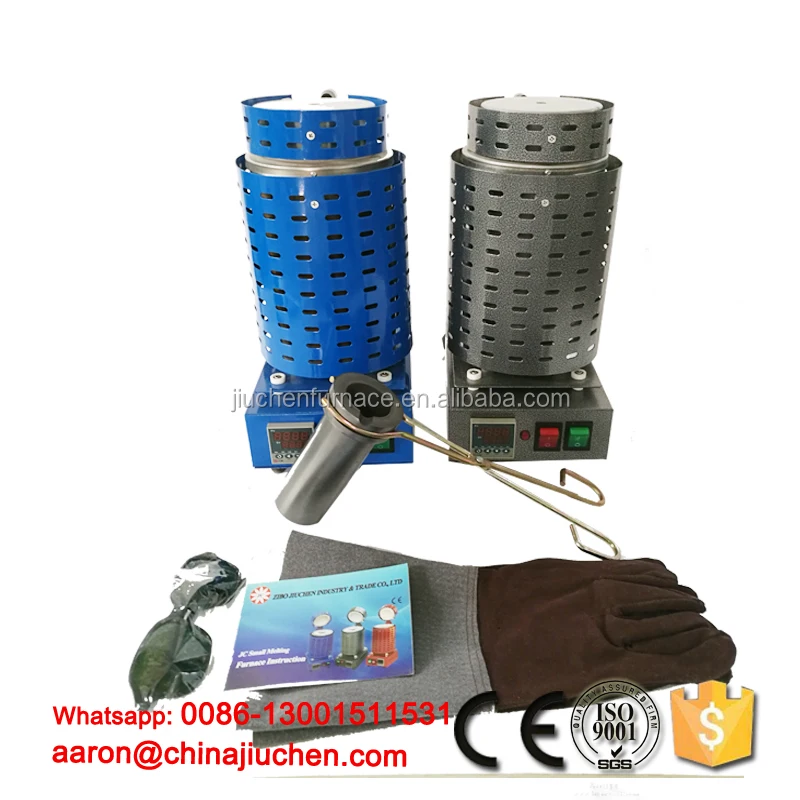

Includes an instructional manual, power cord, tongs, glasses, glove and grooved graphite crucible to match your furnace size.



1) The furnace is light weight (6.5kg), easy operation, and small size (170*200*360mm), you can take it easily by yourself.

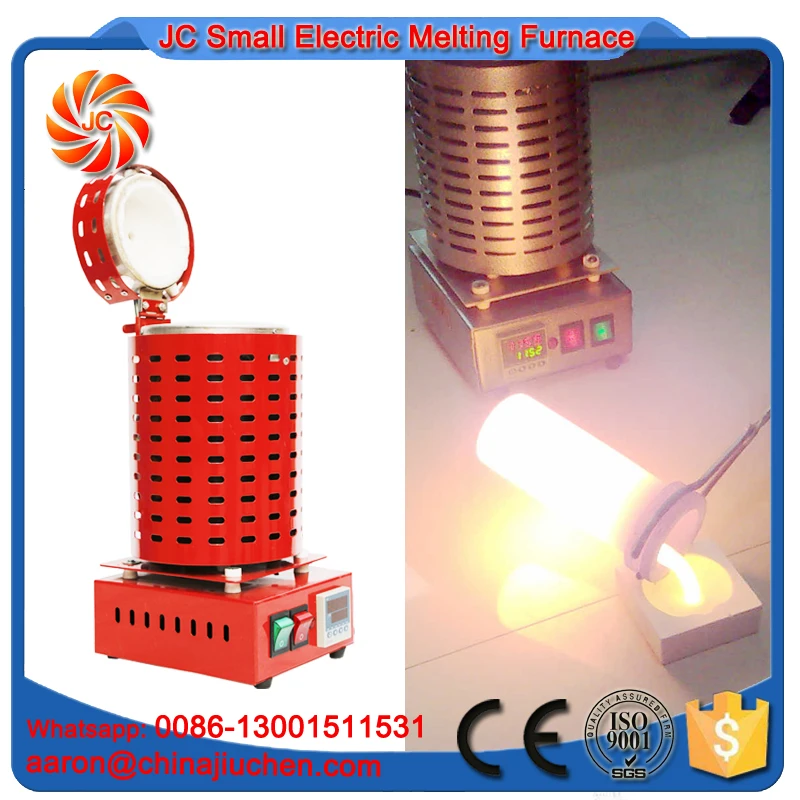

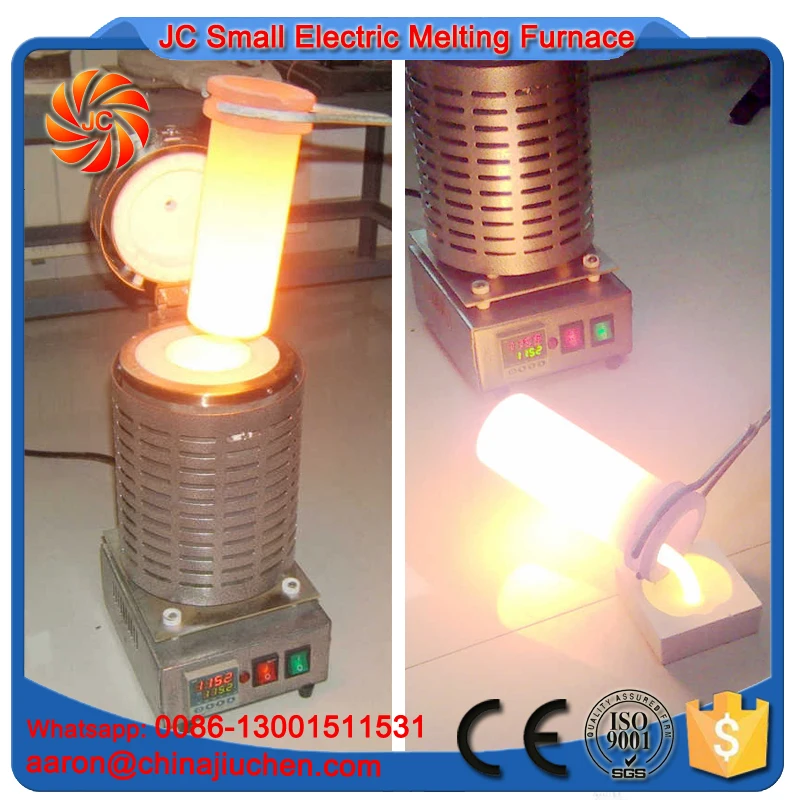

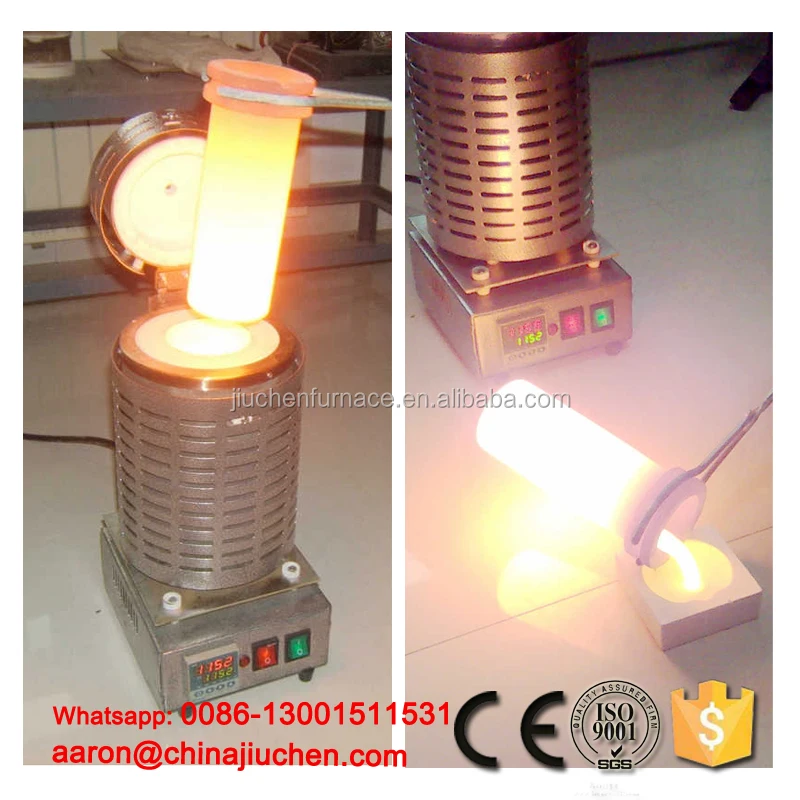

2)The furnace can be hand poured from the easy grip handle or with crucible tongs supplied with the unit
3)The unit has a LED display with touch pad digital readout that allows precision control

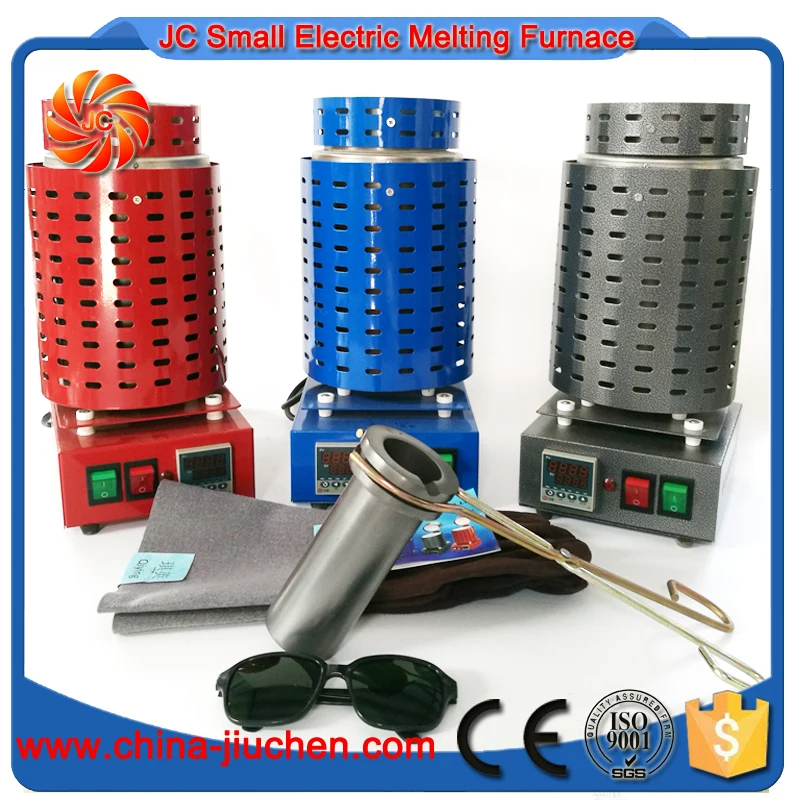

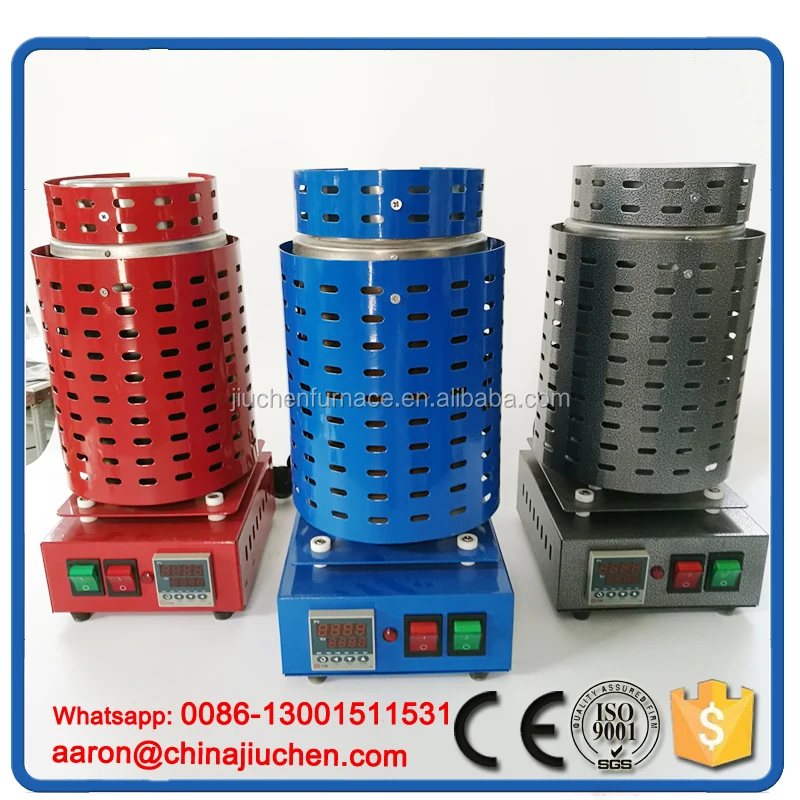

4)Color of the base may vary between Blue, Gray and Red
5) Some of the Metals that can be melted with this Furnace;
Aluminum, Gold, Lead, Silver, Sterling Silver, Tin & Zinc
6) Temperature range is from 0 Degrees Fahrenheit to 2012 Degrees Fahrenheit (1100 Degrees Celsius) all Digitally controlled by you. It takes 15-30 Minutes to first warm up depending on the metal your melting and 10-15 minutes to fully melt your metal depending on the form of material. Shot or small parts melt faster than large bars or blocks.

Model	JC-K-220-2	JC-K-110-2
Body Size (mm)	170*200*370
melting chamber  Size (mm)	63*175mm (we can also produce 78*175mm)
Working Volt (V)	220-240V/AC	100-130v/AC
Power(kw)	1.5Kw
Measuring rage (℃)	0~1150C (2102F)
Heating rate (Heat to 1150C)	15-20mins
Capacity(kg)	1-3kg (based on gold)
Temp display mode	℃/℉
Temp control mode	Adopting AI PID control method; Measured values(PV), set data(SV) can be shown at the same time;Set data can be changed by arrow buttons.
Fitting Parts(supplied)	Crucible,crucible tong,glasses, glove, manual
Optional fitting parts	1-4kg crucible,  graphited mould, muddler, insulation board (put the crucible after heating), glove with high-temperature resistance , blinkers

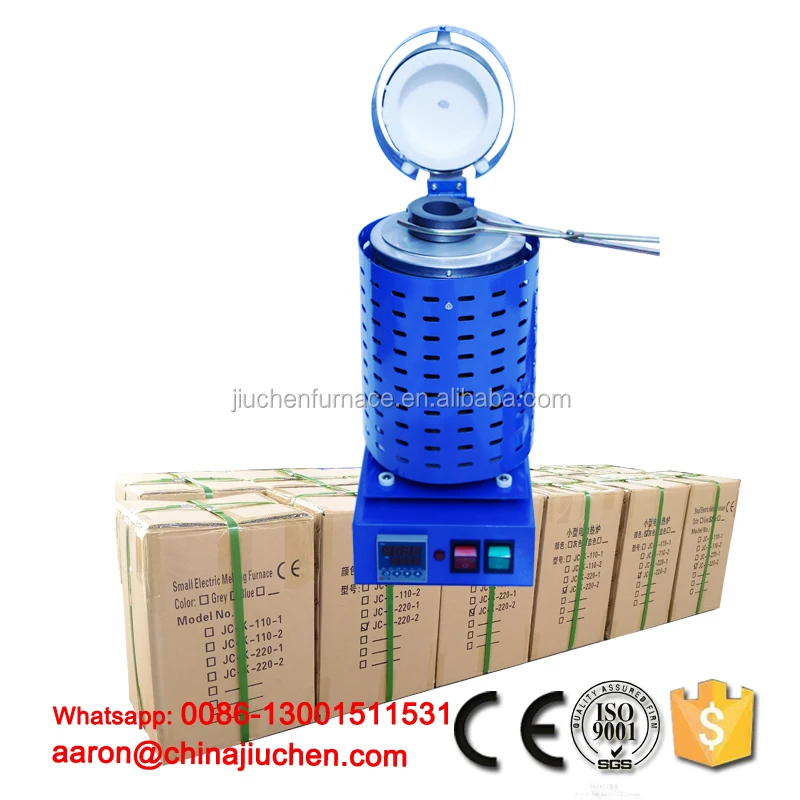

Package	Gray color carton package with Five layer corrugated paper, one furnace with fitting parts packs in one carton.
Body Size (mm) with package	29*33*47cm





How to use it

1)The green switch is used to turn on the control power and allows setting the desired temperature.

2)The red switch is used to activate the furnace power and heating begins.

3)The green display shows the desired set temperature. It is set by adjusting the up / down blue arrows. Each digit position is set by adjusting the curser, the horizontal arrow. The curser points to a particular digit in order to change that digit.

4)When you have set the desired temperature, you can either wait a few seconds and the cursor will go back to the right most digit, or just press the blue horseshoe symbol for the curser to go back immediately.

5)Experiment with the controls until you feel confident. No furnace power will be applied until the red switch is turned to on.

6)The red lamp will light to indicate that furnace power is active. It will turn on during the heating and then on and off, repeating, once the set temperature has been reached. This indicates that the furnace power is under thermocouple control.

7)The red display indicates the actual temperature of the furnace as seen by the thermocouple. Note that there is a lag between the displayed furnace temperature and the temperature of the crucible contents. Always allow a few minutes Safety and General



Considerations in Preparing to Use the Furnace:

1 Fit the lid handle to the threaded screw on the lid assembly. The lid handle is found in the spare parts bag. The other ceramic spare parts are for any insulator spacers that may need replacement. These insulators are fitted between the furnace body and the metal mesh enclosure.

2 Sit the furnace on a level, flat surface, such as a sturdy bench and keep the mould close to the furnace, so that you do not have to carry the crucible very far when it is ready to pour into the mould. If necessary, adjust the height of the rubber feet by packing washers under the rubber feet. Alternatively, fit adjustable feet to make the furnace stable and level.
