Australian Standard Security Fire Alarm Cable

Product Overview

Description

Australian Standard Security Fire Alarm Cable

Features

• Red Sheath for Fire Alarm Application as specified for Fire Alarm use
• White, blue or yellow stripe on red sheath for fire related systems
• StripEasy Sheath
• Metre markings
• Available in flat and twisted
• AS/CAS008 compliant
• 200m and 500m rolls available



Description

BDK TPS cables are ideally suited for cabling from the Fire Alarm, OWS and EWIS panels to detectors, speakers, horns, strobes, field modules, etc. FireSense TPS cables are double insulated and have an outer sheath which is easy to strip and terminate.

In addition to the basic Flat cable design, a white stripe cable is available to allow installer to distinguish between speaker and detector circuit. Also available is a twisted cable for the cabling between addressable fire panels, detectors and devices.



Construction:

Conductors:	Stranded Annealed Copper
Insulation:	V-90PVC
Insulation Colour	Red, White
Sheath:	3V-90PVC
Sheath Colour:	Red
Voltage Rating:	250/250V (Not suitable for Mains Supply)



Standard:

Conductors:	AS/NZS 1125
Insulation:	AS/NZS 3808
Sheath:	AS/NZS 3808
Cable:	AS/ACIF S008



Applications

Fire Systems
• Addressable Loops    • Addressable Interfaces   • Conventional Zones
• Sounders & Bells        • Door Holders                • Remote Indicators
• Agent Release             • Warning Signs



Warning Systems
• Ceiling Speakers        • Horn Speakers               • Visual Warning Devices



Item Numbers & Specifications



Cross Section mm2	Conductor Strands/ Dia	Core Configuration	Stripe Colour	Overall Size mm	Std Drum Length	Kg/Km
0.75mm2	7/0.37	Flat	White	6.2 x 4.0	200M/500M	50
1.0mm2	7/0.43	Flat	White	7.1 x 4.2	200M/500M	54
1.0mm2	7/0.43	Flat	White	7.1 x 4.2	200M/500M	54
1.5mm2	7/0.50	Flat	White	8.0 x 5.0	200M/500M	75

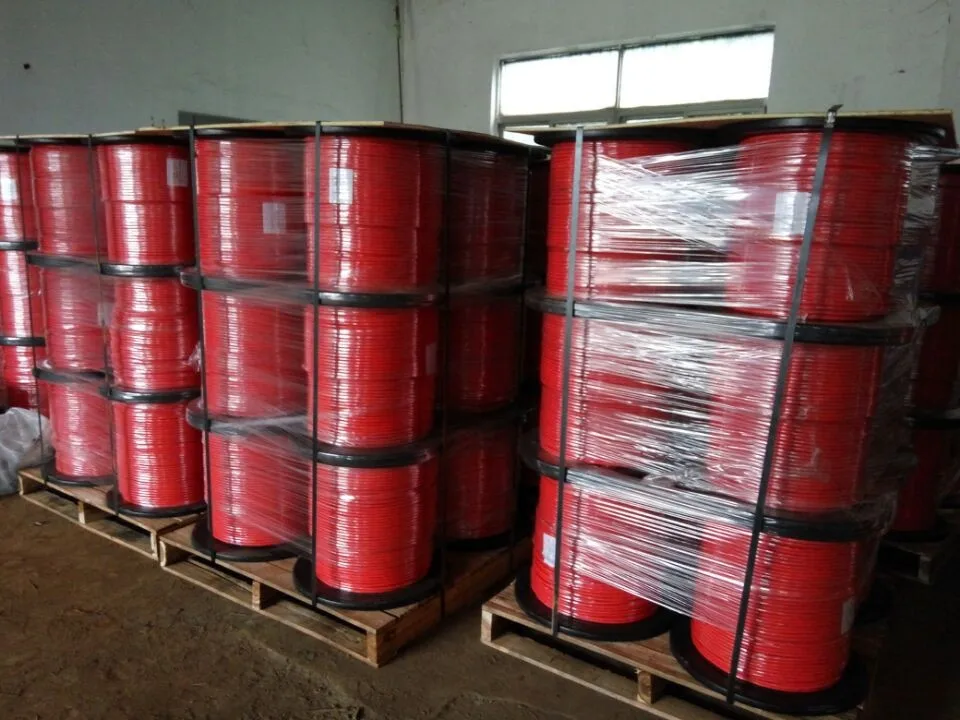

Cable Packing:







Delivery Time: Usually 10 to 15 workdays.



Any questions, please feel free to contact with me!
