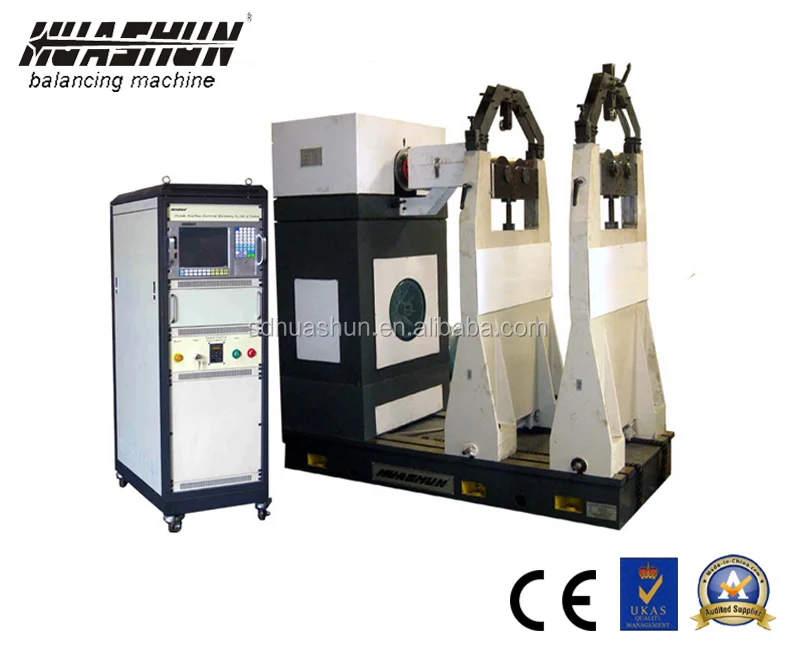

HUASHUN shafts dynamic balancing machine service with high precision
- Category: >>>
- Supplier: Foshan City Huashun Motors Co. Ltd. [Guangdong China]Foshan
Share on (60684342877):
Product Overview
Description
Technical Parameters
Type of balancing machine | Universal hard bearing balancing machine
|
Specifications/type | HG10000-PI |
Max. mass of works(kg) | 10000 |
Max. dia. of works (mm) | 2400 |
Min. Dis between supports(mm) | 500 |
Journal dia. of supports (mm) | 50-400 |
Balancing speed (r/min) (Frequency conversion and adjustable speed) | 100-5000r/min |
Motor of the driving motor of the universal coupling (kw) | 37 |
Min. achievable residual unbalance amount emar(g.mm/kg) | ≤1 |
Max. dis between the coupling endface and the center of the right bearing support(mm) | 4800 (2000+4000 mm beds) |
Unbalance reduction ratio (%) | ≥90 |
Structure

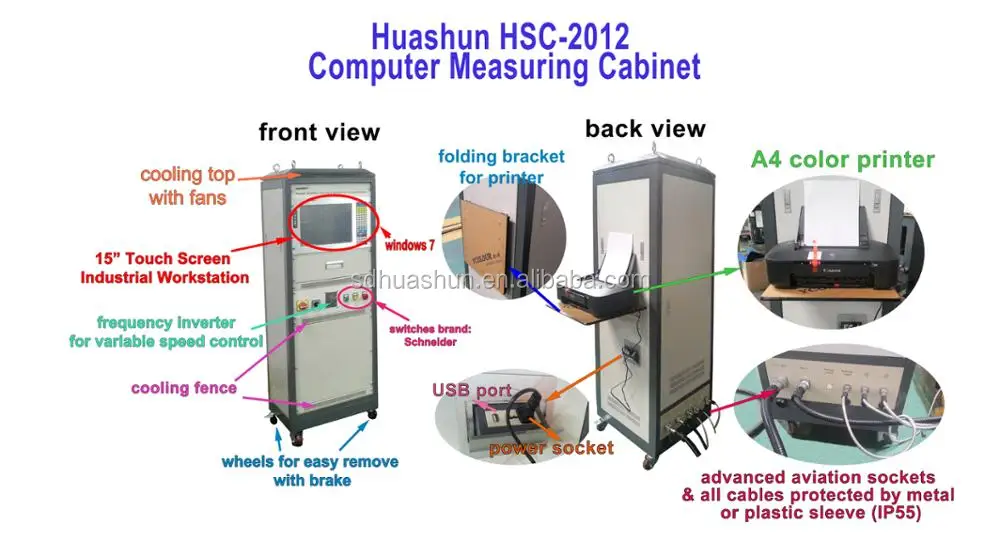

1.Computer control panel, conventional PC operation
2.Frequency conversion, adjustable speed, four gears mechanical gear box
3.Piezoelectric sensor, reliable performance
4.Digital or Chinese display systems are available
Advantages:

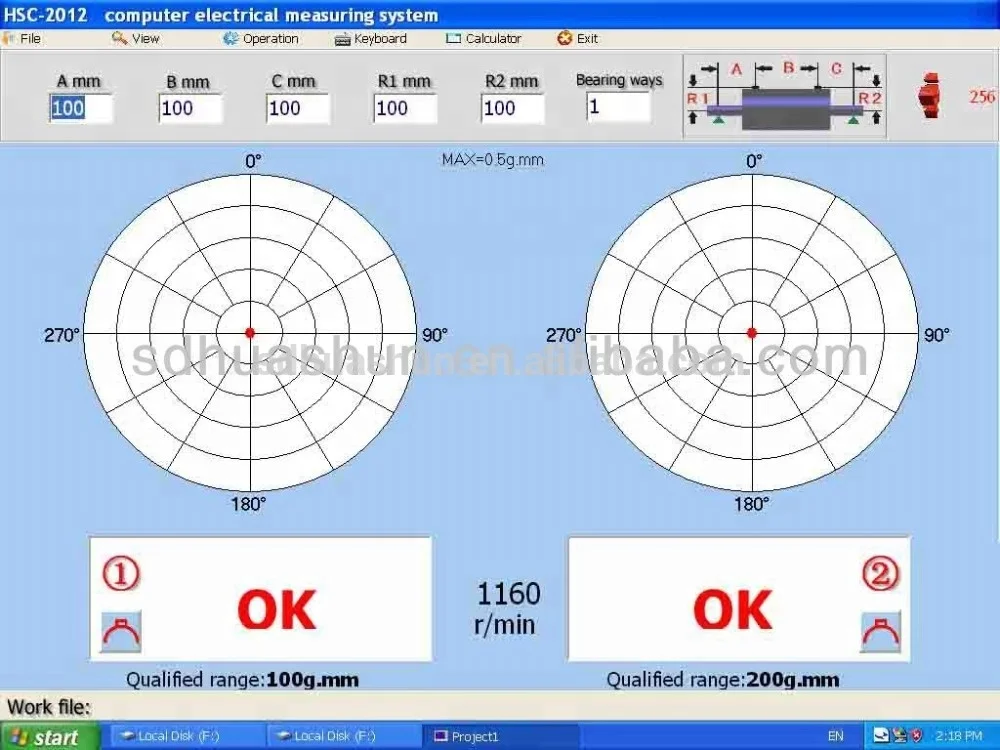

1.Figuration interface vision, simple operation
2.PC hard disc stores a mass of data
3.Printer available for result printing
Application Areas

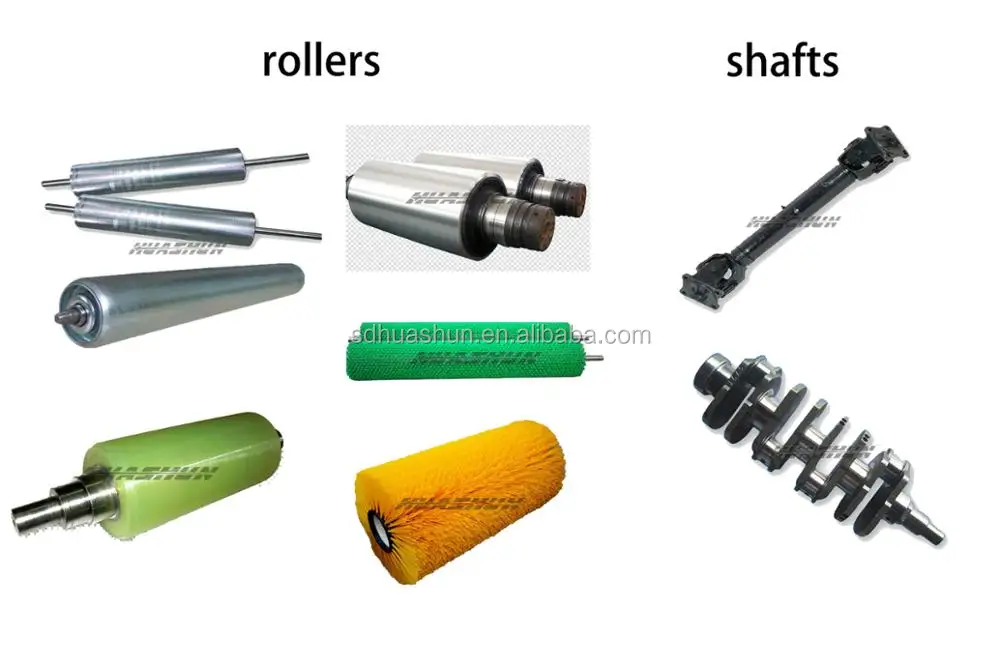

For general or particular heavey bodies like generators, rollers, shafts, etc.
