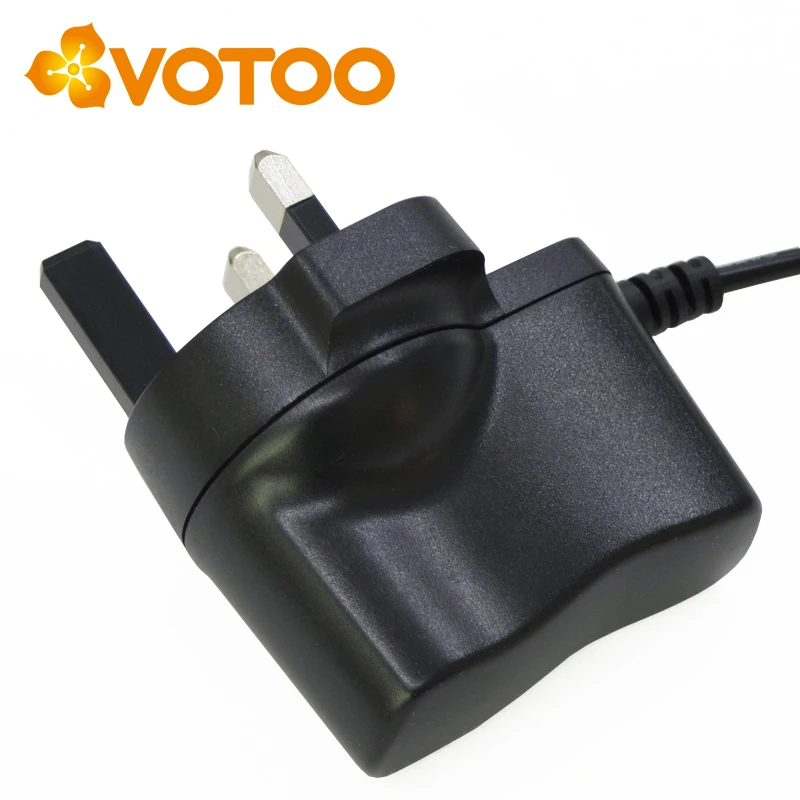

Factory manufacture ac dc power adapter 8v 350ma power supply
- Category: >>>
- Supplier: Shenzhen Votoo Power Co. Limited
Share on (60684518576):
Product Overview
Description

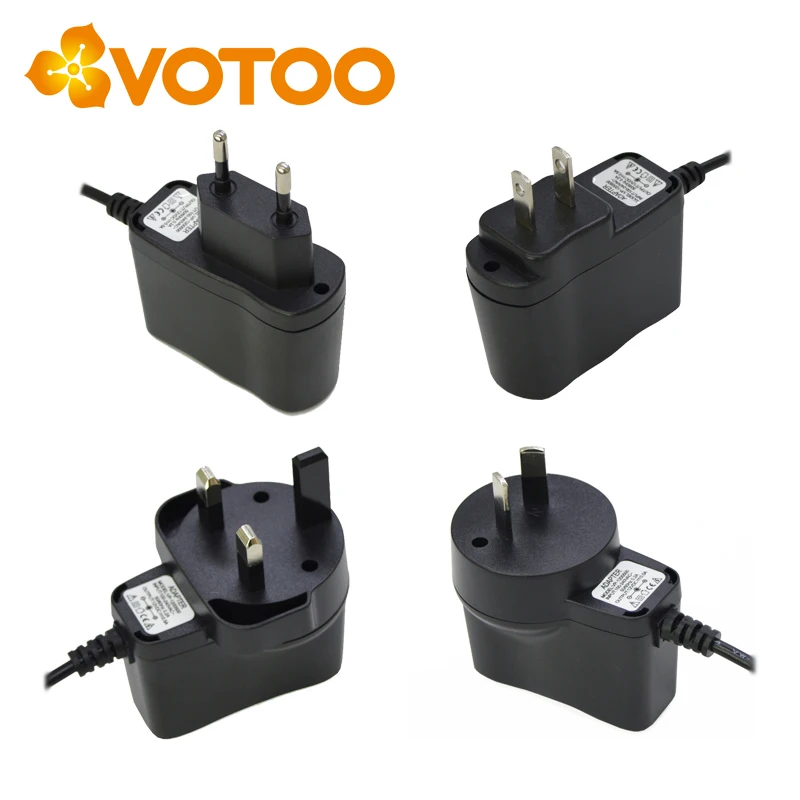

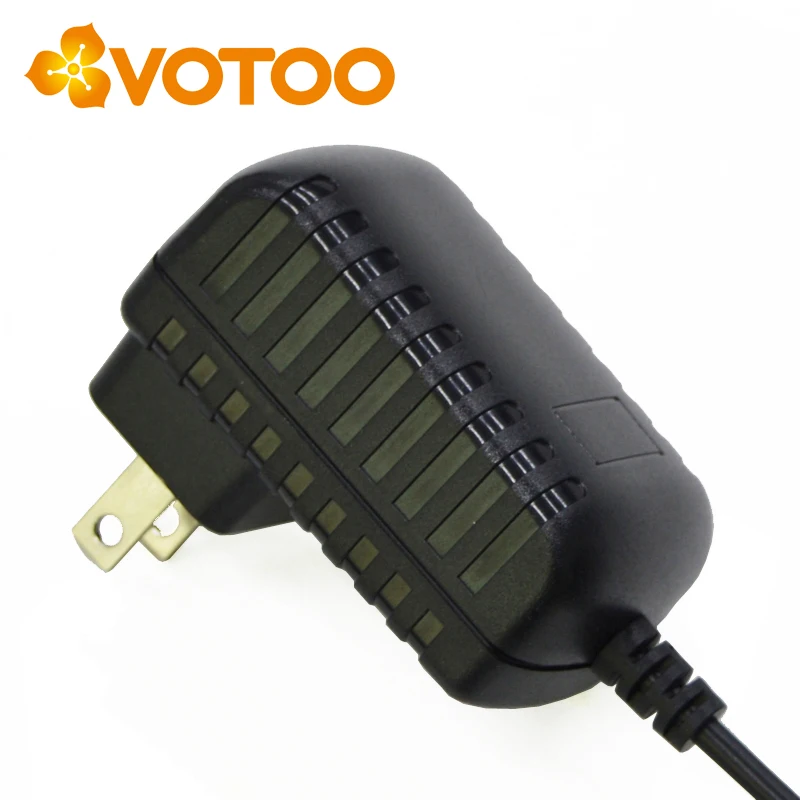

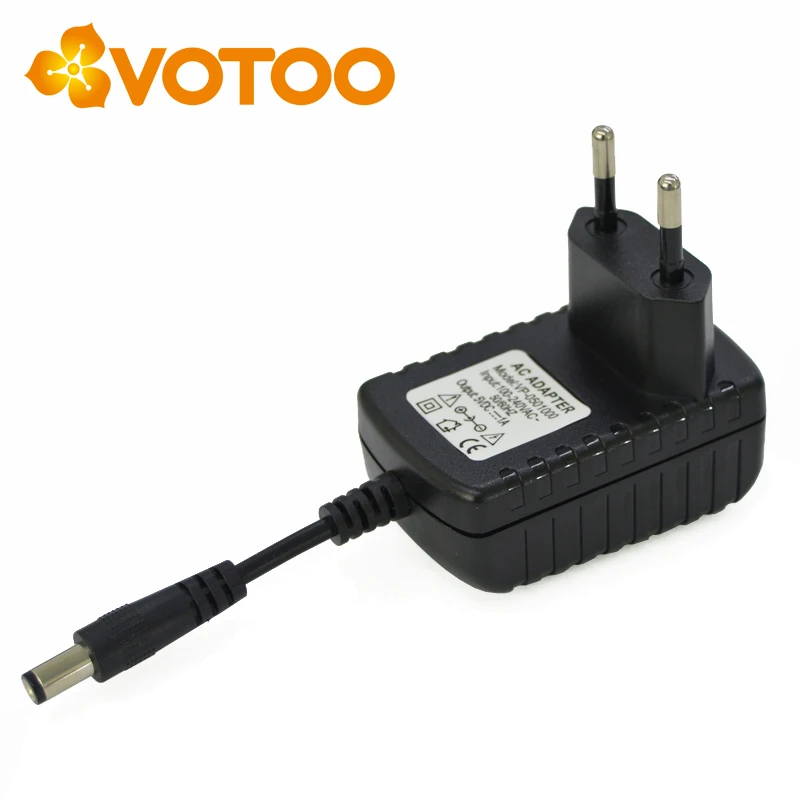

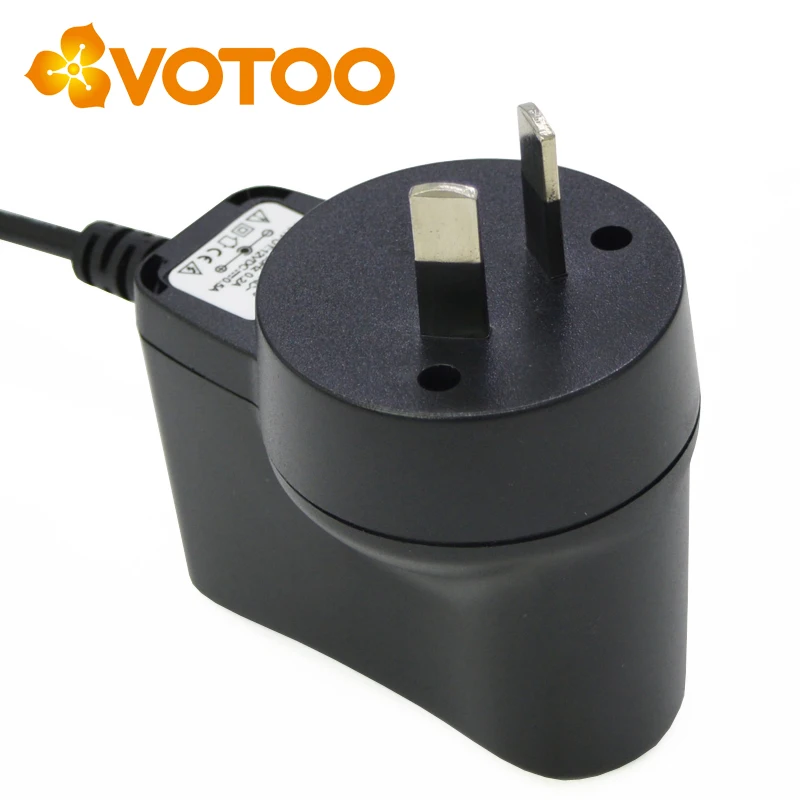

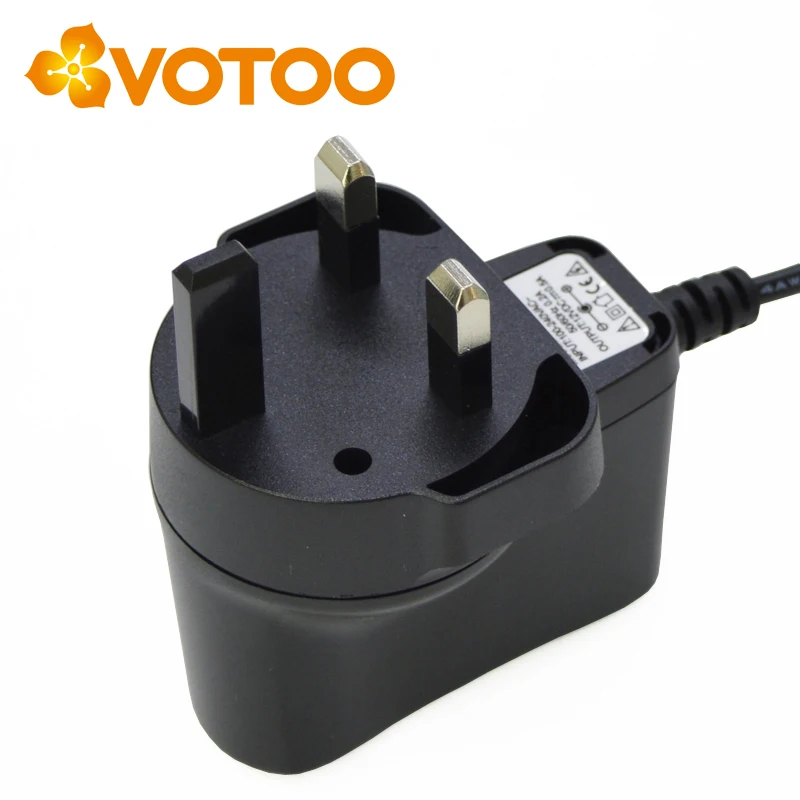

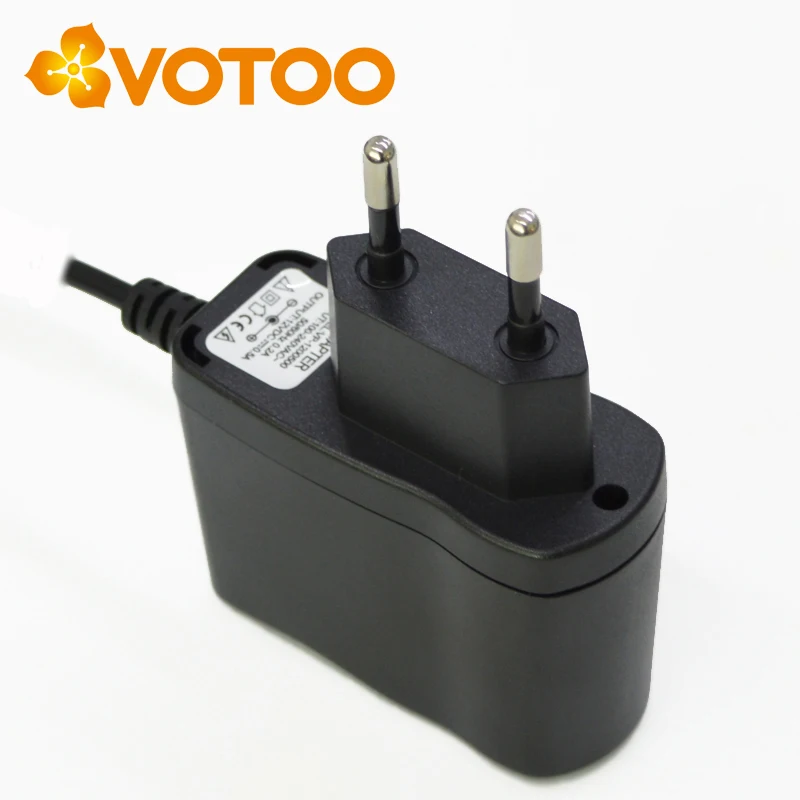

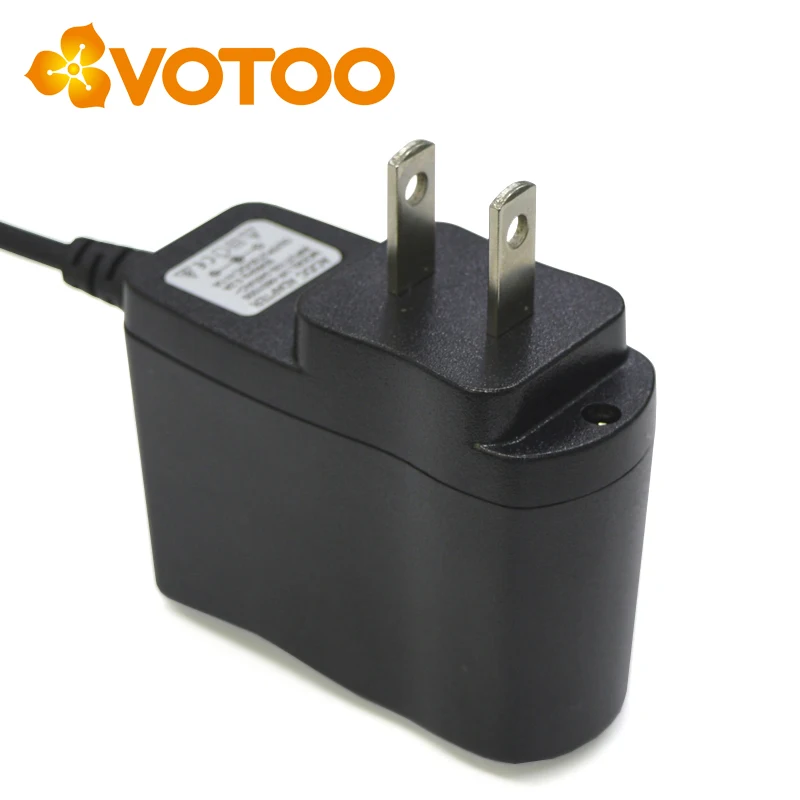

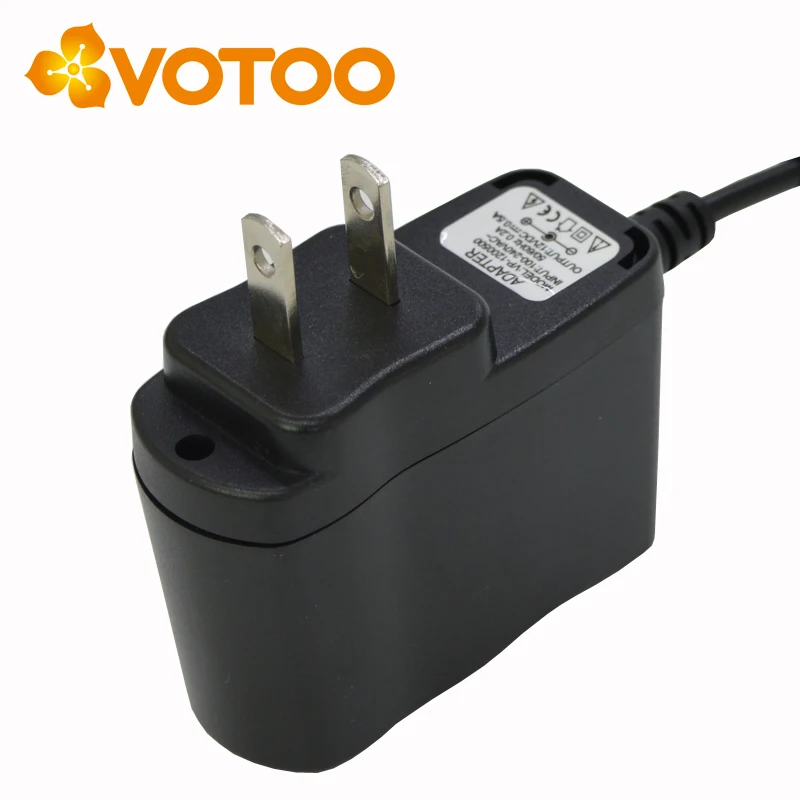

Factory manufacture ac dc power adapter 8v 350ma power supply
8v 350ma power adapter
1.Factory selling
2.Short circuit,overload protection
3.1 year warranty
used for:
lead acid battery charger, battery charger for lithium, Ni-H battery,Digital Camera,CD-ROM, VCD, DVD, Hard disk box, and HUB,ADSL AP,Mini Note Book PC,Wireless Lan Station,LCD Monitor,Hard Disk,Communication Terminals,Any Portable Device or Machine, Electronic refrigerator, Electronic notebook, Small home appliance, Medical equipment, Industrial equipment, Decorative lighting, Audio-visual equipment, ITE etc
8v 350ma power adapter supply
| Output | DC output voltage | 8v | 24V |
| Output voltage tolerance | ±1% | ±1% | |
| rated output current | 350ma | 0.75A | |
| Output current range | 0~350ma | 0~0.75A | |
| Output power | 4W | 18W | |
| Ripple and noise | 90mVp-p | 200mVp-p | |
| DC adjustment range | ±5% | ±5% | |
| Setup,rise,hold time | 200ms,100ms,30ms/230VAC. | ||
| Input | AC input voltage range | 100~240VAC 50/60Hz | |
| AC input current (max) | 0.25A | ||
| Efficiency | ≥78% | ≥85% | |
| AC inrush current(max) | Cold start ,40A/230V | ||
| Leakage current(max) | <3.5mA/240VAC | ||
| Protection characteristic | Overload protection | 115%~135%rated output power ,start loading protection | |
| Protection mode:hiccup mode, Auto-recovery | |||
| Over voltage protection | 115%~135%Shut down O/P , Auto-recovery | ||
| Over temp protection | ≥105°CShut down O/P , Auto-recovery | ||
| Environment | Working temperature humidity | -10°C~+60°C;20%~90%RH | |
| Safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG :0.5KVAC | |
| Insulation resistance | I/P-O/P: I/P-FG , O/P-FG :100M Ohms/500VDC | ||
Factory manufacture ac dc power adapter 8v 350ma power supply
FAQ
Q: Are you Manufacturer or Trade Company?
A:We are a factory Manufacture AC/DC power adapter,usb wall Charger,Power supply and led driver with OEM / ODM Services.
Q:Can we get a sample for testing?
A:yes, indeed. Our engineer teams will offer the sample for your testing but the freight cost should be paid by customer.We will refund this charge after you placed an order.
Q:Can you print my logo in product?
A: Yes of course,please send your logo to us,and we support OEM /OMD,welcome inquiry further.
Q:Is there cheap shipping cost to import to our country?
A: For small order,express will be best.And for bulk order,sea ship way is best but will take much time.
Q: Warranty?
A: We offer 24 Months warranty for our products. Quality is very important for long term business, that's what we do.
