2018 TETO Portable Dynamic Balancing Machine and professional after sale service providing

Product Overview

Description

Specifications details:

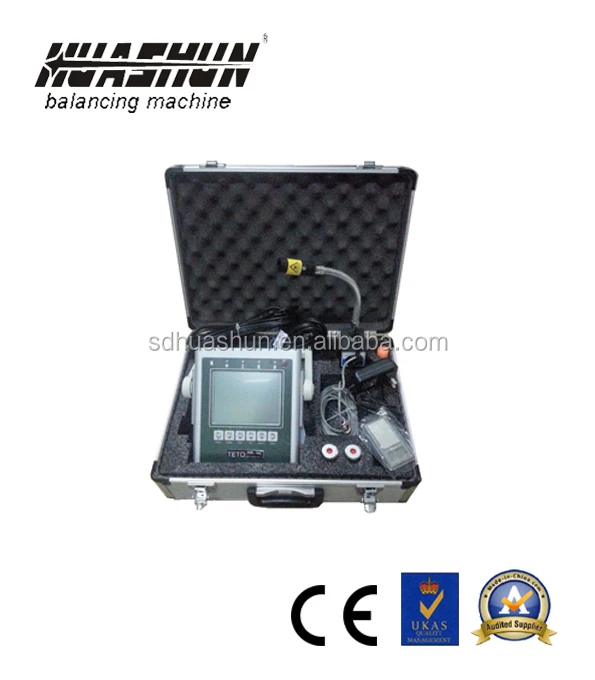

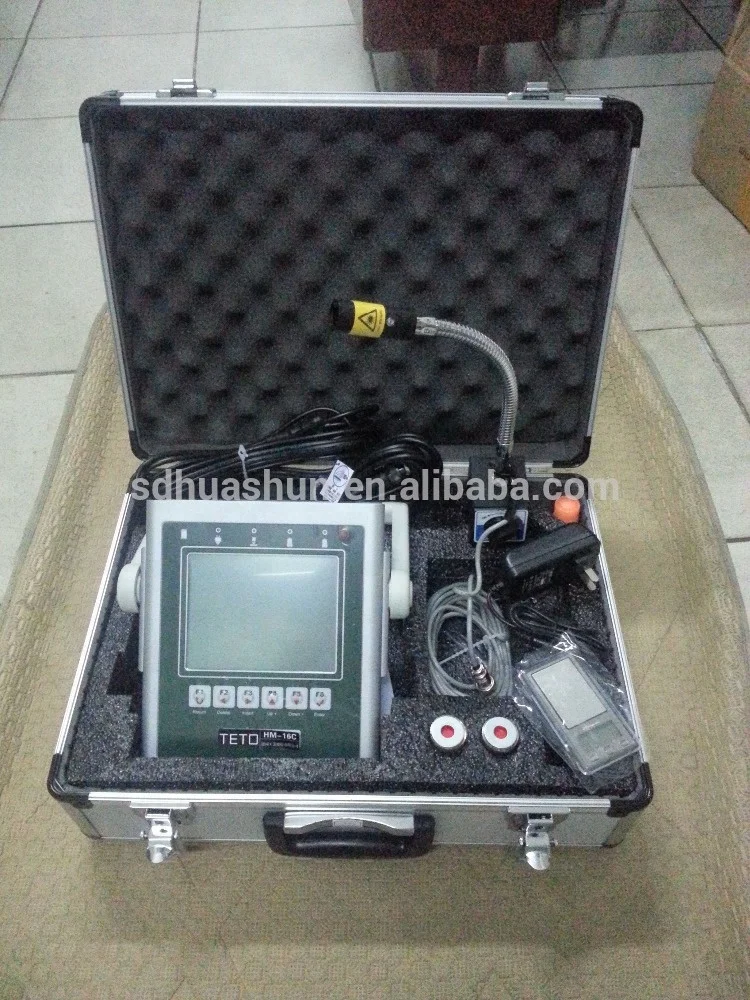

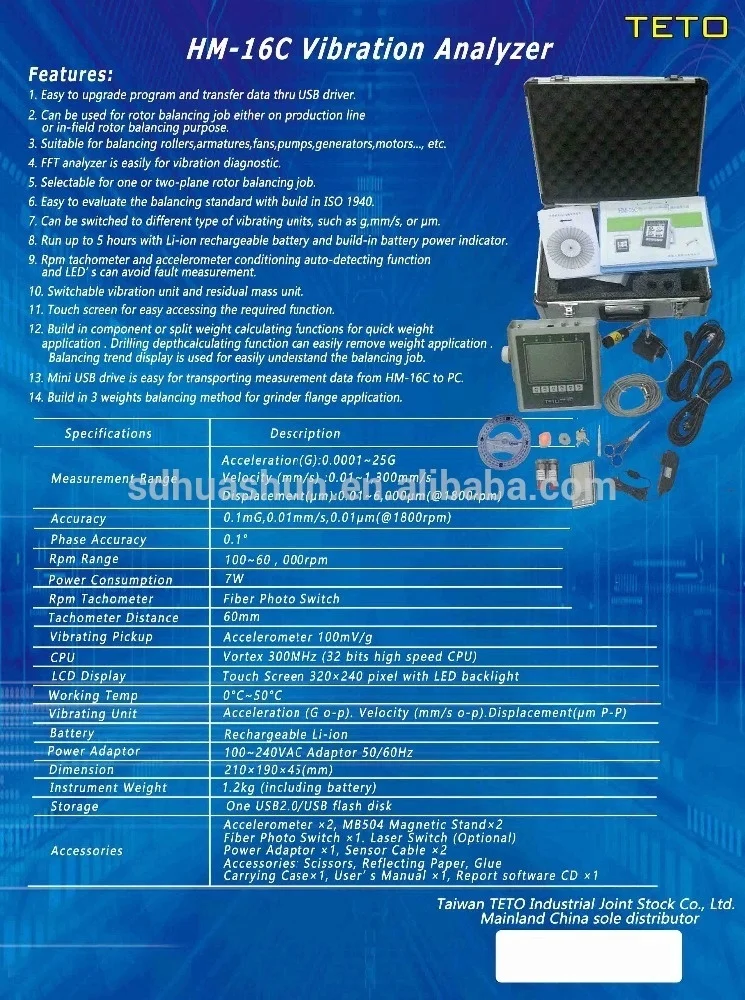

HM-16C Portable Balancing Machine Vibration & Spectrum Analyzer

Features :

1. Easy to upgrade program and transfer data thru USB drive
2. Can be used for rotor balancing job either on production line or in-field rotor balancing purpose.
3. Suitable for balancing rollers,armatures,fans,pumps,generators,motors...,etc.
4. FFT analyzer is easily for vibration diagnostic .
5. Selectable for one or two-plane rotor balancing job.
6. Easy to evaluate the balancing standard with build in ISO 1940
7. Can be switched to different type of vibrating units,such as g,mm/s,or μm.
8. Run up to 5 hours with Li-ion rechargeable battery and build-in battery power indicator
9. Rpm tachometer and accelerometer  conditioning auto-detecting function and LED's can avoid fault measurement
10. Switchable vibration unit and residual mass unit.
11. Touch screen for easy accessing the required function
12. Build in component or split weight calculating functions for quick weight application .Drilling depth calculating function can easily remove weight application .Balancing trend display is used for easily understand the balancing job.
13. Mini USB drive is easy for transporting measurement data from HM-16C to PC
14. Build in 3 weights balancing method for grinder flange application.

Specifications	Description
Measurement Range	Acceleration(G):0.0001~25G Velocity (mm/s) :0.01~1,300mm/s  Displacement(μm):0.01~6,000μm(@1800rpm)
Accuracy	0.1mG,0.01mm/s,0.01μm(@1800rpm)
Phase Accuracy	0.1°
Rpm Range	100~60,000rpm
Power Consumption	7W
Rpm Tachometer	Fiber Photo Switch
Tachometer Distance	60mm
Vibrating Pickup	Accelerometer 100mV/g
CPU	Vortex 300MHz (32 bits high speed CPU)
LCD Display	Touch Screen 320×240 pixel with LED backlight
Working Temp	0°C~50°C
Vibrating Unit	Acceleration (G o-p). Velocity (mm/s o-p).Displacement(μm P-P)
Battery	Rechargeable Li-ion
Power Adaptor	100~240VAC Adaptor 50/60Hz
Dimension	210×190×45(mm)
Instrument Weight	1.2kg (including battery)
Storage	One USB2.0/USB flash disk

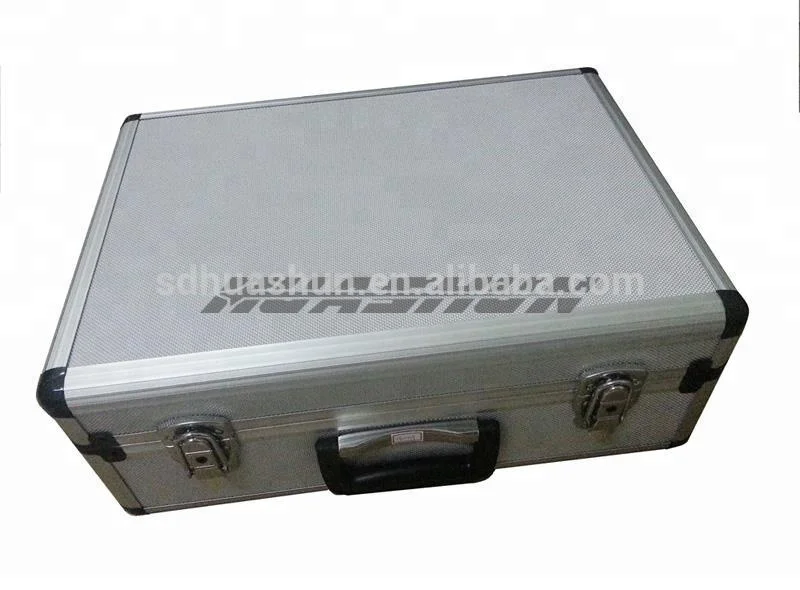

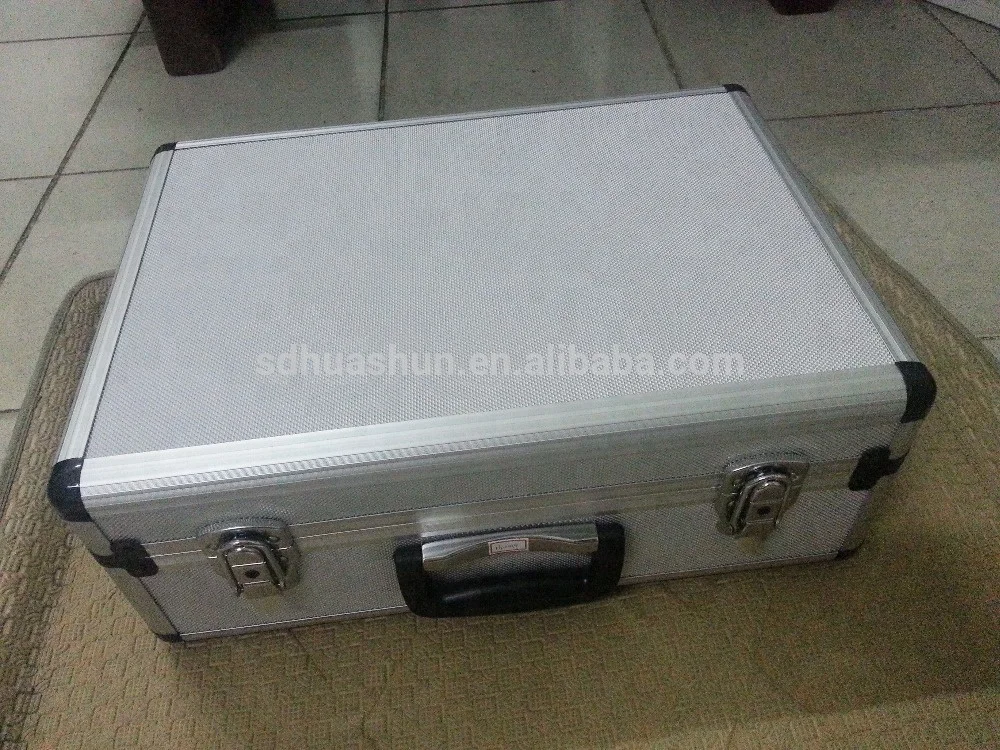

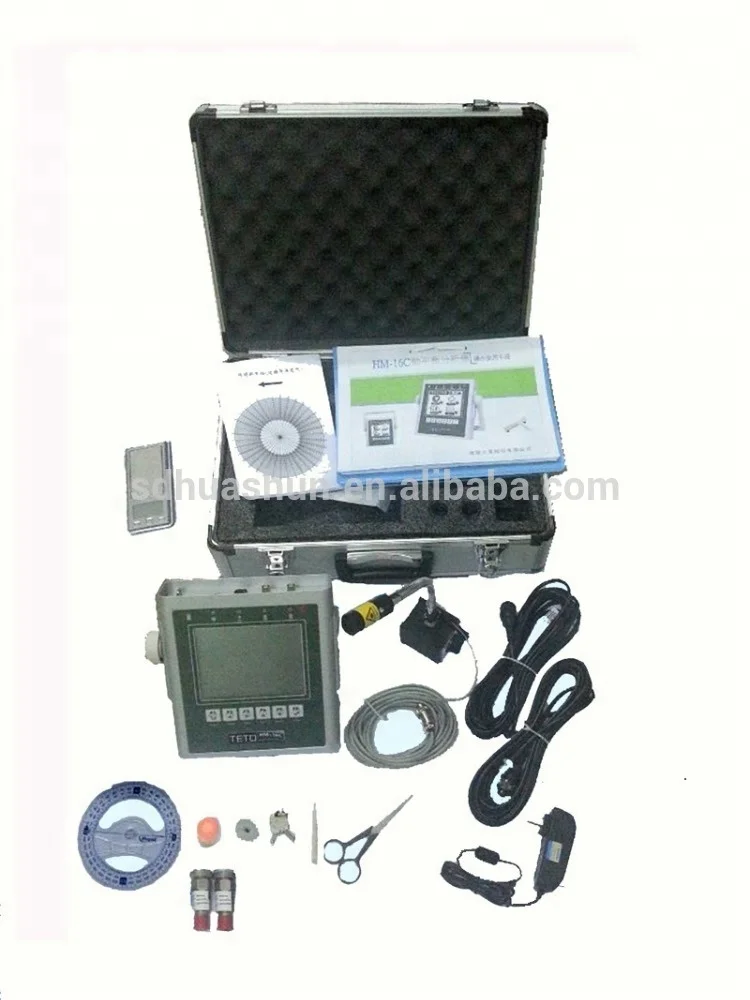

Accessories	Accelerometer ×2,MB504 Magnetic Stand×2 Fiber Photo Switch ×1.Laser Switch (Optional) Power Adaptor ×1,Sensor Cable ×2 Accessories : Scissors ,Reflecting Paper,Glue Carrying Case×1,User's Manual ×1,Report software CD ×1
