APP asphalt bitumen sheet waterproofing membrane production plants

Product Overview

Description

APP asphalt bitumen sheet waterproofing membrane production plants

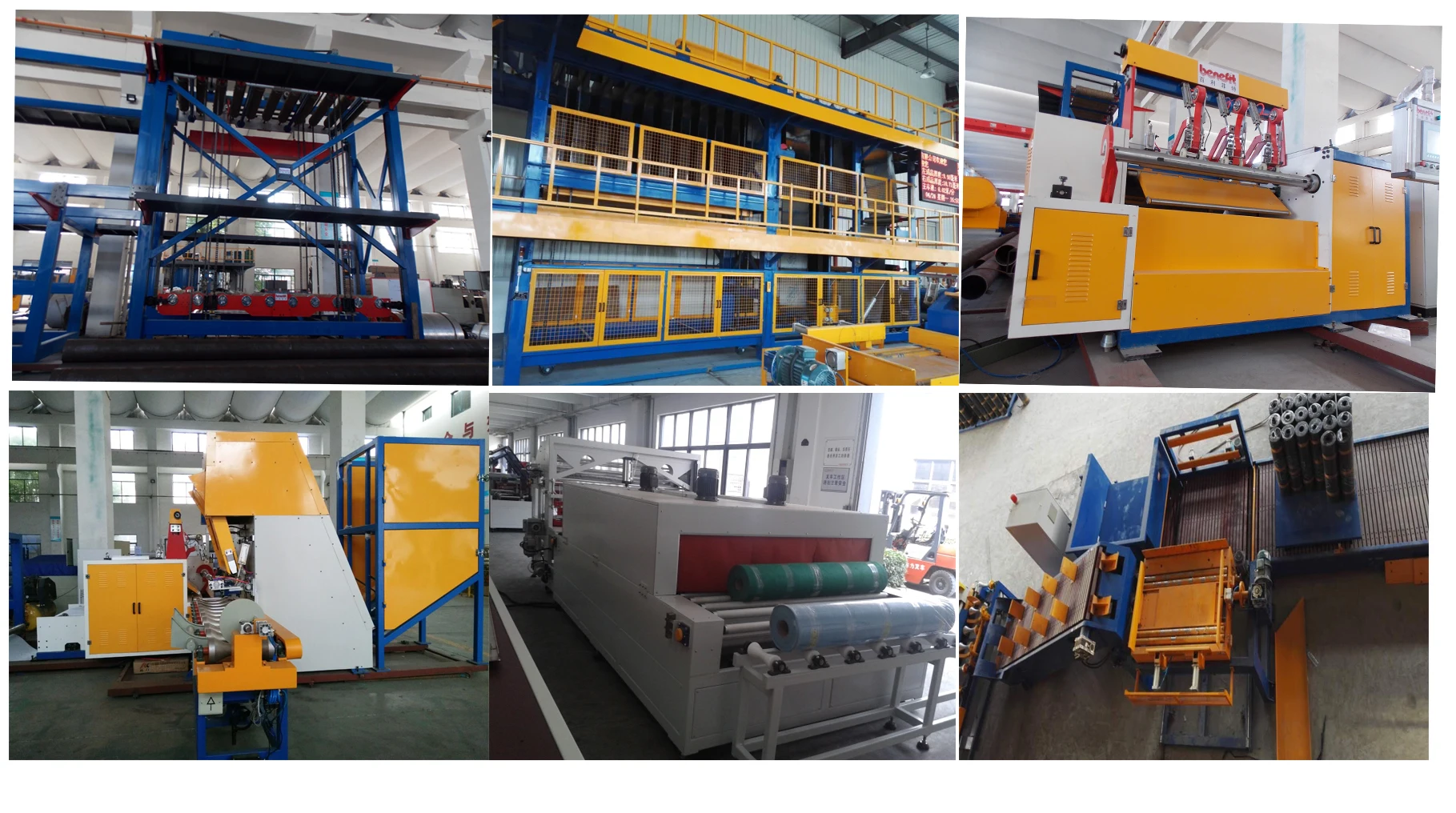

Main Line parts



1. Roll unfolding device

2. Intermediate feed device

3. Reinforcement connecting device

4. Reinforcement drying device

5. Auto rectifying device

6. Impregnation tension control device

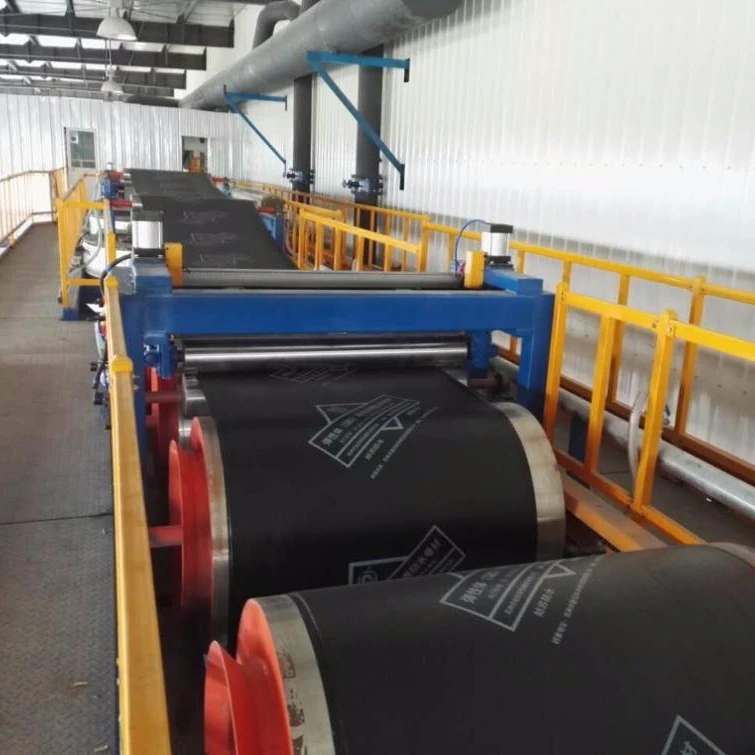

7. Asphalt coating device

8. Sand-scattering device

9. Sand-lifting device

10. Filming and thickness-measuring device

11. Sand-pressing with suspending device

12. Cooling and embossing device

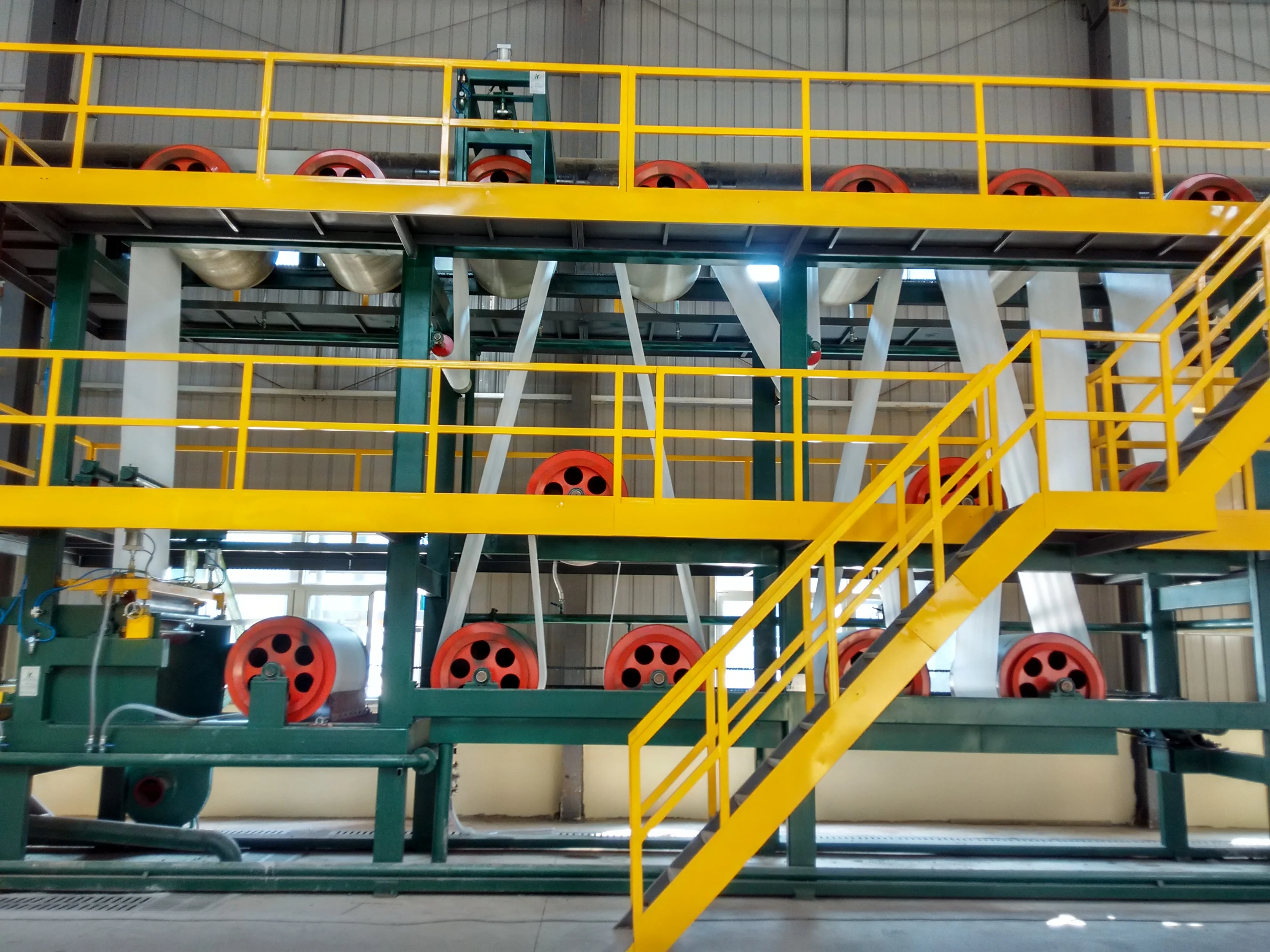

13. Finished products storage device

14. Traction-spring device

15. Auto winder device

16. Electrical operating control device

17. Mixing-weighing system device

18. horizontal storage tanks

19. Powder-conveying system

20. Smoke purification device

21. Heating with boiler system







Technical Parameter



Item	APP/SBS Modified Bitumen Membrane Production Line Technical Parameters
Capacity ,m2/year	For 3mm-thick products ,   The annual output of various modified bitumen  waterproofing membrane can be 10 millions sqm per year , with 250 annual manufacturing days per year , 2 working shifts per day and 8 hour working time per shift
Width	1000mm
Reinforcement	Polyester mat ,fiberglass, compound
Modified materials	SBS,APP,Rubber powder
Facing materials	Self-adhesive ,Silver sand ,Slate flakes ,PE film ,Aluminum foil ,etc
Linear speed	5-60m/min(adjustable)









SBS Modified Bitumen Membrane Production Line :

(A).Features of SBS Modified Bitumen Membrane Production Line :
1.Flexibility of designmeet different products demand
2.Versatility: can produce different carcass, different cladding, different base material, the thickness of a variety of different modified bitumen membrane
3.Second inunction technology: adjustable carcass in the membrane of the position, so as to ensure the construction of membrane
4.Cooling directly and indirectly with the use of cooling: Suspension sink cooling, and comprehensively improve the efficiency of cooling
5.Photoelectric automatic corrective institutions to guarantee in the matrix
6.carcass mill use of advanced super shear force of the mill and modified significantly reduce the time
7.electronic weighing measures is used to batch system to control the product quality and enhance stability
8.Efficient unique structure of the agitation mixed system, which embodies a highly shear force and scraping of  the wall so that to avoid dirt.
9.Efficient dust, the flue gas treatment system: condensation, filtration, adsorption processing, is a full compliance with environmental requirements
10.All synchronous Frequency Control, PLC control system: less maintenance, operation of low-cost, simple operation, a high degree of automation, equipment running high reliability rate, the rate of qualified products are> 90%.



Finished products (bitumen membrane)type(surfacing)



· Two sides with PE film(Embossing or smooth)

· One side with PE film,one side with sand(Coarse aggregate)

· One side with PE film,one side with aluminum film(Embossing or smooth)

· Self-adhesive bitumen waterproof membrane







Charateristice



1. Easy installation and dimensional stability: Able to be wieldable under wide range of temperature and experience minus dimensional change in thermal treatment

2. High tensile strength and elongation thus can accommodate movements of substrates

3. Good flexibility under low temperature, good adaptability to ambient temperature difference

4. Secure anti-puncture and good rooting resistance, no pollution caused to environment when being welded and good waterproofing choice for plant roofs.

5. Good plasticity: Convenient and fast treatment of detailed parts of corners and edges

6. 3 meters width reduces the joints and helps saving materials or labor cost



Usage



Widely applied on various kinds of waterproofing projects:

1. Subways and tunnels

2. Roofs of sports complex

3. Green roofs

4. Exposed roofs

5. Steel roofs

6. Waste land filling yards





Company information



Changzhou Benefit Waterproof Equipment Co.,Ltd,established in 1990, is a professional manufacturer which is specialized in researching, producing, marketing and service waterproof equipment. As a private-owned enterprise, Our company is a famous supplier in the line of waterproof equipment in China, also an important supplier in the international markets. On the basis of absorbing foreign advanced science and technology, our factory has developed various kinds of advanced waterproof equipment plants, and has got many national patents. The factory is strictly in accordance with international quality system to ensure product quality. Our factory pursues the enterprise culture of sincere, realistic and innovation, adheres to the service goal of honesty, customer-oriented and win-win situation. We are looking forward to cooperating with you.

Our service

 Changzhou Benefit company is not only supporting technology consulting,product consulting,and prefect pre-sale service,but also we have completely after sales service including follow:

1. We will offer the spare parts as low price to our customers.

2. We can send our engineers to your factory if you require,even though the product line have been running.

3. We will send our engineer to solve problems within the warranty date in 24 hours.

4. We will continue to support technology consulting after the warranty date.

5. Setting up project management files to traction in fixed date,supporting written report suggestion of maintenance and repairmen to customers.

6. After-sales number works in 24 hours,making sure the machine problem can be solved  in  soonest time.



FAQ

1.Are you trading company or manufacturer?

We are manufacturer,we have a 8000 sqm factory in Changzhou.

2.Do you have quality certificate?

Of course,we have CE,ISO.ect.

3.Can you provide after-sale service?

Yes,After sale service number works in 24 hours,making sure the machine problem can be solved in soonest time.

4.What the MOQ and your payment terms?

We usually accept 30% T/T before produce,70%T/T before shipment,MOQ is 1 set.

5.Is it available to add our logos on the machine?

Yes,it is available,please provide us your logo.

6.How long is your machine warranty and your lead time?

Usually guarantee 12 months,if something spares are wrong ,we could send you accessories,and normally our lead time is about 90 days after you pay for deposit.
