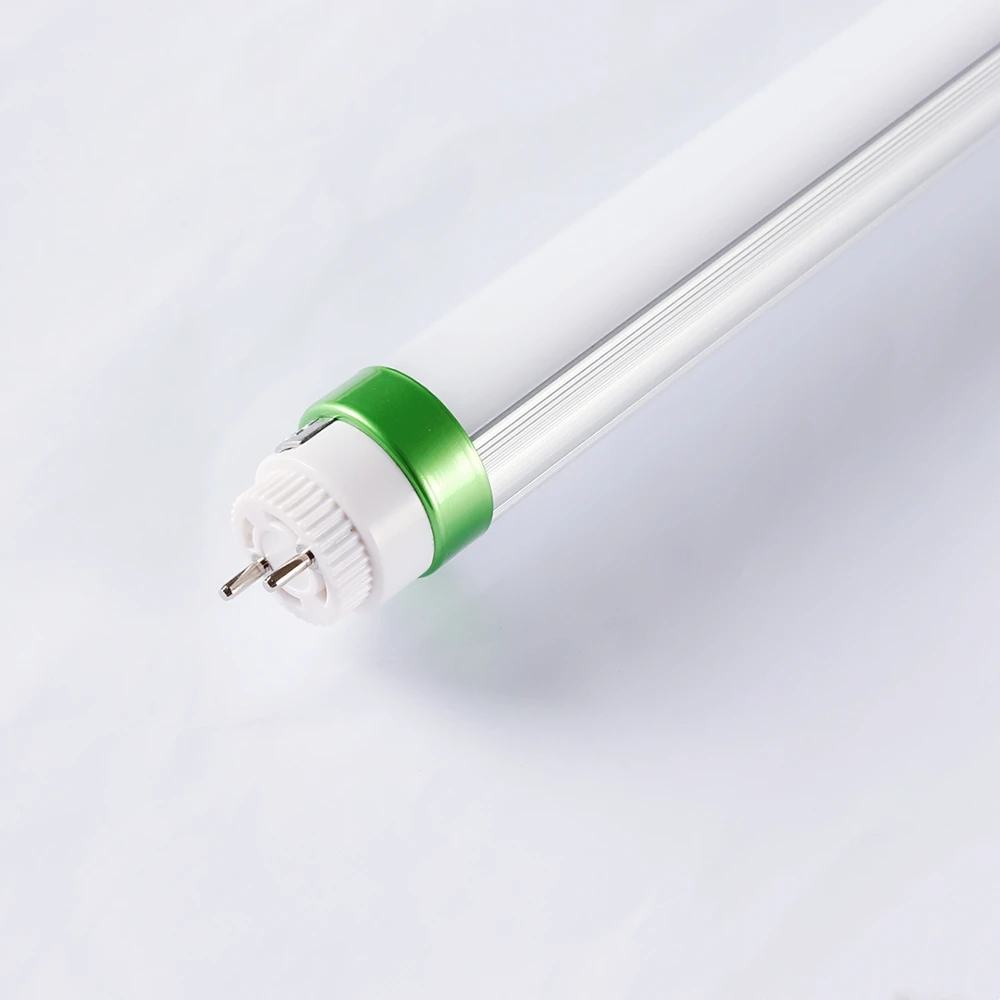

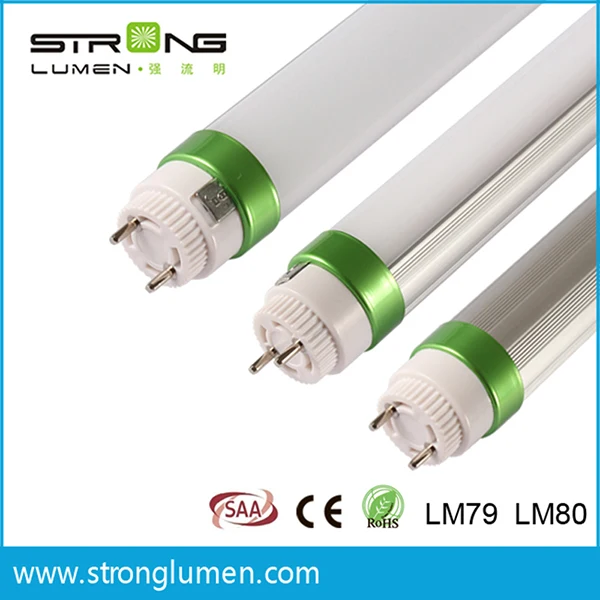

Strong Lumen factory T8 Led Tube light Fluorescent Lamp 36W 18 19w led tube

Share on (60684611145):


Price:$10.00 - $12.00

Quantity:


Product Overview

Description


18-19w led tube lamp



Product Description


Specification



































































TypeT8 LED TUBE
VoltageAC100-240V/(AC100-277V are available)
Chip typeLED2835 Epistar
EfficacyMilky Cover:130lm/w ,   Clear Cover: 140lm/w
Color index>80 (>90,85 are available)
Power factorPF>0.9
CoverFrosted or clear
End capG13 + metal ring (rotatable/non-rotatabled end cap available)
ColorW:5800-6400K,  L:3800-4300K,  N:2800-3300K
MaterialAluminum body+PC Lens
LED current40mA
Beam angleClear cover:120°;   Frosted Cover:140°
Warranty3 or 5 years














































ModelSize mmPower/Lumen
SL-DGA00-209WT-G8-N6009W /990LM
SL-DGA00-312WT-G8-N90012W /1320LM
SL-DGA00-418WT-G8-N 120018W /1980LM
SL-DGA00-420WT-G8-N  20W /2200LM
SL-DGA00-525WT-G8-N 150025W /2750LM
SL-DGA00-530WT-G8-N30W /3300LM
SL-DGA00-840WT-G8-N240040W /4400LM

Display


high quality t8 led tube 1





high quality t8 led tube

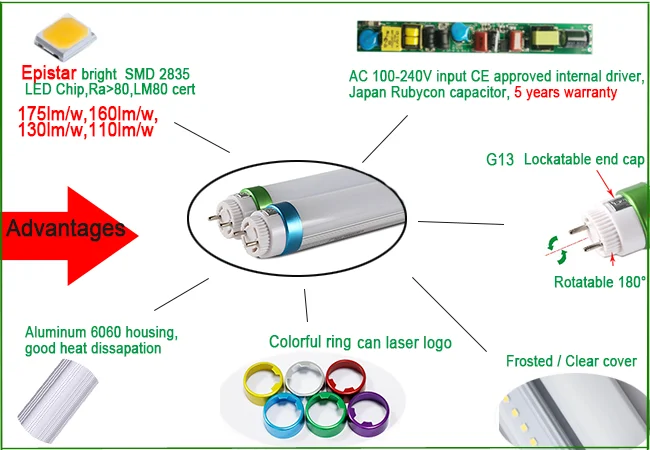

t8 led tube advantages 2





 Drawing



























 2feet3feet4feet5feet
A602mm906mm1213mm1513mm
B588mm892mm1198mm1498mm



18-19w led tube lamp.jpg

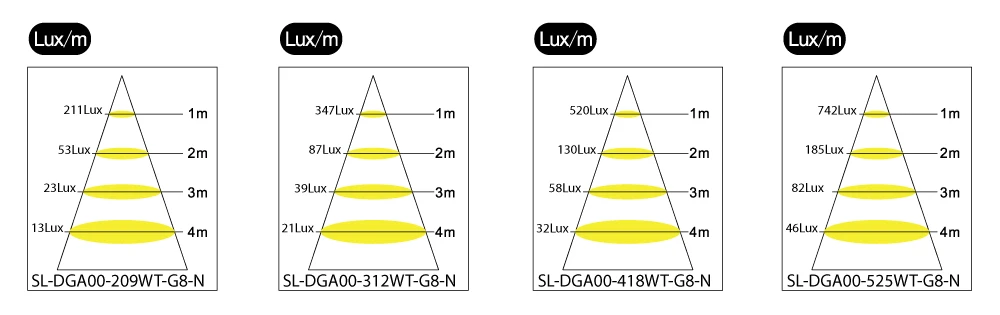

Photometric Data


18-19w led tube lamp.png


18-19w led tube lamp.jpg

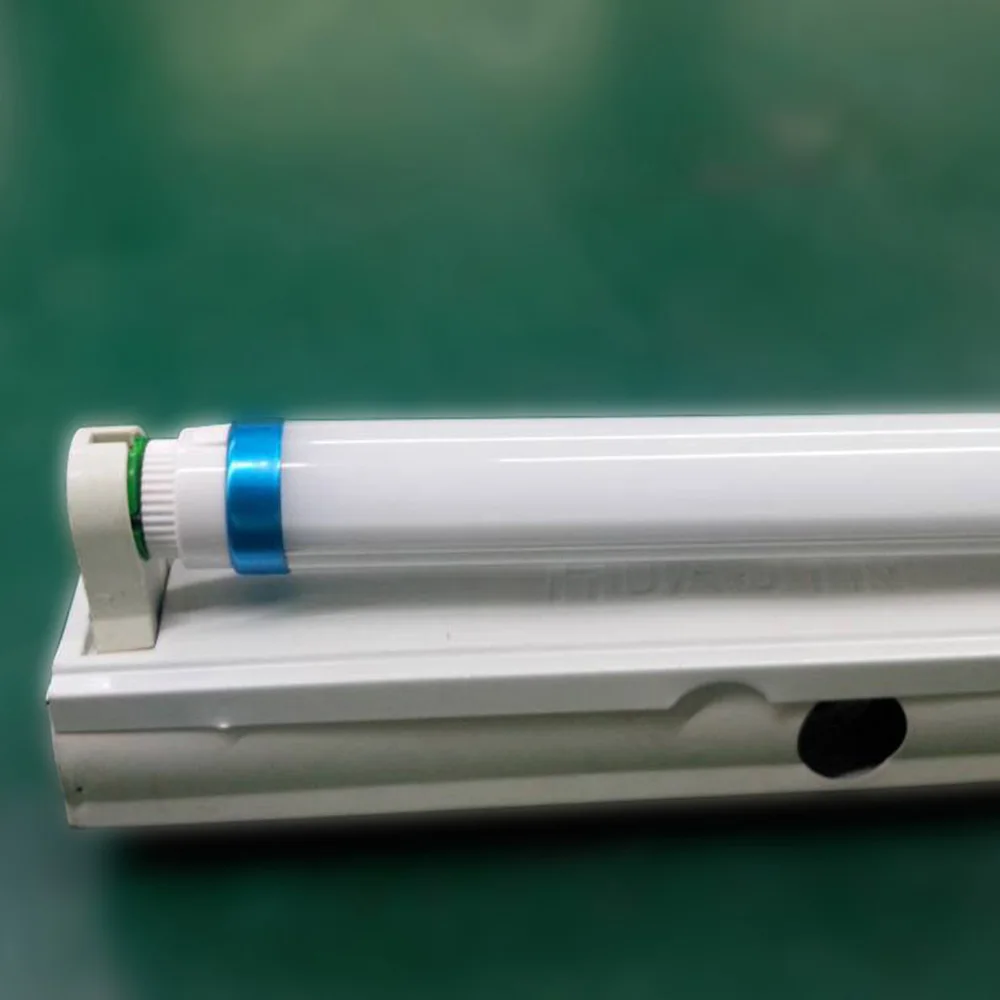

Installation
18-19w led tube lamp.jpg








Test report & certs

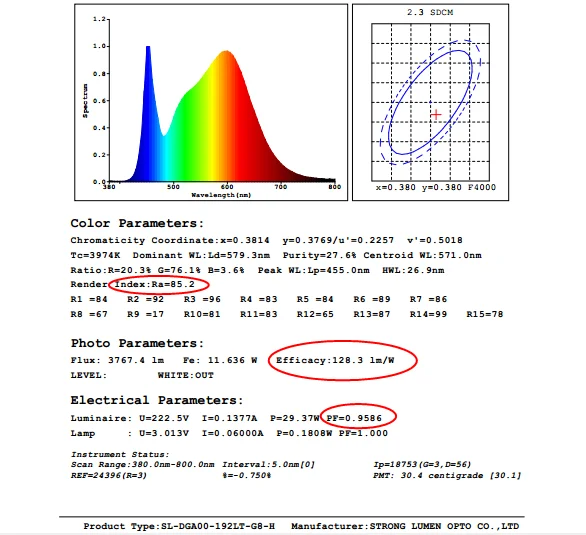

Test report














 Certificates


 TUV CE+ROHS+SAA+ETL+DLC for our T8 LED tubes





CERTIFICATE








Application


Application








1. Commercial Complexes and other Public facilities
2. Schools, Colleges, Universities
3. Places where need energy saving and high color rendering index lighting
4. High maintenance or temperature sensitive environments


Our clients: Sylvania SONY, EPSON, IKEA, and many retailers....
Our cases: Madrid Subway, PLA Airport, Daily Price Store.....


2














Company Information




company Porfile





1.  Top leading professional LED lighting manufacturer  in China.  focus on high quality, welcome to test our products for any details.


2.  Strong R&D department . owner of several Patents of LED lighting tubes.


3.  Production site over 10,000m2 , monthly output 300,000pieces
