Product Overview

Description

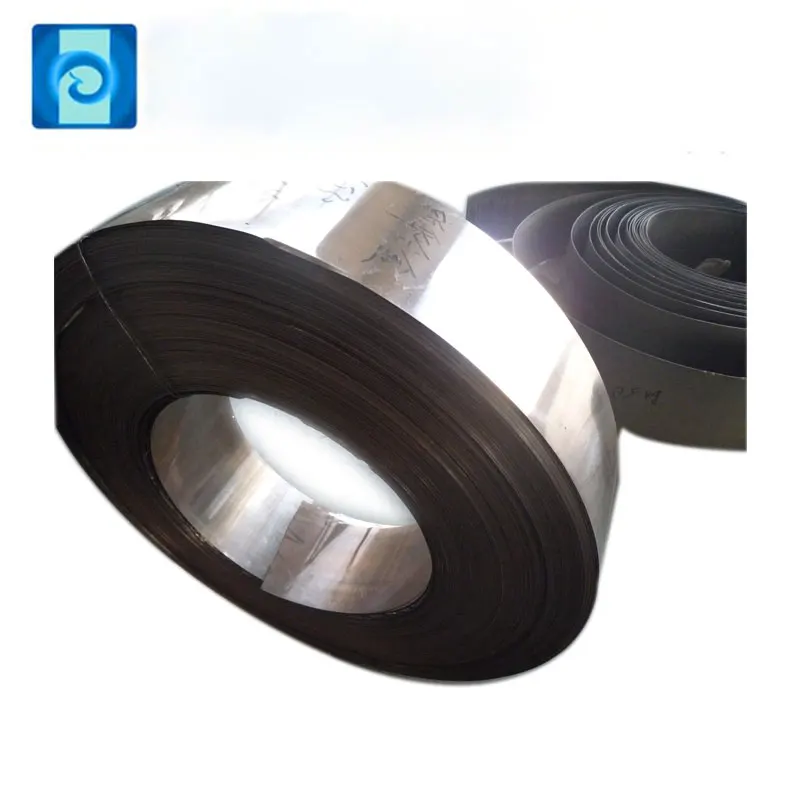

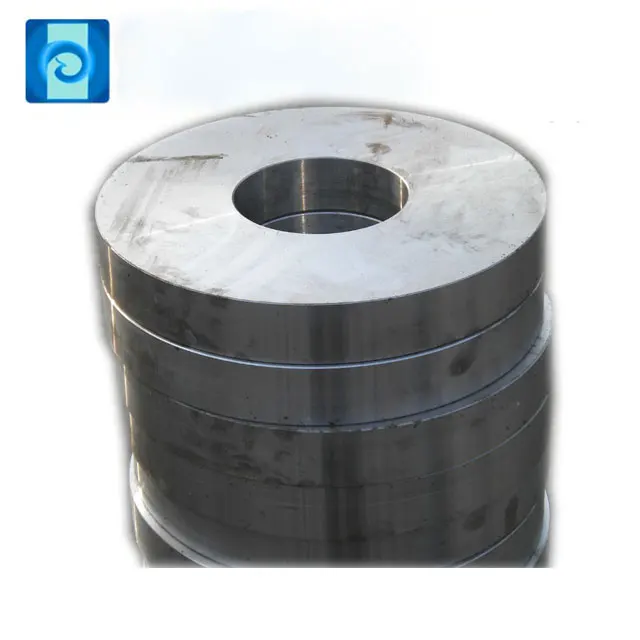

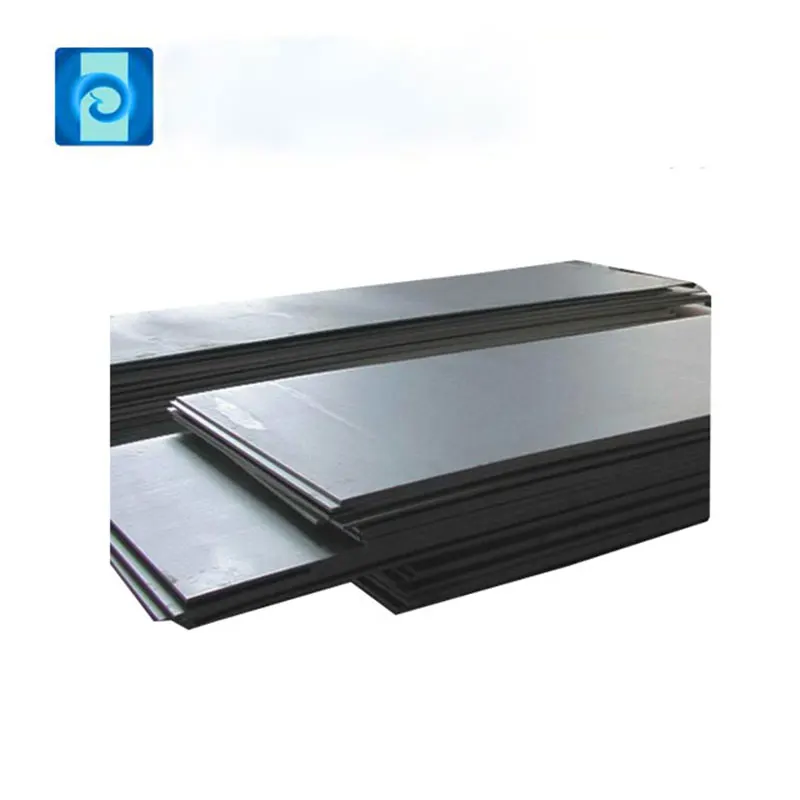

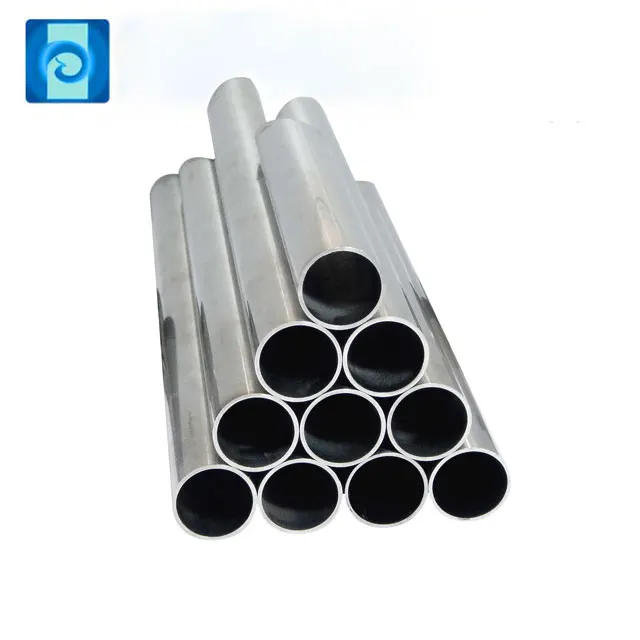

4J29(Kovar),4J32,4J33,4J34,4J36(Invar),4J50 alloy products





Kovar is an iron-nickel-cobalt alloy with a coefficient of thermal expansion similar



 to that of hard (borosilicate) glass. This makes it especially suitable for uses which



require a matched-expansion seal between metal and glass parts.





Thus kovar finds wide usage in the electronics industry for metal parts bonded to hard



glass envelopes for such devices as power tubes, x-ray tubes, etc, and other



applications requiring glass-to-metal seals.





Specification:



	GB	ASTM	UNS	W.Nr
KOVAR	4J29	F15	K94610	1.3981





Chemical Composition:



Grade	%	Ni	Cr	Fe	Co	Cu	C	Mn	Si	P	S	Mo
Kovar	Min	28.5		Bal.	16.8
	Max	29.5	0.2		17.8	0.20	0.03	0.50	0.30	0.02	0.02	0.20





Mechanical Properties in the Annealed Condition:



Yield Strength (0.1% Offset)		Tensile Strength		Elongation
psi	MPa	psi	MPa	(%)
49,000	340	75,000	520	42





Coefficient of linear expansion:



Grade	a/10-6·K-1
Kovar	200-300°C	20-400°C	20-450°C
	/	4.6-5.2	5.1-5.5
