Instant Hot Water Heater Element Heating Elements for Water Boiler

Product Overview

Description

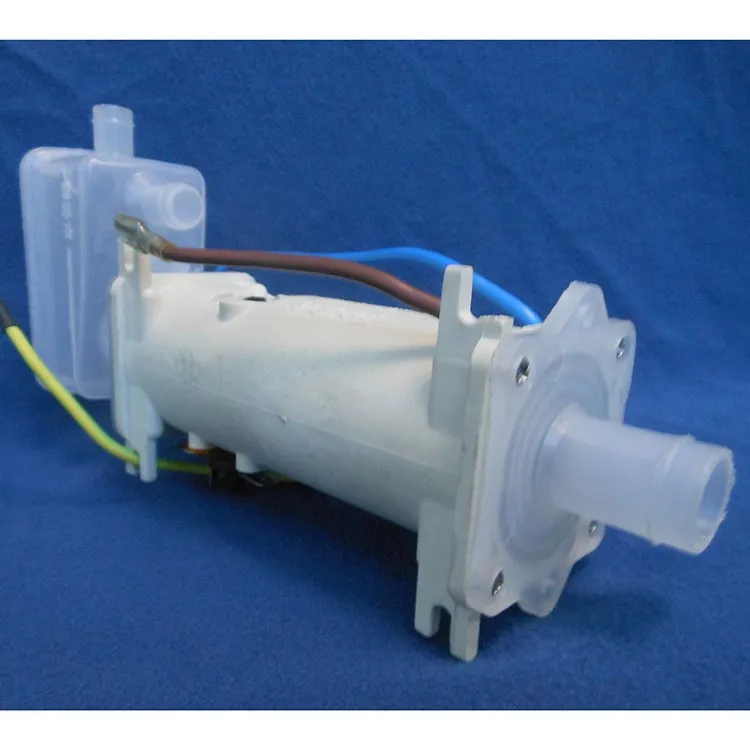

Instant Hot Water Heater Element Heating Elements for Water Boiler

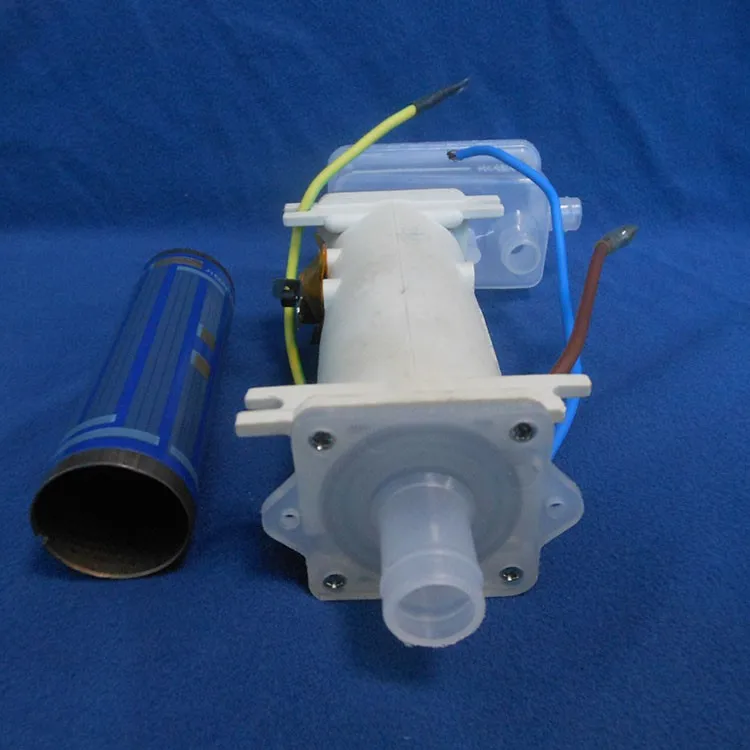

Instant Heating Flowing Water Inside Tube

Descriptiom



The Rare-Earth Metal Thick Film is one of today's most innovation and forward-looking solution for electric heating field.

The thick film heating tubes/elements are produced by screen-printing dielectrics (5 layers), resistance (palladium-silver), conductor (silver) and isolation glazes on the substrate and sintered 8 times at temperature over 900℃.

With its simple tubular structure, it can heat water flow inside the tube. Electric Circuit printed on tube surface, to heating the water flow inside.

For applications where space is limited, this simple profile heater offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass).

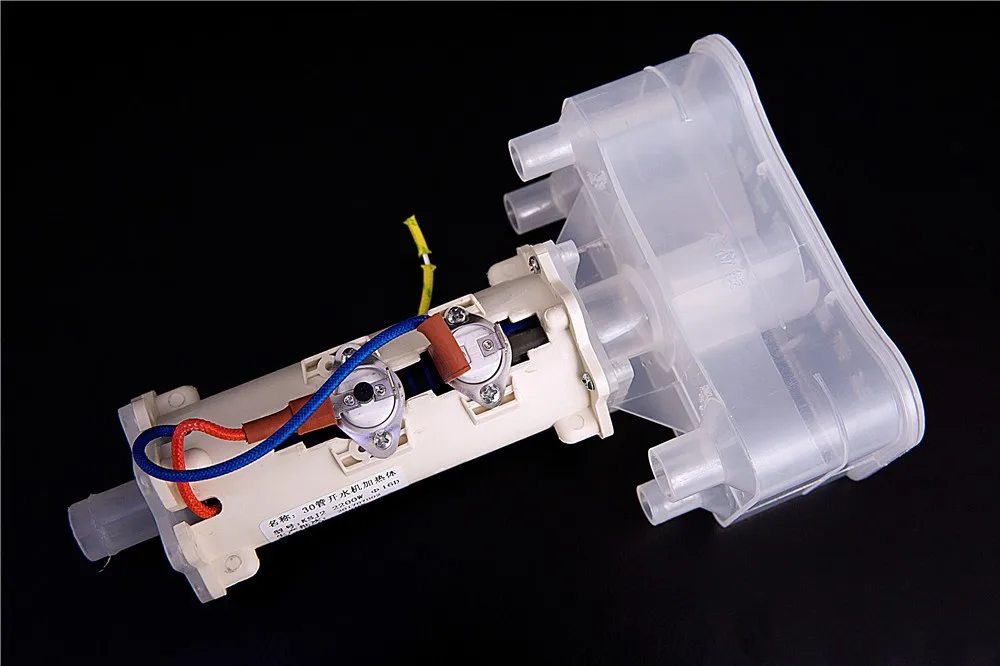

This electric heating element can be matched with thermostats (automatic reset and/or manual reset) & circuit control board.
Thermostat can directly access heating power supply circuit to control it connection or disconnection.

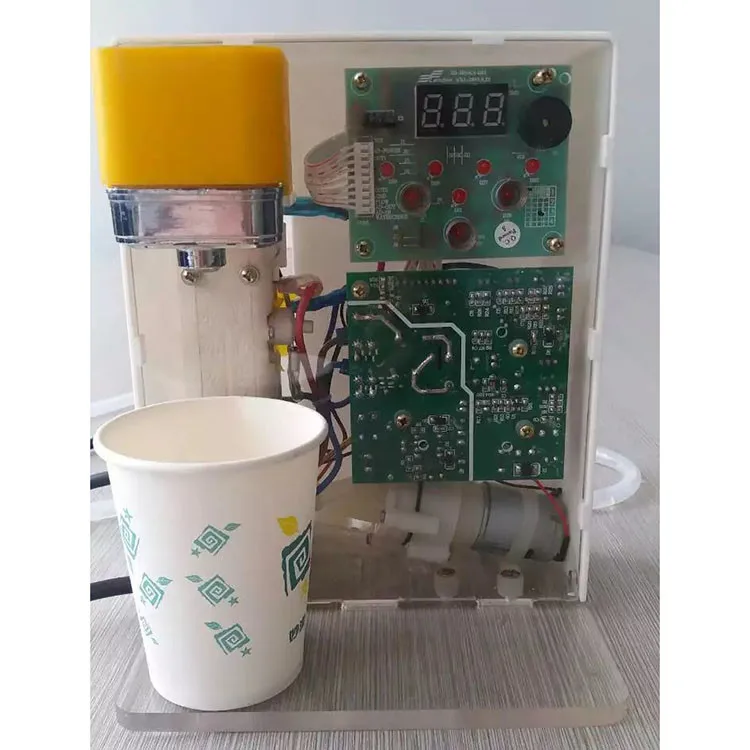

Circuit Control Board can adjust the outlet water in multiple temperature levels.



Outside Dimension	198*100*46mm		Heat Intensity	>40W/cm²
Ramp-Up Rate	150℃/s		Thermal Efficiency	≥97%
Heating Power	2,200W		Service Life	>10,000 hours
Rated Voltage	220v		Certificate	CQC, RoHS
Electric Intensity	1,500V/5mA/60s		Power Deviation	-10% - +5%
Leakage Current	≤0.25mA		Insulation Resistance	≥200MΩ
Shield	PA66+ glass fibre, temperature resistance≥250℃		Snap Action Thermostat	16A, installed close to the heating tube’s heating circuit

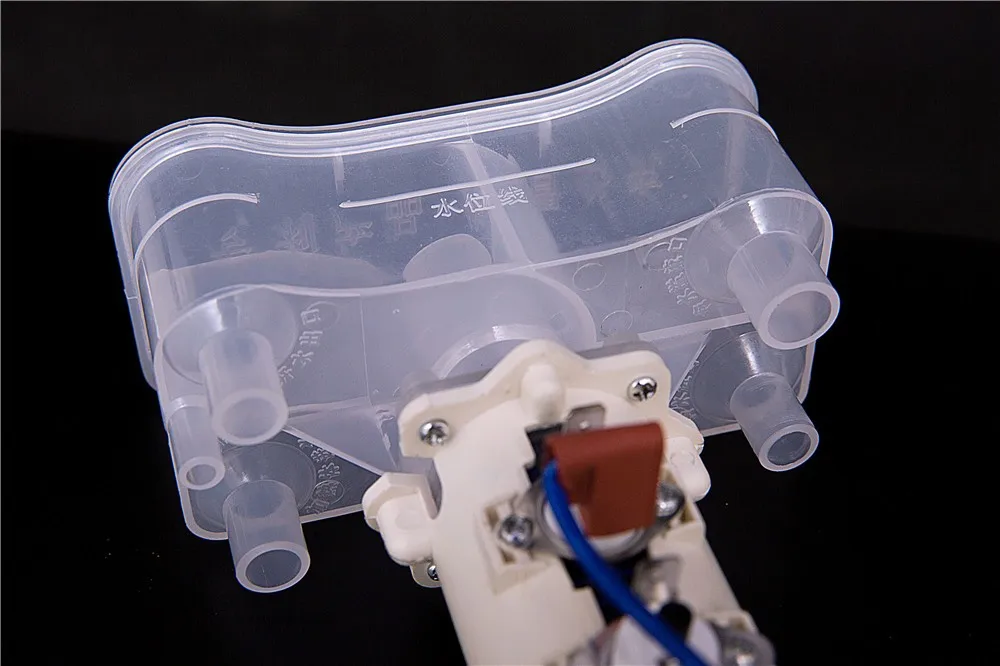

Thermistor Type	PTC		Boiling Water Tank	Food Grade PP; Temperature resistance≥150℃
Water Inlet & Outlet	Φ16mm		Heating Tube Dimention	Φ30*110mm









Main Features

1. Electric Circuit printed on stainless steel tube surface, to heating the water flow inside. 5 isolation layers sintered on the surface.
2. Large heat transfer area on tube surface; Ramp up and Cool down quickly; High utilization rate up to 93% or above.
3. Fast temperature response, power density is as high as 40W/cm² and heating circuit’s temperature raising rate exceeds 80℃/s.
4. Simple structure, compact profile.

Tube Structure.

First Layer: Anti-oxidation layer (insulation, anti-rust)
Second-Sixth Layers: 5 isolation layers with high quality materials, and sintered 5 times.
Seventh Layer: Palladium-silver heating film (Quickly Heating, High Heat Utilization, Saving Power)
Eighth Layer: Silver conductor
Ninth Layer: Coating high quality isolation glazes in high temperature (protect surface and isolation)
8 times sintering in high temperature

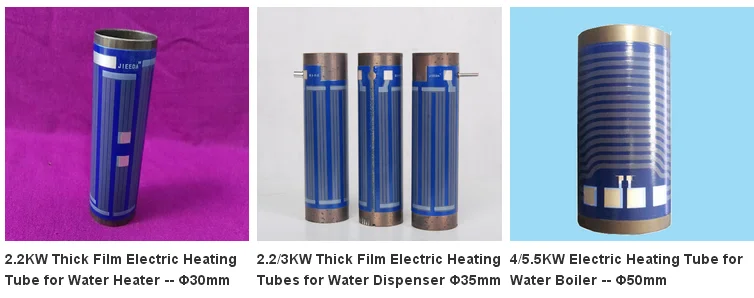

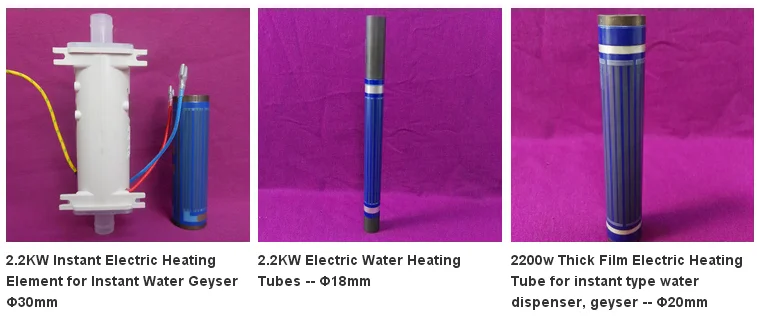

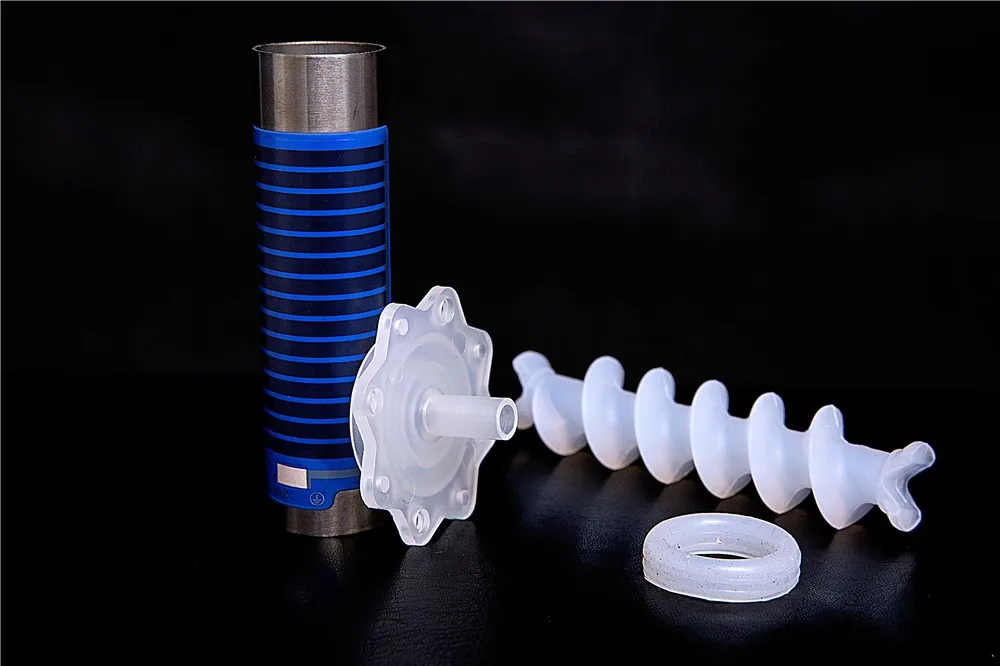

Thick Film Stainless Steel Tube.

1). Electric Circuit printed on tube surface, to heating the water flow inside. Complete isolation and safety.
2). Compact size, high heat utilization
3). Available Power 3KW
4). SUS444 Stainless Steel

Customize Service

1. Substrate: SUS 430, 316
2. Tube diameter, Tube length, Power, Thermostat, Control Board, etc are available for customer design.

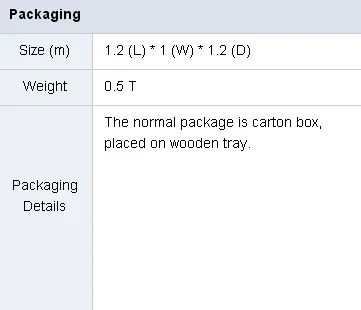

Packing & Delivery

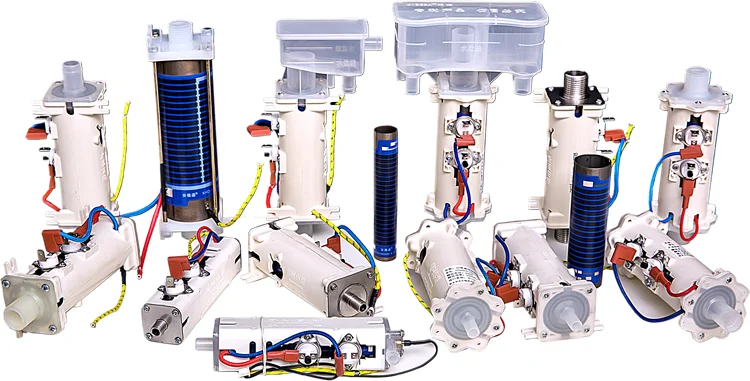

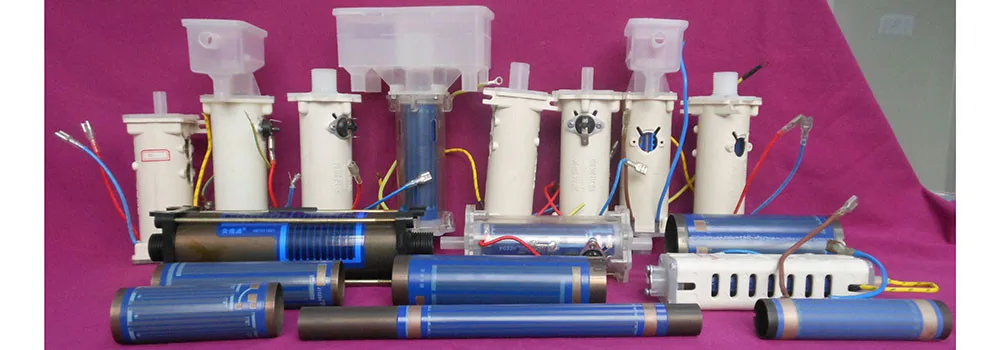

Related Products

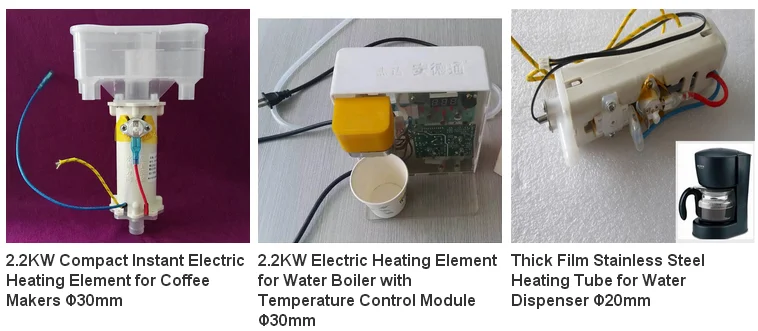

CustomerApplications

It’s called “the most compact instant type heating element”. It’s the ideal heating element for novel and fashionable home appliances such as Water Dispenser, Water Purifier, Coffee Maker, Milk Machine, etc.

The majority of our Thick Film products are individual customer solutions which are designed to match our customers’ individual and specific requirements. During the development and application stages we work closely together with our customers in a partnership based on trust and mutual confidence.

Our Company

Jieda locates in Xinxiang’s Hi-Tech Development Park, which is 650km away from Qingdao. Jieda was founded in 2010, is a high-tech manufacturer that specializes in design, research, produce and sales rare-earth metal thick film electric heating tubes/elements.

What is Jieda advanced in?
1. More than 5 years experiences in thick film electric heating tubes.
2. Fully mastery of thick film tube surface screen printing and sintering.
3. Main Process Flow in 10000+ Grade Air Purification Workshop.
4. First manufacturer to mass produce Thick Film Electric Heating Tube/Element in China
5. Available various Solutions for fluid heating, especially for Instant Water Heating Home Appliances, House Floor Heating and Industrial water flow heating.
6. Monthly production capacity is up to 300,000 pcs.

What is Thick Film Heating Tube/Element advanced in?
1. The tubular structure makes it possible to instant heat water flow inside tube, by the Electric Heating Circuit printed and sintered on the tube surface.
2. It can work more than 10,000 hours, in case of no DRY HEATING.
3. The thermal transfer rate up to 96%.
4. Power Density is up to 40w/cm²
5. Temperature Ramp-Up Rate 150℃/S.
6. Boiling water(95℃) is available in 3 seconds around.
7. Simple & compact profile brings more possibility in new products research and design.

Those thick film heating tubes/elements are widely applied in Instant Water Boiling, Instant Water Heater, Water Dispensers, Coffee Makers, Instant Electric Heating Faucets, Steam Generator, Air-Flow Heater, Floor Heating, Industrial Water Flow Heating, etc.

It can successfully replace the Traditional Electric Heating Tubes/Elements, change their structures and performance completely, which can reduce energy consumption, increase energy utilization and save space.
