Product Overview
Description

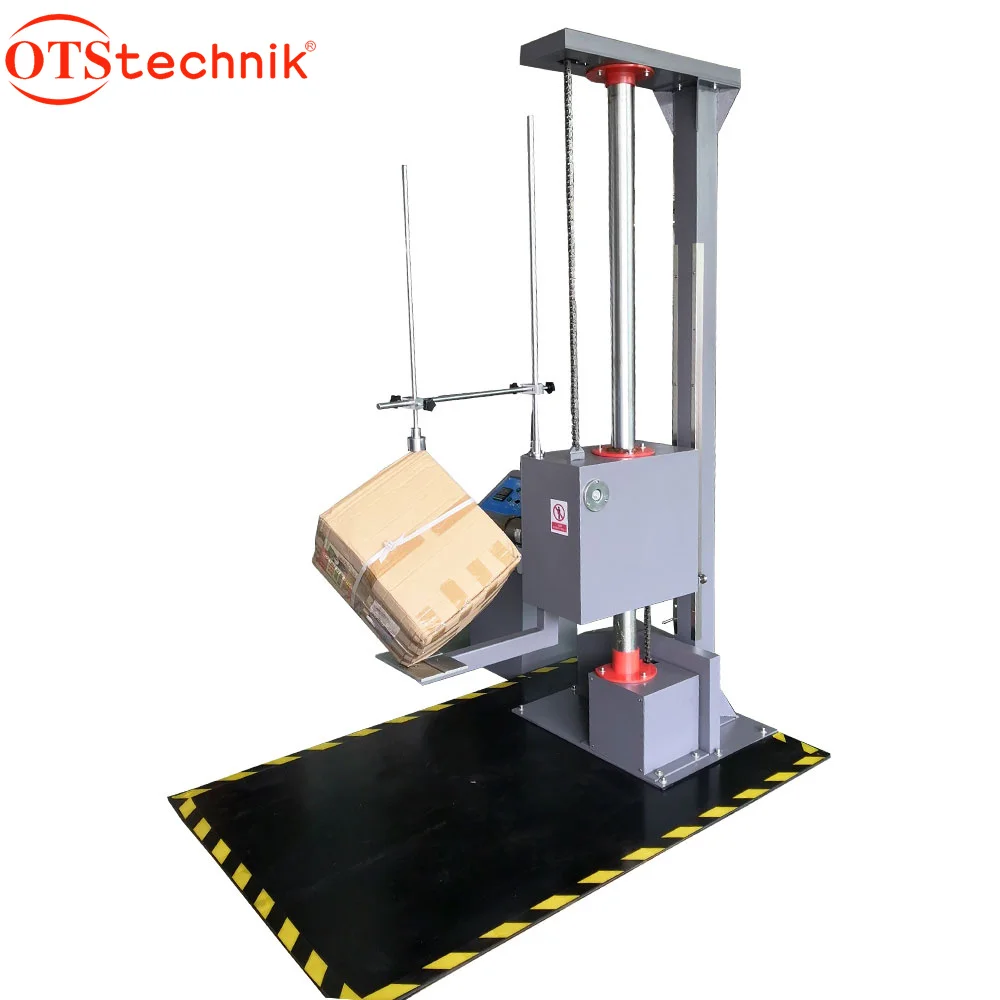

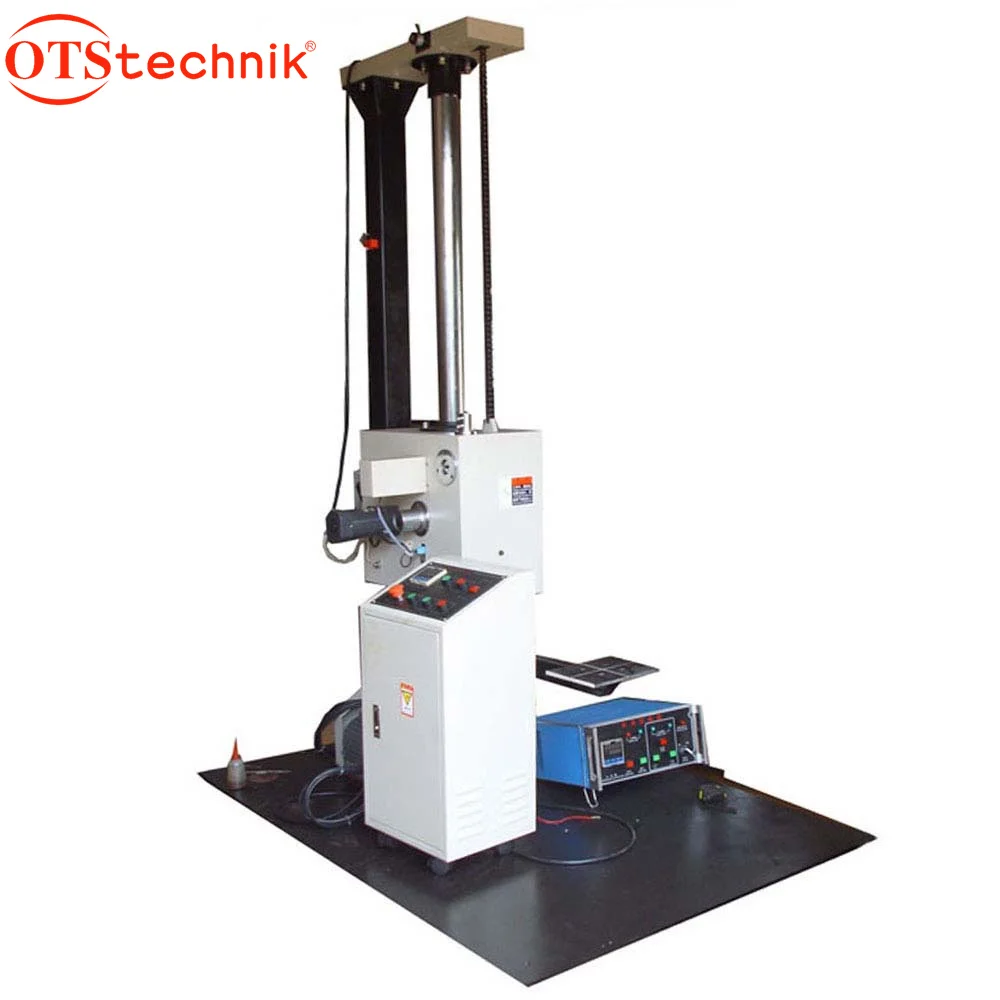

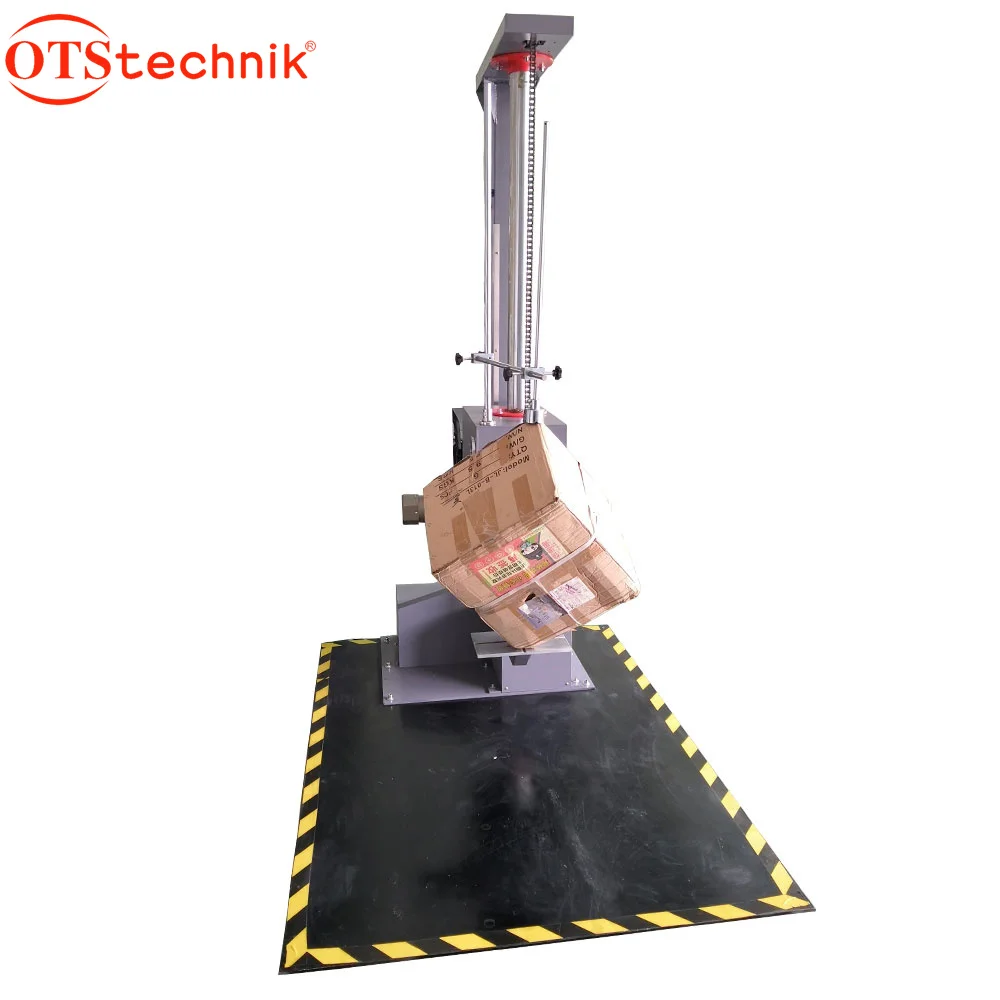

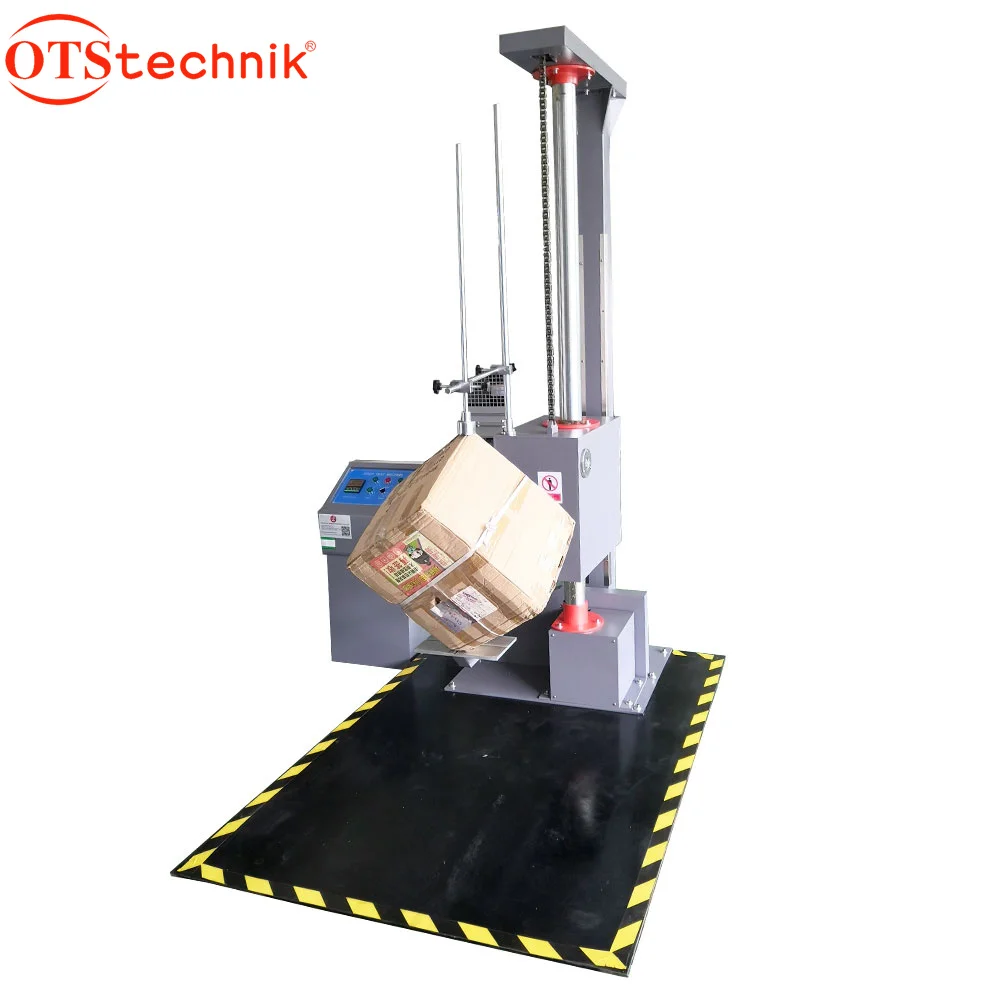

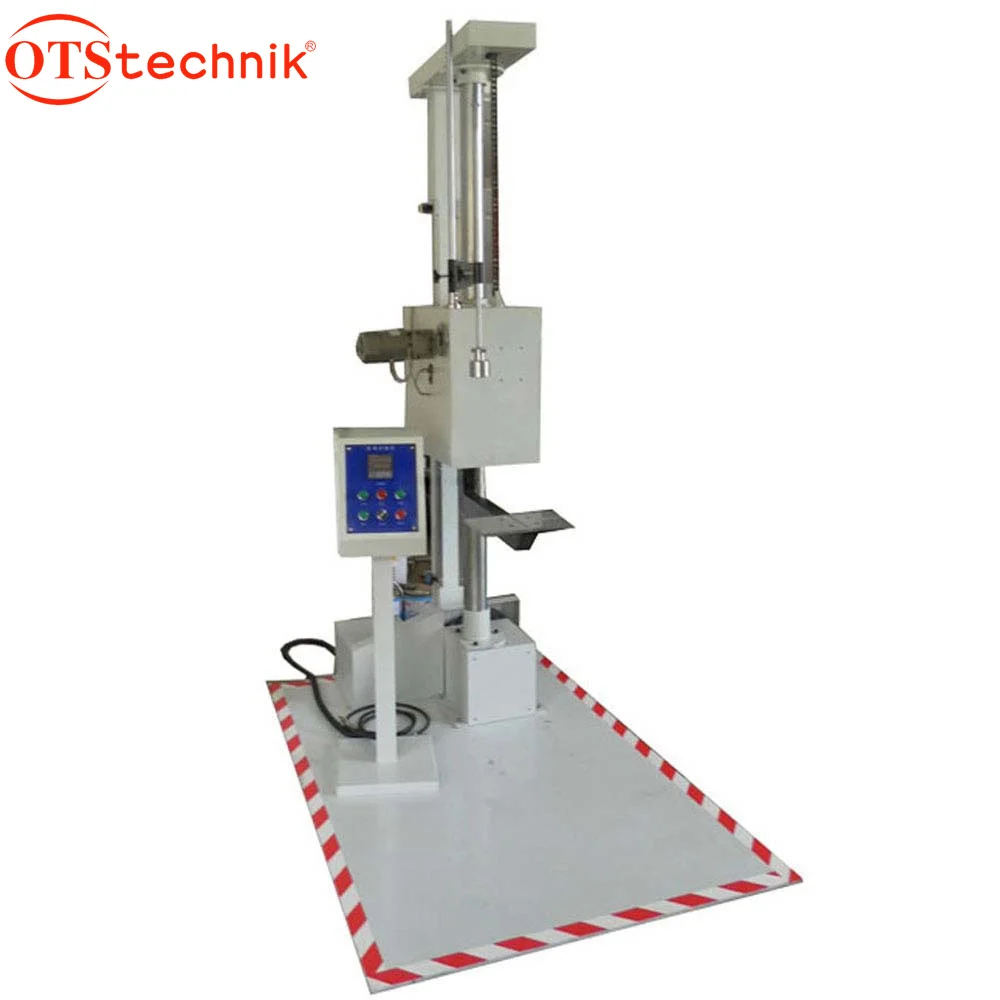

Single Arm Drop Impact Tester
Single-wing drop tester can perform free drop test on the surface, corners, and edges of the package. It is equipped with a digital display height display and a decoder for height tracking, which can accurately give the product drop height and preset drop height. The error does not exceed 2% or 10mm. This machine adopts single-arm double-column structure, with electric reset, electronically controlled drop and electric lifting device: easy to use; unique buffer device greatly improves the service life, stability and safety of the machine, single arm setting, can be conveniently placed The product, the angle of impact between the drop impact surface and the plane of the bottom plate is less than or equal to 5°.
The main technical parameters are as follows
Model | XB-OTS-220A | |
Drop Height | 300~1500mm Adjustable | |
Machine Dimensions | About 1700*1200*2315mm (L*W*H) | |
Display | LED digital screen | |
Max. Specimen Weight | 80KG | |
Thickness of Ground Plate | 10mm (Solid iron plate) | |
Size of Ground Plate | 1700*1200mm | |
Max Size of Specimen | 800*800*1000mm | |
Size of Arm supporter | 160*250*10mm | |
Deviation of Drop Height | ±10mm | |
Test Method | Face, edge and angle drop test | |
Transmission | Electronic | |
Horizontal Deviation of Impact Plate | ≤1° | |
The Deviation of Horizontal Angle in Falling | ≤1° | |
Voltage | AC 380V, 50Hz | |
Power | 1.85KWA | |
Net Wight | 300KG | |
**Design Criteria : ISTA-1A ISO 2248, JIS Z0202-87, GB/T4857.5-92 | ||
Application
Single arm drop tester This machine is designed to test the damage of the product's packaging due to a fall, and to evaluate the impact strength during the transportation process.
Single arm drop tester This machine is designed to test the damage of the product's packaging due to a fall, and to evaluate the impact strength during the transportation process.
Feature:
1. The spindle is used by precision grinding shaft lever, high precision, good stability
2. LCD screen displays multi-parameter.
3. Power failure safety design, keeping the original state when the power is failed.
4. Up and down lifting limitation setting
5. Adopt Single arm supports test object.
6. Swing arm system is controlled by air pressure.
7. Free adjust pressure and speed up to 2G with object weight.
8. Test elctronic parts, finished products or angle surfae of the package container.
9. Decompression change design, low noise.
10. Best after sales service: One year free parts maintenance.
11. Meet international test standards.
12. Customization is available & welcomed.
2. LCD screen displays multi-parameter.
3. Power failure safety design, keeping the original state when the power is failed.
4. Up and down lifting limitation setting
5. Adopt Single arm supports test object.
6. Swing arm system is controlled by air pressure.
7. Free adjust pressure and speed up to 2G with object weight.
8. Test elctronic parts, finished products or angle surfae of the package container.
9. Decompression change design, low noise.
10. Best after sales service: One year free parts maintenance.
11. Meet international test standards.
12. Customization is available & welcomed.
Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Recommend Products
Company Profile
VR
Dongguan Xinbao Instrument Co., Ltd, with its own brand--OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. It owns sophisticated and advanced technology in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chambers, rain and dust test chambers, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test chambers and so on. Products made by OTS reach international standards: ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, IEC. Also they are widely used in different area: R&D Institutions, Quality inspection institutions, universities,electronics, communications, instrumentation, automobile, plastic, metal, building materials, aviation, etc.
Manufacturing Technique
Customer Photos
Now OTS has its main production base in Dongguan, a branch in Suzhou and offices in South Asia, Europe, USA. OTS also owns an independent laboratory which exhibits all currently produced machines under CNAS calibration, so customers can check the function and quality immediately. Equipped with over 30 workers in a metal plate department, OTS is capable to produce customized shells; What’s more, OTS has enough stock to satisfy customers need in time. In the meanwhile, every machine must be examined for 3~days before shipment and with lifetime maintenance service.
Certifications
Packing&Shiping
FAQ
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
