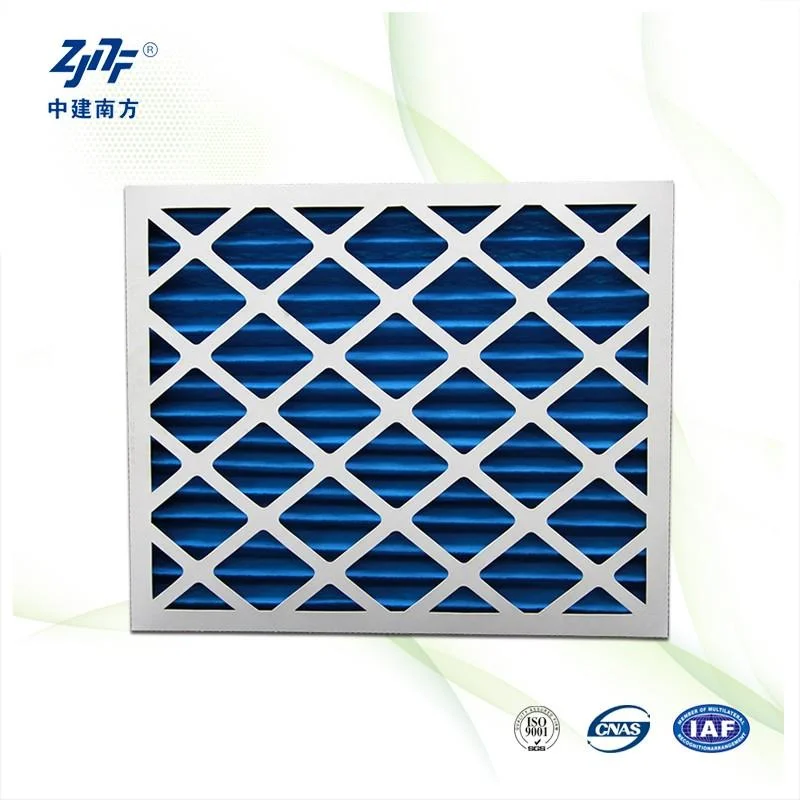

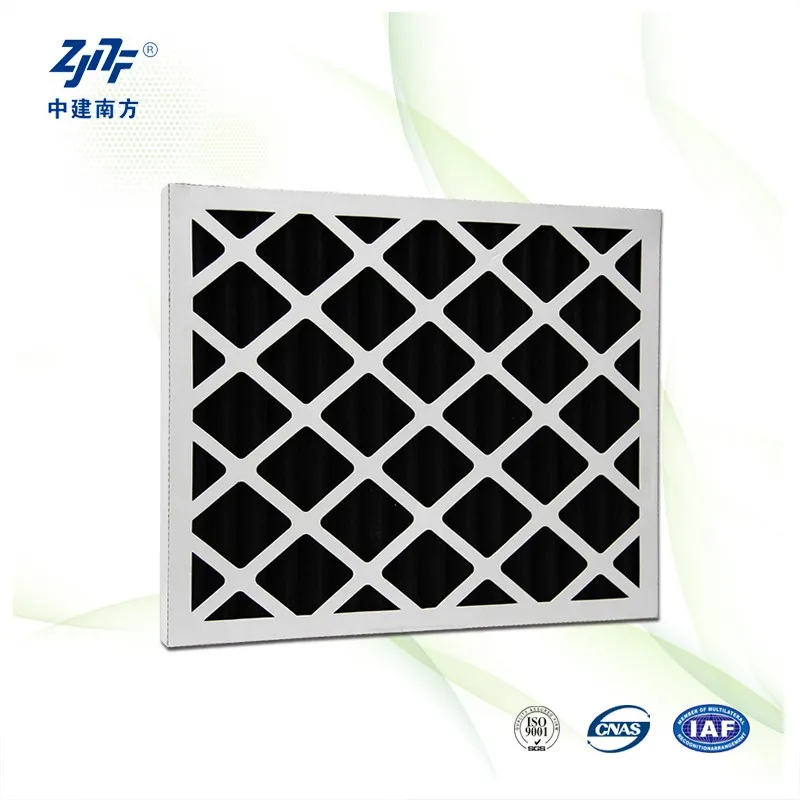

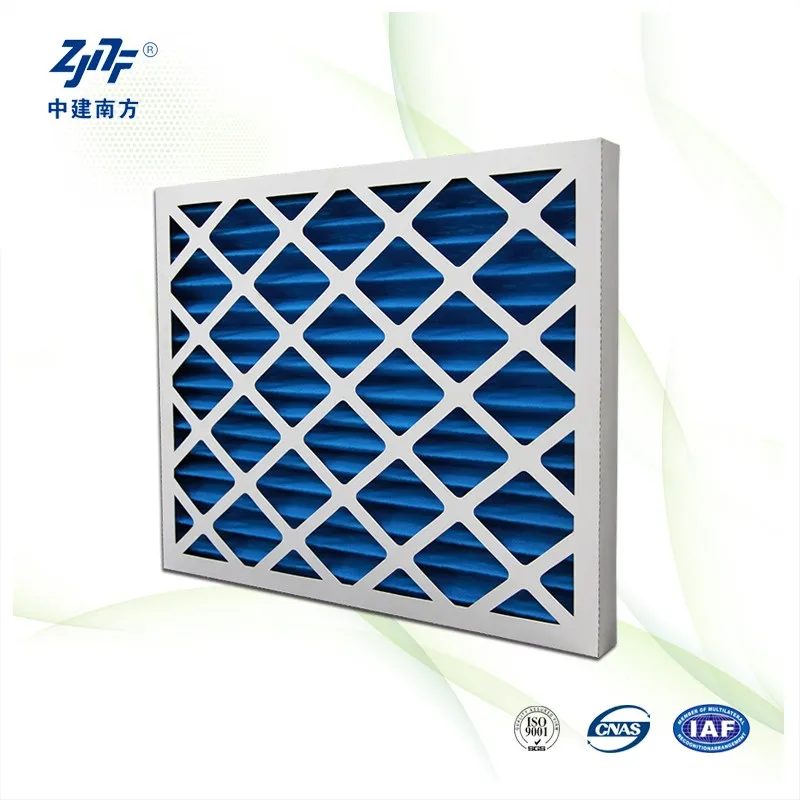

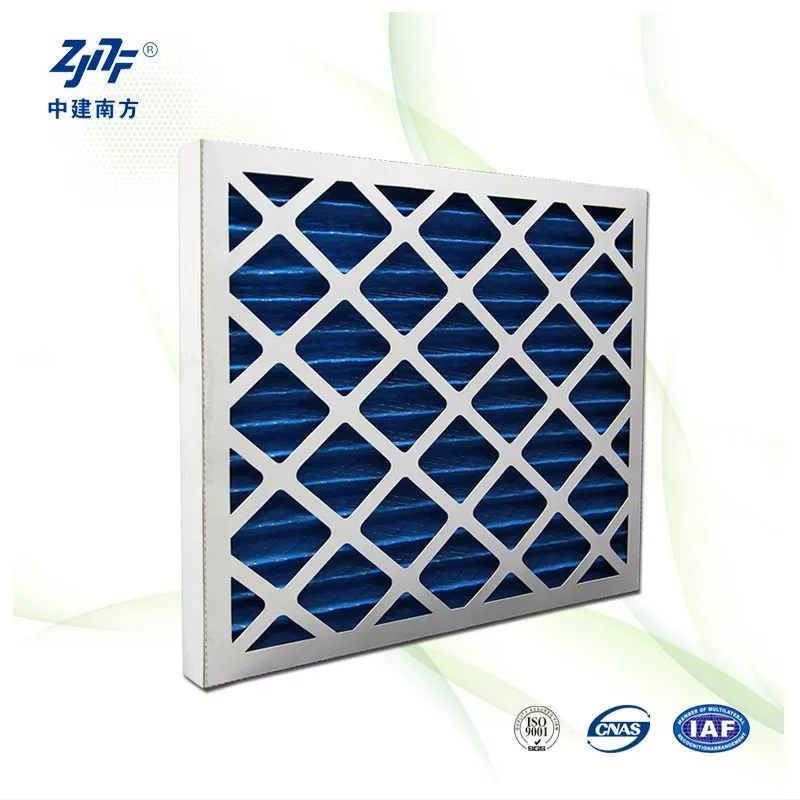

F7 F8 Washable Furnace electrostatic air filter for clean room
- Category: >>>
- Supplier: Shenzhen Zhong Jian South Environment Co. Ltd.
Share on (60684729282):
Product Overview
Description
Product Description
Feature:
Suitable for primary filtration of air conditioning systems, which is mainly used to filter dust particles of above 5 μm.There are three main types: plate type, folding type and bag type.
The filtering media is made of non-woven fabric, nylon mesh, activated
carbon filter, metal mesh. There are cardboard, aluminum and galvanized plating for frame available.
carbon filter, metal mesh. There are cardboard, aluminum and galvanized plating for frame available.
Type | Construction | Size (W/L/H mm) | Filtering Surface (m2) | Rated Air Flow (m3/h) | Comparision between initial pressure drop and rated air flow 70% 100% 120% | Final pressure drop (Pa) |
ZNCX-A(B) P5521-G3 | Panel | 595*595*21 | 0.35 | 2250 | 50/70/- | 40PA-50PA |
ZNCX-A(B) P6621-G3 | Panel | 595*495*21 | 0.29 | 2000 | 50/70/- | |
ZNCX-A(B) P8821-G3 | Panel | 595*295*21 | 0.17 | 1500 | 50/70/- | |
ZNCX-A(B) PZ3605-G3 | Fold | 595*595*46 | 0.90 | 3000 | 60/80/- | |
ZNCX-A(B) PZ3605-G3 | Fold | 595*290*46 | 0.45 | 1600 | 60/80/70 | |
ZNCX-A(B) PZ6610-G3 | Fold | 595*495*46 | 0.75 | 2700 | 30/55/75 | |
ZNCX-A(B) PZ6610-G3 | Fold | 595*595*96 | 1.20 | 3500 | 30/55/75 | |
ZNCX-A(B) PZ3605-G4 | Fold | 595*495*96 | 1.00 | 3000 | 70/110/- | |
ZNCX-A(B) PZ3605-G4 | Fold | 595*290*96 | 0.60 | 2500 | 70/110/- |
Company Introduction
Shenzhen Zhong Jian South Environment CO.,LTD founded in 2003, was the first high-tech enterprise to propose solution of Micro Air Pollution Control and Treat. The company is engaged in the design and installation of clean room, which is specialized in controlling and treating of Air PM2.5, benzene, formaldehyde,VOC, and other poisonous or harmful substance.
