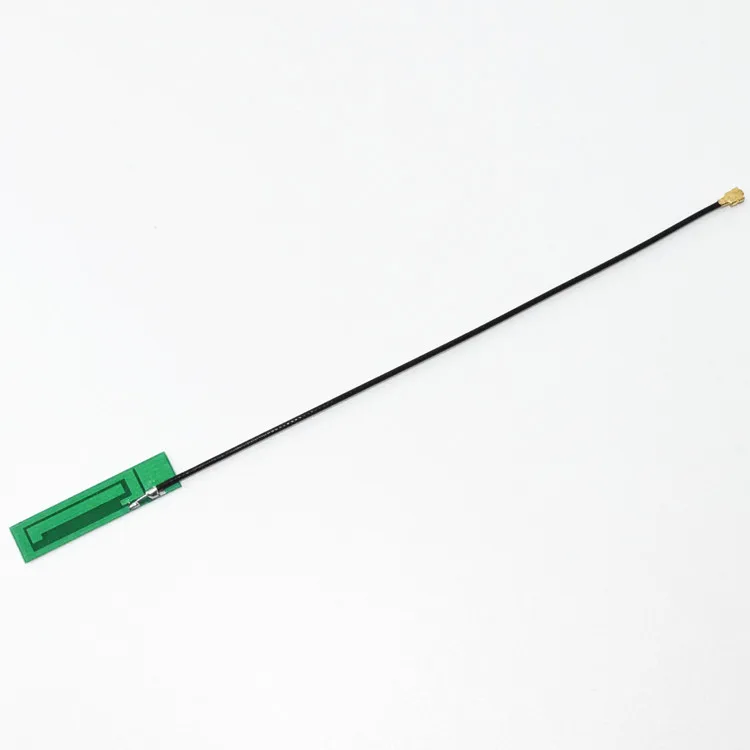

Communication built in 0mni antenna gsm 2G 3G internal PCB WCDMA TD CDMA antenna with MHF4 connector for GSM module

Product Overview

Description

      gsm 3G internal PCB WCDMA TD CDMA antenna with MHF4 connector for GSM module





Specification:



2G 3G GSM PCB antenna for GSM module

Electrical Specifications
Frequency Range	GSM 2G 3G
Gain	3dBi
VSWR	<= 3.0
Impedance	50 (Ω)
Maximum Input Power	50 W
Lightning Protection	DC
Operating Temperature	-30℃ to+85℃
Storeage Temperature	-30℃ to+85℃
Mechanical Specifications
Antenna type	antenna for GSM module
Antenna material	PCB
PCB size	32mm*7.5mm
Cable type	0.81mm
Cable length	20cm

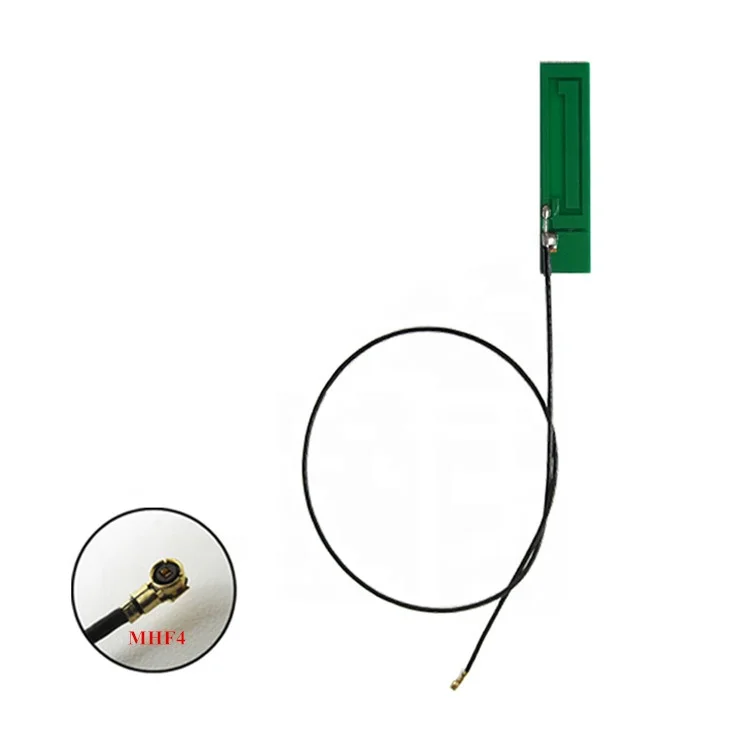

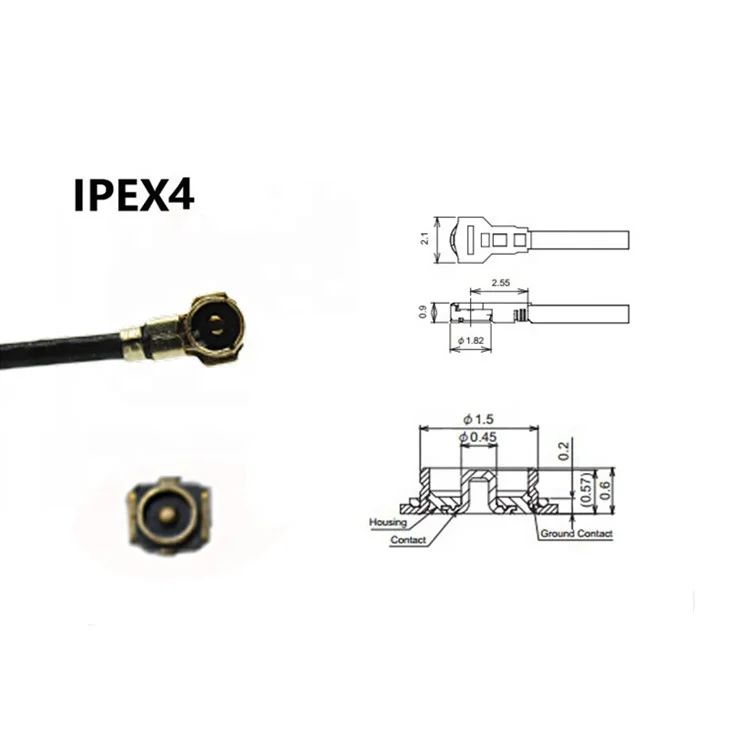

Connector Type	MHF4
Radiation Pattern	omni directional

 The connector and cables can be customized for you.

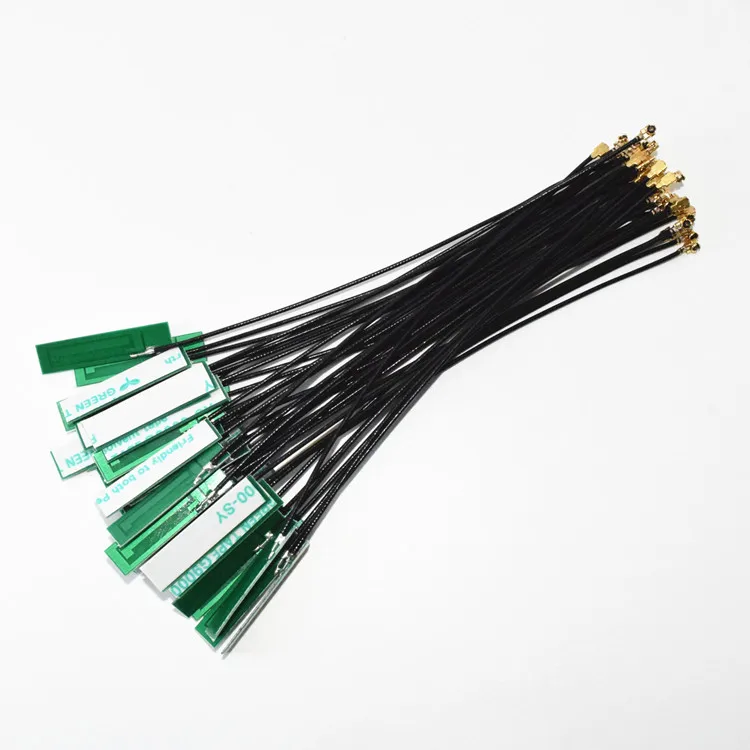

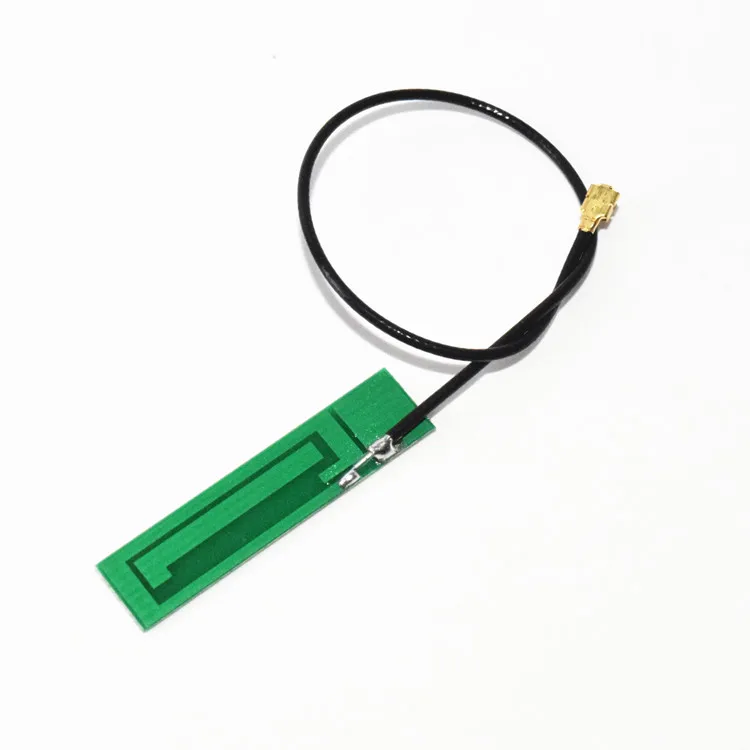

Product:



Packing and shipping:

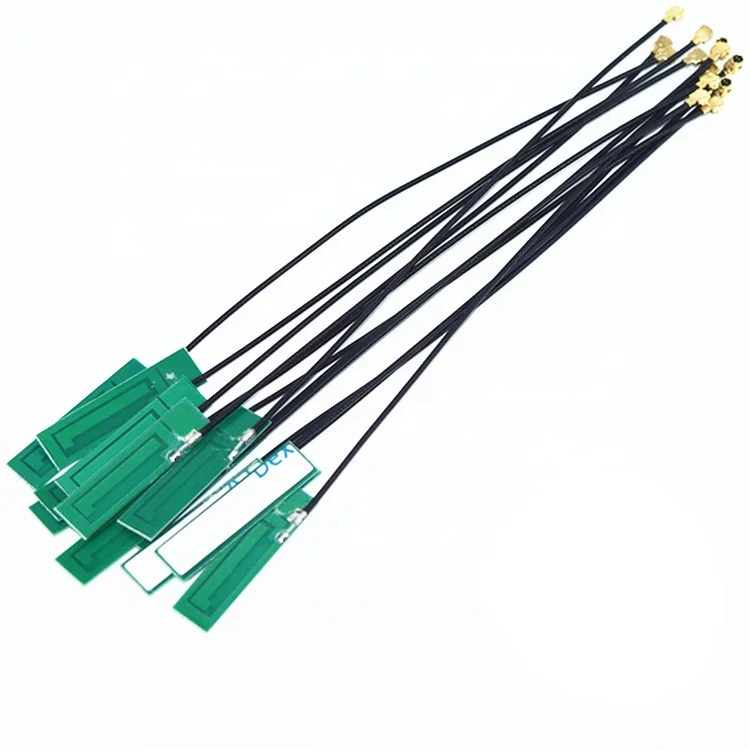

Pack: 100 pcs per bag. OEM pack is workable



Shipping: by Sea/Airplance/Express



 Our Service:

Strict QC inspection

OEM and ODM service is available

Will answer the questions within 24 hours

Stable quality as well as the precise delivery time



Company Info:



Dongguan Haonuo Electronics Co. Ltd is a company covered an area of more than 1000 square meters, which is located in Chang’an Town, Dong guan, Guang dong province, established in 2013.



The company has advanced production equipment and testing instruments, professional R&D team and QC to develop and guarantee product quality. All our products are suitable for ISO9001 and ROHS.



Our company is professional in designing, manufacturing and distribution of various FM, DVB, GSM, W-CDMA, 3G, WLAN, Wimax, UWB, 5G series antenna, Such as RF Cable series, Grid Antenna, Rubber Antenna, Sucker Antenna,315 /433 /470 MHZ, Patch Antennas,Outdoor High Gain Antenna and so on.



Our Office And Our Workshop:
