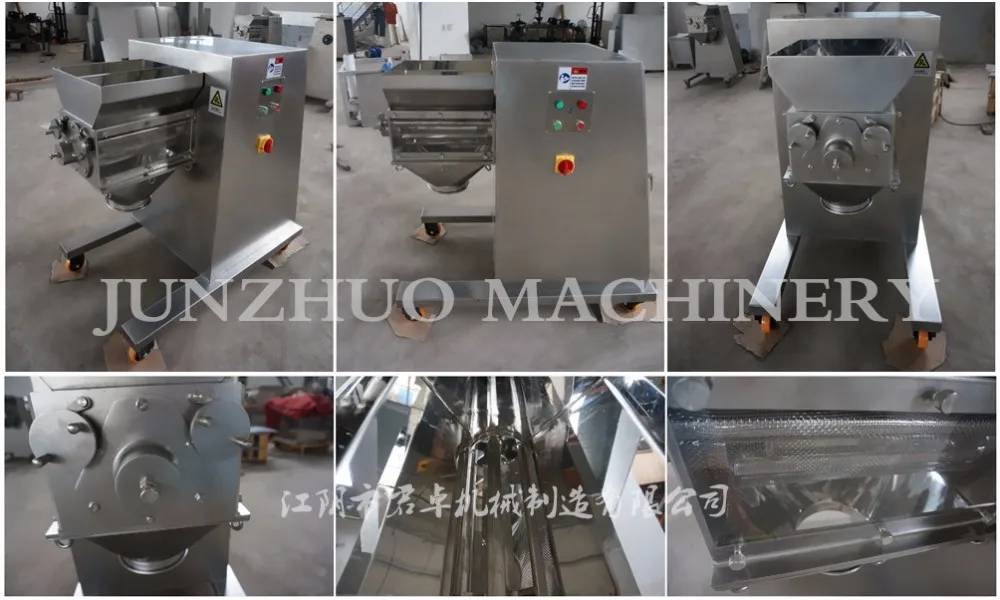

YK 160Z Wet Flour Powder Oscillating Granulator and Granulating Machine
- Category: >>>
- Supplier: Jiangyin Junzhuo Machinery Manufacturing Co. Ltd.
Share on (60684782018):
Product Overview
Description
Product Description
Main Application:
Oscillating Granulator is widely used in the pharmaceutical, chemical and food industry, it is a popular granulating machine used for forming the granule sizes from moist powder material, or for crushing dried block stock into granules in required size.
Working Principle:

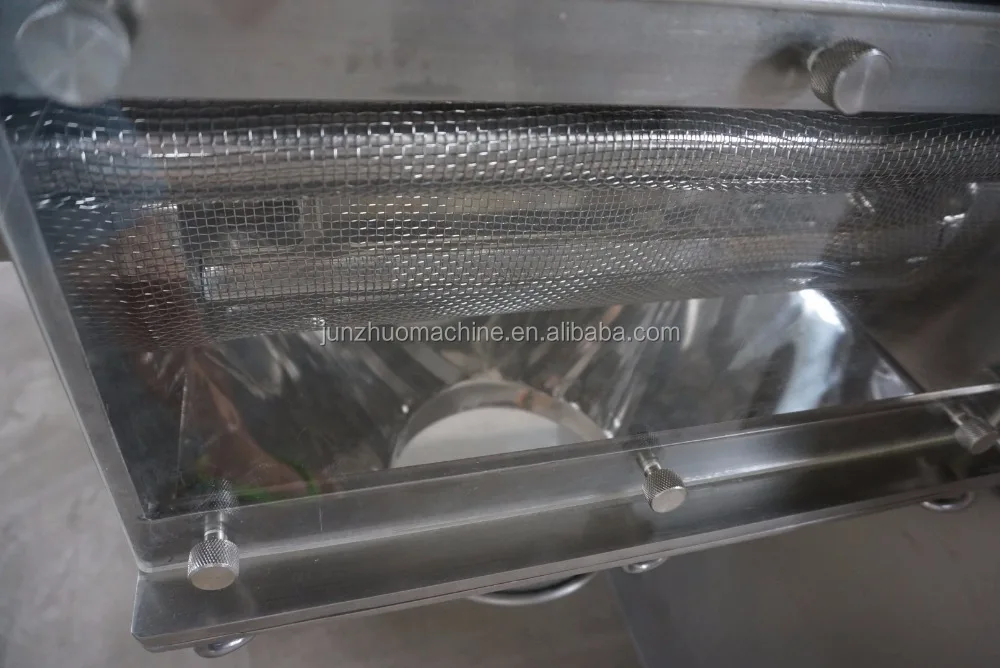

The principle of an oscillating granulator is to mechanically pass compacted material through a wire mesh screen or plate using an oscillating rotor. The rotor speed and rotation time are variable in the clockwise or counterclockwise directions. Particle size is controlled through mill-screen size, rotor speed, and the rotor's rotation angle.
Optional Model:
1.Sealed type:With gas-tight structure at both ends of granulation shaft, it effectively prevent the material into the sealing cover.

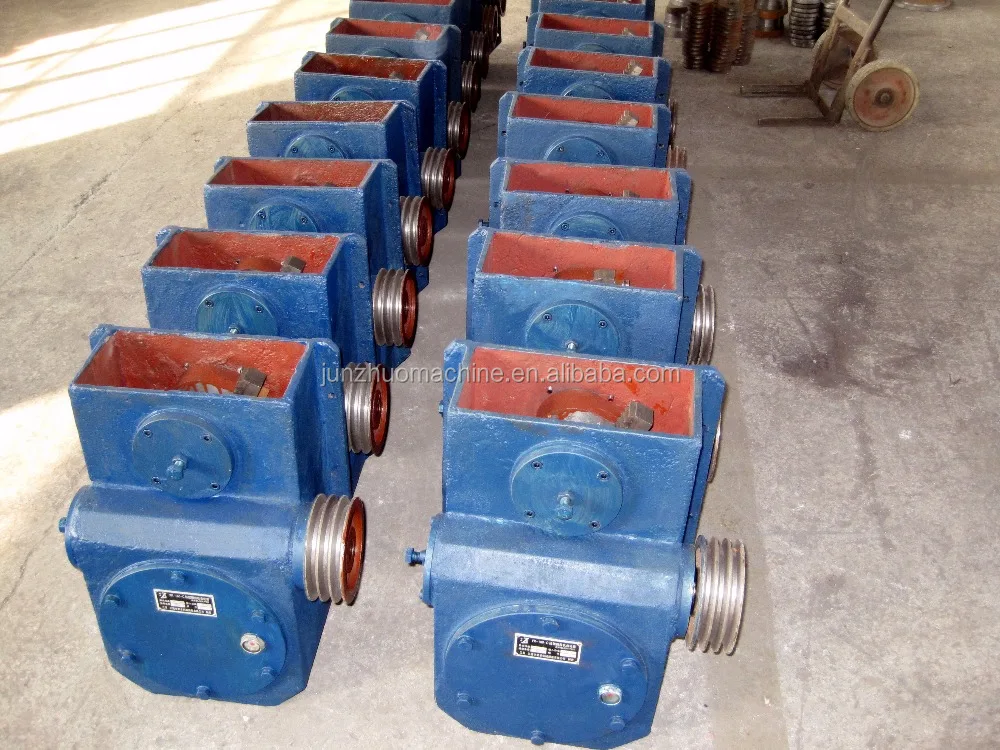

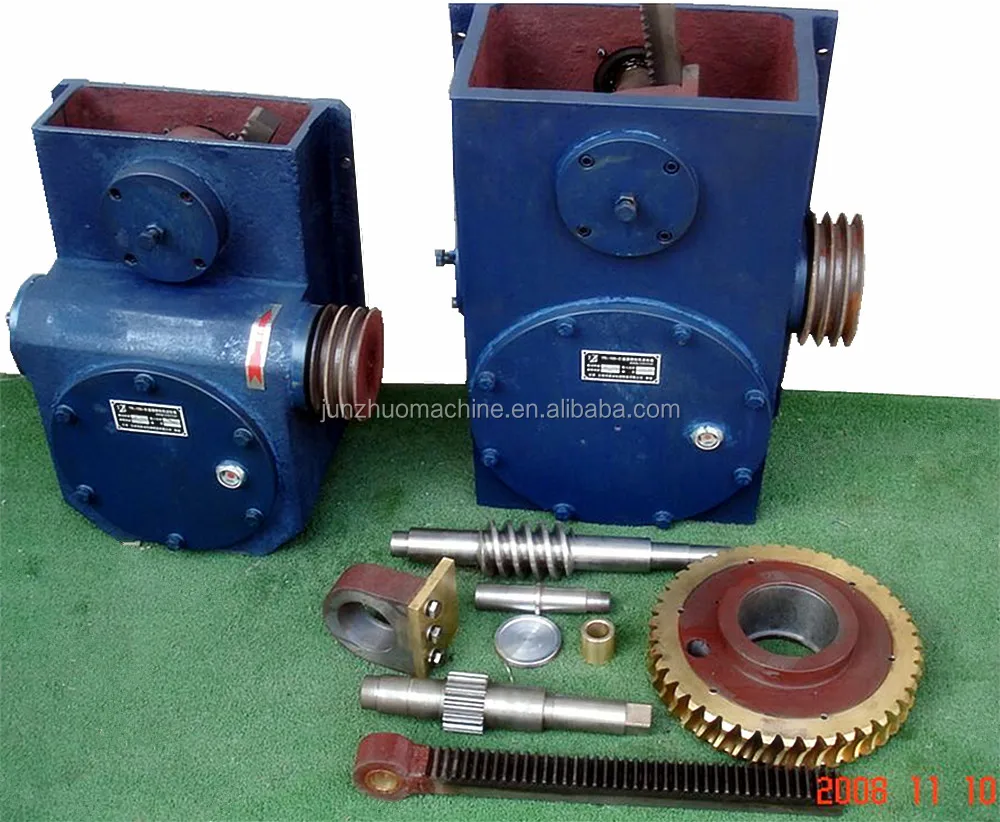

2.No rack type:A unique reducer owned byJunzhuo, made the whole machine enclosed .The gearbox has no rack bar and skateboard. There is no sliding friction and the transmission efficiency is much higher. Such a clean healthy environment can meet GMP standard.
3.Explosion-proof: all models can be customized to meet explosion-proof production environment.
4.Large power: Upgrade the transmission gear box and motor, it is suitable for powder products and high proportion materials.
Technical Data
Model | Capacity | Rotor Size | Power | Rotor Speed | Overall size | Weight |
YK-60 | 1-15kg/h | 60 mm | 0.55kw | 65r/min | 430*190*475 | 38 kg |
YK-100 | 30-200 kg/h | 120 mm | 1.1 kw | 55 r/min | 700*400*1050 | 150 kg |
YK-140 | 80-300kg/h | 140 mm | 2.2kw | 55r/min | 900*620*1050 | 180 kg |
YK-160 | 100-300 kg/h | 160 mm | 3 kw | 60r/min | 850*820*1080 | 210 kg |
YK-160D | 100-400 kg/h | 160 mm | 5.5 kw | 55 r/min | 950*780*1210 | 300 kg |
YK-160Z | 100-400 kg/h | 160 mm | 5.5 kw | 40 r/min | 1160*720*1250 | 450 kg |
YK-250 | 150-550 kg/h | 250 mm | 5.5 kw | 40-50 r/min | 1150*820*1270 | 600 kg |
YK-250D | 200-600 kg/h | 250 mm | 7.5 kw | 40-50 r/min | 1250*950*1300 | 750 kg |
YK-250Z | 300-600 kg/h | 250 mm | 11 kw | 40 r/min | 1700*900*1350 | 1000kg |
YK-320 | 300-800 kg/h | 320 mm | 7.5 kw | 35 r/min | 1400*800*1500 | 800 kg |
YK-320D | 300-800 kg/h | 320 mm | 11 kw | 35 r/min | 1450*800*1500 | 1050 kg |
YK-320Z | 300-800 kg/h | 320 mm | 15 kw | 35 r/min | 1700*900*1400 | 1250 kg |
YK-350 | 400-1200 kg/h | 350 mm | 11-15 kw | 35 r/min | 2100*860*1540 | 1250 kg |

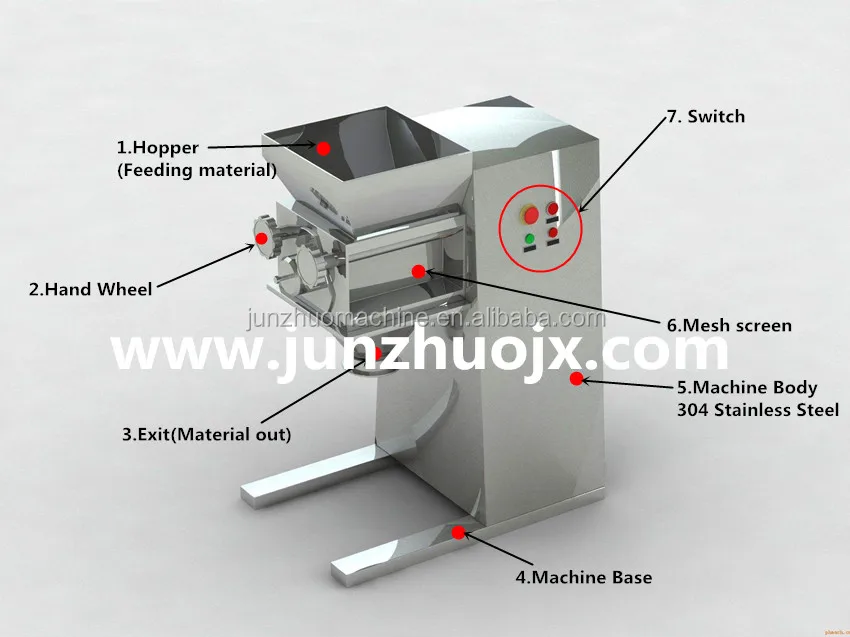

Working Principle
1.Hopper
Inject raw material, the material could be dried block or wet powder. A cover to prevent dust is optional.
The rotor can be single or double rotor, which depends on the model.
2.Hand wheel
Tighten hand wheel to control mill-screen, lock it by ratchet mechanism.

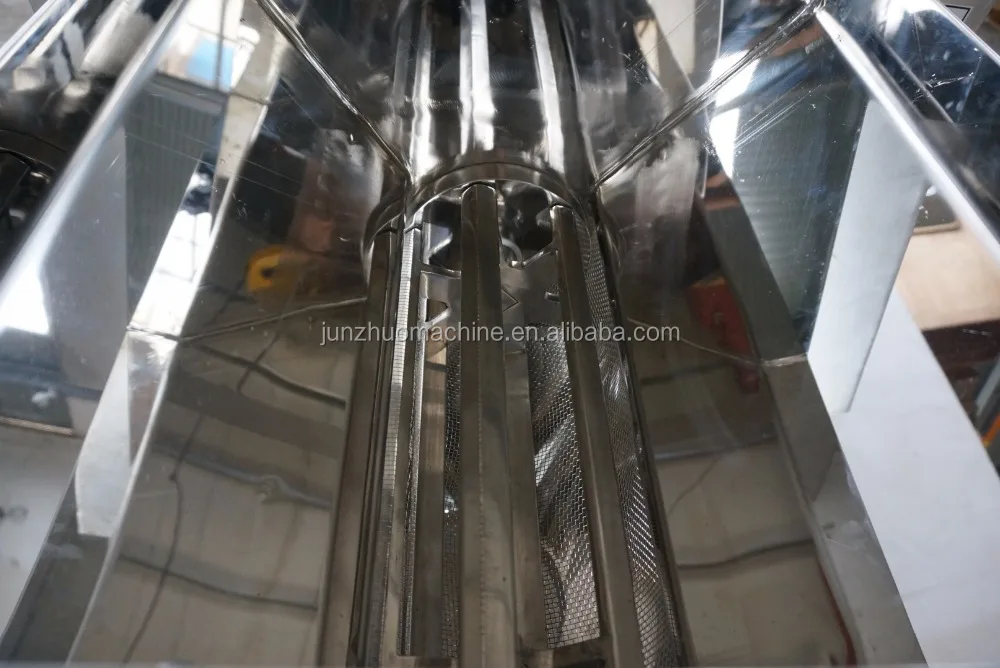

3.Rotor
The unique oscillatory rotor action ensures high output and efficient granulation. Single or double rotor is available.
Packing & Delivery
Packing Details : International Wooden Case
Delivery Details : 15-30 Days After Payment
Company Profile
Since 2008
JUNZHUO MACHINERY was set up to 2008 with the objective to develop & provide process technology offering of international standards. We keep the mission of staying committed to innovation and by consistently exceeding customer expectations, helping companies do business more efficiently and profitably. Our customers range from small family run operations to famous companies. Regardless of customer size, our philosophy for each is the same, to achieve a creative process solution that efficiently and economically meets the requirements of the application with a smiling service.
Our dry granulation system comprising of roll compactor and cone mill, wet granulation system including of oscillating granulator,basket extruder and screw granulator. All of the products have scale up capability from lab to production equipment, we make over 90% of our machine parts in-house, ensuring stringent quality control. JUNZHUO MACHINERY also provide mixing machine, crushing machine, grinding machine, sifting machine and other machines. The main motto of the company is to deliver best quality products at most economic price & excellent customer service after delivery.
