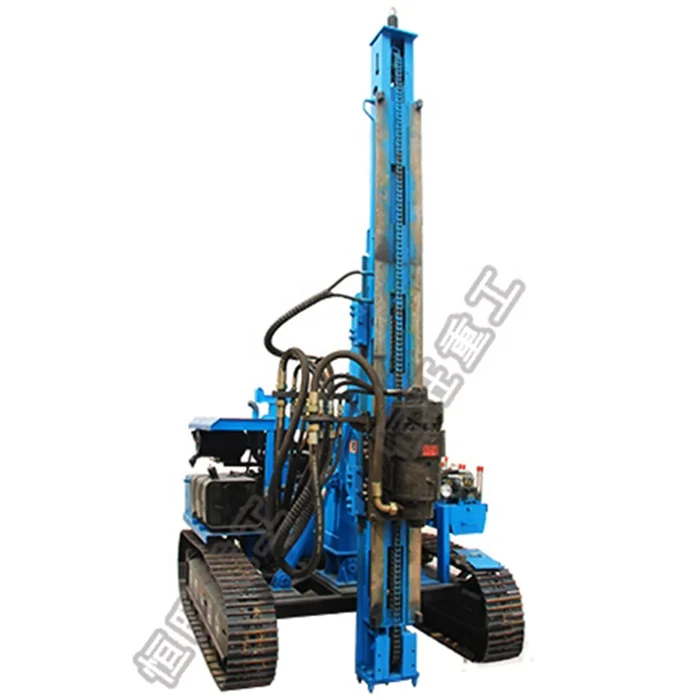

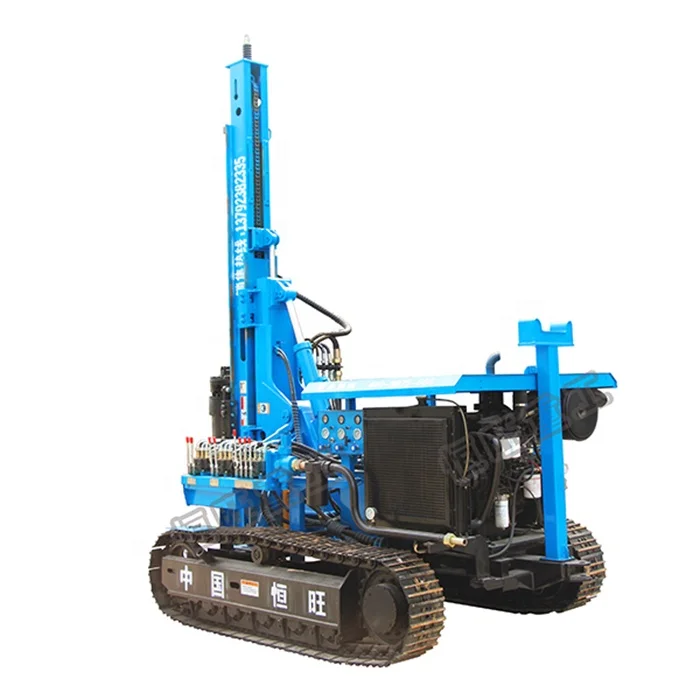

HENGWANG Crawler type hydraulic hammer pile driver solar ramming machine for solar project
- Category: Pile Driver >>>
- Supplier: Shandong Hengwang Group Co. Ltd.
Share on (60684801943):
Product Overview
Description
1.HW crawler hydraulic drilling rig, using a new hydraulic technology, low consumption, large rotary torque,move the hole and shift the position is convenient.
2.The drilling rig structure is compact, it has a telescopic compensation function when promoting the slide carriage, the slide carriage supported on the ground when drilling, the drilling stability is very good.
3.The drilling rig is mainly used for piling anchoring, well ,photovoltaic solar rotating pile and water conservancy, power plants, open-air mining, road construction and other stonework blast hole drilling and so on.
Drilling Equipment impact guardrail installation pile driver
Pile driving speed,the average 3 minutes can realize piling 6 meters deep,namely a hole 3 minutes to
play.Oil province,is a common driver uses around half of a year can be a driver left money for you.
Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological
environment.Crawler walking,high walking and climbing abilityThe frame can be moved back and
forth,bit can be adjusted,high piling position accuracy.
SPECIFICATIONS FOR HAMMER PILE DRIVER | |||
Pile driver part | Engine power | Kw | 80 |
No. of cylinders | PCS | 4 | |
Engine brand | Weicai engine | ||
Working pressure | MPA | 16-20 | |
Working flow | L/Min | 120 | |
Wheel distance | M | 2 | |
Machine size | mm | 4100×2000×2200 | |
Machine weight | T | 3.5 | |
Track shoe part | Working pressure | MPA | 20 |
Rubber track weight | T | 5 | |
Total displacement | 1860 | ||
Total bearing weight | KGS | 5000 | |
Walking speed | kw/h | 0-3 | |
Ground connection beta ratio | 0.036 | ||
Pulling capacity | KGS | 4300 | |
Clambing ability | ≤ 30 | ||
Hydraulic hammer Part | Drill rod diameters | mm | 70 |
Drill rod weight | KGS | 19 | |
Hydraulic hammer weight | KGS | 230 | |
Working flow | L/Min | 40-70 | |
Working pressure | bar | 110-140 | |
Impacting frequency | bpm | 500-900 | |
Pile height | M | 2-7M | |
Detailed Images
 | Machine PartsName: Hammer pile driver Brand: HWZG Original: China Weichai engines, strong driving force, low fuel consumption, high economic. |
Main FeaturesName: Square hydraulic hammer this hammer used for pressing the pile into the soil. |  |
 | Machine PartsName: Round hydraulic hammer Function 1:this hammer can drill the hard rock with air compressor. Function 2:this hammer can drill the soil with the screw pipe. |
Main FeaturesName:Multifunction pile driver
this is the multifunction pile driver,we can change the different hammer to do the different works.it can press the pile,can drill the soil,also can drill the rock. |  |
