Custom Aluminum Timing Pulleys HTD 5M 18 16 20 36 62 72 Tooth For Electric Skateboard
Custom Aluminum Timing Pulleys HTD 5M 18 16 20 36 62 72 Tooth For Electric Skateboard
Custom Aluminum Timing Pulleys HTD 5M 18 16 20 36 62 72 Tooth For Electric Skateboard
Custom Aluminum Timing Pulleys HTD 5M 18 16 20 36 62 72 Tooth For Electric Skateboard
Custom Aluminum Timing Pulleys HTD 5M 18 16 20 36 62 72 Tooth For Electric Skateboard
Custom Aluminum Timing Pulleys HTD 5M 18 16 20 36 62 72 Tooth For Electric Skateboard
Custom Aluminum Timing Pulleys HTD 5M 18 16 20 36 62 72 Tooth For Electric Skateboard

Custom Aluminum Timing Pulleys HTD 5M 18 16 20 36 62 72 Tooth For Electric Skateboard

Share on (60684816936):


Price:$1.95 - $2.79

Quantity:


Product Overview

Description



Products Description

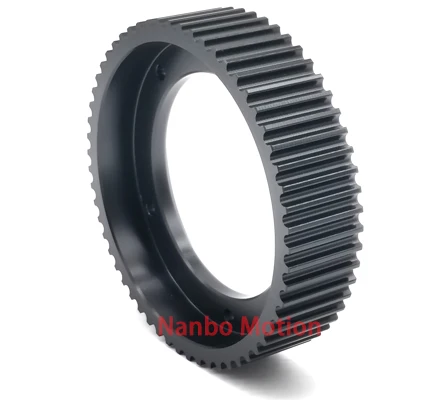

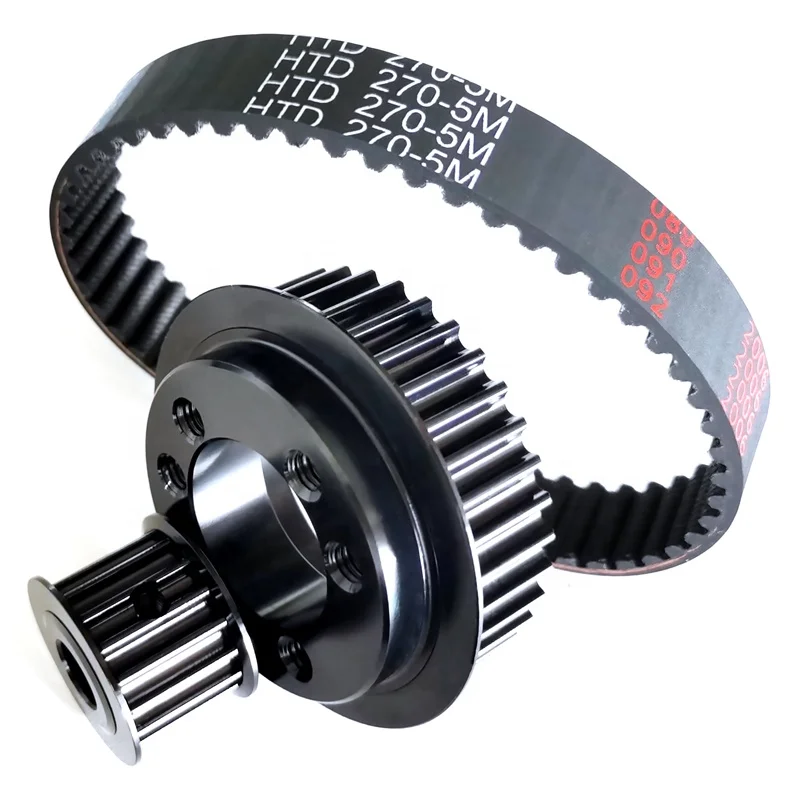

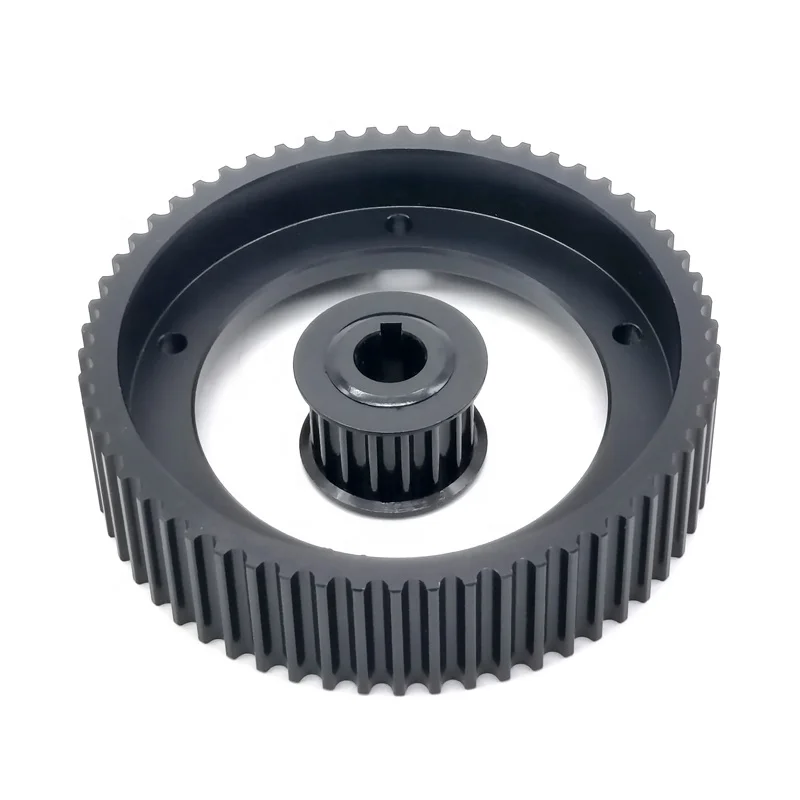

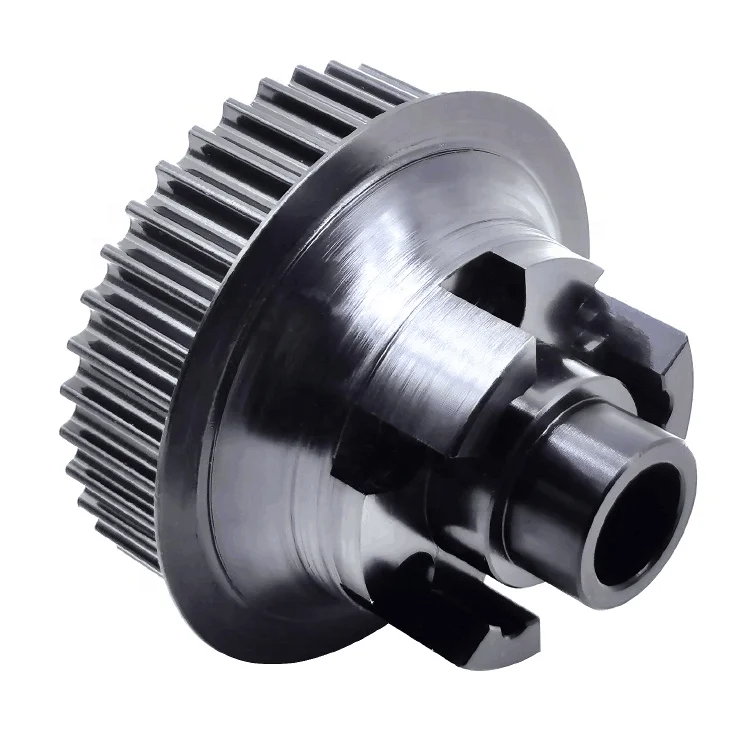

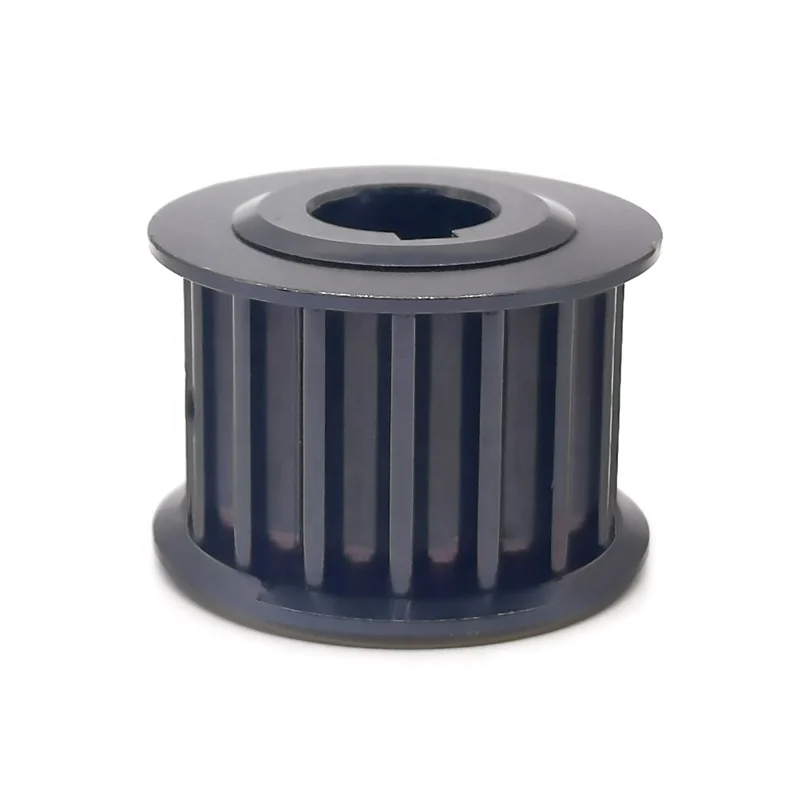

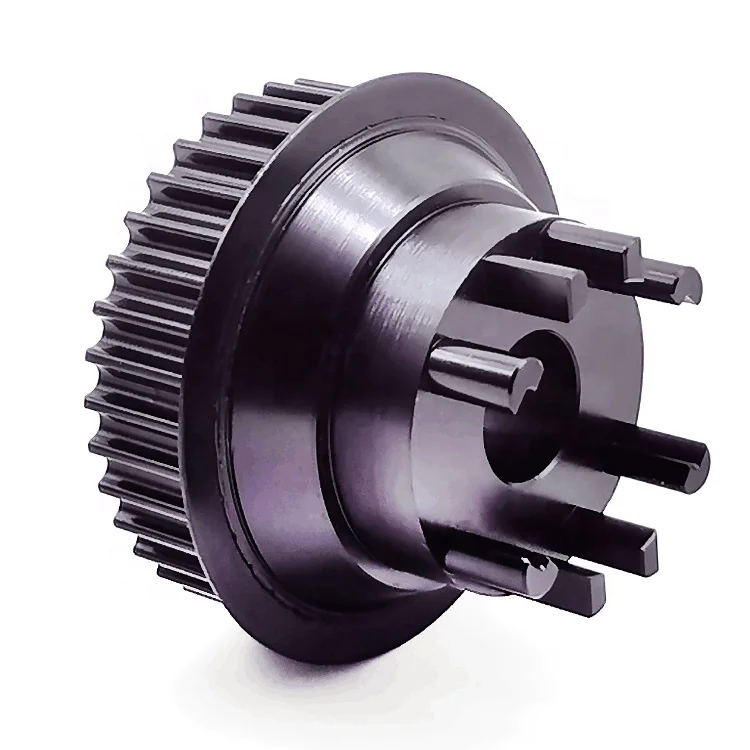

Custom Aluminum Timing Pulleys HTD 5M 18 16 20 36 62 72 Tooth For Electric Skateboard

We accept custom aluminum timing pulleys for scooters, this timing pulley is just for display and provide to our customers for reference use, not the real timing pulley size.

If you want to order similar timing pulleys or want to know more, please click this link and send us your 3D STP, IGS files and 2D drawings to get a quote.


Product name
Aluminum Timing Pulleys HTD 5M 18 16 20 36 62 72 Tooth For Electric Skateboard
Material
Aluminum 6061, Aluminum 7075 or according to your needs
Application field
Electric Skateboards
Teeth Type
HTD 5M
Pitch
5mm
Belt Width
15mm or according to your needs
Surface Treatment
black anodized or according to your needs
Teeth quantity
72 Teeth or according to your needs
MOQ
10 PCS


Smooth tooth surface:
It ensures the precise and stable movement of the timing pulley, reduces impact, vibration and noise, crack resistant, wear resistant, heat resistant, improves the service life of the timing pulley and the timing belt, and the transmission efficiency can reach 98%.

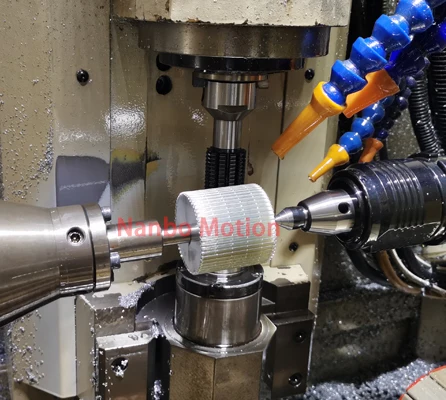

Hobbing:
Our timing pulley adopts high-precision CNC gear hobbing machine to complete gear hobbing, and the tooth surface runout of the timing pulley completed in production reaches 0.01 ~ 0.02mm, which makes the timing pulley run smoothly, low noise, wear-resistant and other good characteristics.

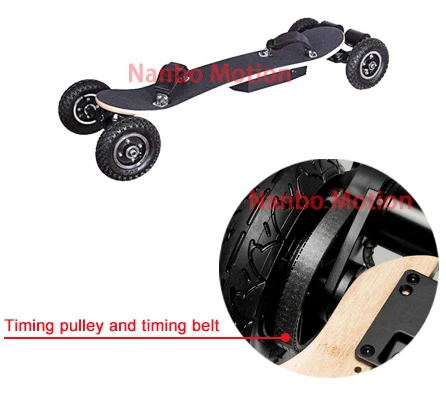

Application


Timing pulley application:
Timing pulley applied to Electric Skateboard, Manufacturing Plant, Automated Factory, Automation Machine, Laser engraving machine, Robot, Robot arm, CNC machine, Labeling machines, Packing Machine, 3D printer, Food machine, laboratory machine, Medical machinery, Elevator, Car engine, Motorcycle, Agricultural machinery, Chemical machinery, Automatic window, Automatic door, Textile machine, Animal Husbandry Machinery, Beverage machine, vending machine, Poultry machinery, Poultry machinery, Children's toy parts, automation parts etc.


Product packaging




Product Paramenters




Tooth profile


Arc-toothed timing pulley tooth size (unit: mm)
Tooth profile
pitch
Pb
S
R
hg
r
rt
3M
3.00
1.90
0.91
1.28
0.26~0.35
0.23
5M
5.00
3.25
1.56
2.16
0.48~0.52
0.28
8M
8.00
5.35
2.57
3.54
0.78~0.84
0.61
14M
14.00
9.80
4.65
6.20
1.36~1.50
0.53
20M
20.00
14.80
6.84
8.06
1.95~2.25
1.42


S-toothed timing pulley tooth size (unit: mm)
Tooth profile
pitch
Pb
S
R
hg
rt
rb
S2M
2.00
1.30
1.325
0.76
0.10
0.19
S3M
3.00
1.95
1.975
1.11
0.15
0.28
S4.5M
4.50
2.93
2.980
1.59
0.20
0.38
S5M
5.00
3.25
3.275
1.77
0.25
0.55
S8M
8.00
5.20
5.300
2.83
0.40
0.75
S14M
14.00
9.10
9.280
4.95
0.75
1.31


G, Y-toothed timing pulley tooth size (unit: mm)
Tooth profile
pitch
Pb
hg
hg
R
rt
rb
2GT
2.00
0.75
1.325
1.00
0.10
0.19
3GT
3.00
1.14
1.975
1.52
0.15
0.28
5GT
5.00
1.93
2.980
2.54
0.20
0.38
Y8M
5.00
3.02
3.275
3.80
0.25
0.55


Trapezoidal toothed timing pulley tooth size (unit: mm)
Tooth profile
pitch
Pb
2 y°
bw
hg
rb
rt
MXL
2.032
56/40
0.67
0.64
0.30
0.23
XXL
3.175
50
0.96
0.84
0.30
0.28
XL
5.08
50
1.27
1.40
0.61
0.61
L
9.525
40
3.10
2.13
0.86
0.53
H
12.70
40
4.23
2.59
1.47
1.42
XH
22.225
40
7.59
6.88
2.01
1.93
XXH
31.750
40
11.61
10.29
2.69
2.82


T-toothed timing pulley tooth size (unit: mm)
Tooth profile
pitch
Pb
2 y°
br
hg
rb
rt
T2.5
2.50
50
1.83
1.00
0.30
0.20
T5
5.00
50
3.32
1.95
0.60
0.40
T10
10.00
50
6.57
3.40
0.80
0.60
T20
20.00
50
12.60
6.00
1.20
0.80


AT-toothed timing pulley tooth size (unit: mm)
Tooth profile
pitch
Pb
2 y°
s
hg
rr
ra
AT3
3.00
50
1.50
1.00
0.20
0.30
AT5
5.00
50
2.70
1.10
0.40
0.70
AT10
10.00
50
5.40
2.35
0.50
1.20
AT20
20.00
50
10.00
5.00
1.75
2.50

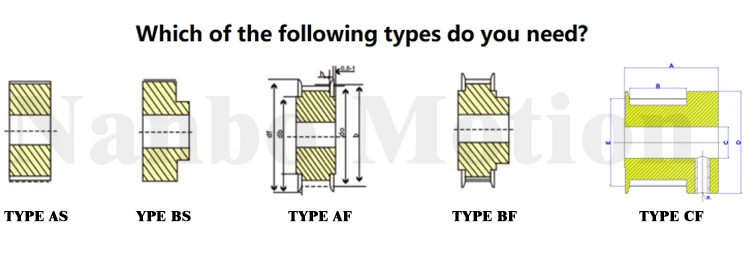

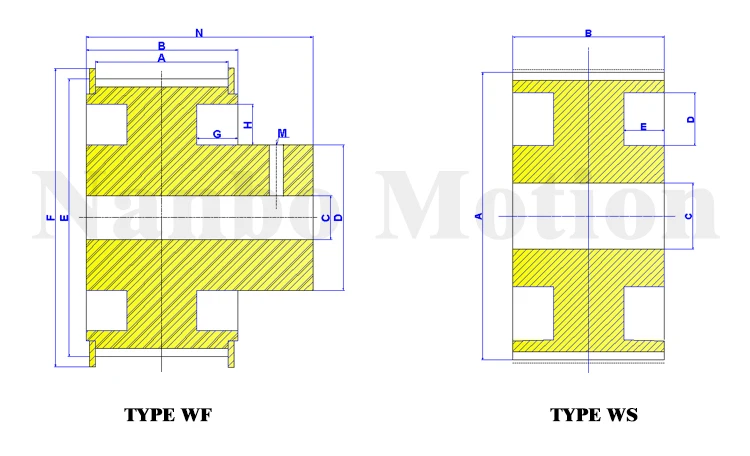

Which type of timing pulley as follows do you need?










Related Products

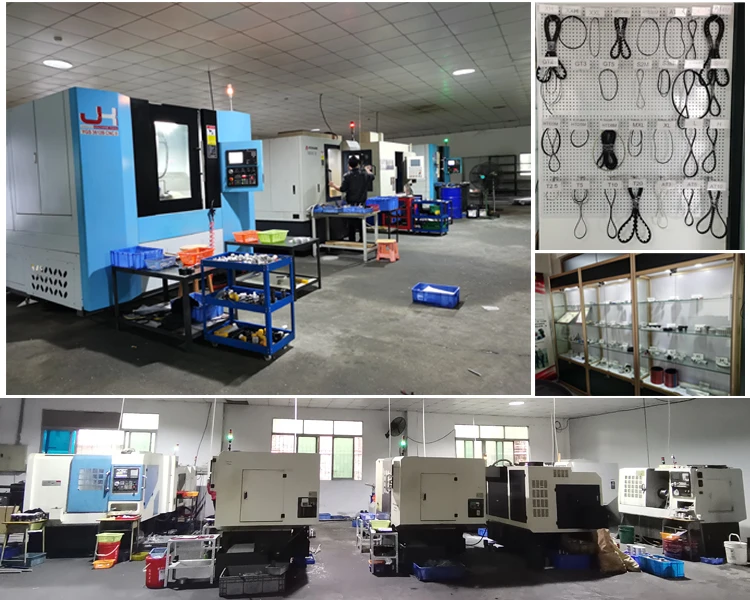

Company Profile




FAQ


1) Q: I haven't done business with you before, how can i trust your company?
A: Our company are alibaba.com golden supplier and passed Field certification by alibaba Group. What's more,we've got authority certificates for ISO9001.Trade Assurance Limit is much more than USS22,000,and it is still rising up.1 hope those above will be persuasive enough.
2) Q: How is quality ensured?
A: All our processes strictly adhere to IS09001:2008 procedures, we have strict quality control from producing to delivery,
100% inspection by professional testing centre. Small samples could be provided to you for testing.
3) Q: Can i get more samples?
A: Yes, sample orders welcomed. Low amount free samples could be provided when we have stocks.
4) Q: Do you give any discounts?
A: Yes, we'll surely try my best to help you get the best price and best service at the same time.
5) Q: How to Custom-made(OEM/ODM)?
A: Please send you product drawings or samples to us if you have, and we can custom-made as you requirements.
We will also provide professional advices of the products to make the design to be maximize the performance.
6) Q: If you can not find the product on our website,how do you do?
A: Please click here to contact us, we'll check and reply you ASAP.
