Латунные шестигранные распорки, наружная и внутренняя резьбы, никелевая отделка, крепежи M3 для сборки ПК
- Category: >>>
- Supplier: Dongguan City Zhaoming Hardware Co. Ltd.
Share on (60684825974):
Product Overview
Description

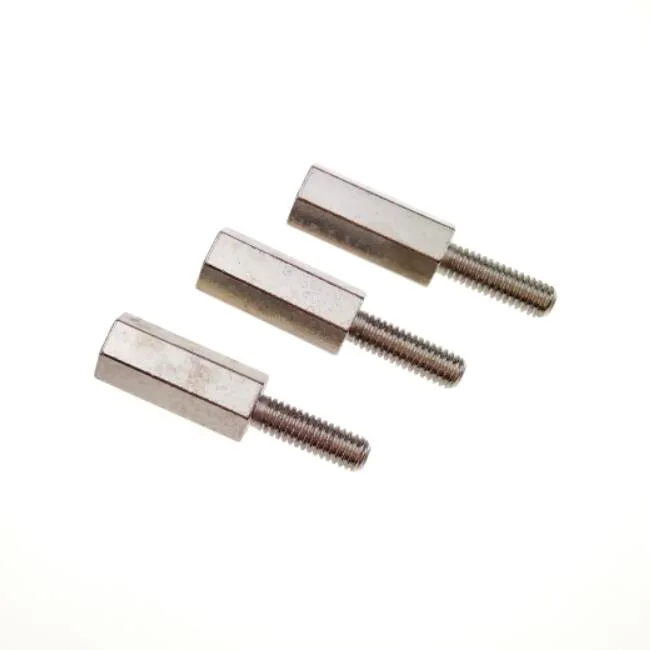

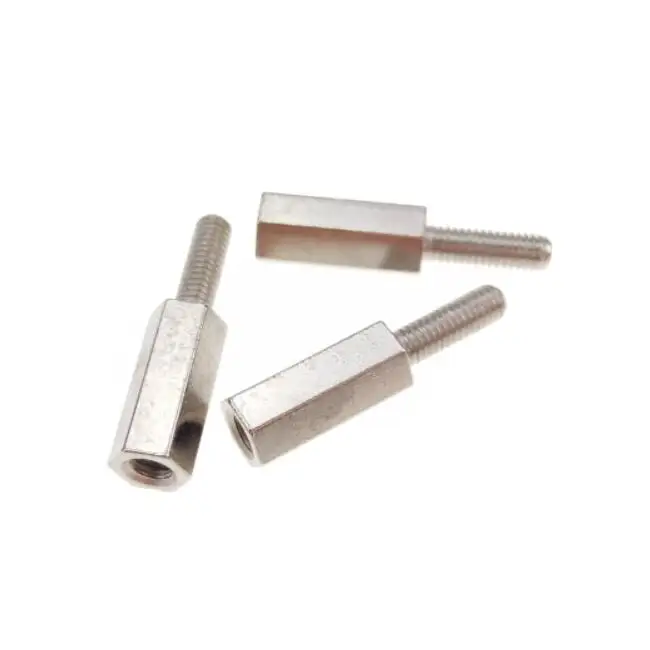

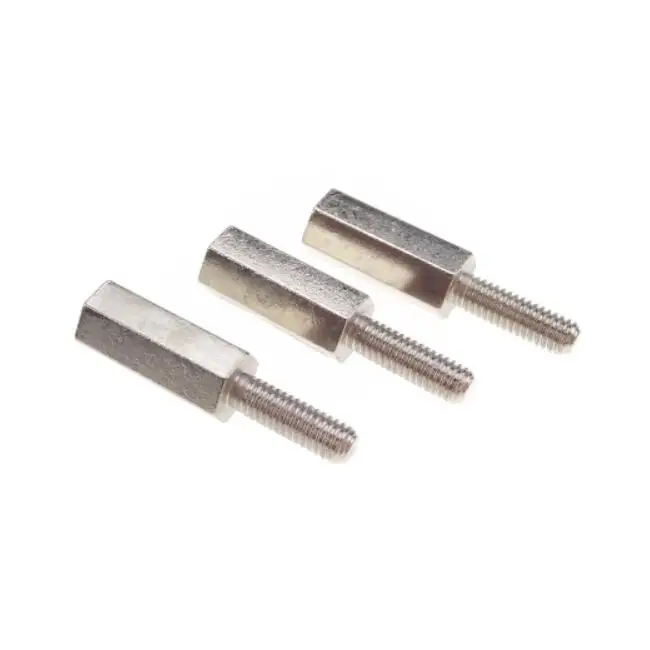

Brass Hex Spacers Male Female Threads Nickel Finsih M3 X 8 Fasteners for PC Assembly
General Description
Hex spacers are also known as hex standoffs , they have female and male threads and both threads are standed reverse directions , inside thread is called female and outside thread is called male , and female thread is though the body , both threads are same specification .
Technical Data
Material
Brass
Physical Properties
Hardness ( HV ) | 12 | Yield Strength ( Mpa ) | 120 | Elongation ( % ) | 20 |
Tensile Strength ( Mpa ) | 230 | Torque |
| Reduction Area ( % ) | 32 |

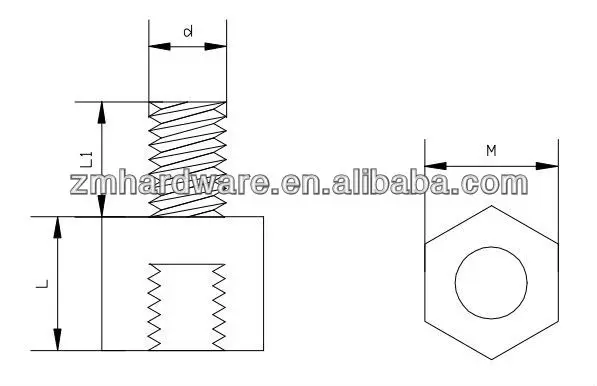

Specification
d | M3 |
|
L1 | 8 | |
L | 8 | |
M | 5.5 |
Optional Specifications
| Size | M | L | d |
| 3 | 7 | 6 | 3 |
| 3 | 7 | 8 | 3 |
| 3 | 7 | 10 | 3 |
| 3 | 7 | 12 | 3 |
| 4 | 7.2 | 15 | 4 |
| 4 | 7.2 | 20 | 4 |
| 4 | 7.2 | 25 | 4 |
| 4 | 7.2 | 30 | 4 |
| 4 | 7.2 | 40 | 4 |
Finish
Type | Thickness | Salty Spray Hours | RoHS / REACH |
Nickel | 5 | 12 | RoHS |
Product Features
1 . Good Corrode resisting .
Brass hex spacers are resistant for corrossion .
2. Ideal abrasive resistance .
Hardness up to HBS150 .
3 . Perfect conductivity .
The Solidus for hex spacers temperature are 821 degrees , and conductivity is 6.5γ/% .
4 . High Tensile strength .
Brass hex standoffs with alloy elements , generally , which can be up to 400δ/MPa .
5 . Remarkable thermal conductivity .
the thermal conductivity of brass hex spacers are 80 λ/w under normal temeperature
Applications
Brass hex spacers standoffs are mainly used for electronics and offical equipments
1. PC panel
2 . Metal panel
3 . Electrical product
4 . Household appliance
Tips for Use
1 . Do not put over torque on hex spacers
2 . Clean threads before installation .
3 . Secured panel thickness not over male threads length of hex spacers
Packing Details
 |  |  |
| Bulk ( Bags + Carton )
Pcs / Bag : 3 Kgs / CTN : 21 L X W X H : 20 X 20 X 20 cm | Boxes ( Boxes + Carton )
Kgs / Bag : 1 Kgs / CTN : 10 L X W X H : 20 X 20 X 20 cm | Pallets
Kgs / pallet : 1800
L X W X H : 1 X 1 X 2 m |
Remark : Custom packing is acceptable . Above packings are reference only , items showed in the pictures maybe not described one
Our Services
We are one of hardware spare parts manufacturers in China , we provide various metal and non-metal parts with standards and customizations , eg. Fastener Screws ( including Stainless steel screws ) , Spacers Washers , Fastener Nuts bolts , Fastener Pins , Fastener Rivets , Metal Stamping Parts , Metal Machined Parts , Plastic Injection molding Parts . and Fastener Tools . We trade with buyers , wholesalers and retailers from different countries . We accept OEM and ODM service as well . Please contact us if you have any enquiry
FAQ's
Q What is your production capacity ?
A. We are able to finish up to 2000 tons raw material every year , generally , one full 20 feet container ( about 20 tons) can be done in 20- 25 days .
Q.How long I can get samples for approval before placing order ?
A. Just in one week for new samples that need to be done in new tools , and we can deliver samples within 24 hours for exsiting samples once received your request .
Q.What are your popular payement menthods ?
A. T/T is our prior choose for all , of course , we are also accept L/C , Westunion , paypall .
Q. What products you produce ?
A. We are proudce different hardware spare parts , stamping part , plastic injeciton molding parts and fasteners like screws , bolt , nuts , pins , rivets and spacers washers etc
