HUASHUN auto positioning armature dynamic balancing machine and professional after sale service providing

Product Overview

Description

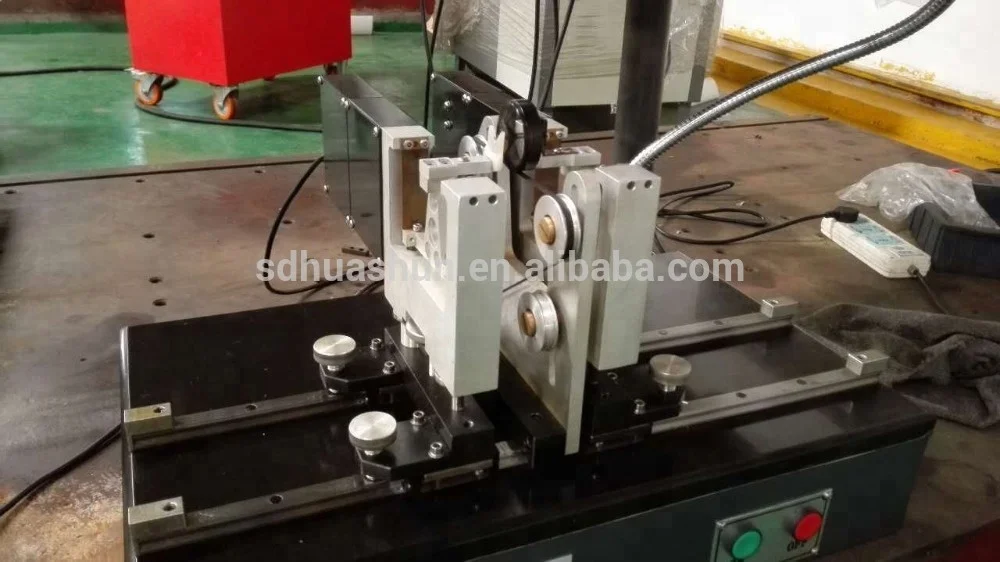

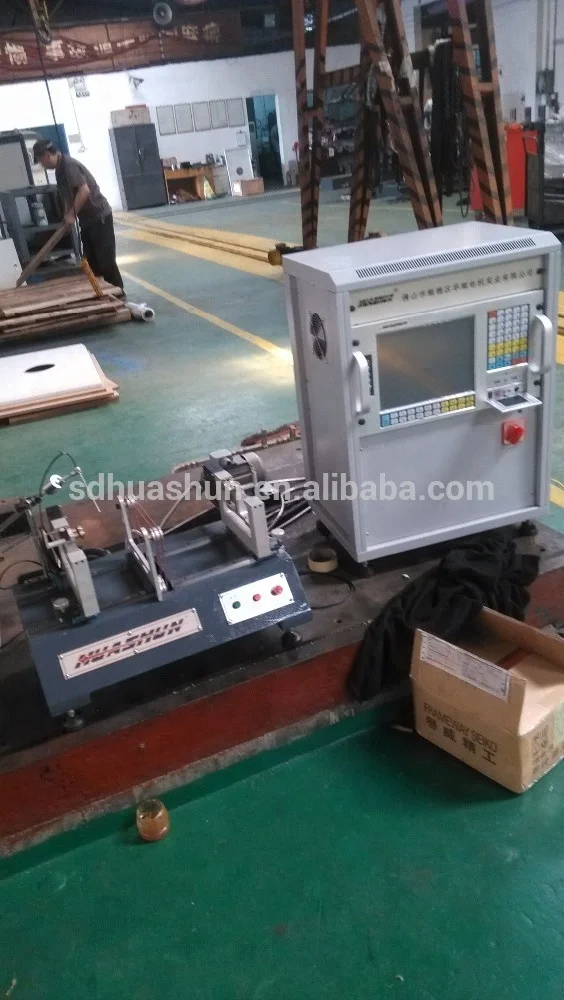

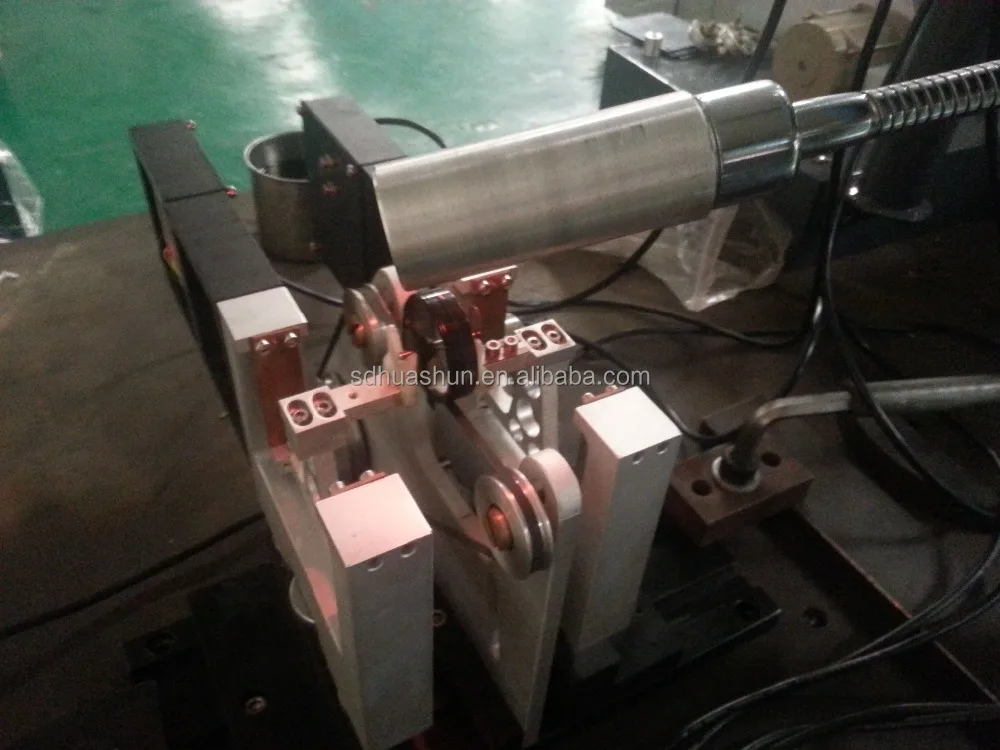

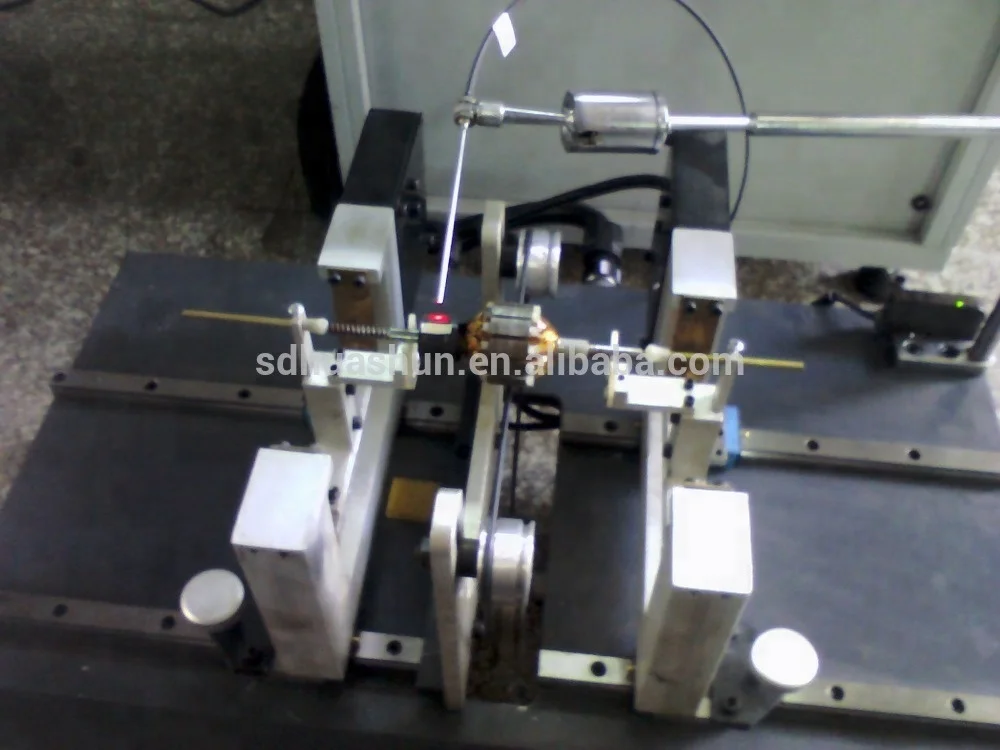

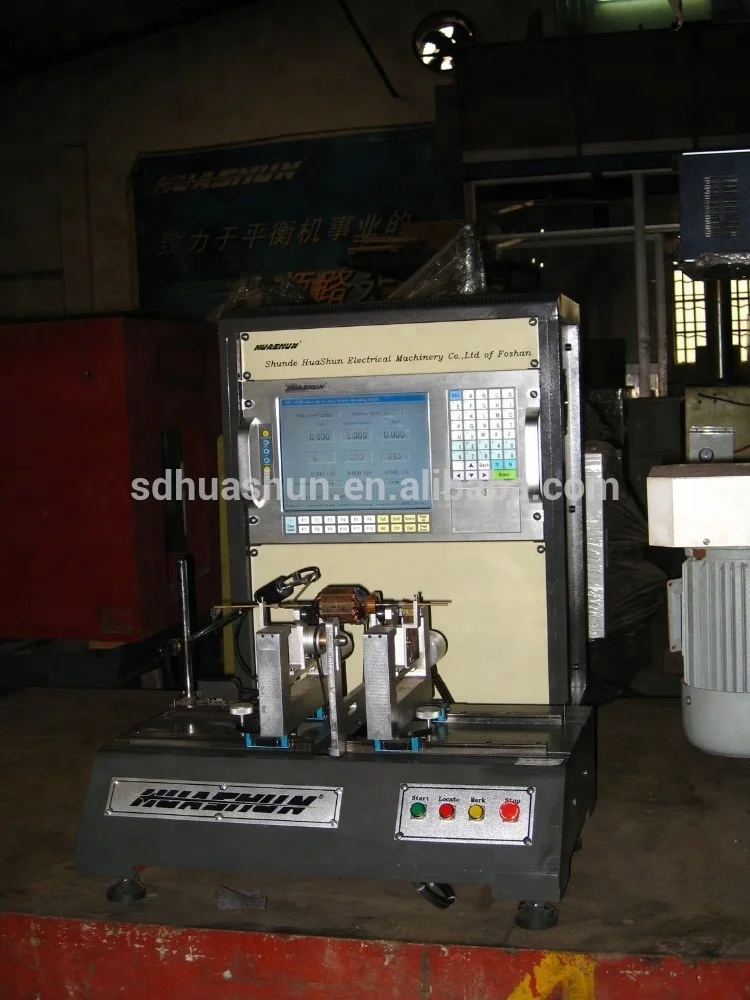

HUASHUN auto-positioning armature balancing machine



SF0.5-T Technical Parameters

Type of balancing machine	Special balancing machine
Specifications/type	SF0.5-T
Max. mass of works(kg)	0.01-0.5
Max. dia. of works (mm)	100
Min. Dis between supports(mm)	20-400
Journal dia. of supports (mm)	2-10
Balancing speed (r/min)	300-5000
Journal dia. of belt drive	10-50
Min. achievable residual unbalance amount emar(g.mm/kg)	≤0.1
Drive mode	Servomotor & belt drive



Advantages:

LCD (liquid crystal diaplay)

Optional panel printer provides balancing result report

Optional automatic marking device



Application Areas

For rotors of auto motors, electric tools, home appliances, small rotors of motors for office automation
