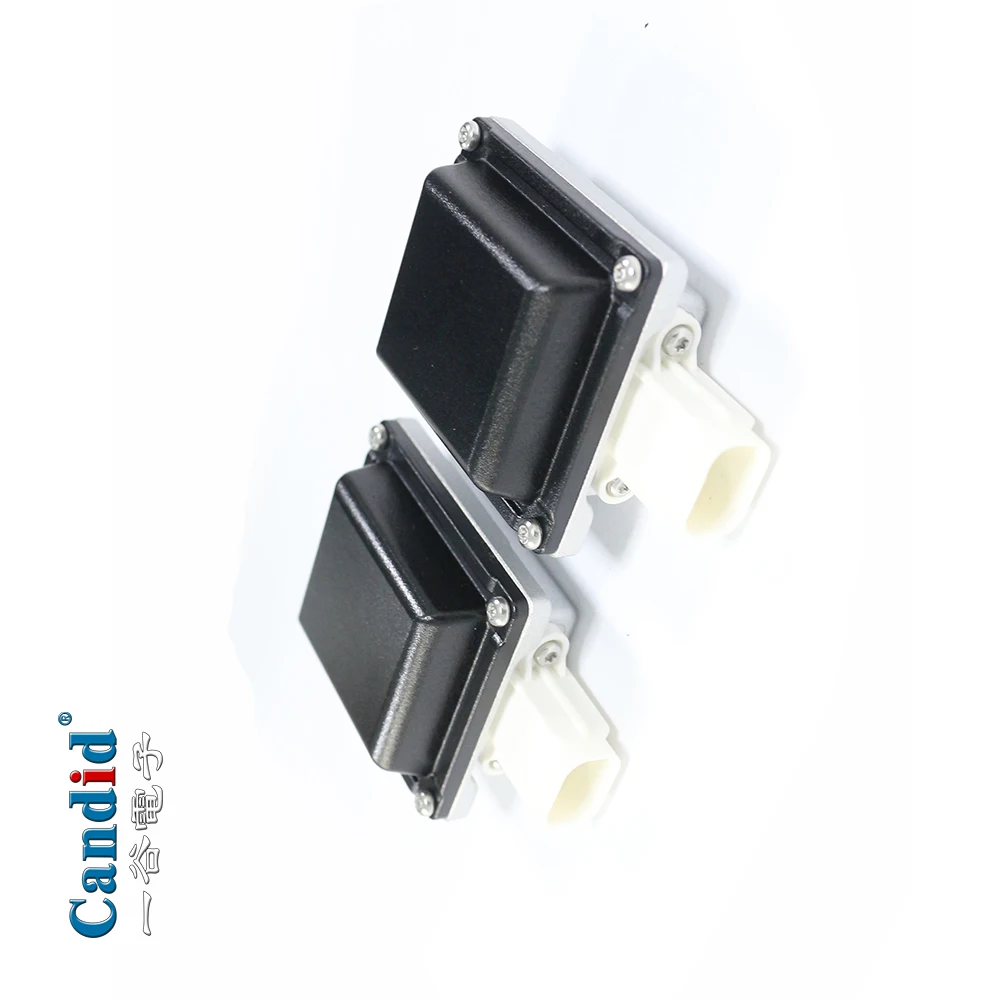

Car Lca Blind Spot Monitoring Millimeter Wave Sensor Bsd Assist Aoa Alarm System

1. Description

BSD(Blind Spot Detection) System: BSD warn the driver against collisions that may occur due to a lane change manoeuvre, detect vehicles at the rear and two sides.

(1) intend to supplement the vehicle’s rear-view mirrors.

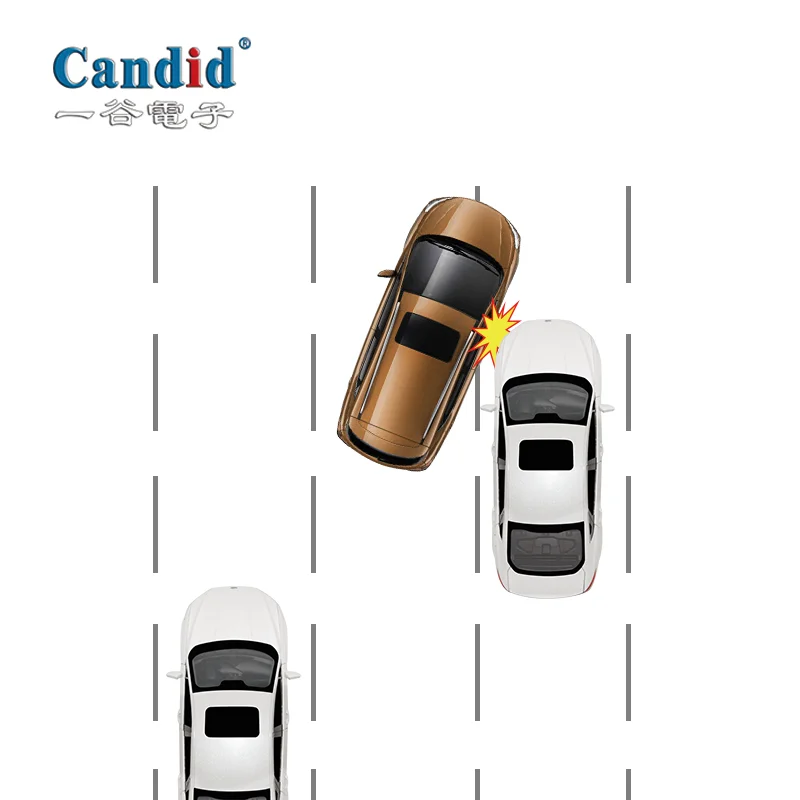

(2) intend to detect vehicles at the rear and two sides of the our car (subject vehicle). When the driver indicates the desire to make a lane change, the system evaluates the situation and warns the driver if a lane change is recommended.

(3) intend to detect vehicles approaching from the right and left rear of our car (subject vehicle), when reversing out of a parking space.

The system will warn us by flashing and sounding if it senses cross traffic, avoid the collision and danger at reversing status.  (RCTA, Rear Cross Traffic Alert)

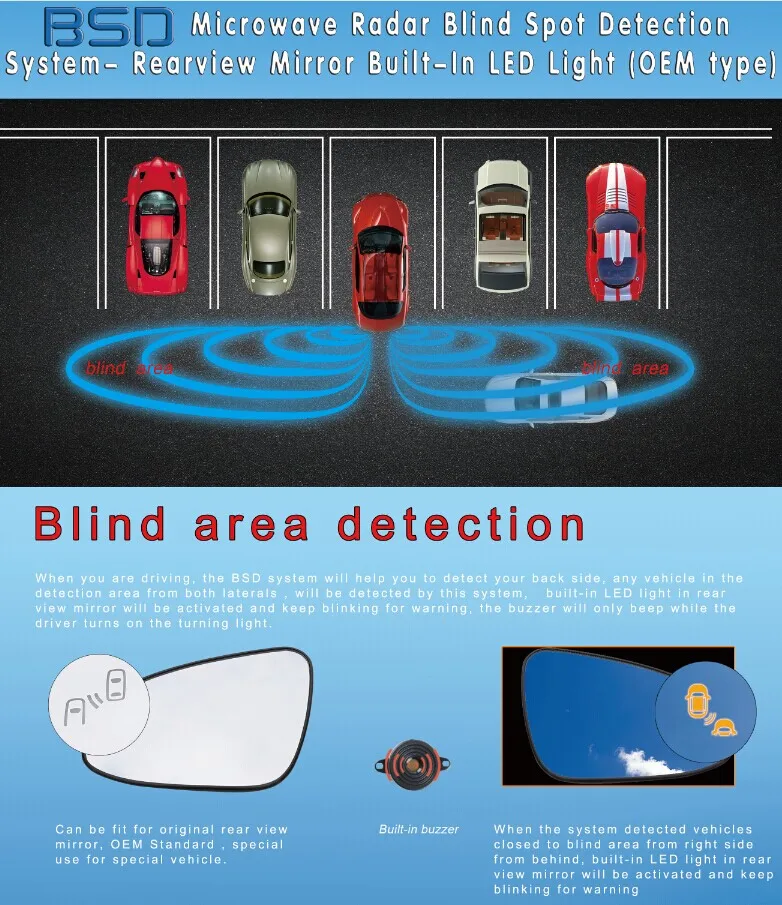

RCTA  Rear Cross Traffic Alert, as following picture shows

2. System Operation

When moving items in the blind spot, LED light flash,

When vehicle in the blind spot and turn signals “on” , LED flash+ Buzzer sounds

When reversing out of parking space, there is vehicle approaching from the right and left rear, LED light flash, if keep reversing, LED flash+ Buzzer sounds

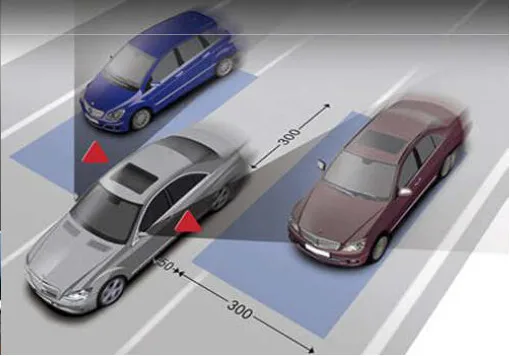

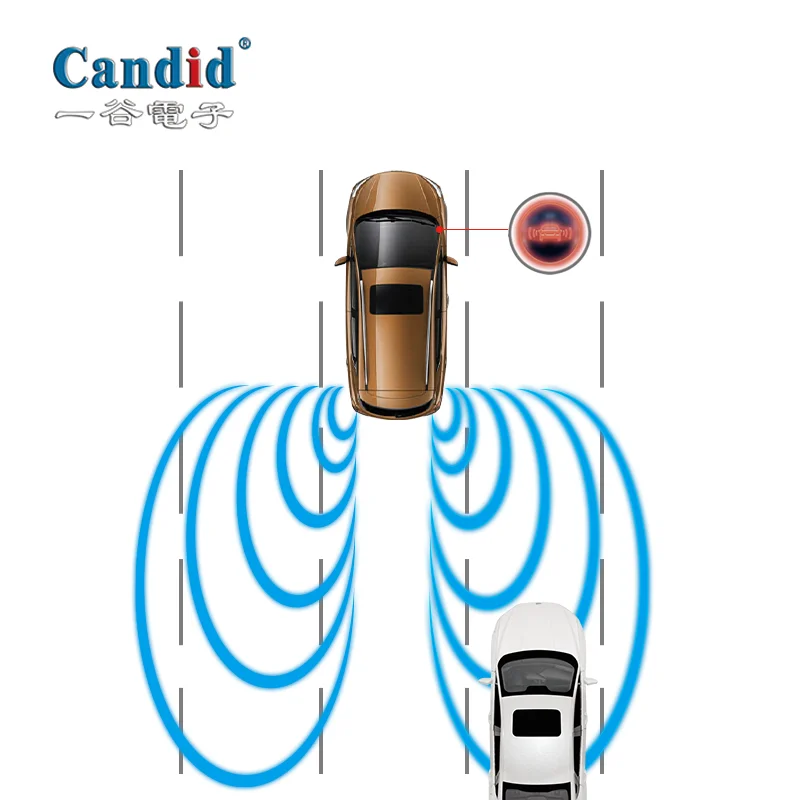

3. Detection range, 3*15 meter  from two sides and behind.

4. Product Feature,

(1) 24G HZ high performance microwave sensor, high accuracy

(2) Easy installation, no drilling no breaking line

(3) Possible to detect: Movement. Velocity. Direction. Distance. Angle

(4) All-weather monitoring, not be affected by rainy, snowy and foggy day or in the night.

(5) OE quality standard, 2-3 years warranty, equipped to car factories directly.

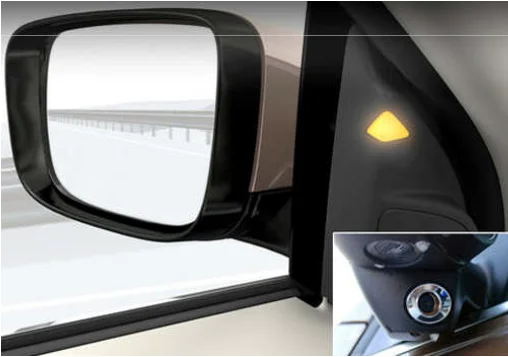

(6) Univeral type for all car brands, specific with mirror also available, more superior

5. Function concluded,

Blind spot detection function

Lane change warning function

Anti-collision function

Rear Cross Traffic Alert function
