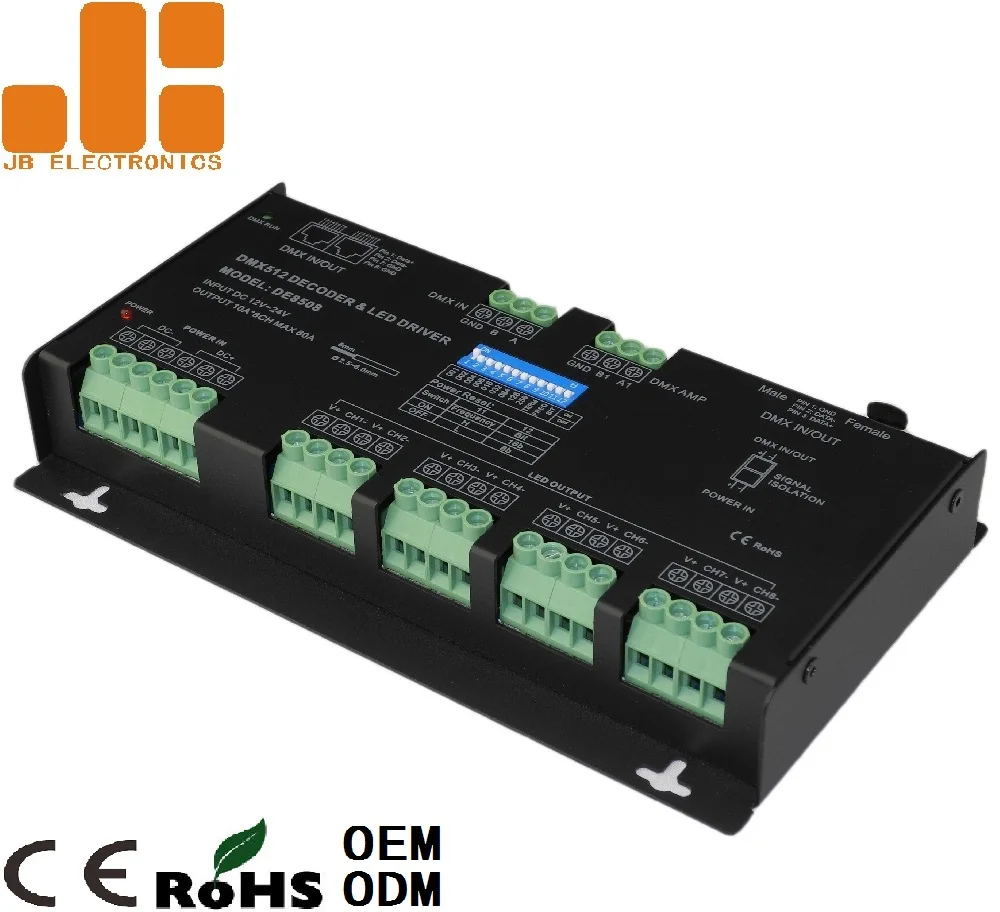

High Frequency 10Ax8CH Constant Voltage 8Bits/16Bits Signal Amplifier DMX512 Decoder DE8508

 SUMMARIZE:

Thank you for using DMX512 Decoder series.It adopts the advanced micro-computer control technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.Output 1~8 Channels for option and each channel able to achieve 8bits or 16bits of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

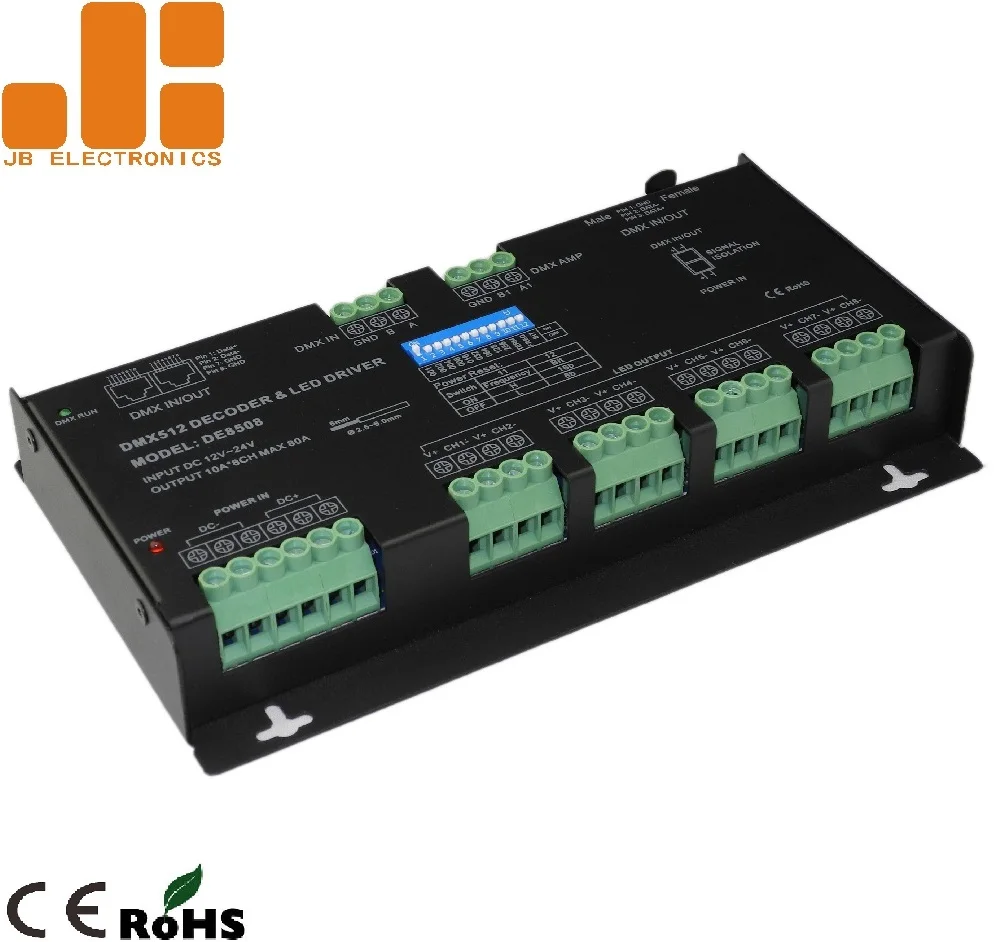

Features of 10A*8CH DMX512 Decoder DE8508:

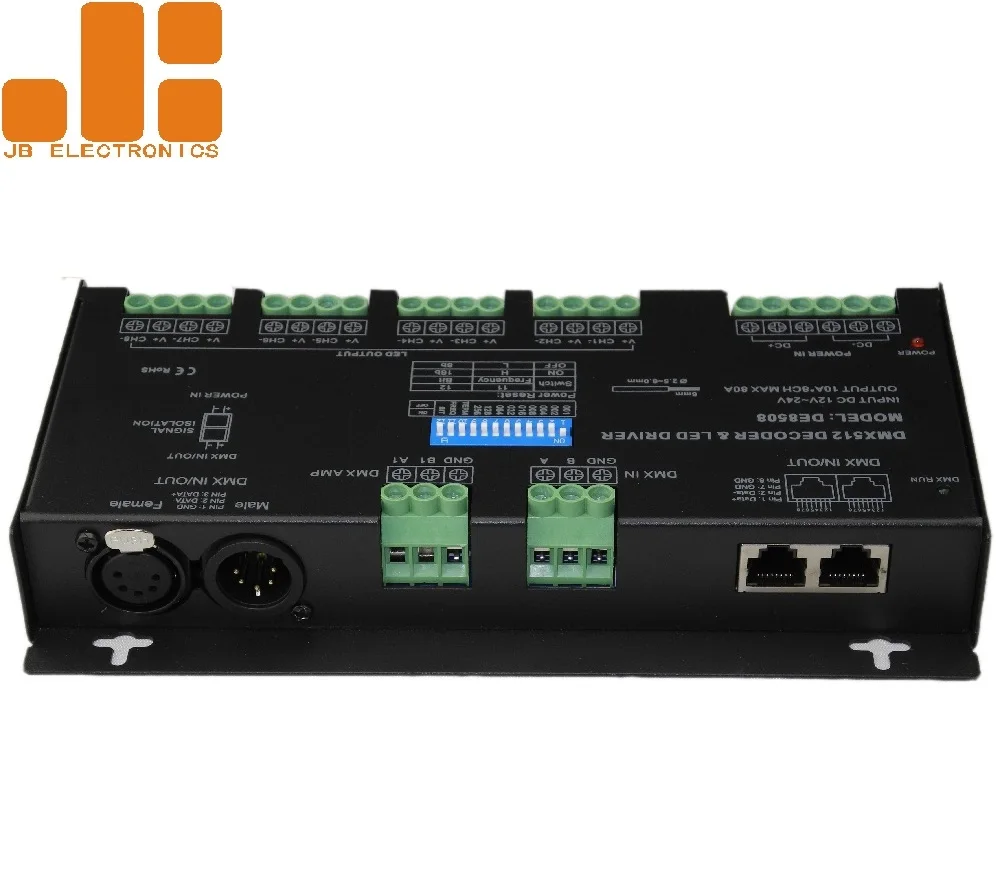

1,Meets DMX512/1990 Signal,with RJ45 and XLR-5 interface to choose.

2,8bits or16bits for option,high(5000Hz) or low frequence(500Hz) for option, signal isolation,DMX signal amplifier, full-color with driver control.

3,Power without flashing, smooth at low.

4,Output 8 channels, single channel maximum 10A output drive, total output is no more than 80A.

5,Can achieve asynchronous color changes effect under working with controller.

6,With the light color selected mechanism, and be able to control the light with 1~4 colors.

7,Setting DMX address freely by Dip Switch.

8,Strong anti-interference ability, humanized terminal design.

9,Custom-made available and 3 years warranty.

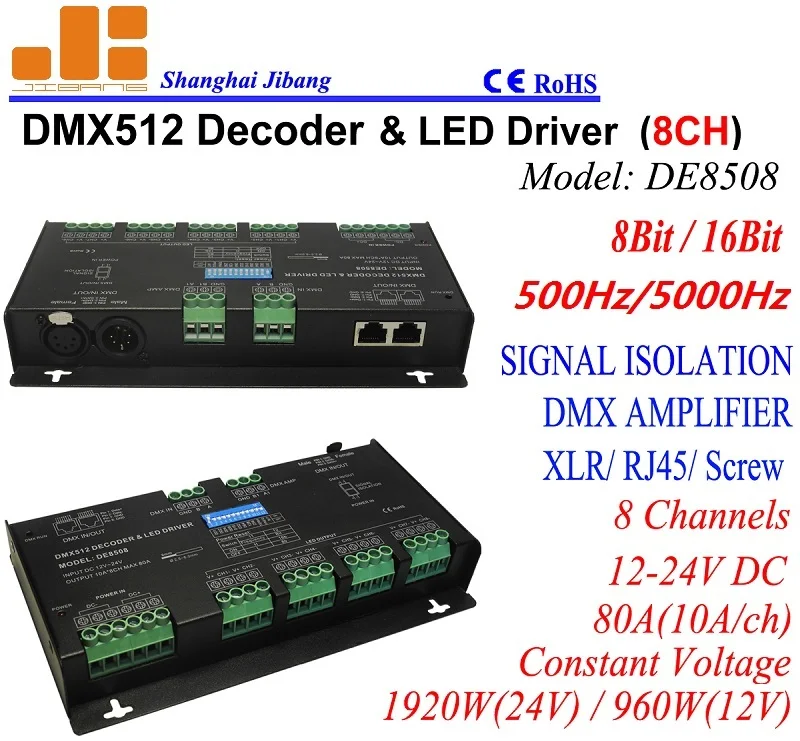

Tech-parameter of 10A*8CH DMX512 Decoder DE8508:

Input: DC12-24V                             Control Channels: 8CH          Output Current: 10A/CH,Max 80A

Max Power: 960W/1920W              Frequnce: 500Hz/5000Hz       Resolution Rate:8bits/16bits   Working Temperature: -30-70℃     Signal Isolation:>1000V          Protection Grade: IP40

Input Signal:DMX512/1990 Standard Signal                   Signal Out: Constant Voltage PWM Signal

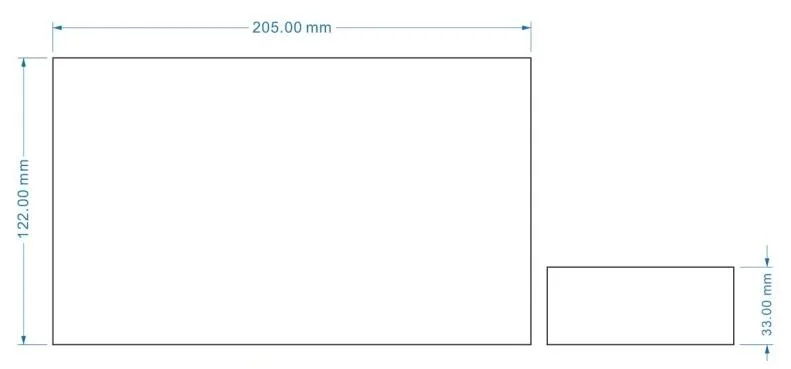

Gross Weight: 620g                        Product Size:L205*W122*H33mm

Specifications of DMX512 Decoder/Driver Series:

Product Instructions of 10A*4CH DMX512 Decoder DE8508:

1, POWER IN DC12-24V, common anode constant voltage output, can meet all kinds of full color module and monochrome module and automatically according to the lamps module load adjust output current, each channel maximum current not more than 10 amps.

2, SELF-TESTING: put all Dip-Switch NO.1 to NO.9 on, full channels output 3 seconds, then each color gradient.

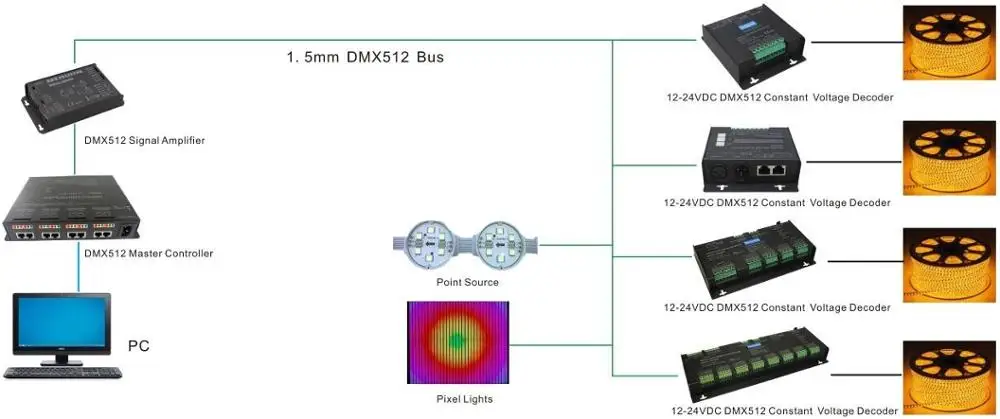

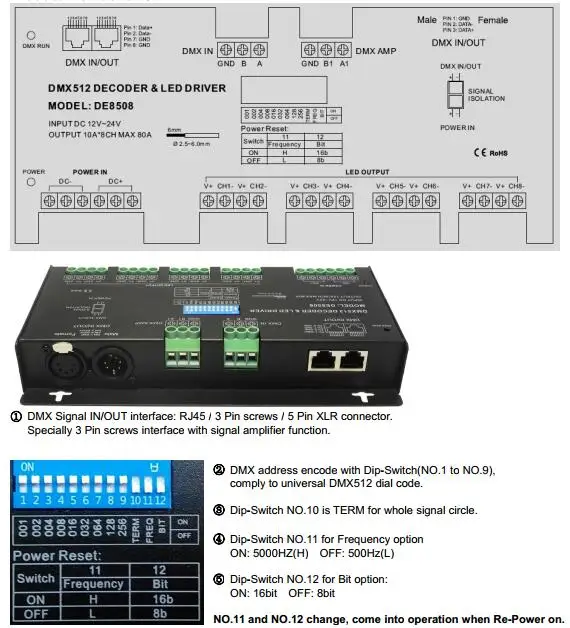

Wiring Diagram:

DMX512 control signal connection

1, DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end, in pressure welding DMX signal line plug should pay special attention to polarity. DMX512 controller input and output signal positive,signal nagative,signal ground with DE8508 input interface corresponding connection.

2, The DMX5000 output and DE8508's transmission lines can't be over 300 meters.

3, The DMX5000 each interface can connect with no more than 170 pieces of DE8508. Eight output interface. Through the JBLED FLASH light making software,it can realize infinite connectting the DMX lights with computer on-line controlling.

4, When contacting 32 pieces of DE8508, DMX signal must add a signal amplifier such as RE2000,cascade can't more than 4 PCS.

5, At the end of the connection, we should connect a DMX signal termination when putting on the the NO.10 dip switch of DE8508.
