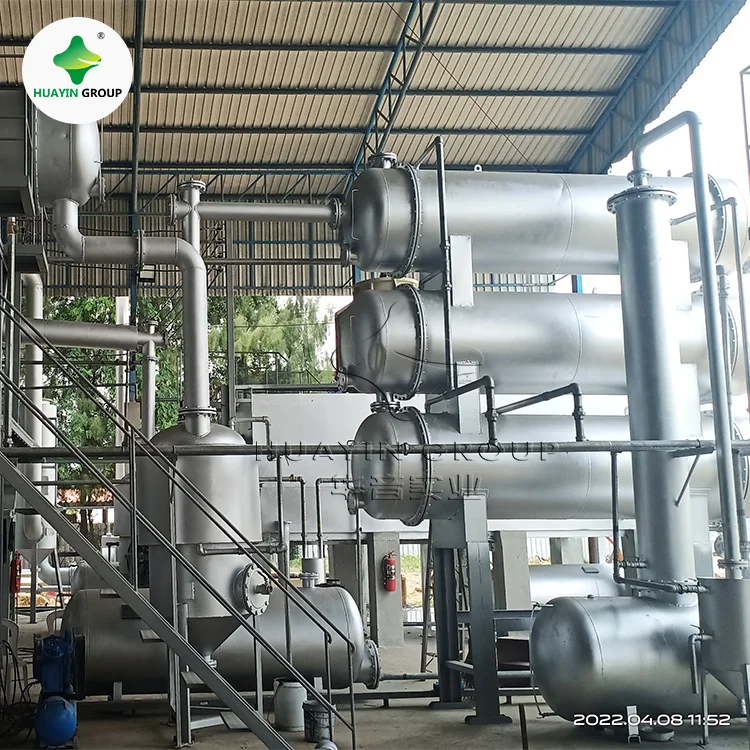

Used motor oil refining machine for diesel and petrol extraction distillation plant

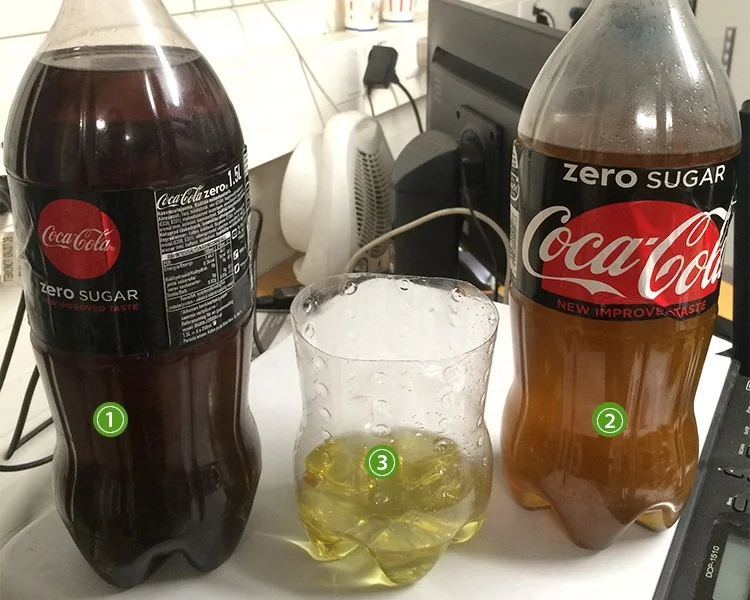

Waste engine oil/pyrolysis oil can be refined into valuable diesel oil through catalytic cracking and high temperature distillation technology. It is a method of separating mixtures based on differences in volatilities of components in a boiling liquid mixture. After being distilled by the distillation plant, the oil may have dark color with bad smell, then we suggest to deep purify the oil, with Huayin matched color and smell removal system, you will get clean diesel oil as final products with beautiful light yellow color.

Waste oil refining plant distills the incoming crude oil, waste oil or lubrication oil into useful products such as diesel oil and fuel oils, gasoline or petrol, jet fuel, etc, the oil yield will be 85%-90%, the by-products are 10%-15% slag and syngas.

Distillation plant works as follows:
1. Pump waste oil into distillation reactor by oil pump.
2. Heat the reactor, and the liquid oil will slowly become oil gas, oil gas will go through catalytic chamber and condenser, then diesel will be cooled out first by controlling the temperature over 150 Celsius degrees.
3.The gasoline will be cooled out when the temperature is below 150 Celsius degrees, the rest of the system is same as pyrolysis system.

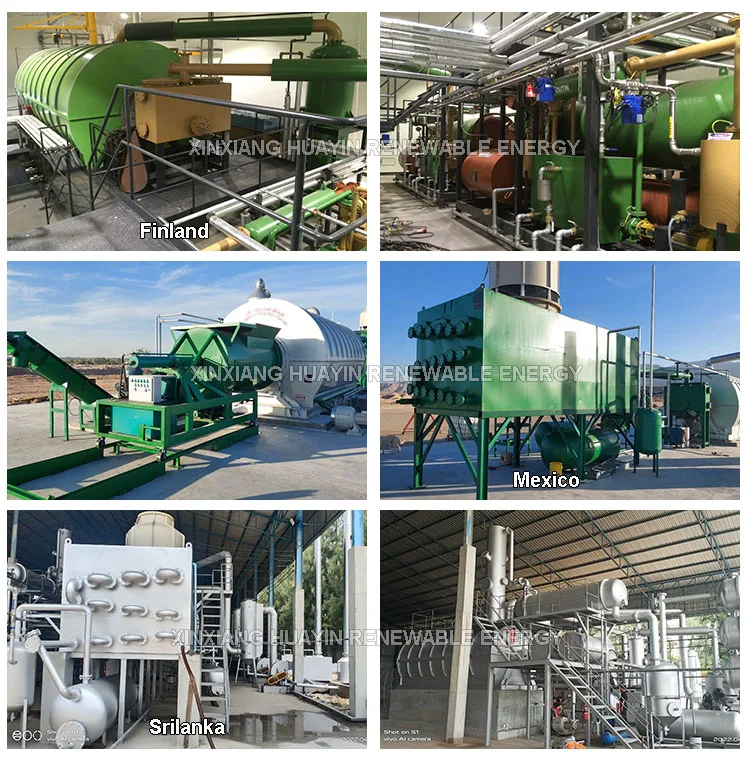

Waste tyre oil plastic oil to diesel distillation plant in Cyprus

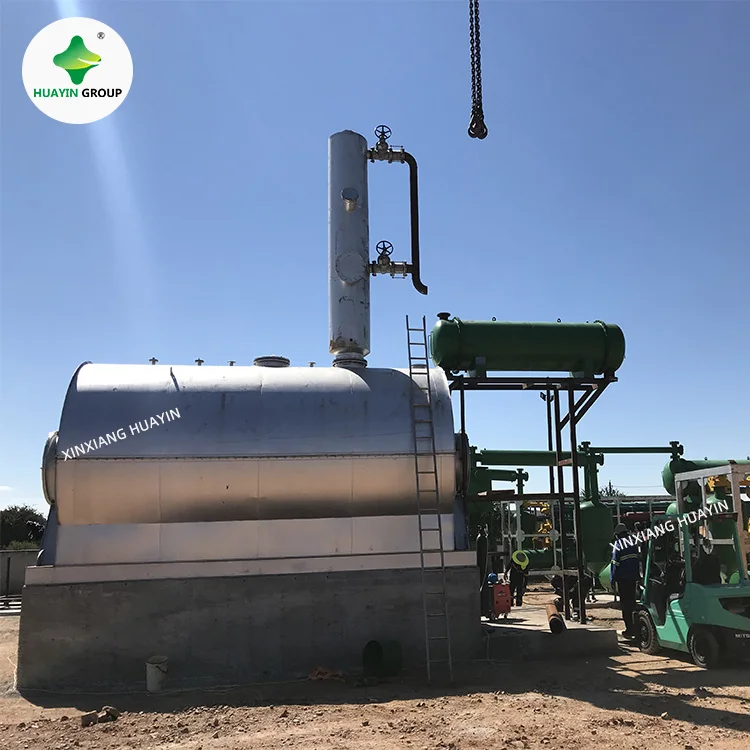

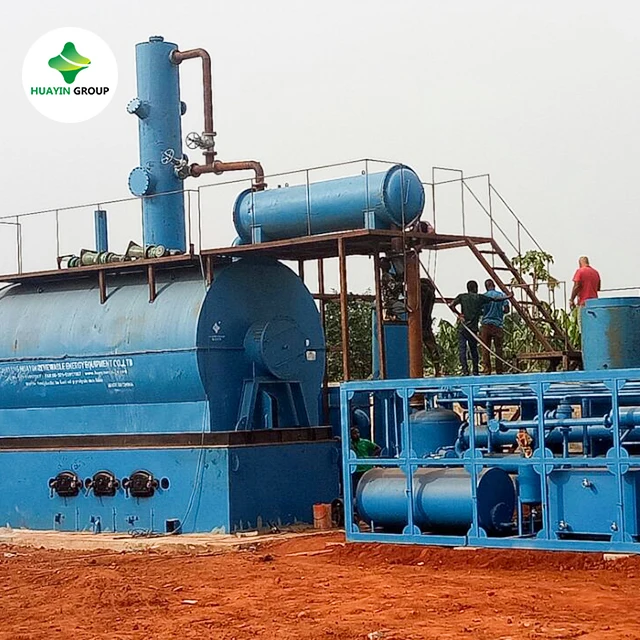

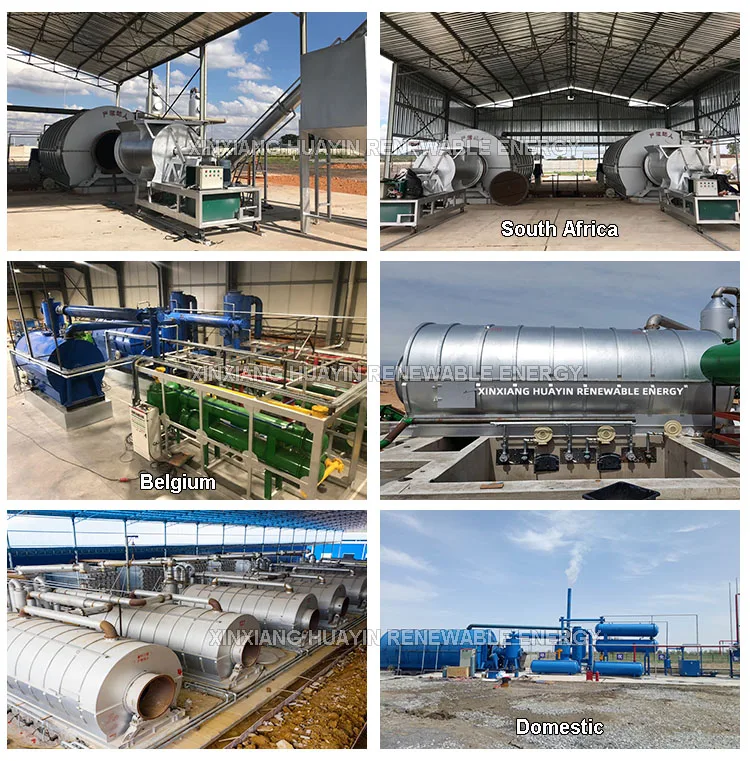

Below is our distillation machine installed in Benin

The Latest technology 5-30T oil distilaltion machine to diesel is amazing technical solution for different waste oil such as waste engine oil, pyrolysis oil, sludge oil, mud oil, very thick dirty impurities oil . This technology is mainly to use steam generator to make steam which can have effection with oil gas to reduce pressure to vacuum level .then when the operation is going on, diesel can be produced at 300℃ -550℃ ,however, now the highest temperature is 300℃ -380℃ .in this way oil quality will be highly improved and also fuel can be used less.

This machine will need one-time catalyst which is produced by our company only, there is no need to buy from other catalyst factory as we have the catalyst formula .it is customised.

Output product data

1. Packaging Detail:
Needs 2*40HQ+1*40FR for delivery.
All goods are packed with exported standards package to make sure no damage during transportation.
2. Shipment: 25 days after the deposit

Xinxiang Huayin Renewable Energy Equipment Co., Ltd. is located in Xinxiang City, Henan Province, which is specialized in manufacturing waste tires/plastics to fuel oil pyrolysis machine and waste oil to diesel distillation machine since 1993. our plants have been exported to over 86 countries around the
world . Huayin has a technical R&D and service team composed of more than 30 experienced engineers, and has obtained many invention patents, CE, SGS, ISO9001 and ISO14001 certifications.
Our main product : Batch and continuous waste tyre/plastic pyrolysis plant , oil sludge pyrolysis plant , waste oil recycling to diesel plant , aluminum scrap pyrolysis plant.

Our service

The engineer will be sent to your place to Guide Installation, Test running, and Training of workers.
Besides, Installation preparation manuals will be sent to you so that you can do relevant preparation work before our engineer arrives.
3D drawing, layout drawing, and foundation drawing will be provided based on your land size and other specific requirements.
