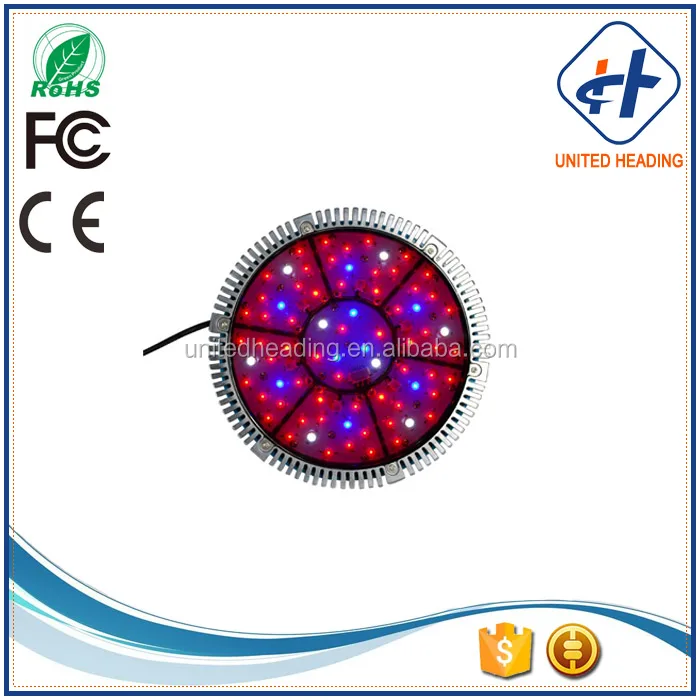

CE ROHS FCC Утверждено полный спектра НЛО Светодиодная промышленная лампа супер мощность 225 Вт НЛО Светодиодная промышленная лампа

Product Overview

Description

CE ROHS FCC approved full specturem UFO led grow light Super Power 225W UFO led grow light



Product  Specification



Specification
Name	90W LED Grow Light	Actual power	85~95W
Model	UFO-75x3W	LED Qty	75pcs*3W
Input voltage	AC100~240V	LED color	Red(630nm)/Blue(460nm)
Output voltage	DC55~70V	Lifespan	50,000 Hours
Input current	670~700mA	Working frequency	50~60Hz
PF	0.9	Working environment	-20~40℃,45%~95%RH
Product size	260*136mm	N.W.	2.86kg
Inner carton size	290*290*180mm	G.W.(Inner carton )	3.3kg
Outer carton size	590*300*370mm	G.W.(Outer carton )	14.05kg

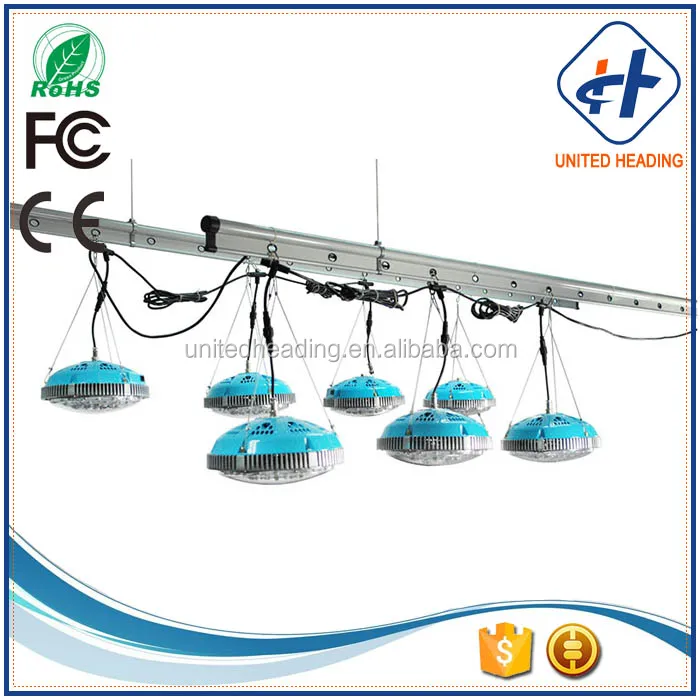

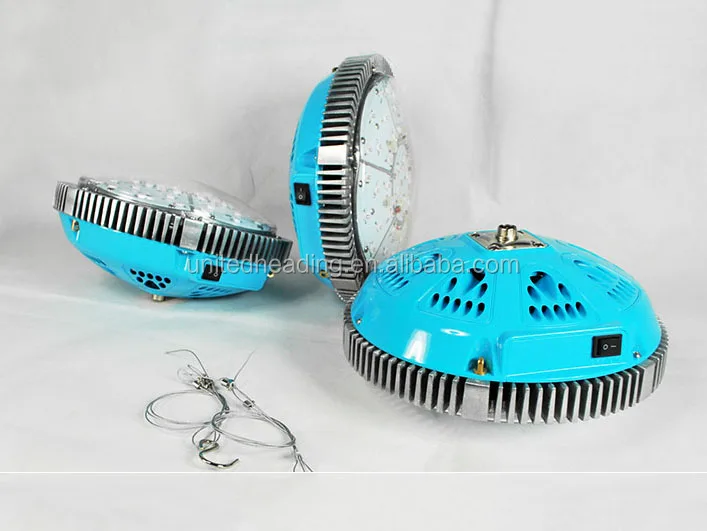

Standard configuration	LED Light x1,Power line x1,Chaining x2
Remarks	The above parameter is based on Red:Blue=8:1, for reference only

Illumination and PAR value data sheet
Height(cm)	20	40	60	80	100	150	200
PAR (umol m-2s-l)	580	170	83	50	32	14	8
Illumination(lux)	15080	4880	2880	1335	816	380	221
Irradiation Area()	9.62	14.51	18.84	22.21	22.38	28.26	34.19

(Remarks: the irradiation area is base on PAR value>10 )





Product  Characteristics

1. Use plastic and die casting aluminum shell, 1, Antirust and antiseptic 2, Elegant appearance and beautiful in colour 3. Reducing the weight of the whole light  4, Stable afety performance

2. Use the patented double cavity cooling structure; 1, The thermal radiation properties is increased by 50%2. Effectively prevent the greenhouse effect in the lamp 3, Due to the good heat dissipation structure design, make the lamp can run smoothly under 700mA current high-power, created the miracle in the industry, greatly improve the effective utilization rate of the LED, fully improve the cost performance, reducing 60% decibelsof the fan noise.

3. Unique back shell air intake design is our company's patent design, created the waterproof and dustproof fan heatdissipation lamps , thus developed using the fan heat dissipation.

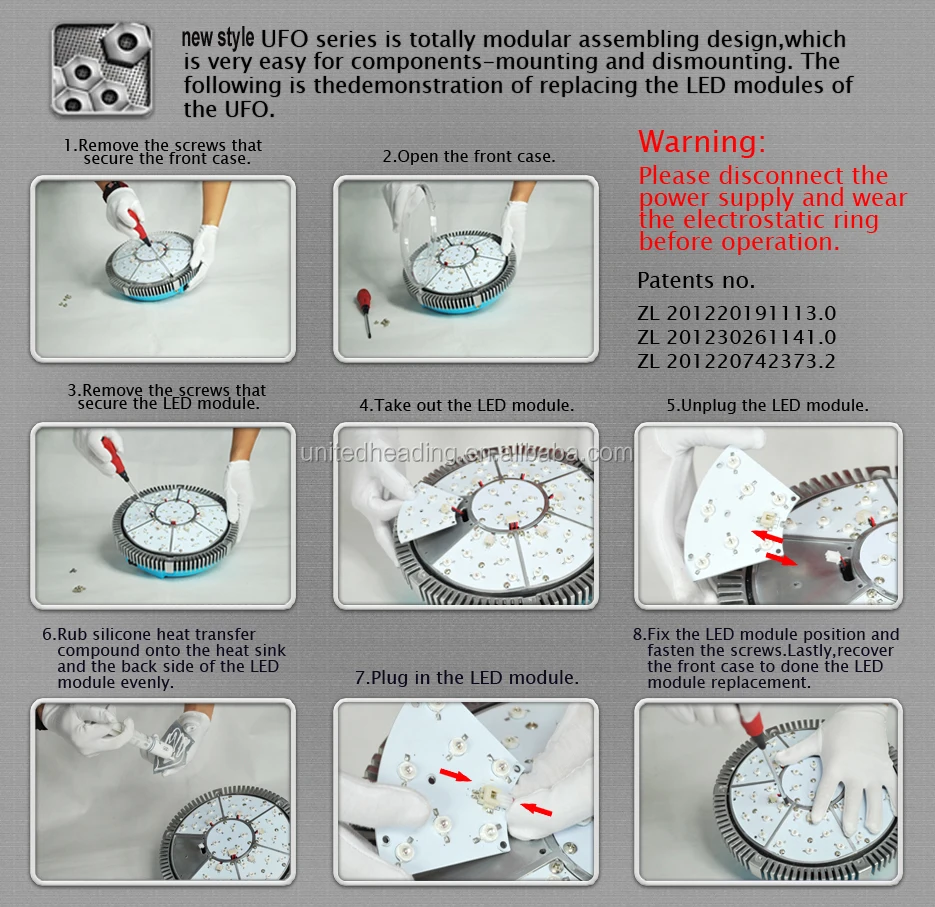

4. The whole lamp circuit use plug connection, the lamp board and power supply respectively in the transparent cover and the back shell, more convenient and simple for maintenance.

5. Use advanced isolation power supply and soft start protection technology, to prevent the high voltage when turn on the light from damaging the lamp body.



Product  Introduction

1. Use high quality LED lighting source, the lifespan is up to 50000 hours.

2. Replace 3~5 times of the HPSL power, 80% electric energy saving than the tradition HPSL and MHL.

3. High lighting effect, 90% of the light will be absorbed by the aquatic plant, but to the traditional HPSL and MHL, the lighting effect is just 8%~10%.

4. Input cooling system, well solve the heat sink problem.

5. The input voltage is AC100V~240V,suitable for the world standard. Built-in power supply. No need other equipment, just access AC100~240V voltage from the plug, the lamp will be working smoothly, don't need the reflector and ballast either.

6. The lighting area and the height are changeable according to different plants and environments, the same as the parameter.

7. Environment-friendly, no mercury and other harmful heavy metal.

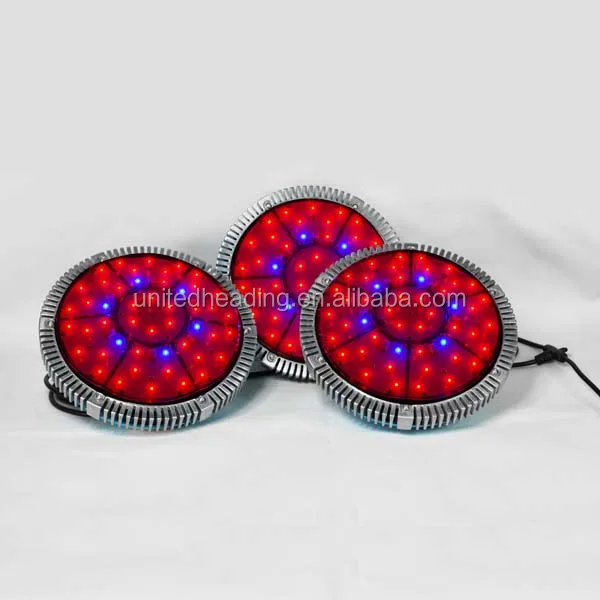

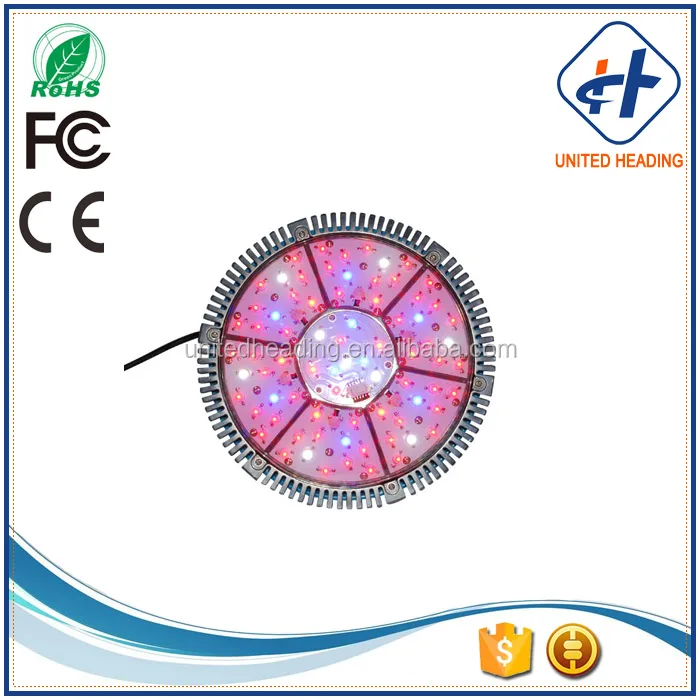

8. Customers can choose the different ratios, Our suggestion is red: blue=8:1 or 7:2, red: blue: orange=7:1:1. The suggested wavelength of the red is 620-630nm, the blue is 460-470nm and the orange is 610-615nm. With the mixture of red ,blue, orange, yellow, UV, IR and white lights, provide the plants needed nutrient light.  The red LEDs are good for sprouting and flowering, while the blue LEDs promote the growth, at the same time, customers also can choose the more suitable wavelength and LED colors.





 Product  Application

 Ideal for all phases of plant growth, and works well with water solution culture and soil culture. Can be used in house garden, pot culture, garden, sowing, breeding, farm, flower exhibition, bonsai, garden, green house, sowing,breeding, farm, greenhouse cultivation, water soluble breeding, greenhouse cultivation, pipeline cultivation and so on.

 Product  Attention

1. Do not use the lights in dripping water or anywhere where they will get wet, water and electricity can be a dangerous mixture.

2. The working environment for the light is -20~40℃,45%RH~90%RH.

3. To protect the light, Pls cut off the power when there is a lightning strike.



4. Don’t touch or move when the light working.
