Product Overview

Description



Product Description




The MHK series Full Auto Stripping Flatbed Die Cutter Die Cut Paper Board Boxes Press Machine of products,as well as maintaining the highest precision and product quality.The MHK series flat bed die cutting machine are well equipped and almost can adapt to all die cutting requirements of products.The machine is characterized by compact structure, fine workmanship, high precision and easy operation, etc.

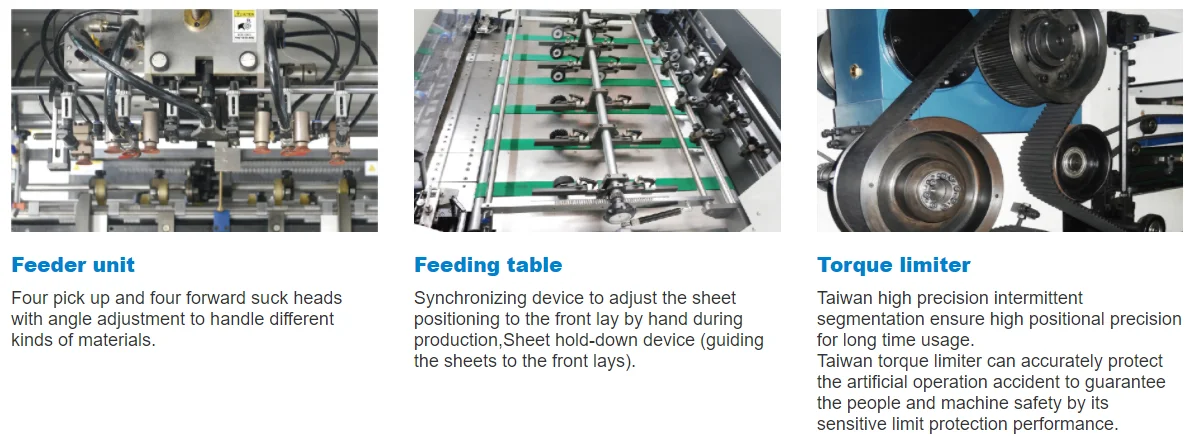

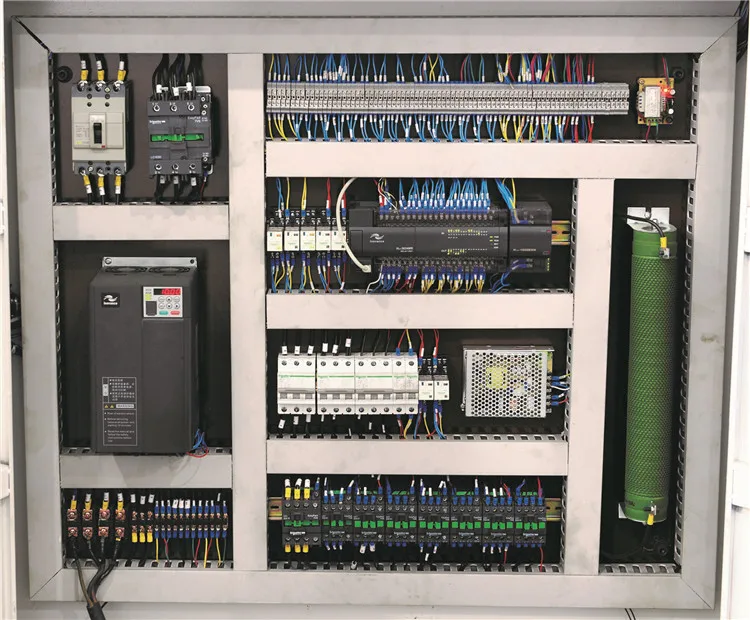

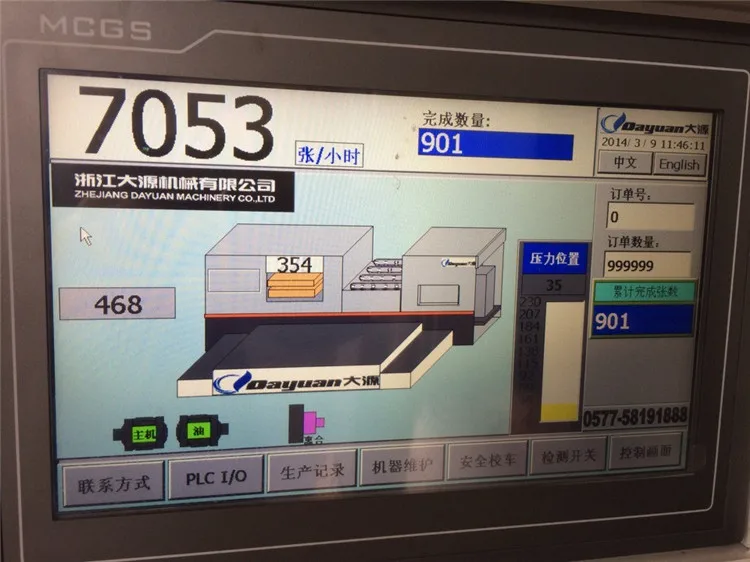

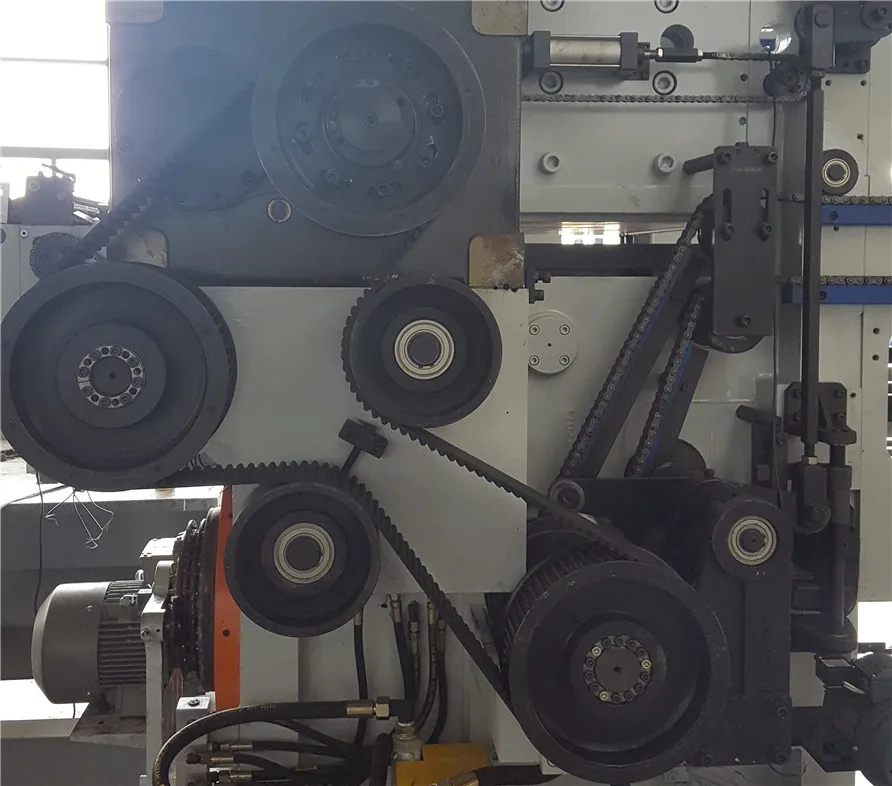

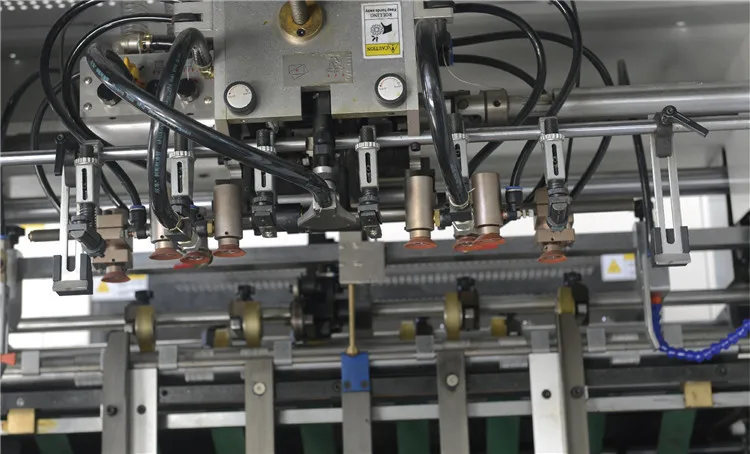

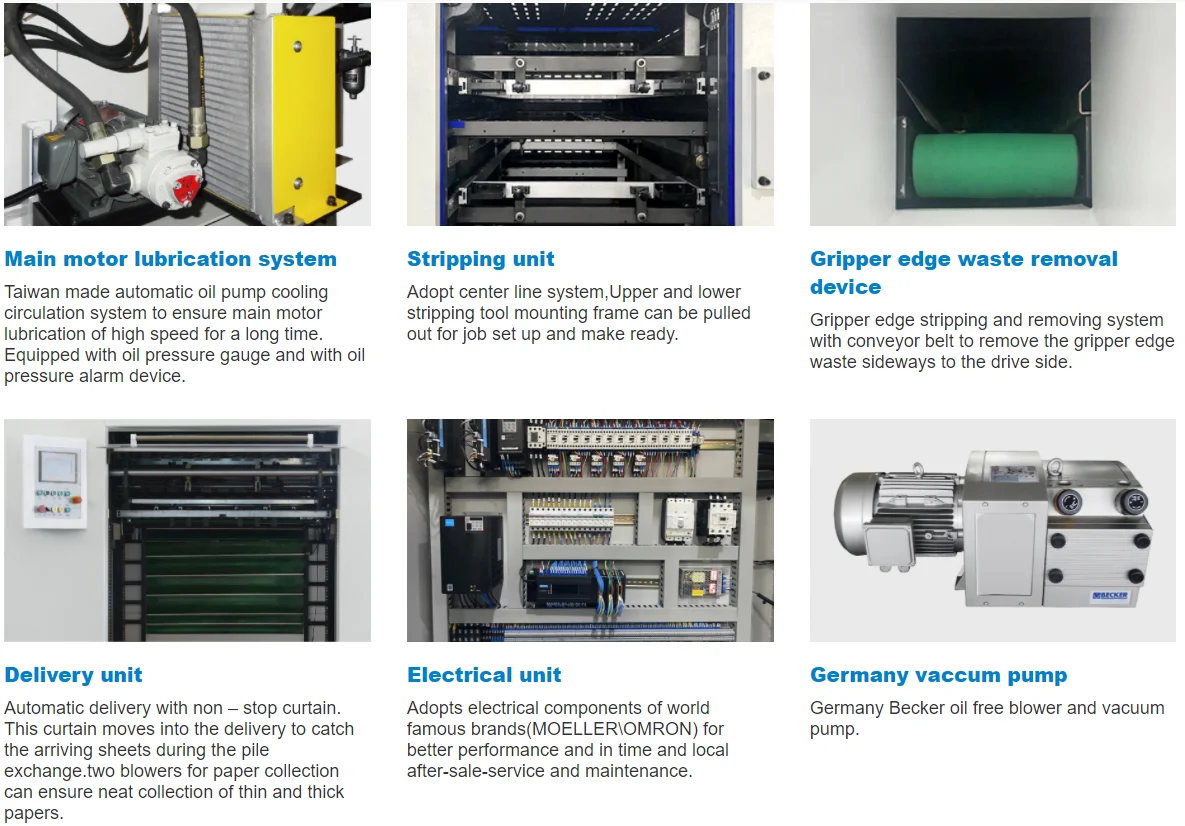

Details Images






Product Paramenters


Model
MHK-1050
MHK-1050A ( heavy duty)
Max. Sheet Size
1050X750MM
1050X750MM
Min. Sheet Size
400X360MM
400X360MM
Max. Die Cutting Size
1040X720MM
1040X720MM
Gripper Margin
9-17MM
9-17MM
Inner Chase Size
1140X755MM
1140X755MM
Stock Range
80-2000GSM paper;
0.1-2mm cardboard;
 <4mm corrugated board
80-2000GSM paper; 0.1-2mm cardboard;
<4mm corrugated board
Die Cutting Accuracy
+0.075MM
+0.075MM
Max. Die Cutting Pressure
300T
600T
Max. Die Cutting Speed
7500Sheet/Hour
7500Sheet/Hour
Max. Feeder Pile Height
1600mm
(wooden pallet included)
1600mm
(wooden pallet included)
Max. Delivery Pile Height
1400mm
(wooden pallet included)
1400mm
(wooden pallet included)
Main Motor Wattage
11KW
15KW
Overall Dimension
6120X4260X2350MM
6120X4260X2350MM
Net Weight Approx
16T
18.5T
Full Load Wattage
16KW
20KW
Air Requirement
Air Presure : 0.6-0.7Mpa;
Flow Rate: >0.37m3/min
(prepared by user)
Air Presure : 0.6-0.7Mpa;
Flow Rate: >0.37m3/min
 ( prepared by user)


Packing & Delivery




Company Profile








FAQ


1. Q: What is your delivery term?
A: FOB,CIF,CFR usually.

2.Q: What is your payment?
A: T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.

3.Q: What is your delivery time?
A: Die cutting machine, 30-40 days usually. If urgent, 15 days only.
Paper cutting machine, 20-30 days usually. If urgent, 15 days only.

4.Q: What is your warranty and other terms?
A: One year warranty. Spare parts are free for customer in 1 year, but customer have to pay delivery. We can send our engineer to
customer factory for 7 days free installing and trainning, customer have to pay tickets, visa, meals and hotel. If need more
training, $100.00 per day to our engineer.
