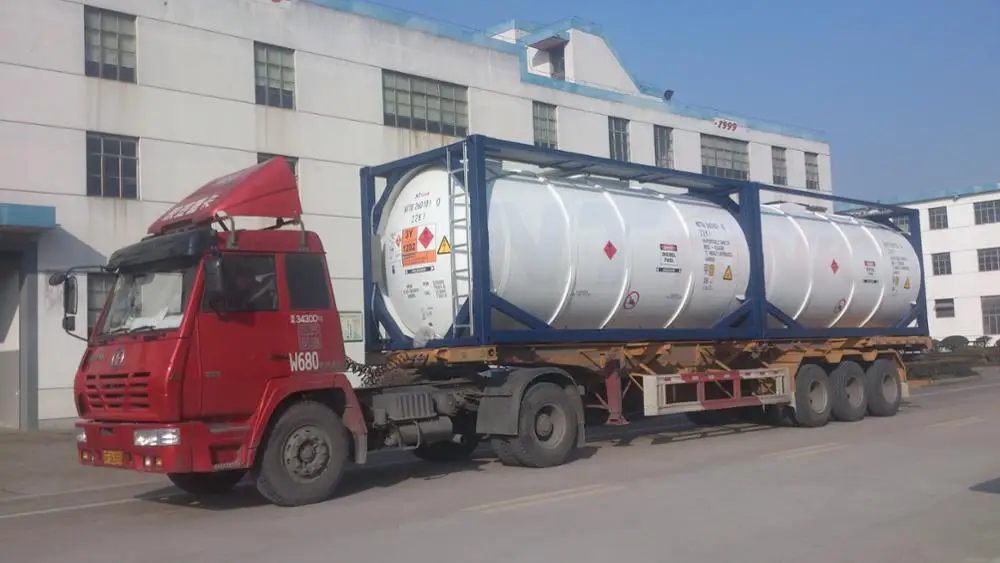

Provide OEM service ISO transport liquid diesel tank container

Tank Type

20’ ISO full frame collar tank, Type UN Portable Tank T4

No insulation, no steam heating, top side rails fitted

Frame Dimensions

20’ x 8’ x 8’6”

Capacity

26,000 Litres +/- 2%

M.G.W.

36,000 kg

Tare (est.)

3,600 kgs +/- 3%

Max Payload

32,400 kgs

Working Pressure

1.76 Bar

Test Pressure

2.65 Bar

Design Temp

-40°C to +130°C

Vessel Material

ASTM 240 304, Hot Rolled

Shell Thickness

5mm nominal

Ends Thickness(B.F)

6mm nominal

Corrosion Allowance

0.2 mm

Frame Material

GB/T 1591-Q345D

Frame to Shell

304 stainless steel

Corner castings

ISO 1161 - 8 off

Vessel Design Code

ASME VIII Div 1

Radiography

Shell

Ends

ASME Spot

ASME Full

Inspection Agency

LR or BV

Cargo carried

See dangerous cargo lists for UN Portable T4 tank

Design Approvals

IMDG T4, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT
