high quality woodworking cnc router machine by united chen
- Category: >>>
- Supplier: UNITED CHEN INDUSTRIAL CO. LTD. [Taiwan China]UNITED
Share on (60685111373):
Product Overview
Description

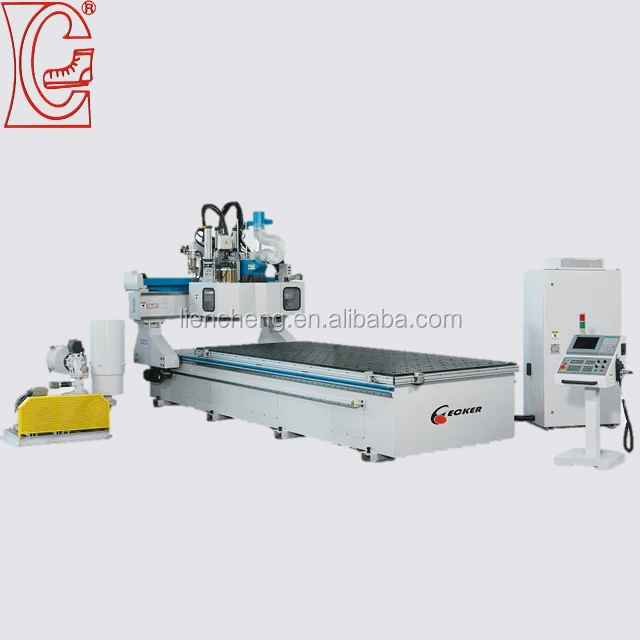

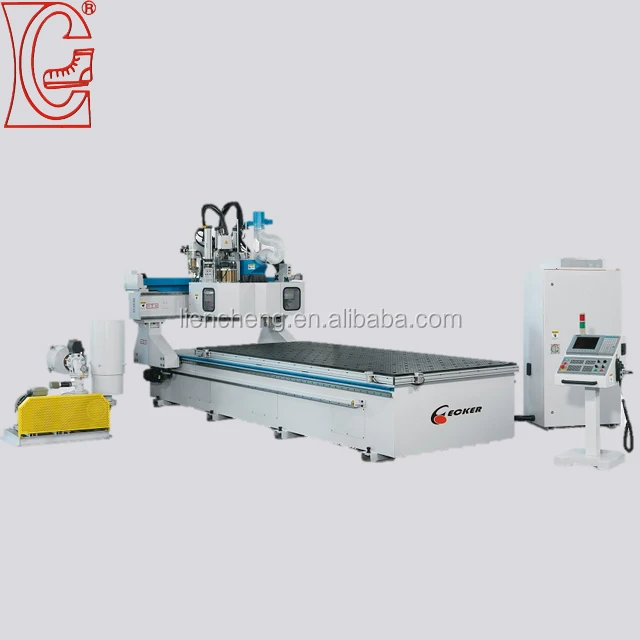

high quality woodworking cnc router machine by united chen
Company Information
Company profile
- As a pioneer in shoes making machinery, UNITED CHEN INDUSTRIAL CO., LTD.
- The company was founded in Taiwan in 1980.
- In 1993, we set up new company in China. We already have 12,000m2 of land.
- We have been dedicating to developing, designing and manufacturing various types of machinery for shoes roughing, hydraulic pressing and shoe forming.
- We also research and develop high precision equipment, such as CNC Engraving Machine, Screen Printer, and etc.
- By sticking to the corporate tenet of "Quality First, and Service First"
R & D
To provide various products to customers, United Chen owns strong R & D team.
Our products are used to many different kinds of industries. Such as: Woodworking, Shoe making, Aluminum machine, CNC machine, Screen printer.
Most important of all, we focus on R & D which is based on customized production in order to enhance the competitive ability.
Catalog
Our advantage
Product Description
1. Functions:

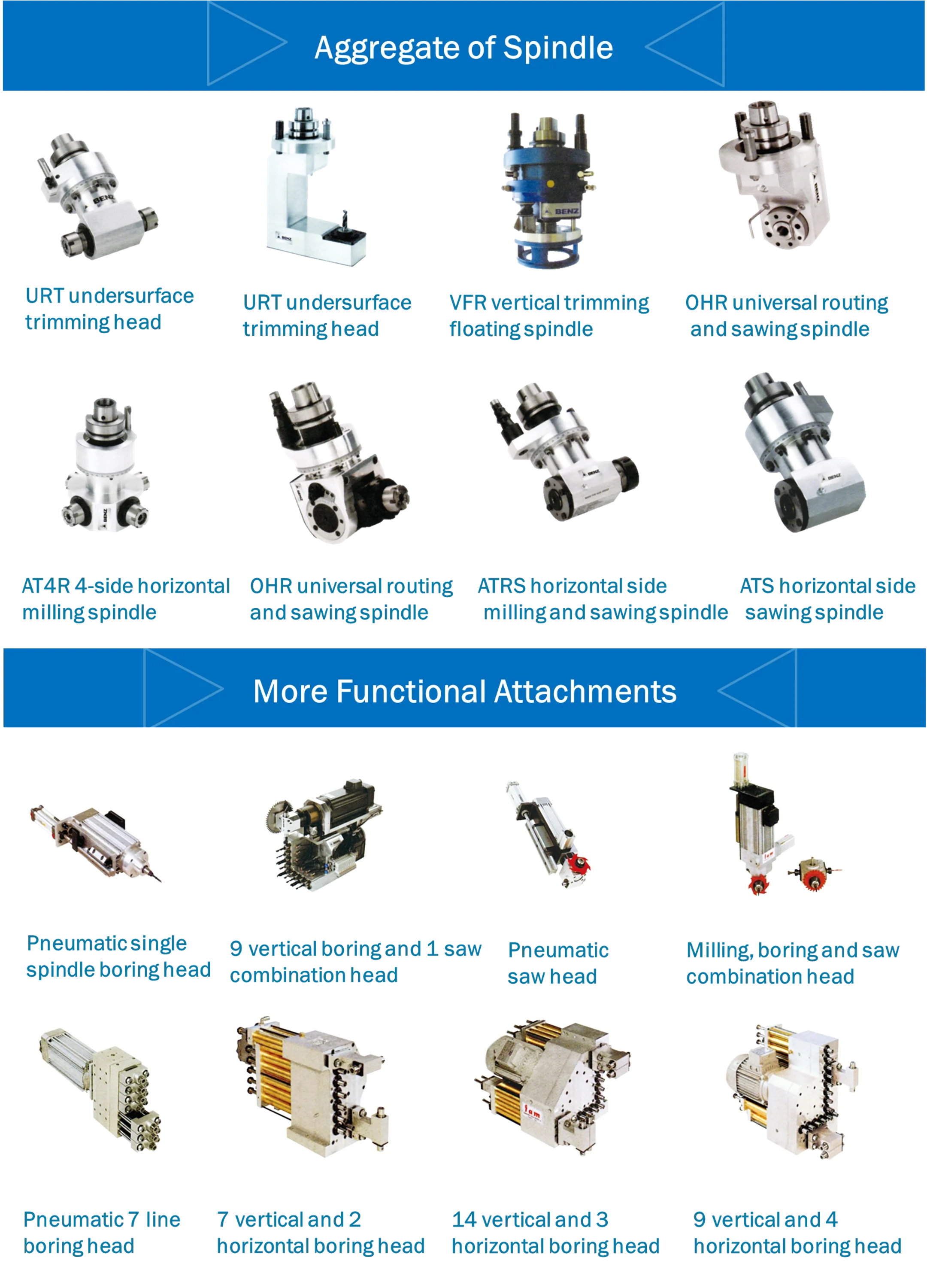

- One spindle, one tool magazine+7 vertical 2 horizontal line boring head (optional).
- Working table: 1550 x 3050 mm.
- Drum type auto. tool change system. Tool magazine capacity 8 tools. Tool change time only 8 seconds. (12 tools is optional)
- Two guide ways, double sides driving structure, features better overall economy.
- Laser light curtain system. provides safety protection. (optional)
- Vacuum table area can be divided into two vacuum zones.When one zone is machining, the other zone can be fed material simultaneously.
- Full sheet of board can be processed directly, not needing prior sawing. This saves making moulds.
- Suitable for machining complex parts in various types.
- Typical applications include woodworking, printed, circuit board (PCB), loud speaker, plastic (PVC, PE, PC, PP, EVA), acrylic mold industry etc.
2. Specifications:
| Model | S1051-AD |
| Table Size | 1550 × 3050 mm |
| Max. Working Stroke | |
| X Axis | 3250 mm |
| Y Axis | 1850 mm |
| Z Axis | 250 mm |
| Spindle Elevation | 150 mm |
| Workpiece Height | Max. 200 mm |
| Pneumatic Drill Head Lifting | 150 mm |
| Speed | |
| X,Y Axis | 60 M/min |
| Z Axis | 20 M/min |
| Spindle Speed | 1000~24000 rpm |
| Main Power | |
| Spindor Motor | 11 HP × 1 HSD |
| Vacuum Pump | 15 HP |
| Dimensions (L×W×H) | 4650 × 2200 × 2300 mm |
Certifications
Our Services
FAQ
FAQ
Q:Are you a factory or trading company?
A:We are the manufacturer and we have more than 30 years factory experience. And we welcome you to visit us.
Q:How to place order?
A:Please have a complete discussion with sale representative before order.
Q:What are the payment options?
A:L/C at sight and T/T. Please advise us if you may need other payment terms before order.
Q:How to receive a quotation?
A:Please send us inquiry via Alibaba or send to our email directly and offer your company information to us.
After receiving your inquiry, we will reply within 24 hours to fulfill your requirements.
Q:How to choose a suitable type/ model of machine?
A:The detail catalog can show common specification of machine,
If you want to customized the products, you can show us your detailed requirements and discuss with sale representative.
Q:Do you accept customized order?
A:Yes, machine specifications can be customized.
Q:Which kind of materials can be processed on this machine?
A:Different machines can use different materials. If you want to know more information, please contact with sale representative.
