electric bike li ion battery pack down tube powerful 18650 ebike battery 36v 10ah
- Category: >>>
- Supplier: Shenzhen Novoxy Power Technology Limited
Share on (60685114985):
Product Overview
Description
Product Description
| Specification | |||||
| name | electric bike li ion battery pack down tube powerful 18650 ebike battery 36v 10ah | ||||
| Nominal Voltage | 36v | ||||
| Nominal Capacity | 10ah | ||||
| Charge End-off Voltage | 42V | ||||
| Discharge End-off Voltage | 27.5V | ||||
| Charging Method | CC-CV | ||||
| Initial Charging Current | Standard Charge | 0.2C | |||
| Max. Charge | >10℃ | 1.0C | |||
| 0~10℃ | 0.2C | ||||
| Max continious discharge current | 15Amps(can be customised) | ||||
| peak discharge current | 50Amps | ||||
| Weight | 3.2kg | ||||
| Main Protection Function | Over Charge, Over Discharge, Over current, Short Circuit | ||||
| Operating temperature | charge 0-60℃ | ||||
| discharge -20-60℃ | |||||
| Storage temperature | 1 month:-20-45°C | ||||
| 3 months:-20-35°C | |||||
| 6 months: -20-25°C | |||||
| Down tube tpye-Dolphin | |||||
 | |||||
| Max cells | Configuration | Capacity | |||
| 18650 2.2ah | 18650 2.6ah | 18650 2.9ah | 18650 3.4ah | ||
| 52 cells | 10S5P | 11AH | 13AH | 14.5AH | 17AH |
| 13S4P | 8.8AH | 10.4AH | 11.6AH | 13.6AH | |

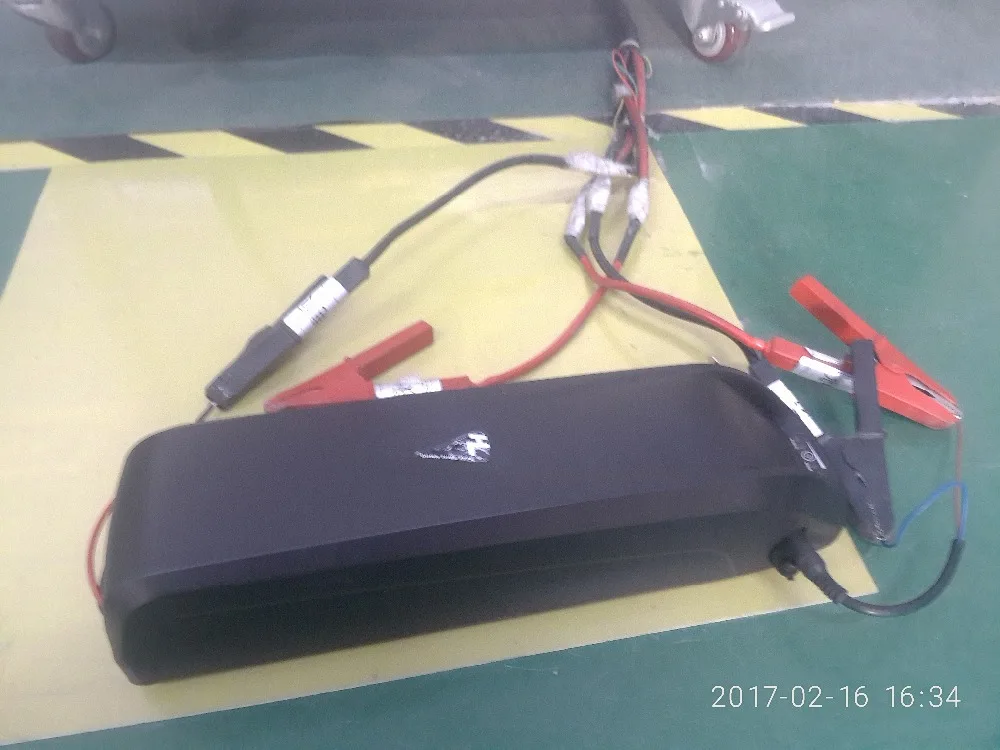

| Down tube tpye-Hailong I | |||||
 |  | ||||
| Max cells | Configuration | Capacity | |||
| 18650 2.2ah | 18650 2.6ah | 18650 2.9ah | 18650 3.4ah | ||
| 52 cells | 10S5P | 11AH | 13AH | 14.5AH | 17AH |
| 13S4P | 8.8AH | 10.4AH | 11.6AH | 13.6AH | |
| Down tube tpye-Hailong II | |||||
 |  | ||||
| Max cells | Configuration | Capacity | |||
| 18650 2.2ah | 18650 2.6ah | 18650 2.9ah | 18650 3.4ah | ||
| 40 cells | 10S4P | 8.8AH | 10.4AH | 11.6AH | 13.6AH |
| 13S3P | 6.6AH | 7.8AH | 8.7AH | 10.2AH | |

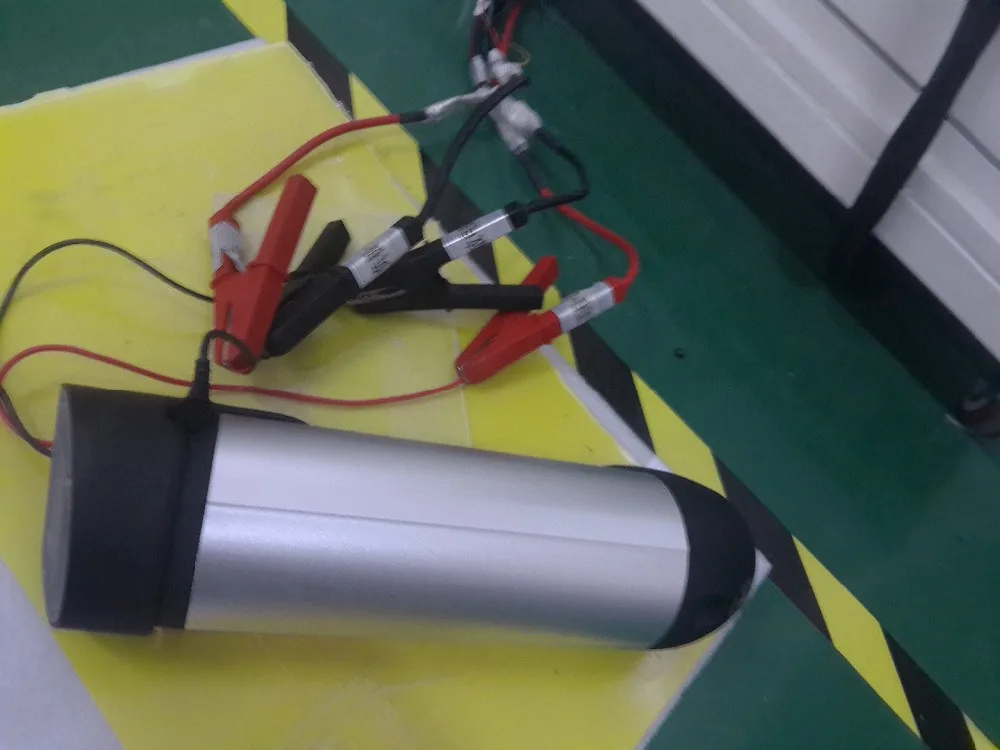

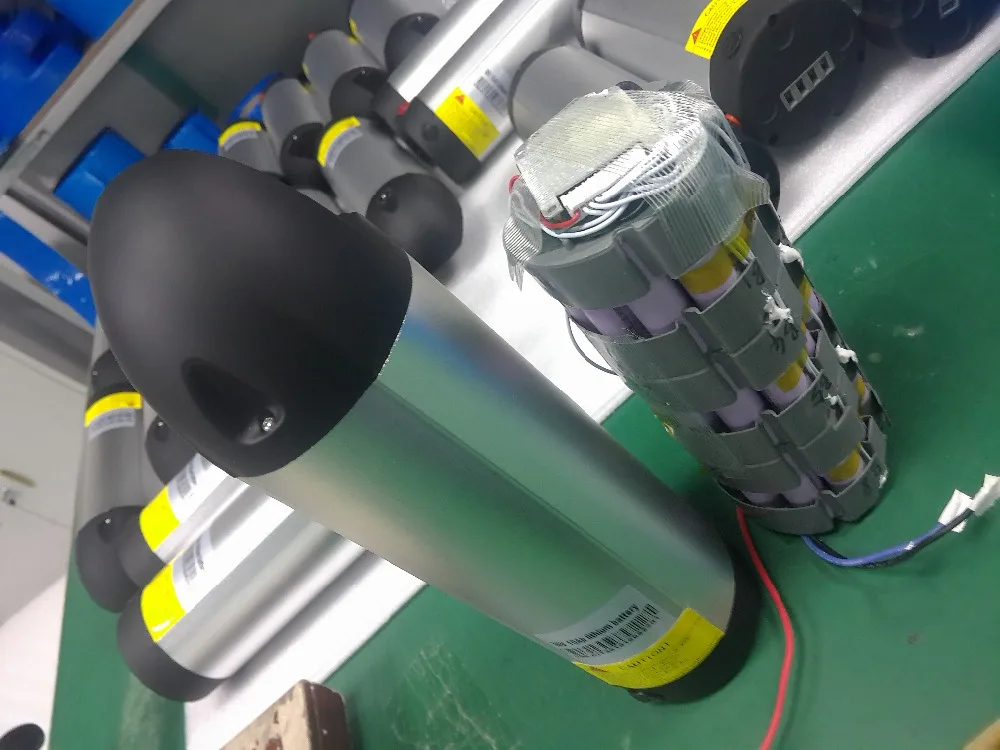

| Down tube tpye-Bottle | |||||
 |  | ||||
| Max cells | Configuration | Capacity | |||
| 18650 2.2ah | 18650 2.6ah | 18650 2.9ah | 18650 3.4ah | ||
| 40 cells | 10S4P | 8.8AH | 10.4AH | 11.6AH | 13.6AH |
| 13S3P | 6.6AH | 7.8AH | 8.7AH | 10.2AH | |
| Advantages | |||||
| 1. Grade A 18650 cells 2.Long cycle life at least 500 cycles 3. Different capacity battery cells for option: 2000mah,2200mAh,2600mAh,2800mAh,3400mAh 4.Customize all kinds of battery packs and modular designs 5.PCM& BMS use the lastest American or Japanese clips 6.Factory price & High quality |
Packaging & Shipping
| Packing & Shipment | |||||
1.Carton box or custom packaging accept other shipping terms according to your requirements.
|
Our Services
| Payment terms | |||||
Payment terms: T/T,Western Union30% deposit, balance before shipment, L/C is available. |
| Advantages | |||||
| 1. One year warranty, will replace new one free if quality problems. 2.Your inquiry will be replied in 12 hours. 3. Short lead time and quick shipping. 4. Protection of your sales area, ideas of design and all your private information 5. Whatever big or small order , we will provide best quality , best service. |
Company Information
our company | |||||
Shenzhen Novoxy Power Technology Limited was established in 2010, we gain high reputation in the rechargeable battery field due to its high quickly developing in recent years. Our quality is stable and credible, with high capacity, long cycle life, low internal resistance, no pollution, no memory, high current discharge and overnight charger characters. All the lithium batteries are widely used for LED lighting, LEV, energy storage system, household appliances, medical devices, power tools and other leadacid replacement areas. All the products pass CE, UL certifications.
Novoxy Power has advanced custom development, specialized manufacturing operating system with strong supply chain. URE has about 50 staff R&D team, and most of them are senior engineers with more than five years experiences in the lithium industry, thatallow us to supply most competitive cells, battery pack and BMS solutions.
|
