400mpa small waterjet cutting machine price usd20000 30000 only waterjet cutter
- Category: >>>
- Supplier: Guangzhou Perfect Machinery Technology Co. Ltd.
Share on (60685126129):
Product Overview
Description
Technical Information of Perfect Water Jet HJ400-1625
1.Basic Characteristics
S.N. | Component Parts |
1 | General configuration of a complete set of the machine: main machine, cutting platform and numerical control system |
2 | effective cutting area of the workbench: 1600mm * 2500mm |
3 | Structure: cantilever, convenient for loading and unloading materials, servo motor for direct drive shaft-arm cutting to ensure cutting precision |

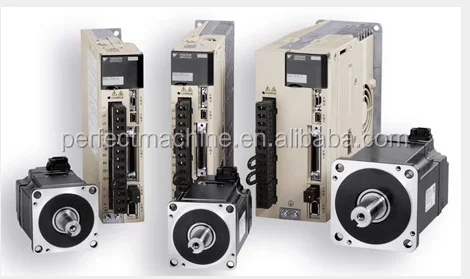

4 | High-pressure pump power: 18.5 KW Servo motor, main parts from USA |

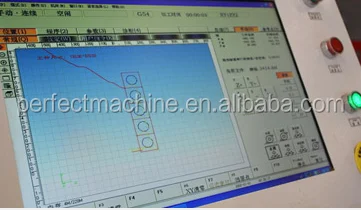

5 | Independent research and development of numerical control system, multi-threaded operation achieved under WINDOWS7 |
6 | The auto feeding system can loading 200kgs one time |
7 | The main part of the cutting blade is imported from the United Kingdom |
8 | It can be seamlessly connected with the AUTO CAD to directly transform DXF file change into G code. |
3.2 After-sales Service
1. Free warranty for the whole machine for one year or 2000 high-pressure/hour (except wearing parts and the replacement of wearing parts)
2. Training of two personnel for operation and maintenance of equipment and one computer operator for the user
3. On-Site installation and commissioning (the user is responsible for board and lodging)
4. Lifetime maintenance
5. To Guarantee long-term supply of spare parts
6. To enjoy upgrade of special prices when there are new products and technologies
7. Repair response time: during the quality assurance period, when the user’s equipment fails, respond within 24 hours after receipt of written notice. For a common failure, direct the user to resume production as soon as possible by way of telephone, fax or e-mail, and we shall arrive at the scene as soon as possible and help users solve the problem when the user’s operators try but fail to solve the problem.
4.CUTTING PARAMETER
Material | thickness mm) | Cutting speed(280Mpa) mm/min) | Cutting speed(350Mpa) mm/min) |
Stainless steel | 1 | 1000 | 150 |
3 | 500 | 800 | |
6 | 350 | 400 | |
10 | 200 | 300 | |
16 | 80 | 130 | |
20 | 60 | 100 | |
30 | 35 | 60 | |
40 | 20 | 40 | |
55 |
| 20 | |
100 |
| 15 | |
brass | 3 | 600 | 1000 |
5 | 450 | 700 | |
aluminum | 10 | 600 | 1000 |
20 | 300 | 450 | |
30 | 150 | 200 | |
70 |
| 50 | |
marble | 20 | 1500 | 2000 |
30 | 600 | 900 | |
granite | 20 | 500 | 750 |
30 | 300 | 500 | |
Tiles | 10 | 1300 | 2000 |
28 | 800 | 1300 | |
glass | 6 | 1500 | 2000 |
10 | 1000 | 1300 | |
19 | 400 | 600 | |
Laminate glass | 20 | 600 | 800 |
foam | 20 | 8000 | 10000 |
50 | 4000 | 6300 | |
80 | 3000 | 4600 |
