High quality agricultural crawler tractors 4 wheel farm tractor
- Category: >>>
- Supplier: Qingdao Henry Industry Co. Ltd.
Share on (60685196410):
Product Overview
Description

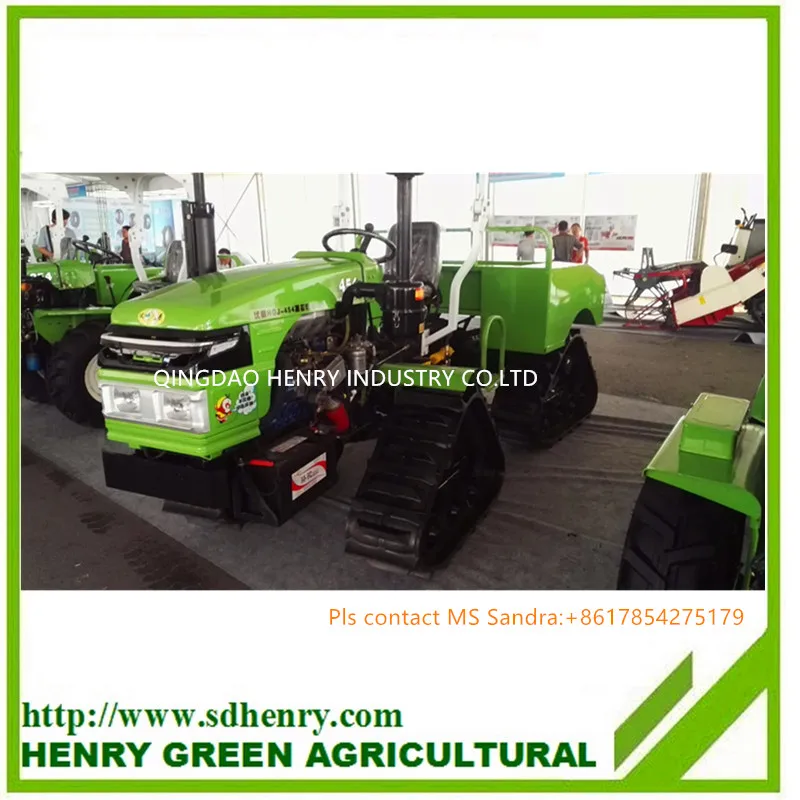

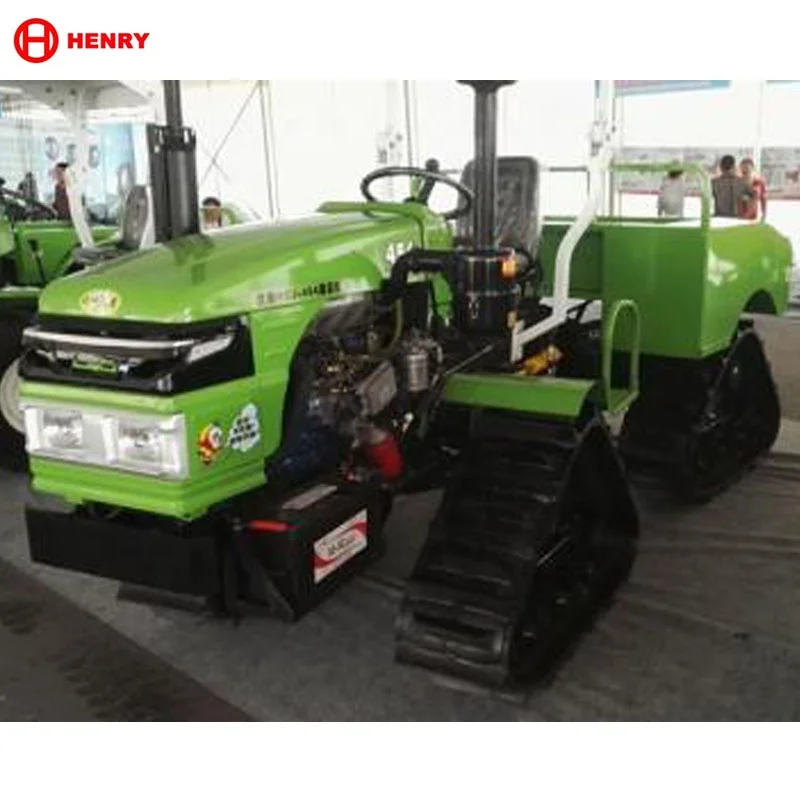

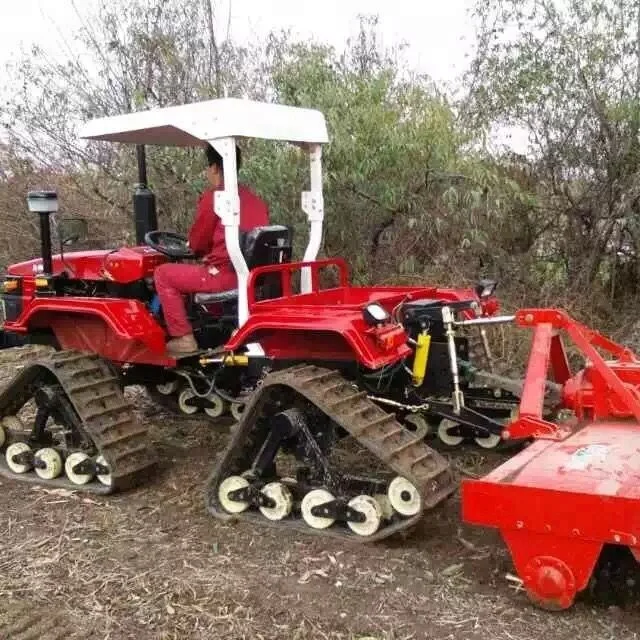

High quality agricultural crawler tractors crawler tractors small crawler with best price:

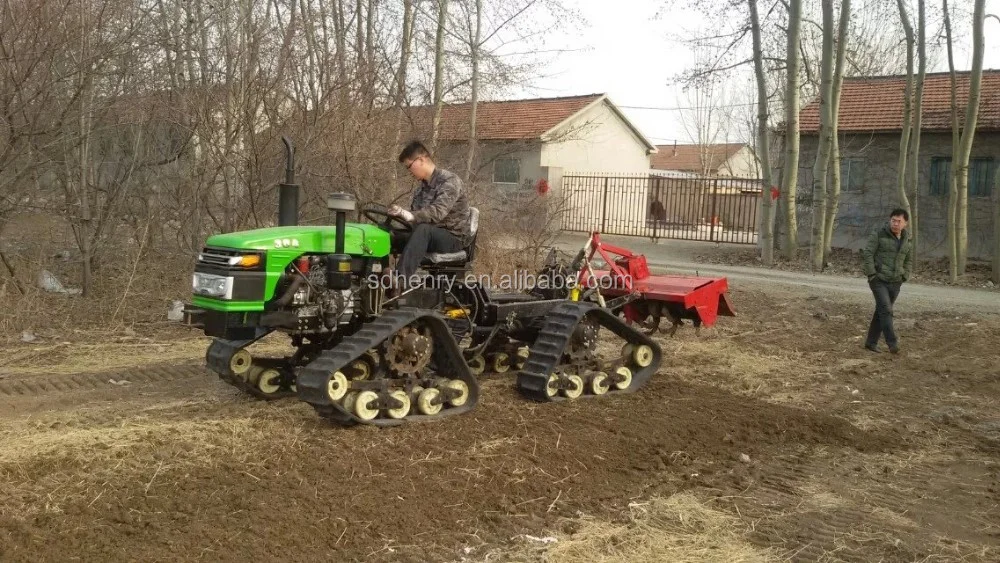

crawler tractor suit for mud land,it's housepower 35--50hp.
High quality and beautiful appearance.
It's water cool and Hydraulic steering bow spherical roller worm or cycloid rotating valve hydrostatic transfer.
Specifications:
Model | HG454 | HG504 |
Chassis | HG45 | HG45 |
Engine Model | 4L23BT | 490 turbo |
No of cylinders | 4 | 4 |
Power (kw/hp) | 33.075KW/45HP | 36.75KW/50HP |
Torque Max (Nm/revs) |
| 7.9KN |
Cooling | Water cool | |
Tank Capacity (Liters) | 35L | 35L |
Transmission | (4+1)*2 | |
Tires | CRAWLER | |
PTO | 540\\720 | 540\\720 |
Rear hydraulic lift | Semi-Split - height control or simple position control | |
Operating Pressure (bar) | 16Mpa | 16Mpa |
Steering | Hydraulic steering bow spherical roller worm or cycloid rotating valve hydrostatic transfer | |
Brakes | Oil brake | |
Whole vehicle dimension | 3600*1500*1300mm | |
Weight (kg) | 1400kgs | 1450kgs |
Load weight in the mud land or hill land | 2tons | 2tons |
Electric | 12V,80ABattery,306gear pump | |
crawler ground clearance | 420mm | |

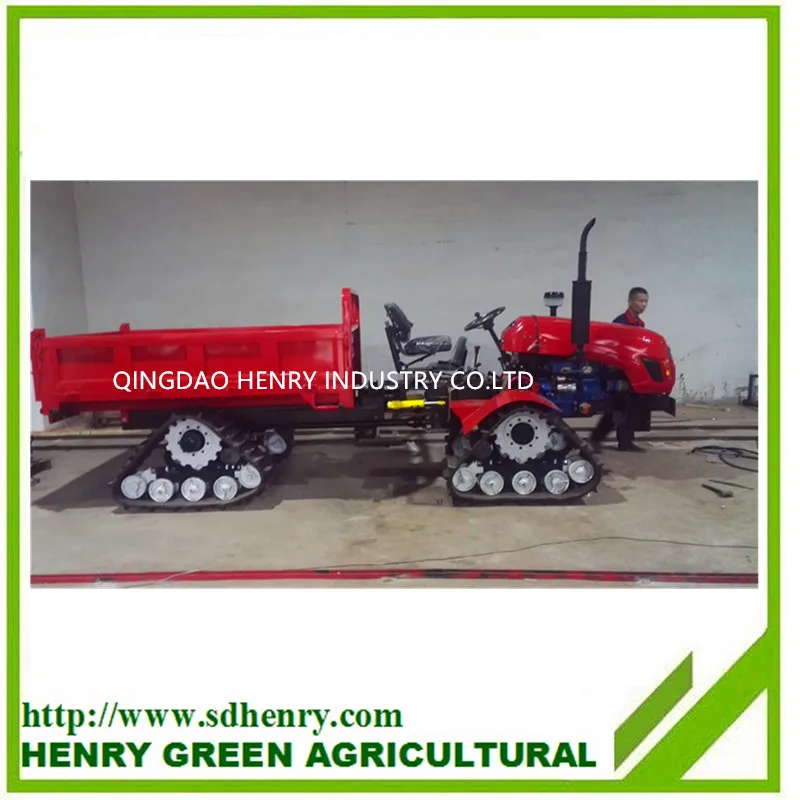

Trailer can choice | Trailer box can choice size 2500×1500×400, | |
Others | whole tractor cast part within 12months, easy damage part within 3 months. | |

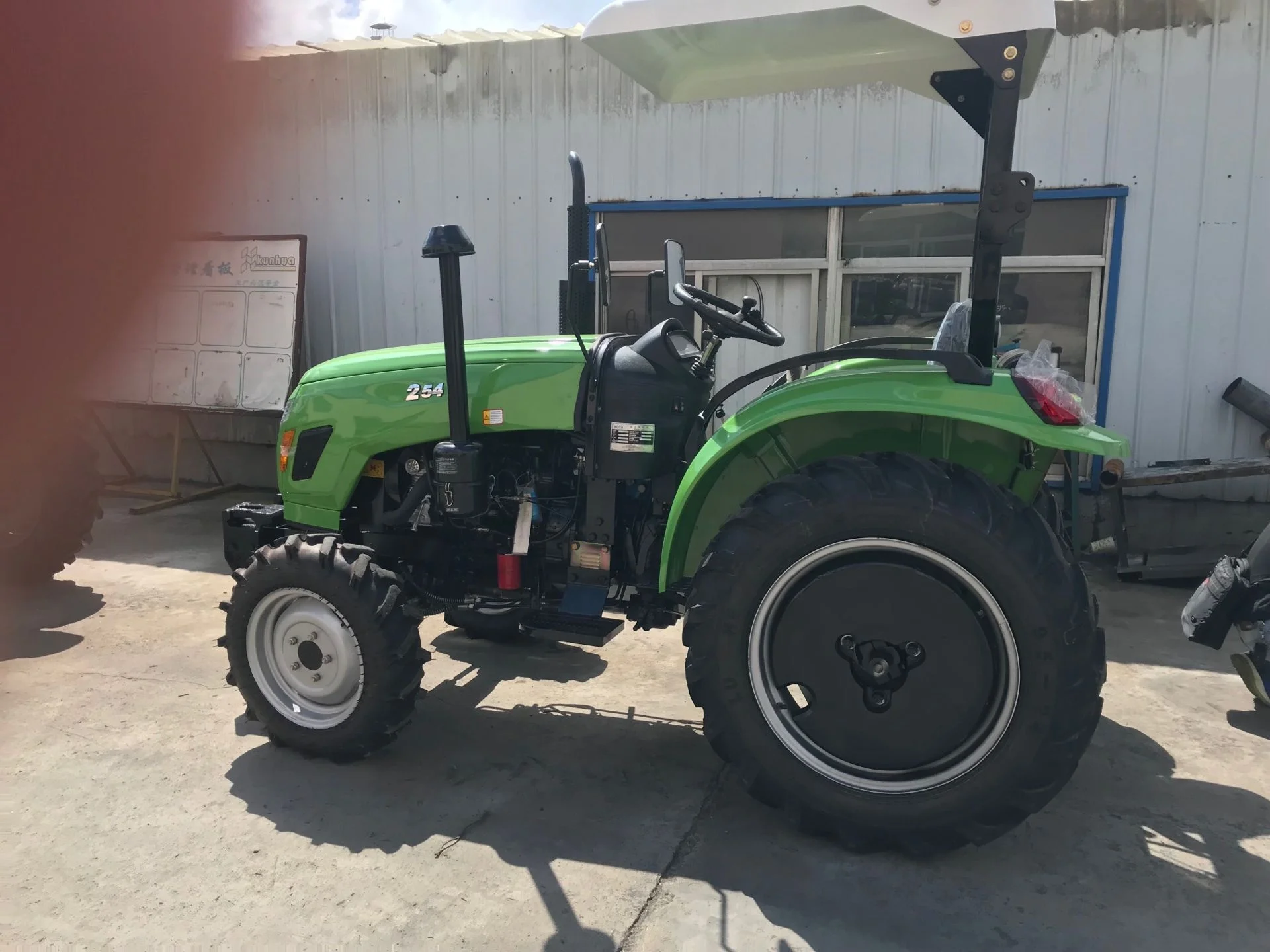

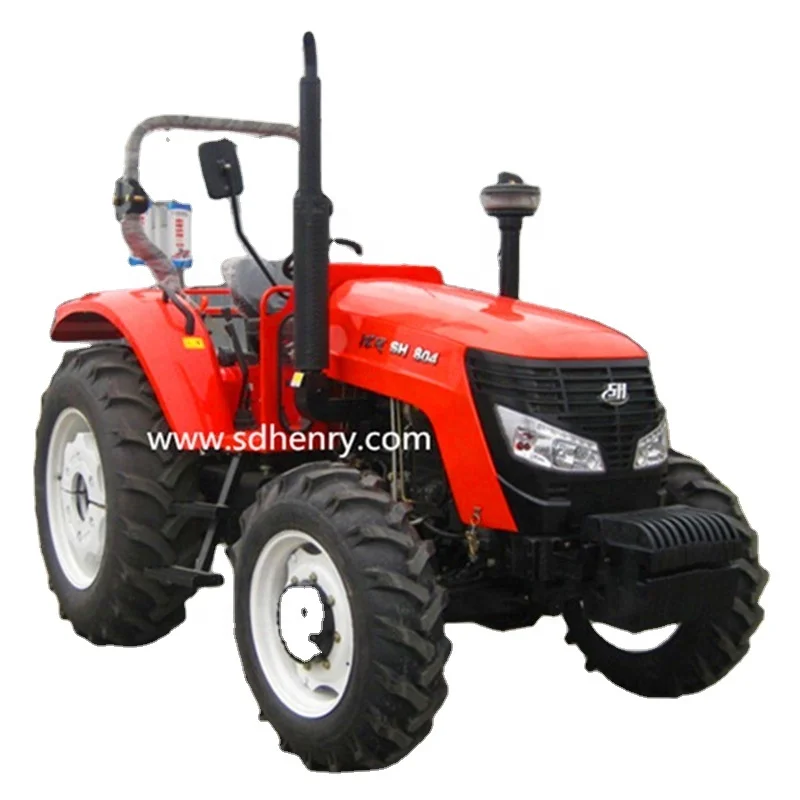

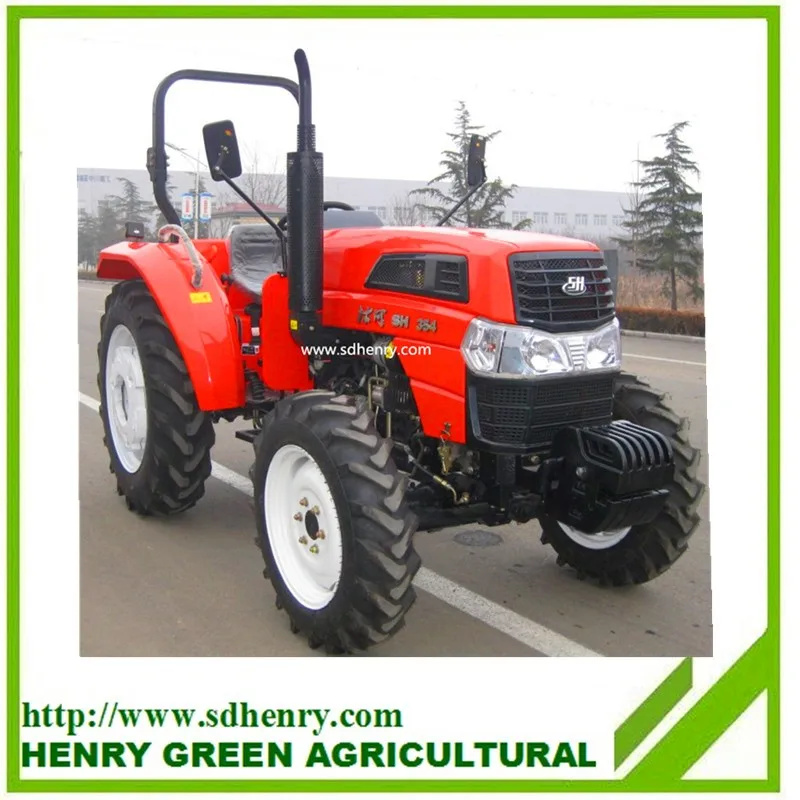

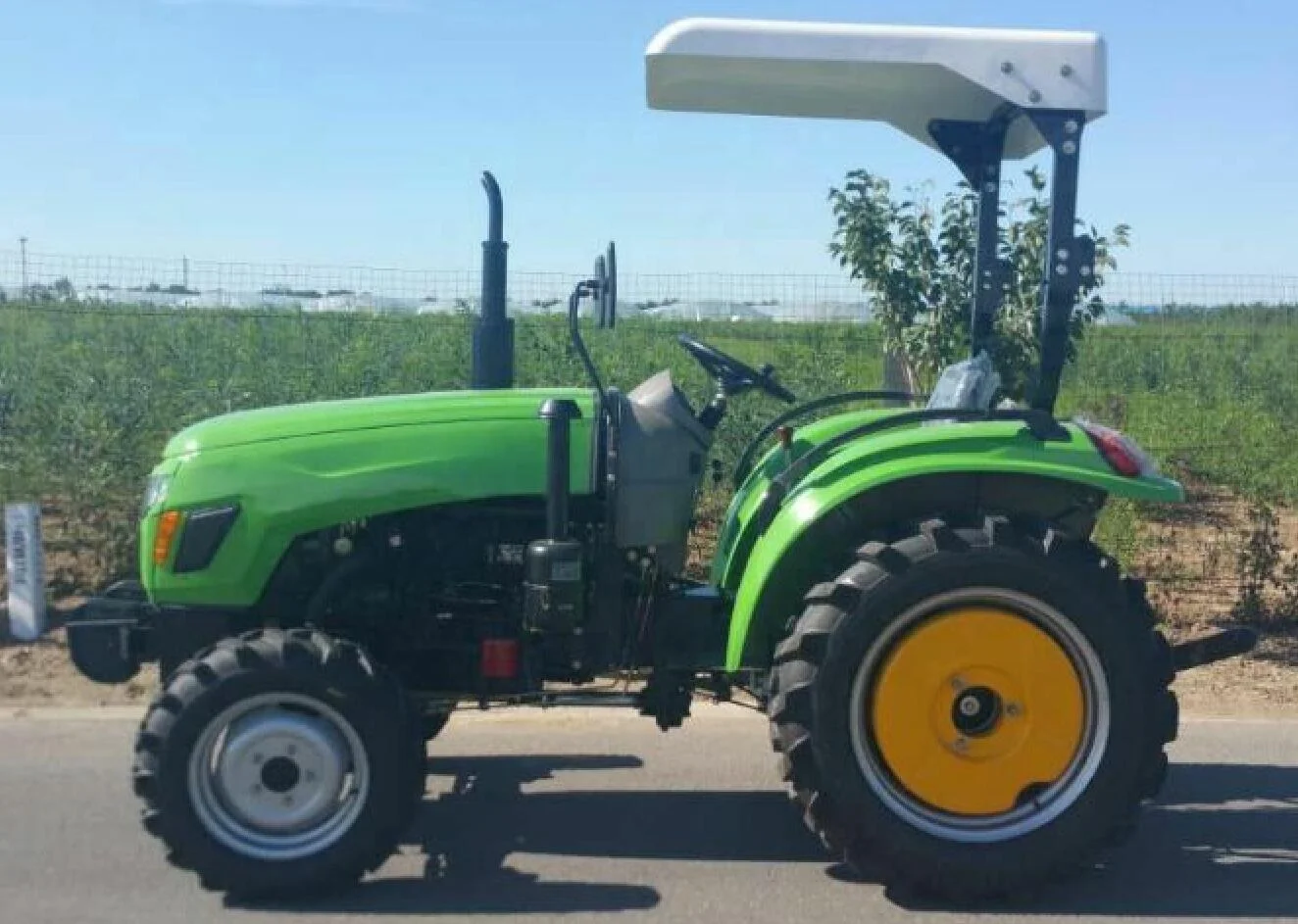

4 Wheel tractor power 35--45hp:
1.Beautiful appearance, flexible and compact, comfortable and simple operation.
2.optional three cylinder, four cylinder engine, to meet your different needs.
3.The combination instrument and the automobile electric appliance constitute the switch,
the control staff can understand the machine working state at any time, and provide the guarantee for the scientific use of the machine.
4.Meshing gear shift, gear brake mechanism to ensure that the product is durable.
5. Ability to quickly install various accessories to meet the needs of various agricultural work.
Specifications:
Type | 354 | 404 | 454 | |
Drive type | 4*4WD | 4*4WD | 4*4WD | |
Engine | ||||
Engine Type | 4L23BT | QC490T40 | QC495T45 | |
Rating power of engine | 25.7/2350 | 29.4/2400 | 33.1/2400 | |
Transmission system | ||||
Clutch type/size | One-piece,dry,double-action/10 inches | One-piece,dry,double-action/10 inches | One-piece,dry,double-action/10 inches | |
No. of gears | 8F+4R/8F+8R/12F+12R | 8F+4R/8F+8R/12F+12R | 8F+4R/8F+8R/12F+12R | |
Hydraulic system | ||||
Hydraulic output flow rate | 38.4 | 38.4 | 38.4 | |
Hydraulic output valve | One group/Two groups/Three groups/Simple hydraulic output | One group/Two groups/Three groups/Simple hydraulic output | One group/Two groups/Three groups/Simple hydraulic output | |
Working device | ||||
Three-point-linkage | 1 Type/2 Type (Optional) | 1 Type/2 Type (Optional) | 1 Type/2 Type (Optional) | |
PTO Speed | 540/760rpm | 540/760rpm | 540/760rpm | |
kn Lifting Capacity | 9KN | 9KN/15KN(Enforced lift) | 9KN/15KN(Enforced lift) | |
The whole machine size (dimensions) mm | 3790*1485*2105 | 3790*1520*2130 | 3790*1520*2130 | |
Min. operation mass | With cab | 2200 | 2300 | 2300 |
Without cab | 2112 | 2120 | 2120 | |
Wheel base | 1992 | 1992 | 1992 | |
Minimum ground clearance | 265 | 325 | 325 | |
tyre size | 7.50-16/11.2-28 | 8.3-20/12.4-28 | 8.3-20/12.4-28 | |
Braking and steering | ||||
Braking system | Wet type,disc brake | Wet type,disc brake | Wet type,disc brake | |
Steering type | hydraulic steering | hydraulic steering | hydraulic steering | |

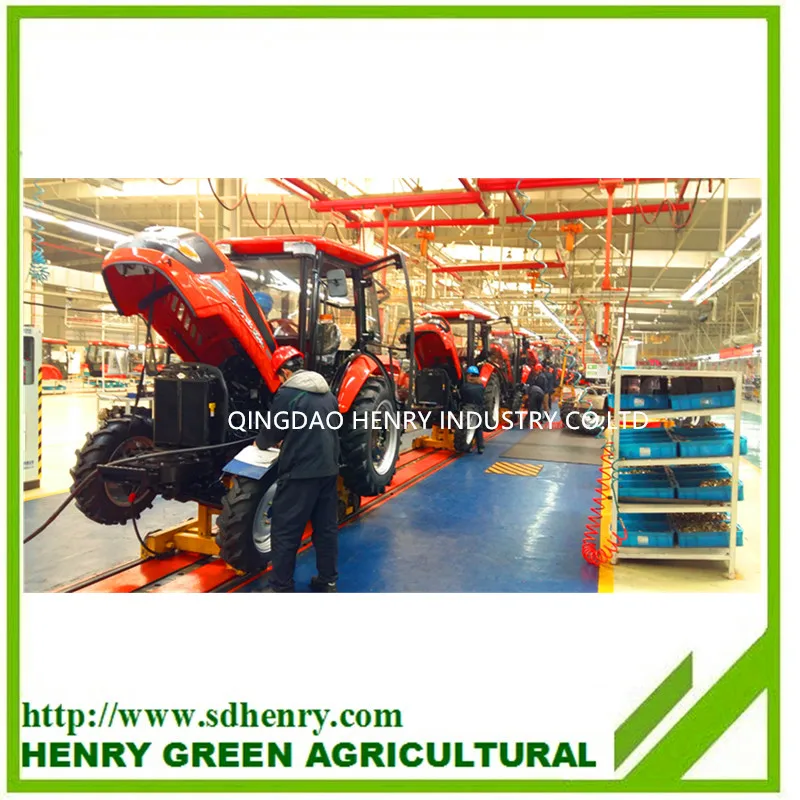

FACTORY:
PACKAGE SHOW:
OUR COMPANY SHOW:
WHY CHOOSE US?
1). we are china leading manufacturer.
2). Alibaba assessed 5 year Gold supplier.
3). Inspection can accept BV or SGS.
4). 100% QC inspecition before shipment.
5). Best quality and best service with competitive price.
